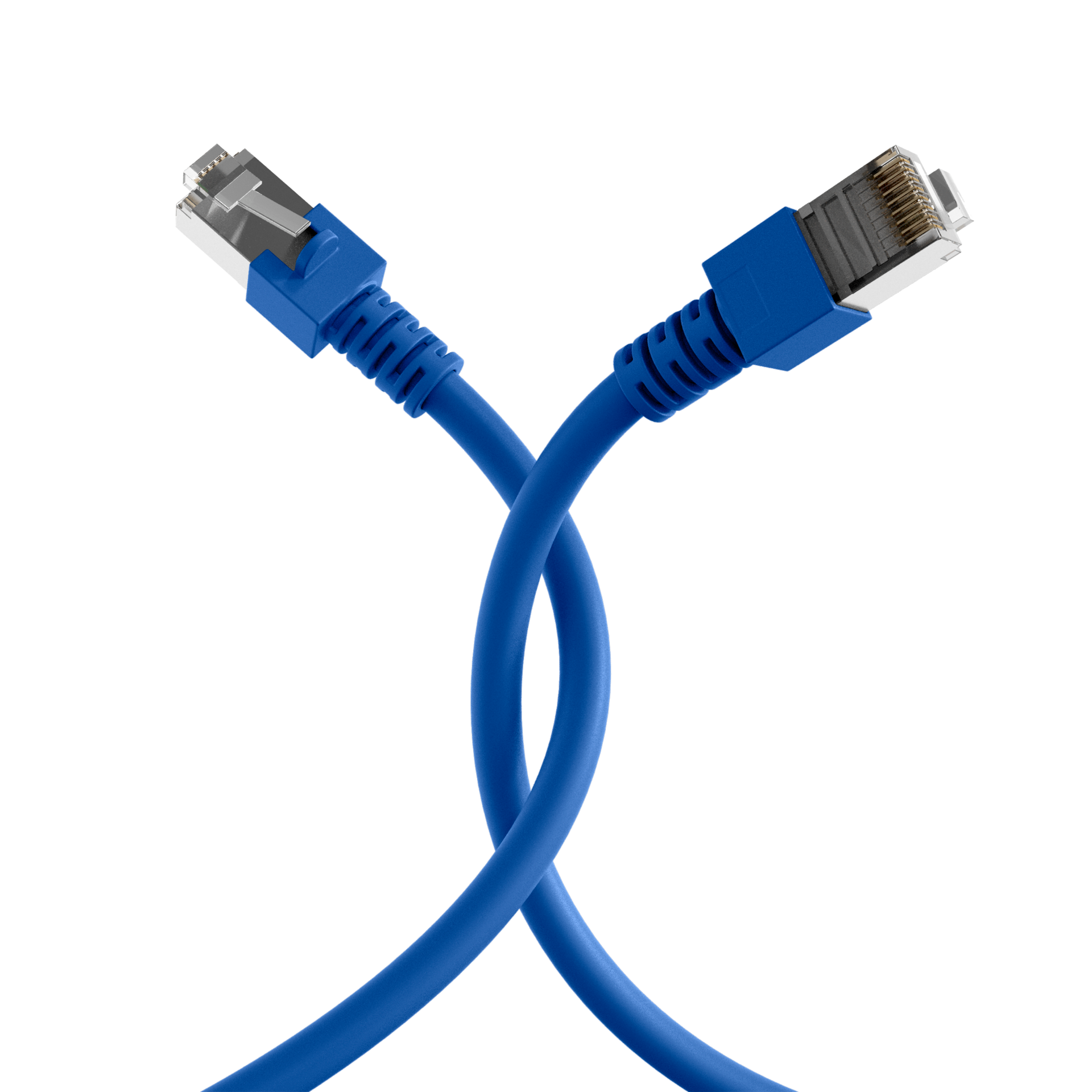

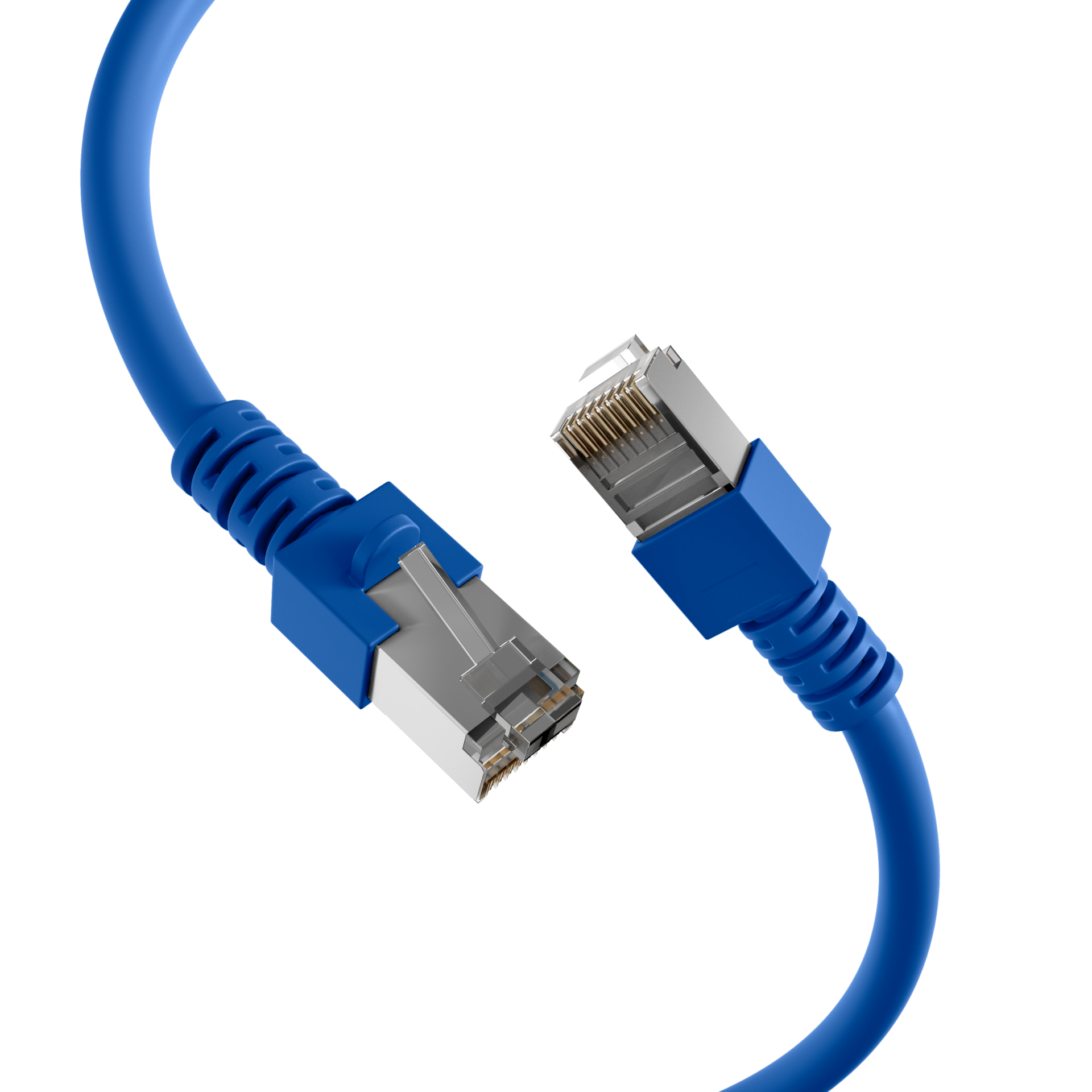

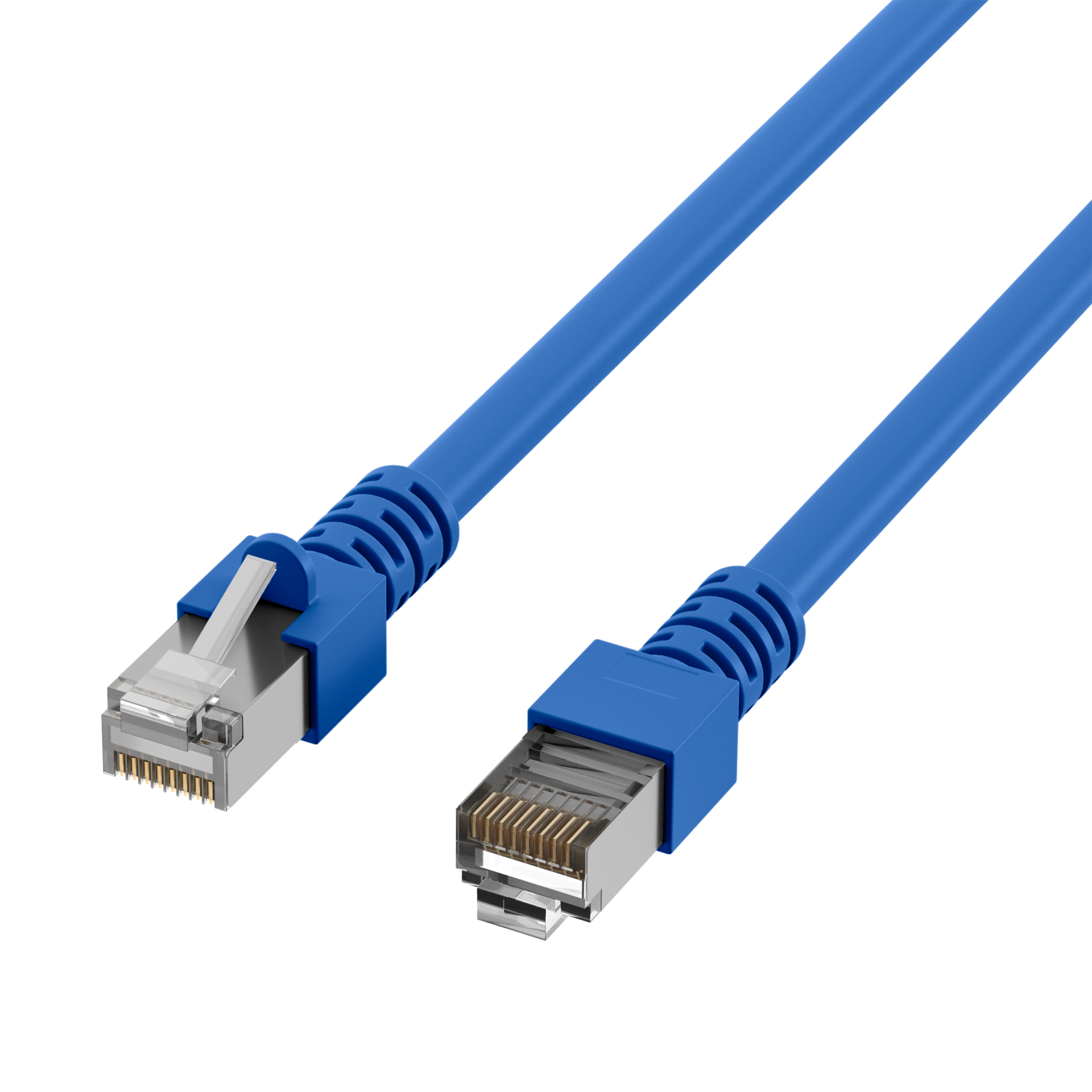

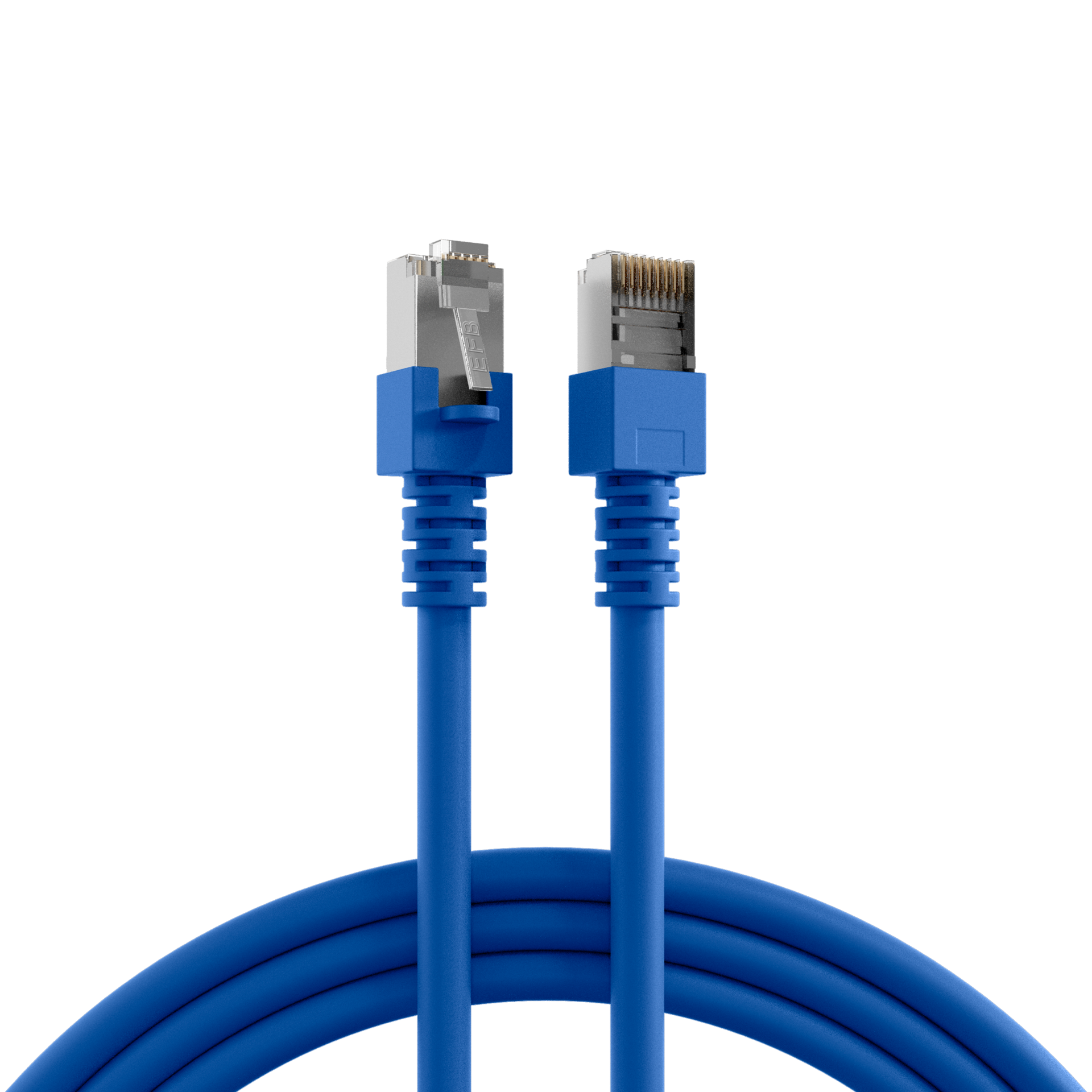

RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue

Priser kun synlige for indloggede brugere

RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 0,5m
Varenummer: K5459.0,5
EAN nr.: 4049759030520
Piece

Produktinformation für RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 0,5m

The Cat.5e RJ45 patch cable ensures good characteristics for 2.5 Gigabit Ethernet applications. Due to the double shielding, the patch cable is even better protected against EMC radiation.

Cross section 4 x 2 x AWG26/7
Cast anti-kink grommet (patented)
Cable structure SF/UTP
Length imprint on the grommet
Conductor material CCA

Tekniske egenskaber

(Halogenfree): False
AWG-size: 26/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Data center
Industrial Ethernet

Structured cabling
Bandwidth: 100MHz
Bending radius: >25 mm
Cable construction: 4x2
Cable type: SF/UTP
Cabling Standard: ANSI/TIA-568-C.2
EN50173

ISO/IEC 11801
Category: 5e
Colour anti-kink sleeve: blue
Colour outer sheath: blue
Conductive shield: Selected shield contact
Conductor Material: CCA
Conductor resistance DC: 146 Ω/km
Connector: IEC 60603-7-3
Connector type: RJ45 standard
Contact resistance: 30 mΩ
Contacts: Gold plated
Current capacity: max. 1 A
Fire retardant version: False
Insulation resistance: 10 MΩ
Jacket material: Polyvinylchlorid (PVC)
Length imprint: True
Locking lever: True
Loop resistance: 292 Ω/km
Mating cycles: 2000
Model: Shielded
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 5.7 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at

PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: SFTP 300 CAT.5E 26AWGX4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED www.efb-elektronik.de
Resistance unbalance: 5 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: -5 – 70 °C
Test voltage: 1000 V DC, 1min
Total screening: 65 %
Transmission: 2.5Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
K5459.0,5 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 0,5m 0.5 m ±5 %
K5459.1 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 1m 1.0 m ±5 %
K5459.1,5 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 1,5m 1.5 m ±5 %
K5459.2 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 2m 2.0 m ±5 %
K5459.3 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 3m 3.0 m ±5 %
K5459.5 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 5m 5.0 m ±5 %
K5459.7,5 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 7,5m 7.5 m ±5 %
K5459.10 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 10m 10.0 m ±5 %
K5459.15 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 15m 15.0 m ±5 %
K5459.20 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 20m 20.0 m ±5 %
K5459.25 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 25m 25.0 m ±5 %
K5459.30 RJ45 Patch Cord Cat.5e SF/UTP PVC CCA blue 30m 30.0 m ±5 %

similar product

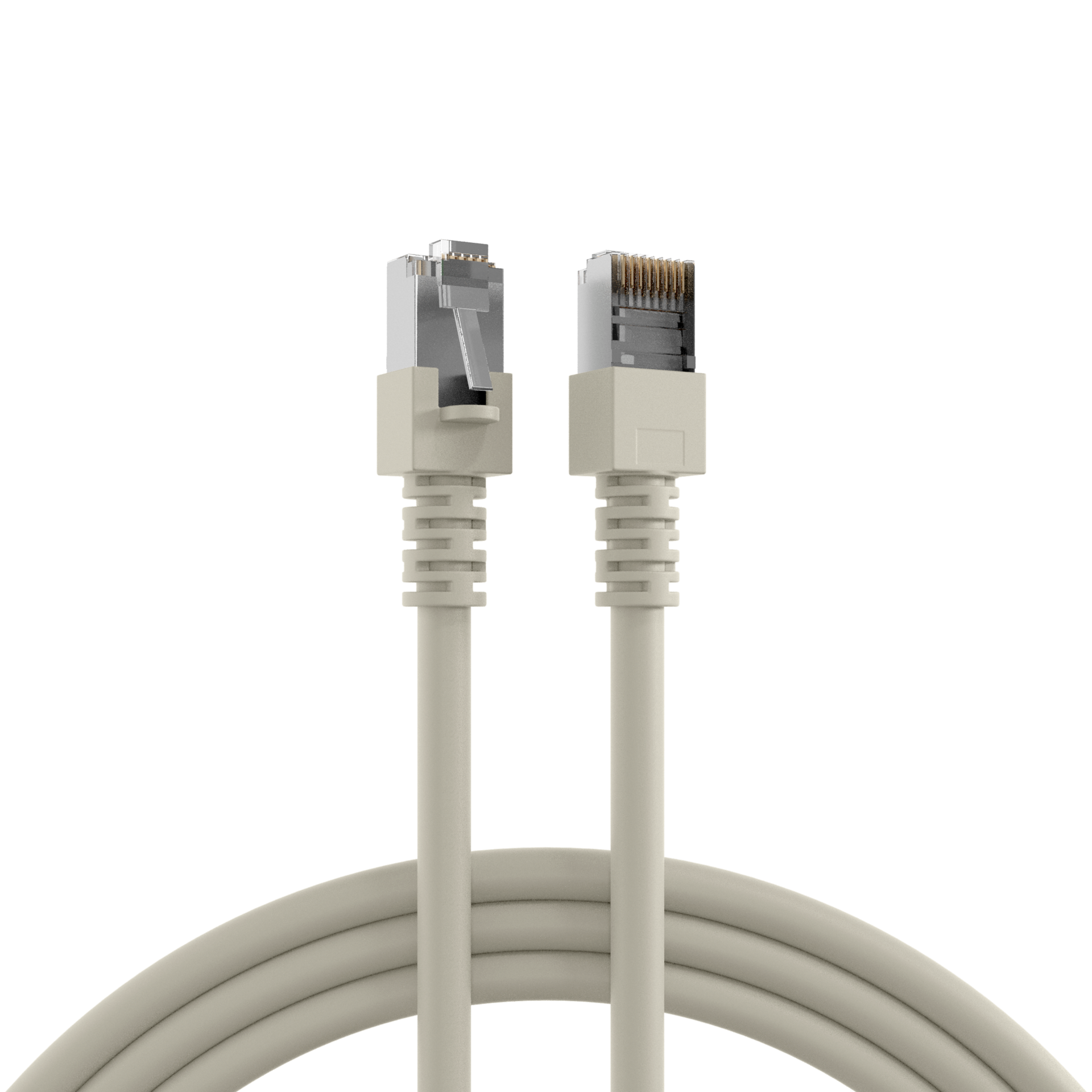

RJ45 Patch Cord Cat.5e SF/UTP PVC CCA grey 1m
RJ45 Patch Cord Cat.5e SF/UTP PVC CCA black 1m
RJ45 Patch Cord Cat.5e SF/UTP PVC CCA red 1m
RJ45 Patch Cord Cat.5e SF/UTP PVC CCA yellow 1m

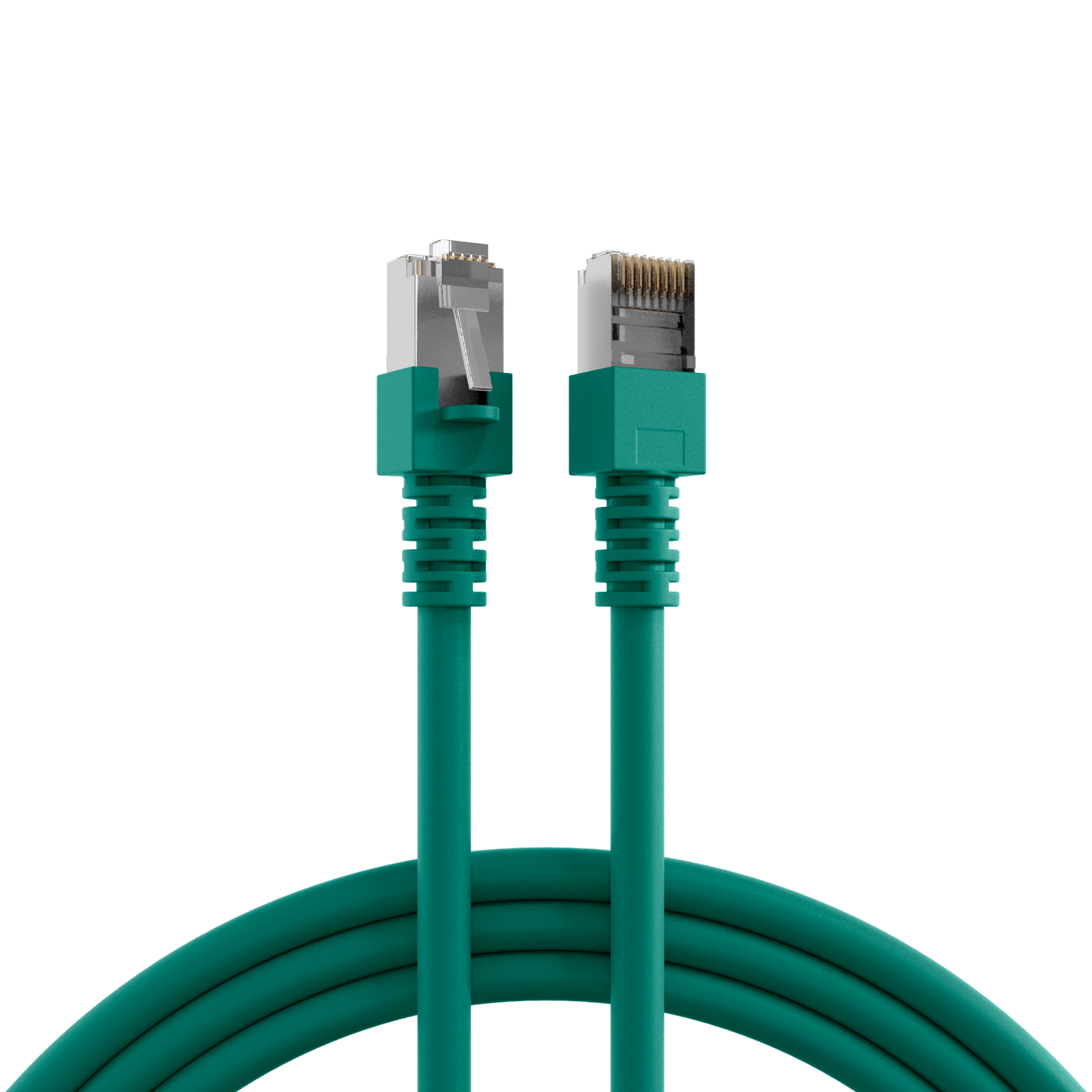

RJ45 Patch Cord Cat.5e SF/UTP PVC CCA green 1m
