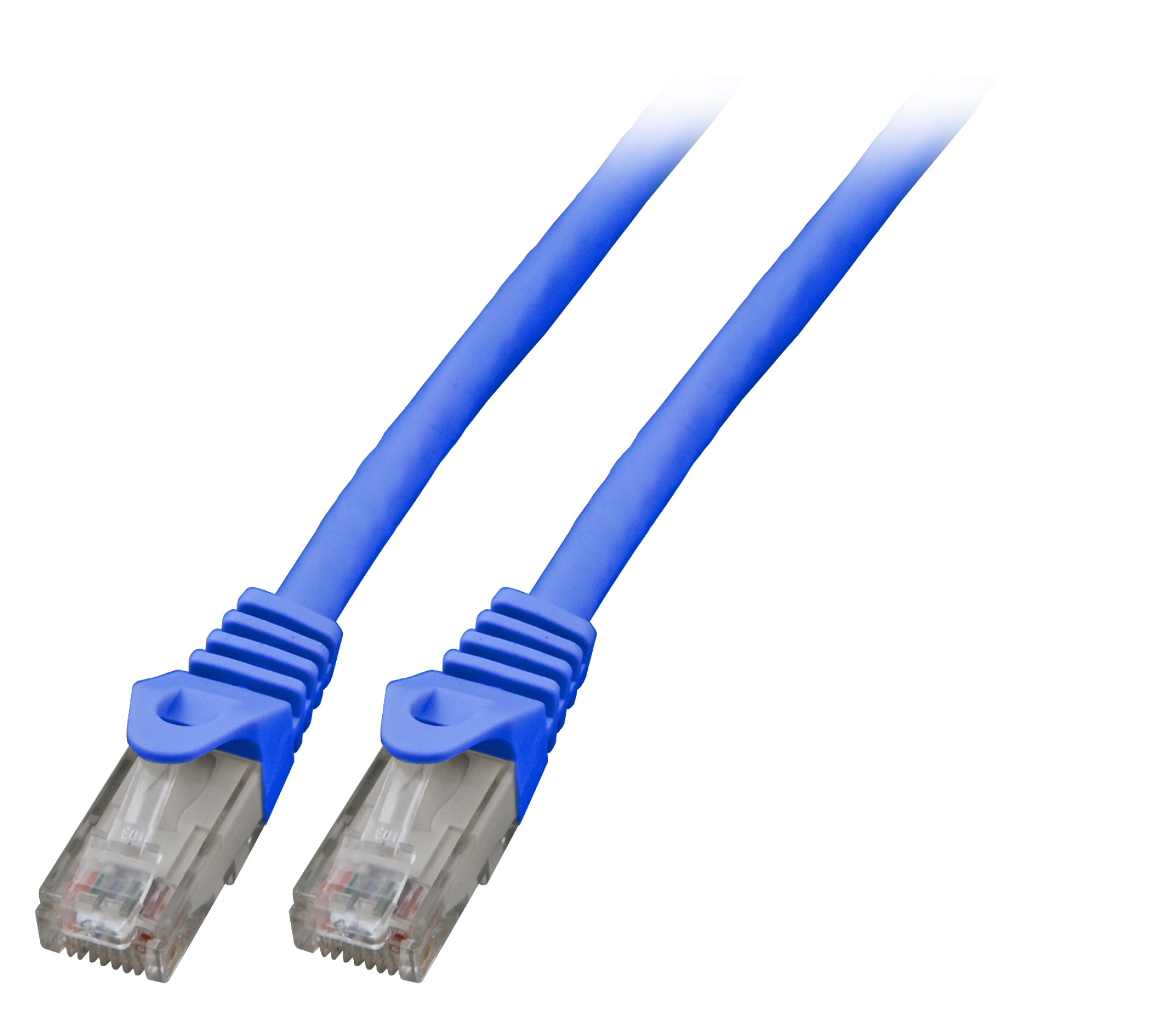

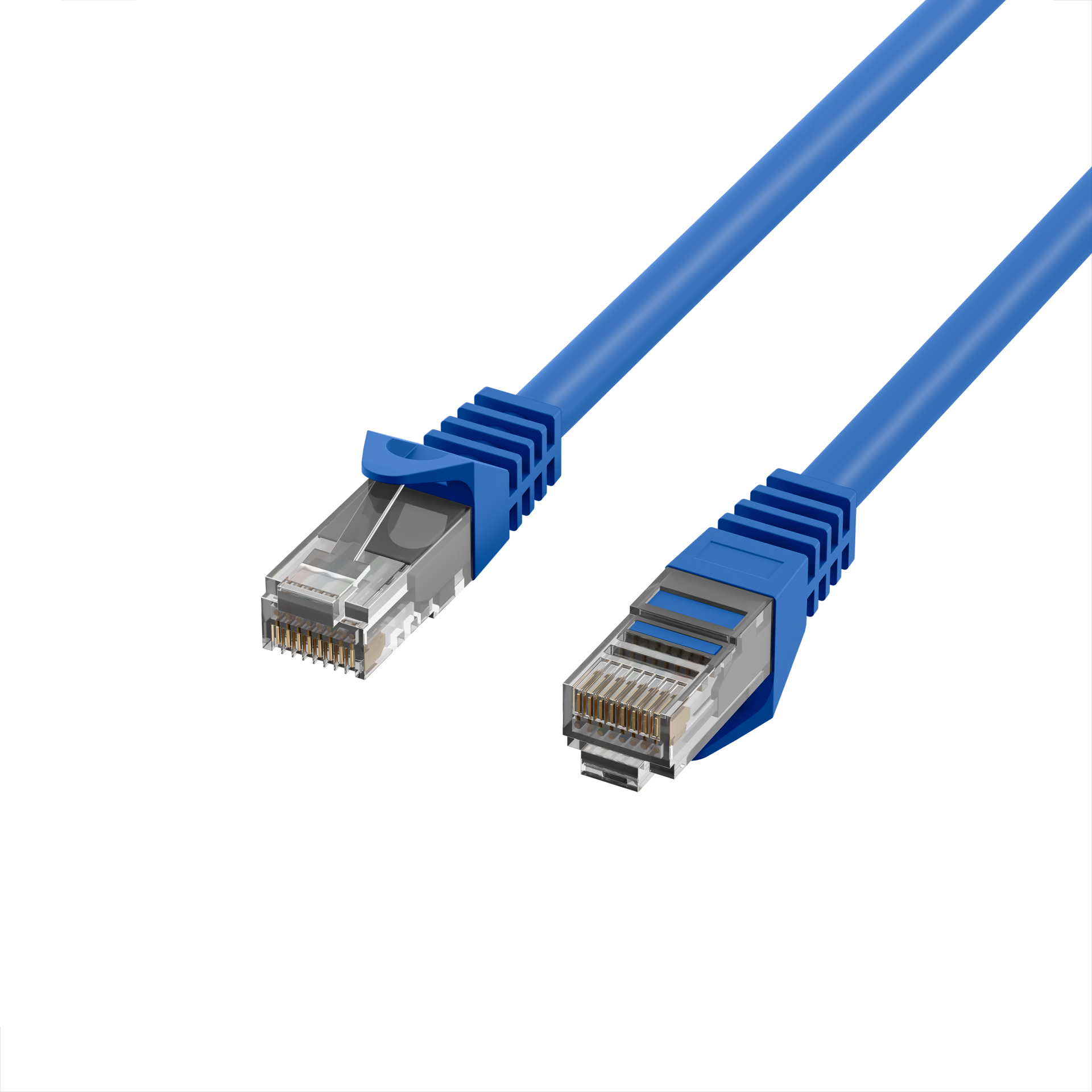

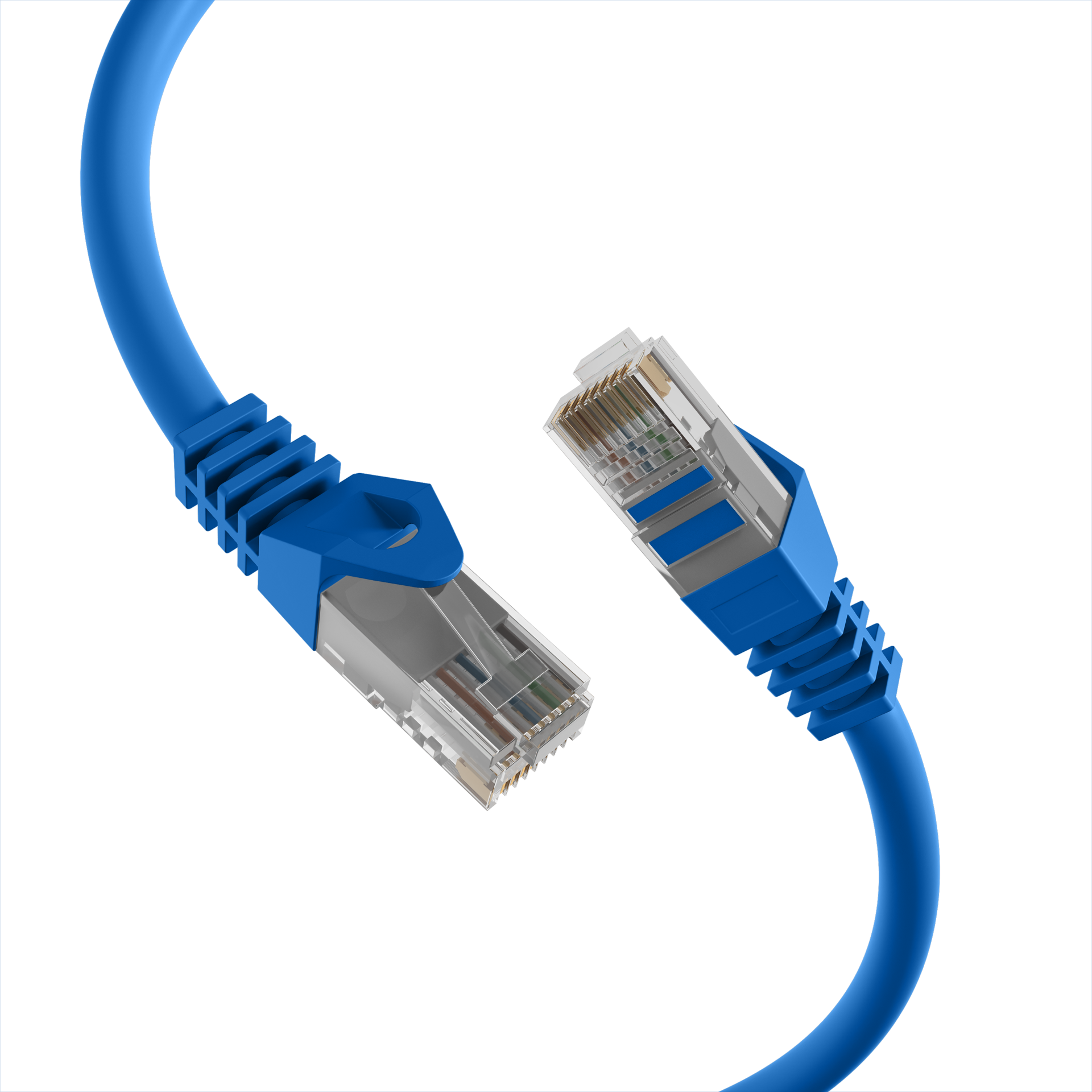

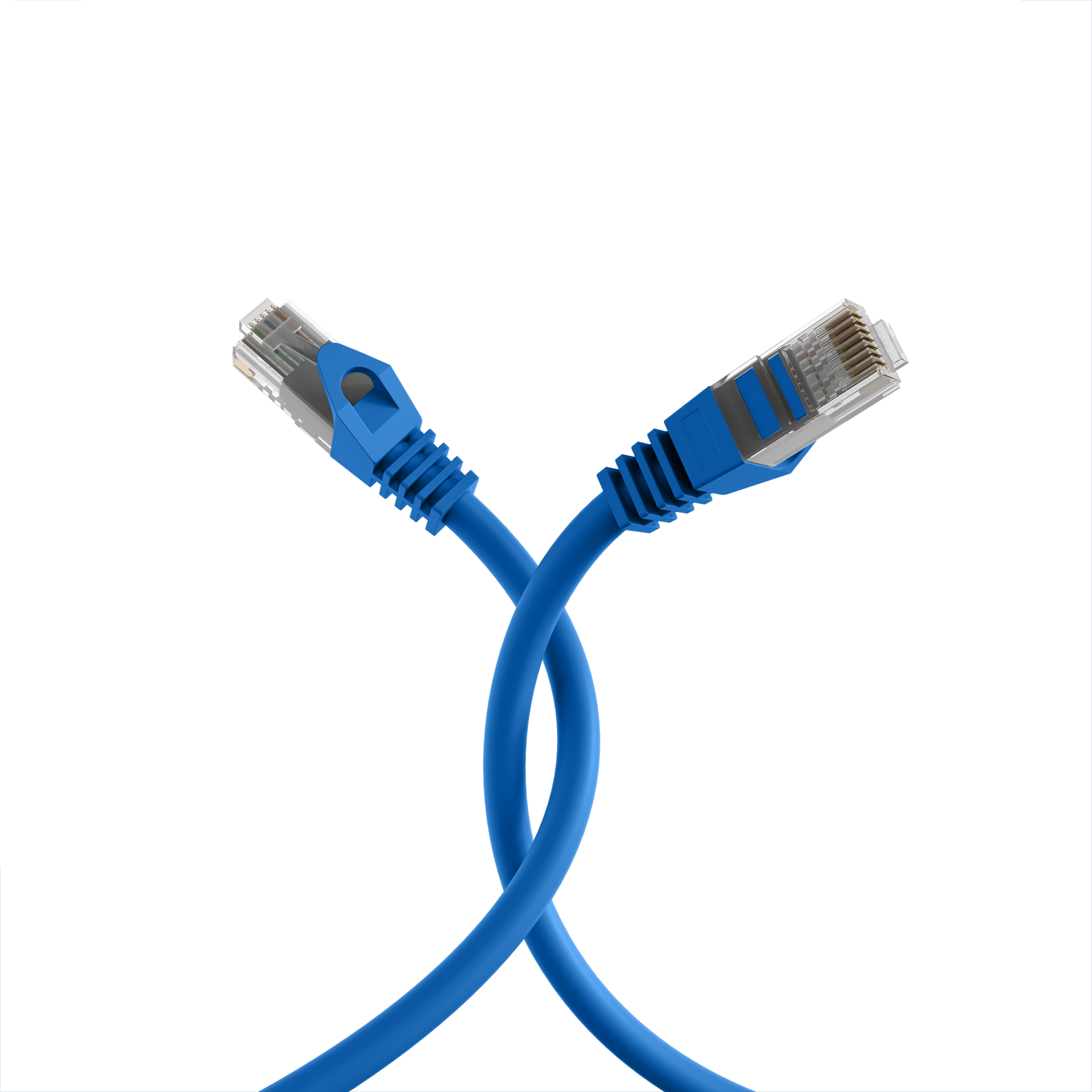

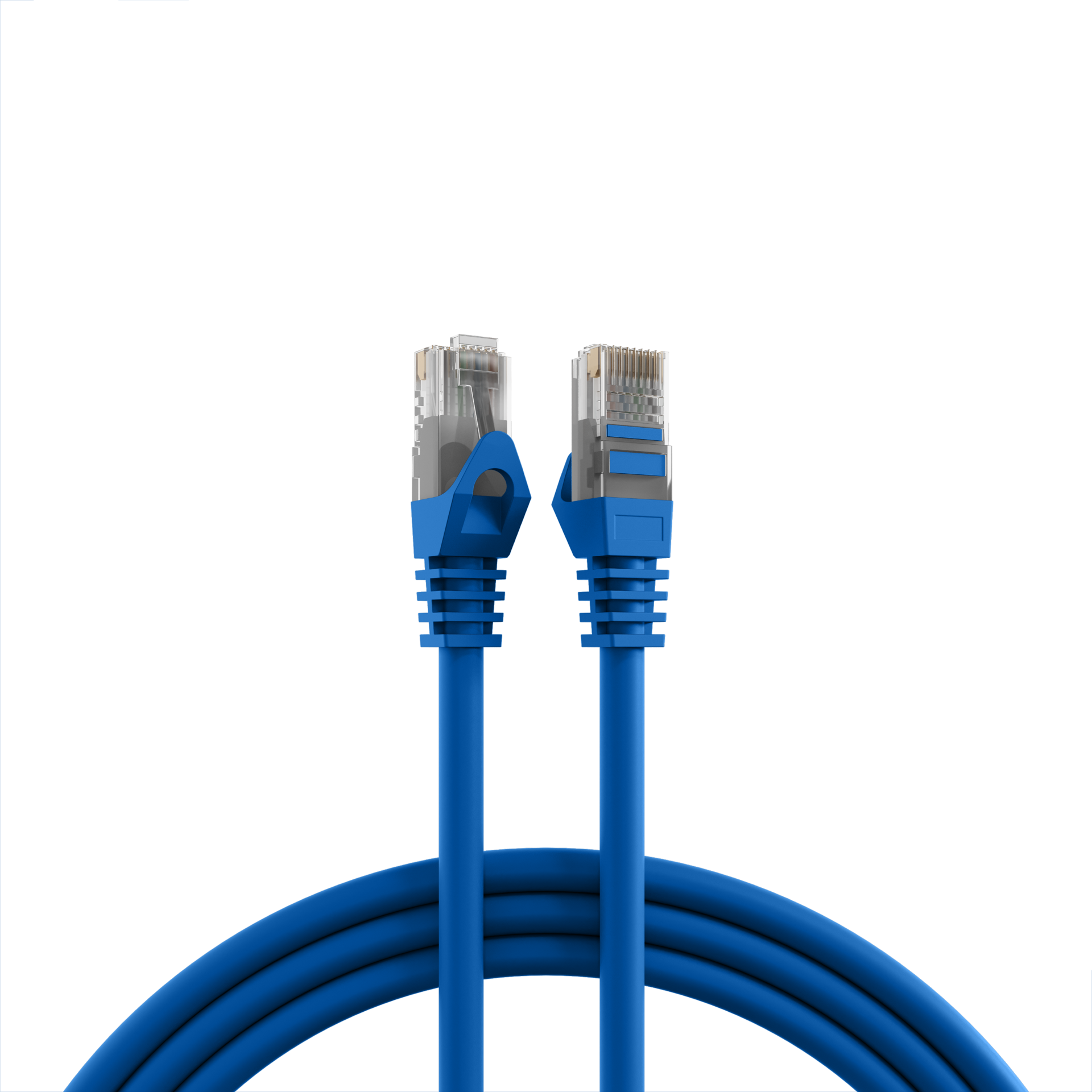

RJ45 Patchkabel Cat.5e U/UTP LSZH, CCA, blau
RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 0,5m
Varenummer:
K8110BL.0,5
EAN Nr.:
5705721127207
Produktinformation til RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 0,5m
Cable description:
U/UTP Cat.5e AWG24/7 stranded 4 pairs cable
Jacket: LSZH, low smoke & Halogenfree
OD: 5,4mm
RJ45 Connector:
2 x Cat.5e RJ45 plugs 1:1 IEC60603-7
Moulded strain relief with bend and latch protection
3um gold plated contacts
Application:
ISO IEC 11801, EIA/TIA 568
Printing, Cable:
Cat.5e UTP Patch cable AWG24/7 LSZH
Printing, Polybag label: Neutral polybag with label printet:
Cat.5e UTP Patch Cable AWG 24/7 LSZH Art. No. and EAN number + barcode
Printing, Carton box label and Standard neutral carton box:
Cat.5e UTP Patch Cable AWG 24/7 LSZH + Color Art. No. and EAN number + barcode
U/UTP Cat.5e AWG24/7 stranded 4 pairs cable
Jacket: LSZH, low smoke & Halogenfree
OD: 5,4mm
RJ45 Connector:
2 x Cat.5e RJ45 plugs 1:1 IEC60603-7
Moulded strain relief with bend and latch protection
3um gold plated contacts
Application:
ISO IEC 11801, EIA/TIA 568
Printing, Cable:
Cat.5e UTP Patch cable AWG24/7 LSZH
Printing, Polybag label: Neutral polybag with label printet:
Cat.5e UTP Patch Cable AWG 24/7 LSZH Art. No. and EAN number + barcode
Printing, Carton box label and Standard neutral carton box:
Cat.5e UTP Patch Cable AWG 24/7 LSZH + Color Art. No. and EAN number + barcode
Tekniske egenskaber
| AWG-Querschnitt: | 24/7 |
|---|---|
| Ausführung: | ungeschirmt |
| Ausführung flammwidrig: | Ja |
| Außendurchmesser des Kabels: | 5,4 mm |
| Bandbreite: | 100MHz |
| Belegung: | nach TIA/EIA 568B |
| Farbe der Knickschutztülle: | blau |
| Halogenfrei: | Ja |
| Harmonisierte Norm: | EN 50575 |
| Impedanz: | 100 ±15 Ω |
| Kabelaufdruck: | Cat.5e U/UTP Patch cable AWG24/7 LSZH ***2,5 GIGABIT*** www.efb-elektronik.de |
| Kabelform: | rund |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | U/UTP |
| Kategorie: | 5e |
| Knickschutztülle: | angespritzt |
| Kontakte: | Vergoldet |
| Leitermaterial: | CCA |
| Längenaufdruck: | Ja |
| Mantel-Farbe: | blau |
| Mantel-Material: | LSZH |
| Pinbelegung: | 1:1 |
| Rasthebelschutz: | Ja |
| Raucharm: | Ja |
| Schirmkontaktierung: | Nein |
| Steckertyp: | RJ45 Standard |
| Steckverbinder: | IEC 60603-7-2 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Temperaturbereich: | 0 – 60 °C |
| UL approbiert: | Nein |
| UV beständig: | Nein |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Übertragung: | 2,5Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | Length tolerance | |
|---|---|---|---|---|
| K8110BL.0,5 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 0,5m | 0,5 m | ±5 % | |
| K8110BL.1 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 1m | 1,0 m | ±5 % | |
| K8110BL.1,5 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 1,5m | 1,5 m | ±5 % | |
| K8110BL.10 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 10m | 10,0 m | ±5 % | |
| K8110BL.15 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 15m | 15,0 m | ±5 % | |
| K8110BL.2 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 2m | 2,0 m | ±5 % | |
| K8110BL.20 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 20m | 20,0 m | ±5 % | |
| K8110BL.25 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 25m | 25,0 m | ±5 % | |
| K8110BL.3 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 3m | 3,0 m | ±5 % | |
| K8110BL.30 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 30m | 30,0 m | ±5 % | |
| K8110BL.5 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 5m | 5,0 m | ±5 % | |
| K8110BL.7,5 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 blue 7,5m | 7.5 m | ±5 % |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
