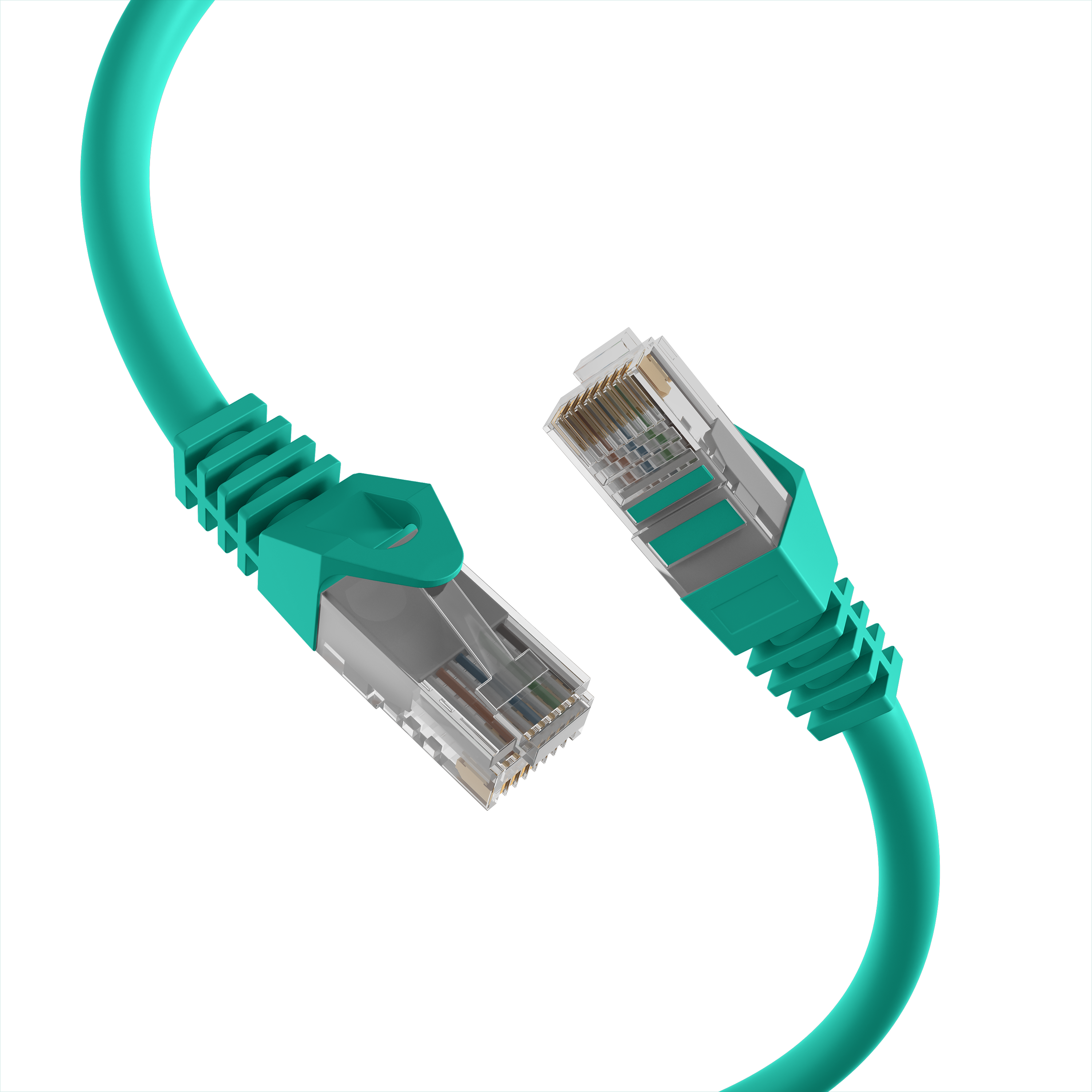

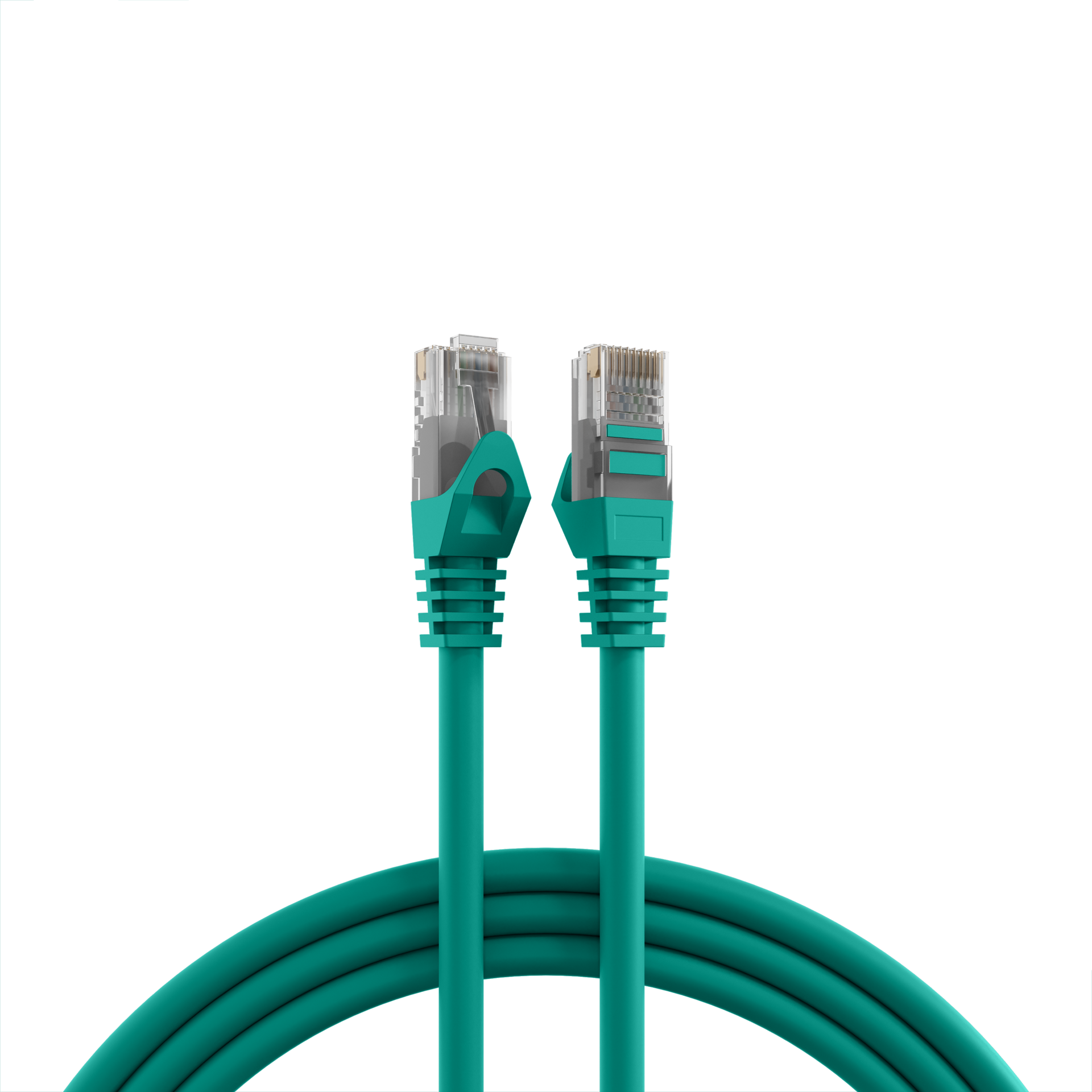

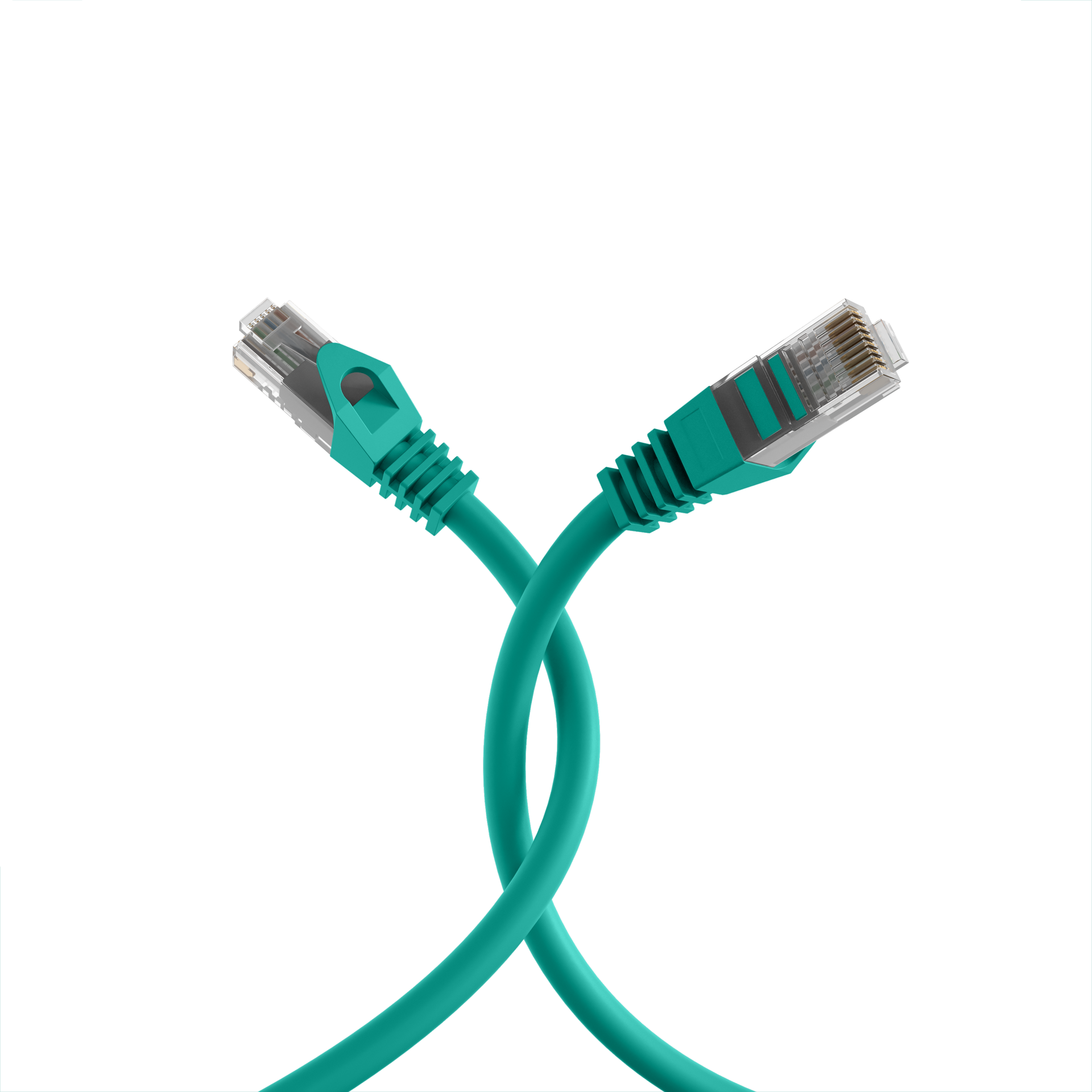

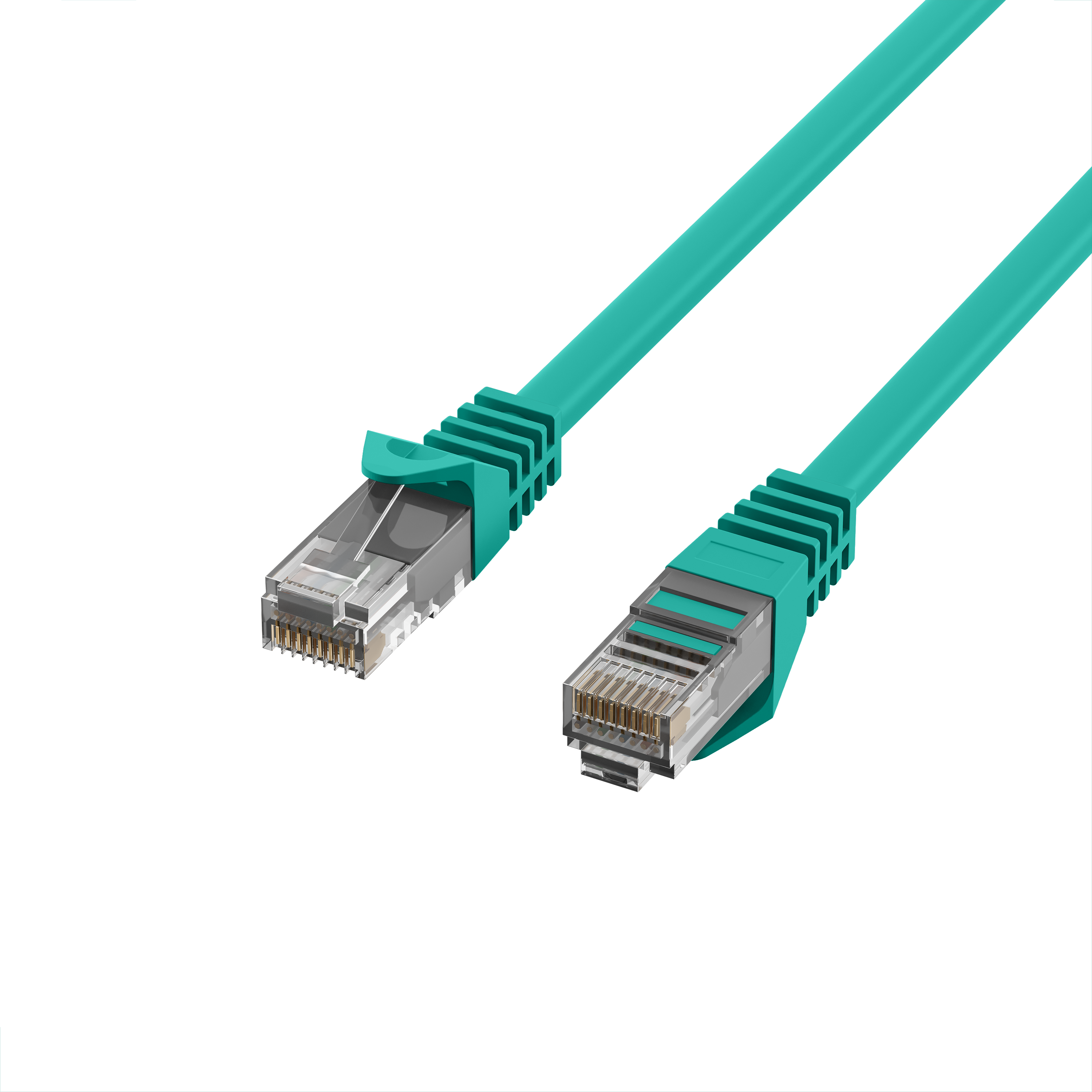

RJ45 Patch Cable Cat.5e U/UTP LSZH, CCA, green
RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 0,5m
Varenummer:
K8110GN.0,5
EAN Nr.:
5705721127443
Produktinformationen für RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 0,5m
Cable description:
U/UTP Cat.5e AWG24/7 stranded 4 pairs cable
Jacket: LSZH, low smoke & Halogenfree
OD: 5,4mm
RJ45 Connector:
2 x Cat.5e RJ45 plugs 1:1 IEC60603-7
Moulded strain relief with bend and latch protection
3um gold plated contacts
Application:
ISO IEC 11801, EIA/TIA 568
Printing, Cable:
Cat.5e UTP Patch cable AWG24/7 LSZH
Printing, Polybag label: Neutral polybag with label printet:
Cat.5e UTP Patch Cable AWG 24/7 LSZH Art. No. and EAN number + barcode
Printing, Carton box label and Standard neutral carton box:
Cat.5e UTP Patch Cable AWG 24/7 LSZH + Color Art. No. and EAN number + barcode
U/UTP Cat.5e AWG24/7 stranded 4 pairs cable
Jacket: LSZH, low smoke & Halogenfree
OD: 5,4mm
RJ45 Connector:
2 x Cat.5e RJ45 plugs 1:1 IEC60603-7
Moulded strain relief with bend and latch protection
3um gold plated contacts
Application:
ISO IEC 11801, EIA/TIA 568
Printing, Cable:
Cat.5e UTP Patch cable AWG24/7 LSZH
Printing, Polybag label: Neutral polybag with label printet:
Cat.5e UTP Patch Cable AWG 24/7 LSZH Art. No. and EAN number + barcode
Printing, Carton box label and Standard neutral carton box:
Cat.5e UTP Patch Cable AWG 24/7 LSZH + Color Art. No. and EAN number + barcode
Technische Eigenschaften
| (Halogenfree): | True |
|---|---|
| AWG-size: | 24 |
| Allocation: | nach TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Bandwidth: | 100MHz |
| Cable construction: | 4x2 |
| Cable type: | U/UTP |
| Cable type acc. to Manufacturer: | U/UTP |
| Cabling Standard: |
EN50173 ISO/IEC 11801 |
| Category: | 5e |
| Colour anti-kink sleeve: | green |
| Colour outer sheath: | green |
| Conductor Material: | CCA |
| Connector: | IEC 60603-7-2 |
| Connector type: | RJ45 Standard |
| Contacts: | 3 µ" Vergoldet |
| Fire retardant version: | True |
| Flame-retardant: | True |
| Halogen-free: | True |
| Impedance: | 100 ±15 Ω |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Low smoke: | True |
| Model: | Ungeschirmt |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Outer diameter of the cable: | 5,4 mm |
| Pin assignment: | 1:1 |
| Printing: | Cat.5e UTP Patch cable AWG24/7 LSZH |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K8110GN.0,5 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 0,5m | 0.5 m | ±5 % | |
| K8110GN.1 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 1m | 1.0 m | ±5 % | |
| K8110GN.1,5 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 1,5m | 1.5 m | ±5 % | |
| K8110GN.2 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 2m | 2.0 m | ±5 % | |
| K8110GN.3 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 3m | 3.0 m | ±5 % | |
| K8110GN.5 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 5m | 5.0 m | ±5 % | |
| K8110GN.7,5 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 7,5m | 7.5 m | ±5 % | |
| K8110GN.10 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 10m | 10.0 m | ±5 % | |
| K8110GN.15 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 15m | 15.0 m | ±5 % | |
| K8110GN.20 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 20m | 20.0 m | ±5 % | |
| K8110GN.25 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 25m | 25.0 m | ±5 % | |
| K8110GN.30 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 green 30m | 30.0 m | ±5 % |
