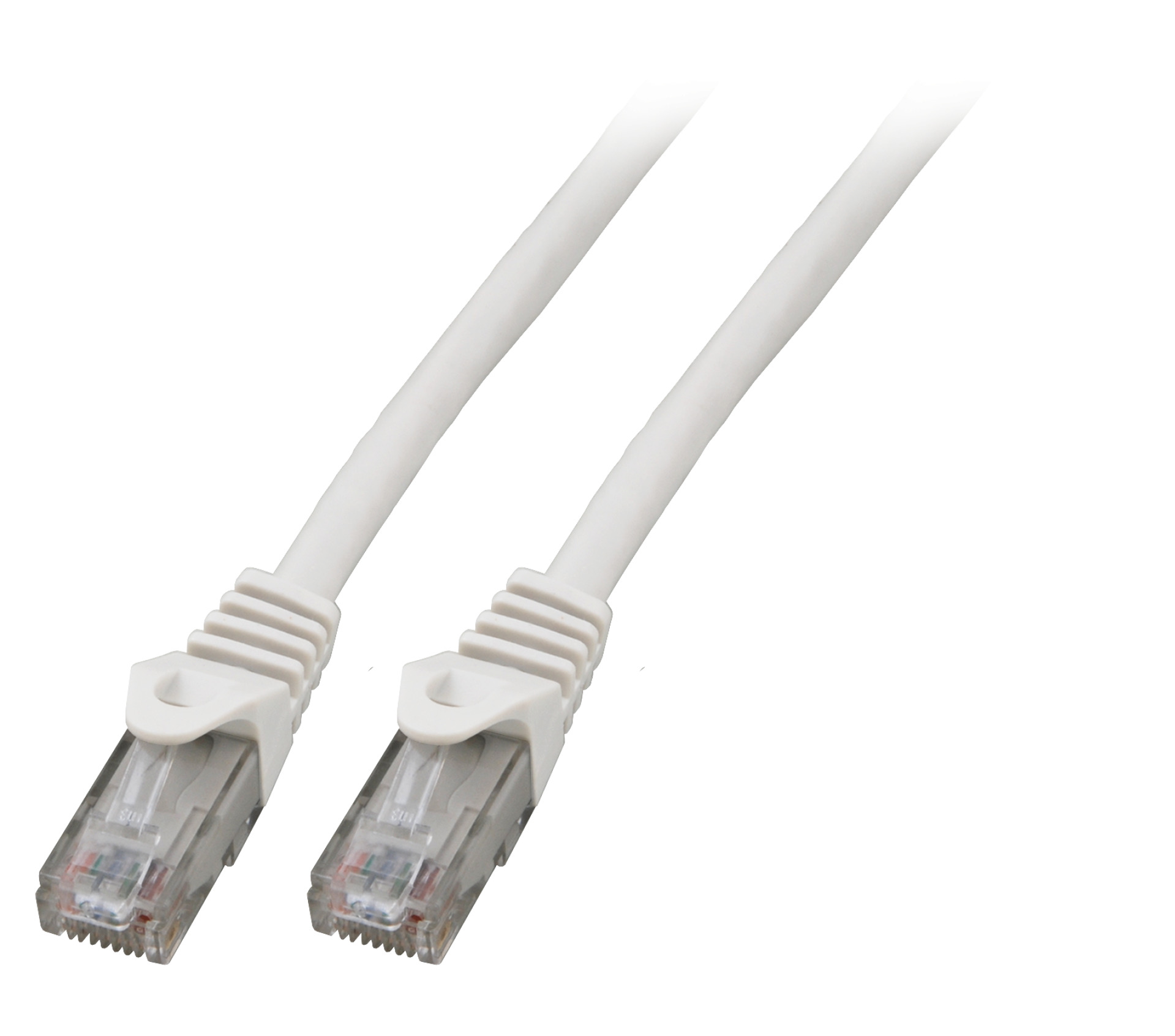

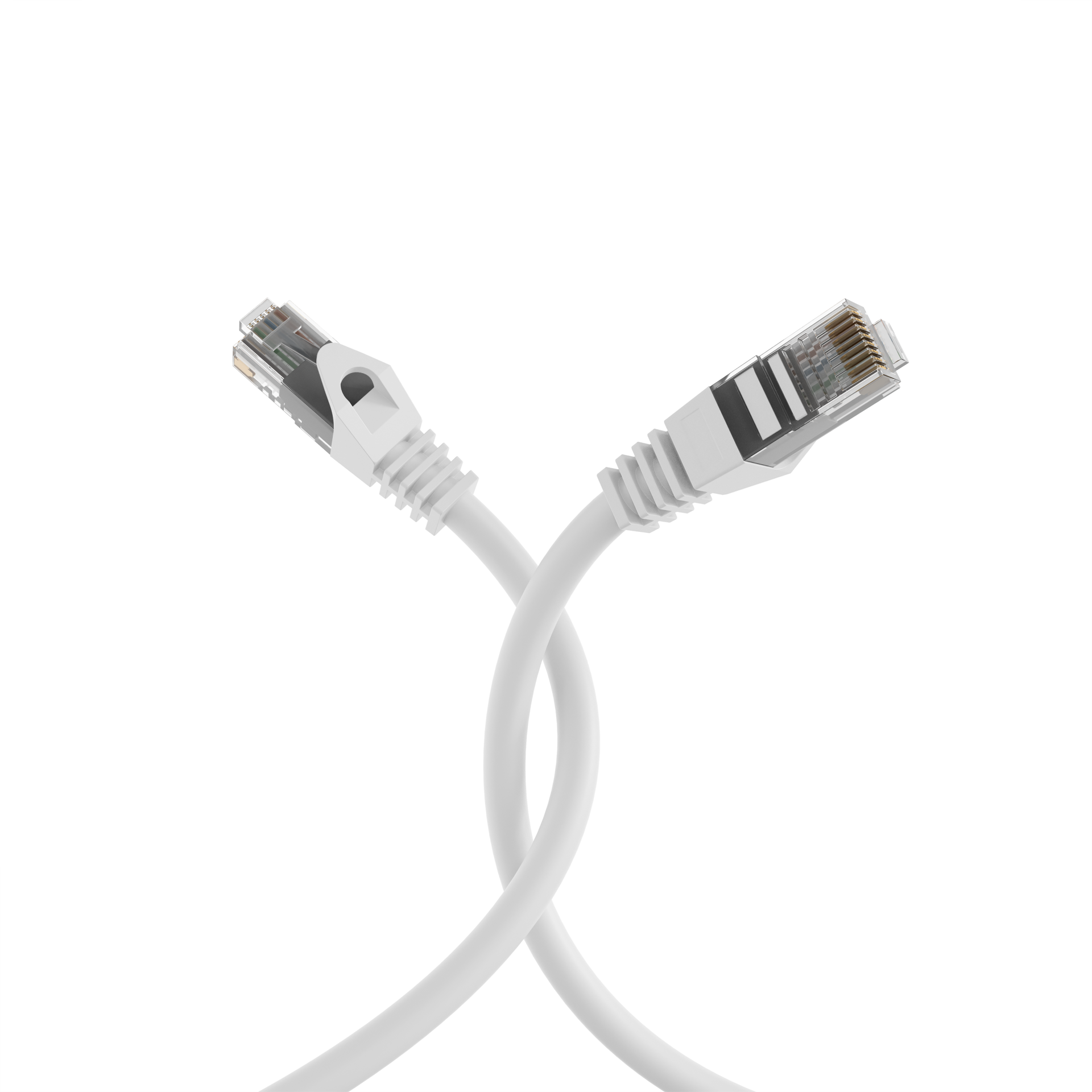

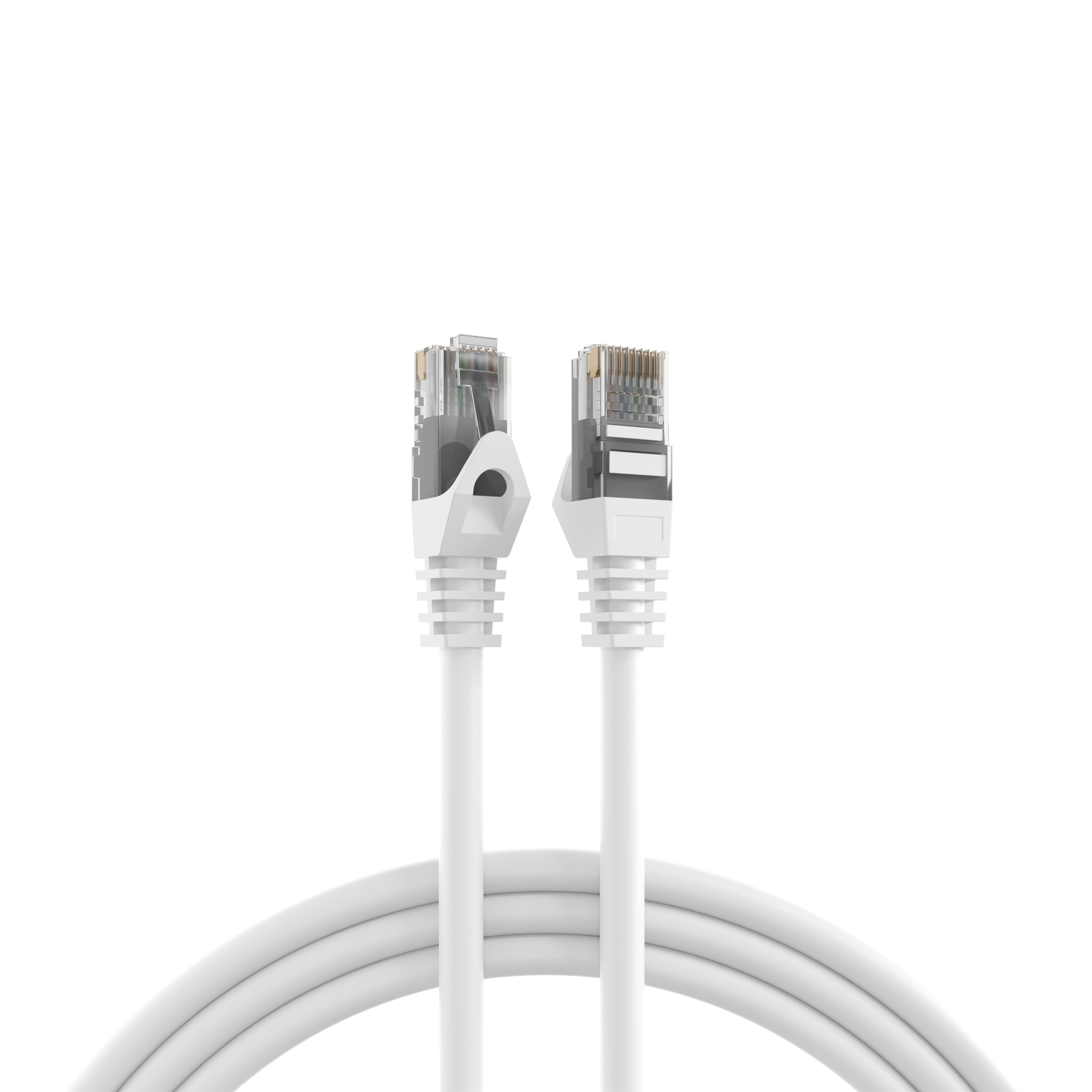

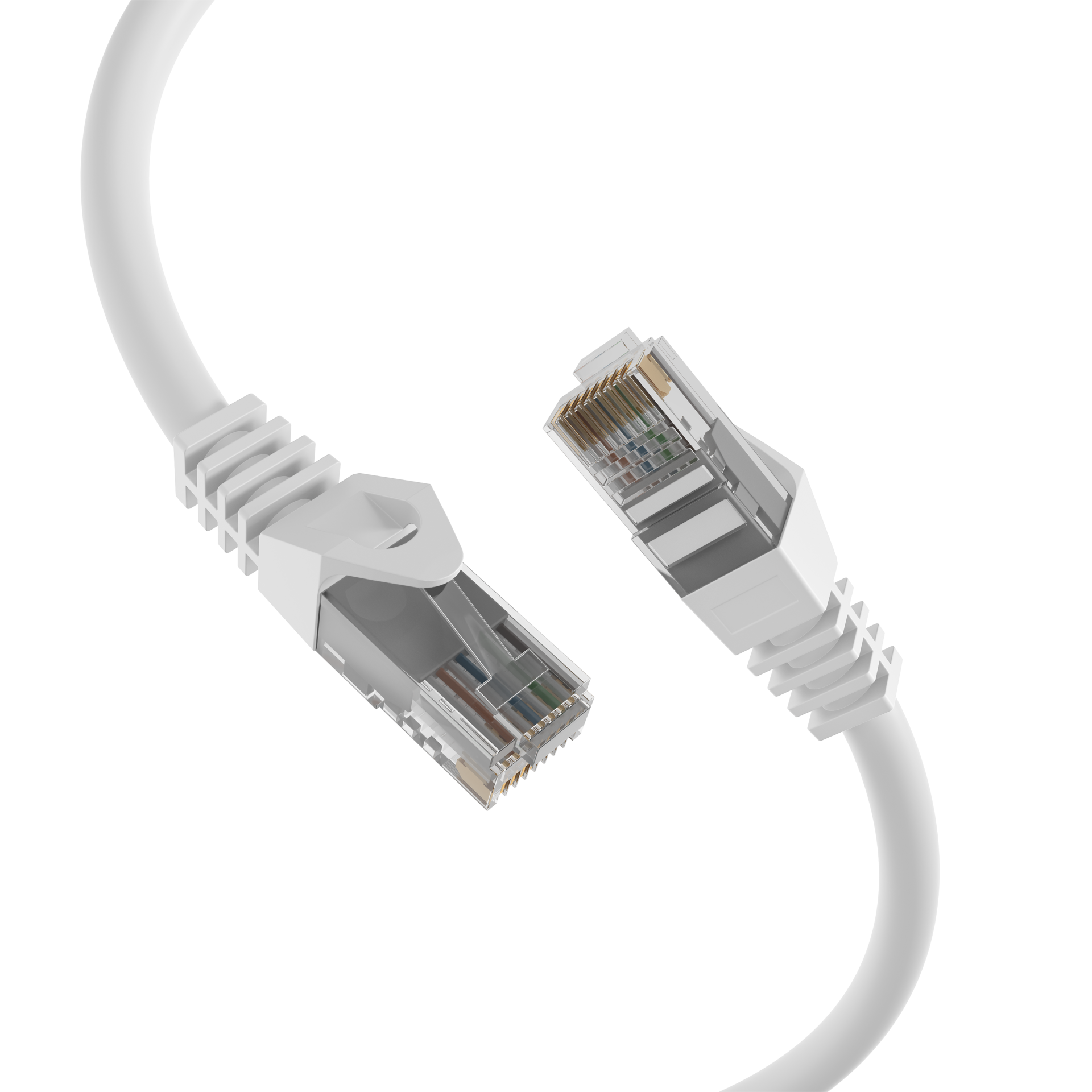

RJ45 Patchkabel Cat.5e U/UTP LSZH, CCA, weiß
RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 0,5m
Varenummer:
K8110WS.0,5
EAN Nr.:
5705721127887
Produktinformation til RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 0,5m
Cable description:
U/UTP Cat.5e AWG24/7 stranded 4 pairs cable
Jacket: LSZH, low smoke & Halogenfree
OD: 5,4mm

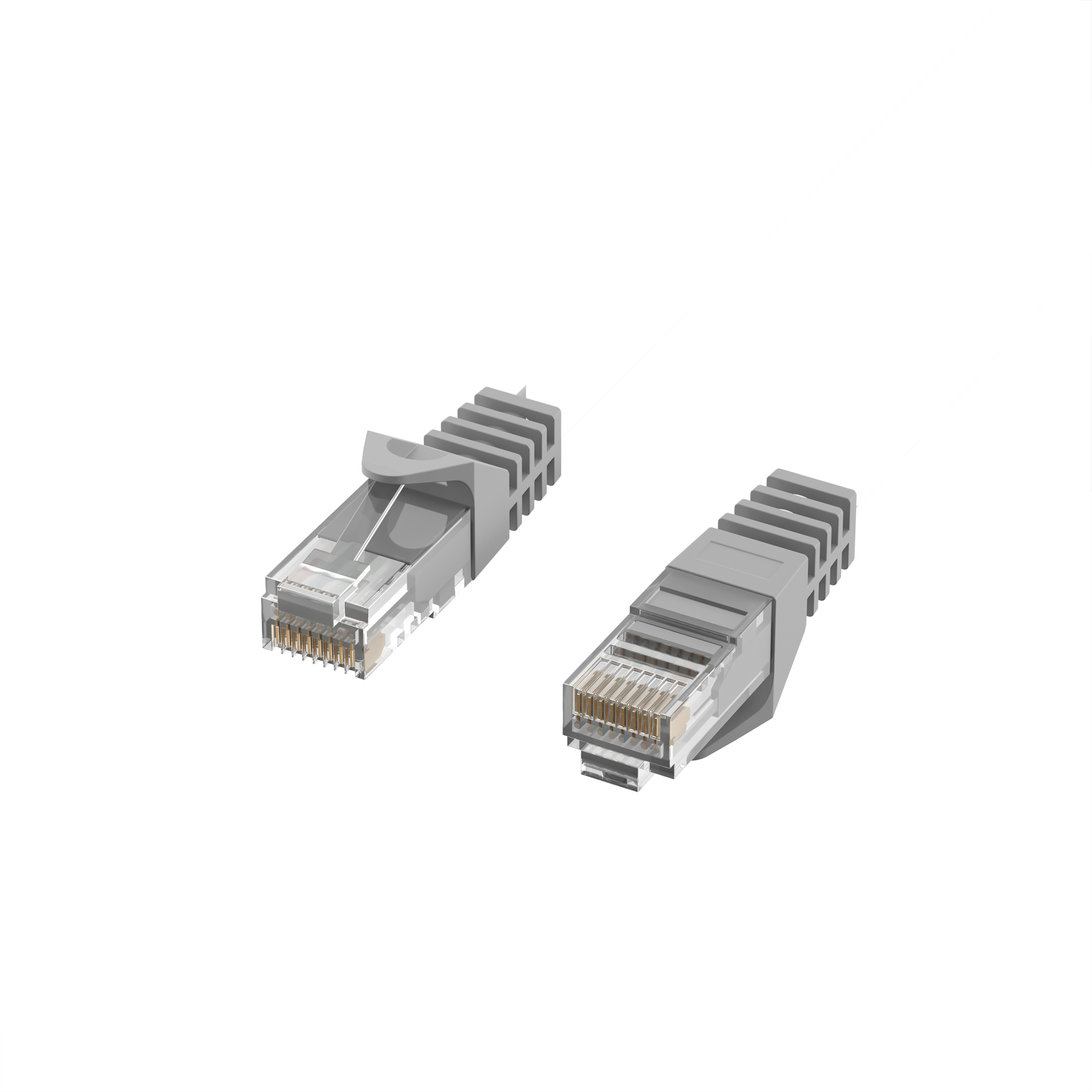

RJ45 Connector:
2 x Cat.5e RJ45 plugs 1:1 IEC60603-7
Moulded strain relief with bend and latch protection
3um gold plated contacts
Application:
ISO IEC 11801, EIA/TIA 568
Printing, Cable:
Cat.5e UTP Patch cable AWG24/7 LSZH
Printing, Polybag label: Neutral polybag with label printet:
Cat.5e UTP Patch Cable AWG 24/7 LSZH Art. No. and EAN number + barcode
Printing, Carton box label and Standard neutral carton box:
Cat.5e UTP Patch Cable AWG 24/7 LSZH + Color Art. No. and EAN number + barcode
U/UTP Cat.5e AWG24/7 stranded 4 pairs cable
Jacket: LSZH, low smoke & Halogenfree
OD: 5,4mm
RJ45 Connector:
2 x Cat.5e RJ45 plugs 1:1 IEC60603-7
Moulded strain relief with bend and latch protection
3um gold plated contacts
Application:
ISO IEC 11801, EIA/TIA 568
Printing, Cable:
Cat.5e UTP Patch cable AWG24/7 LSZH
Printing, Polybag label: Neutral polybag with label printet:
Cat.5e UTP Patch Cable AWG 24/7 LSZH Art. No. and EAN number + barcode
Printing, Carton box label and Standard neutral carton box:
Cat.5e UTP Patch Cable AWG 24/7 LSZH + Color Art. No. and EAN number + barcode
Tekniske egenskaber
| AWG-size: | 24/7 |
|---|---|

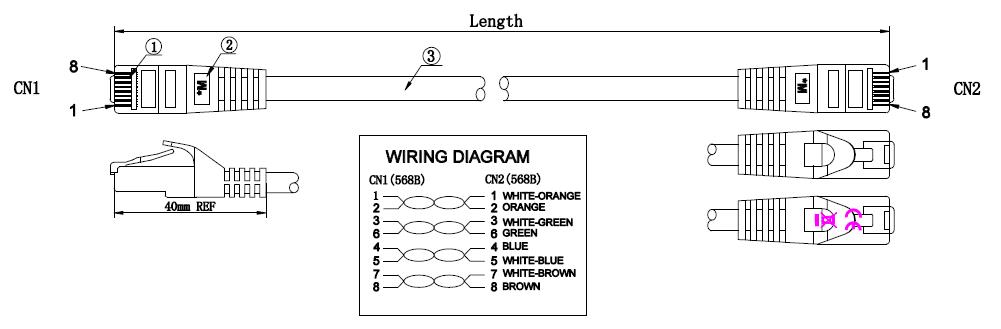

| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | U/UTP |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Category: | 5e |
| Colour anti-kink sleeve: | white |
| Colour outer sheath: | white |
| Conductive shield: | No |
| Conductor Material: | CCA |
| Connector: | IEC 60603-7-2 |
| Connector type: | RJ45 standard |
| Contacts: | Gold plated |
| Fire retardant version: | yes |
| Halogen free: | True |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ±15 Ω |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Low smoke: | True |
| Model: | unshielded |
| Operating Temperature: | 0 – 60 °C |
| Outer diameter of the cable: | 5,4 mm |
| Pin assignment: | 1:1 |
| Printing: | Cat.5e U/UTP Patch cable AWG24/7 LSZH ***2,5 GIGABIT*** www.efb-elektronik.de |
| Tape width: | 100MHz |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | no |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K8110WS.0,5 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 0,5m | 0.5 m | ±5 % | |
| K8110WS.1 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 1m | 1.0 m | ±5 % | |
| K8110WS.1,5 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 1,5m | 1.5 m | ±5 % | |
| K8110WS.10 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 10m | 10.0 m | ±5 % | |
| K8110WS.15 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 15m | 15.0 m | ±5 % | |
| K8110WS.2 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 2m | 2.0 m | ±5 % | |
| K8110WS.20 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 20m | 20.0 m | ±5 % | |
| K8110WS.25 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 25m | 25.0 m | ±5 % | |
| K8110WS.3 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 3m | 3.0 m | ±5 % | |
| K8110WS.30 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 30m | 30.0 m | ±5 % | |
| K8110WS.4 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 4m | 4.0 m | ±5 % | |
| K8110WS.5 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 5m | 5.0 m | ±5 % | |
| K8110WS.50 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 50m | 50.0 m | ±5 % | |
| K8110WS.7,5 | RJ45 Patch Cord Cat.5e U/UTP LSZH CCA AWG24/7 white 7,5m | 7.5 m | ±5 % |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
