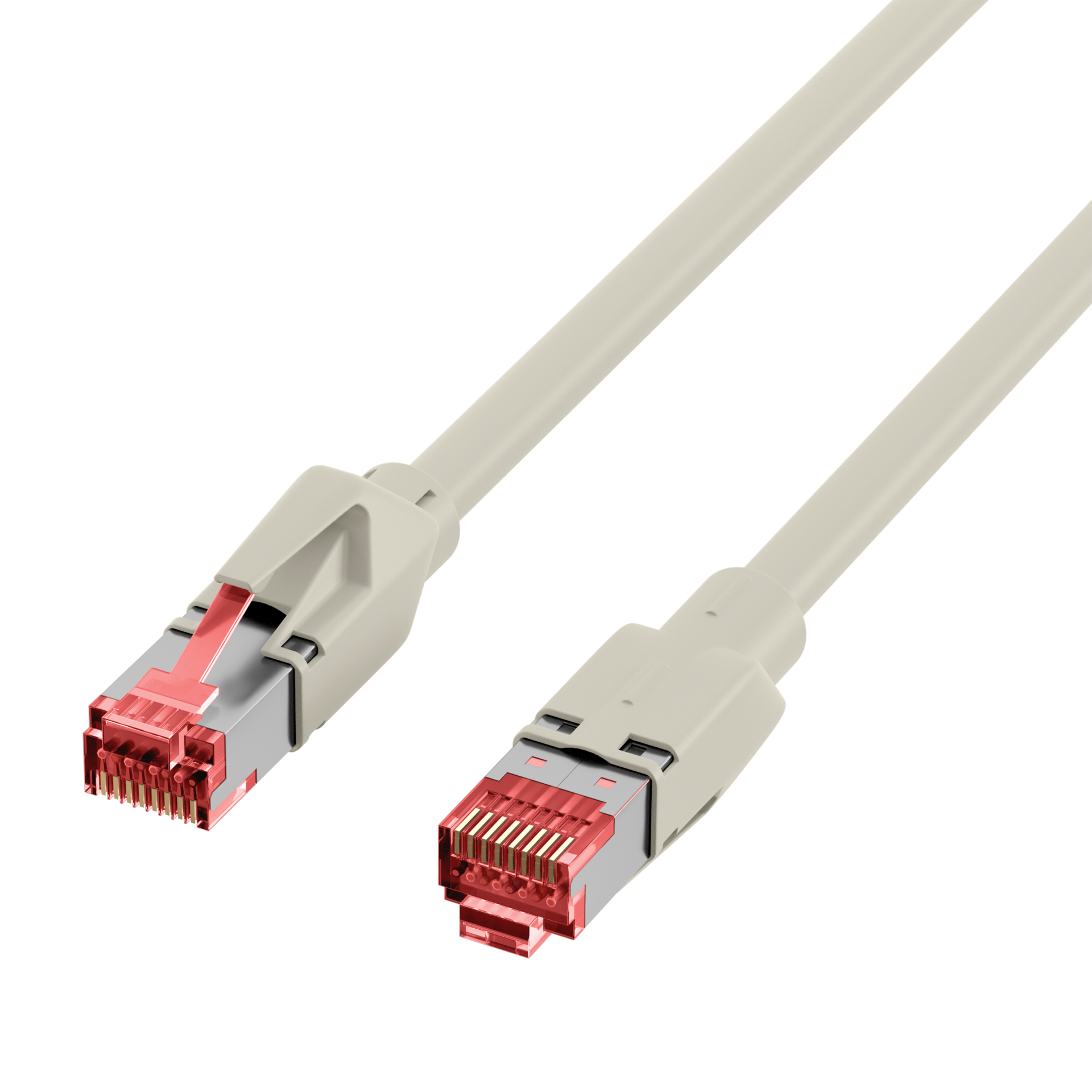

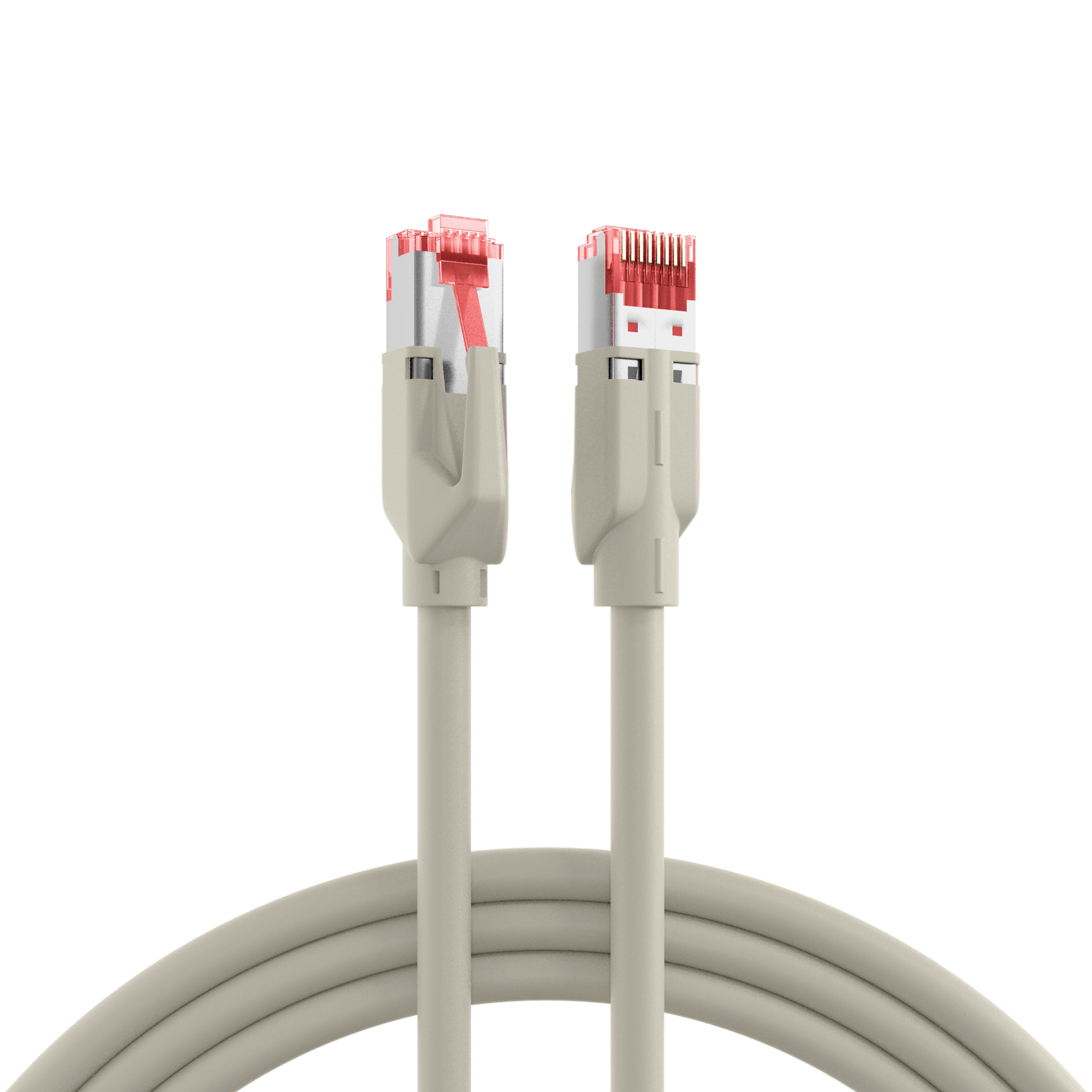

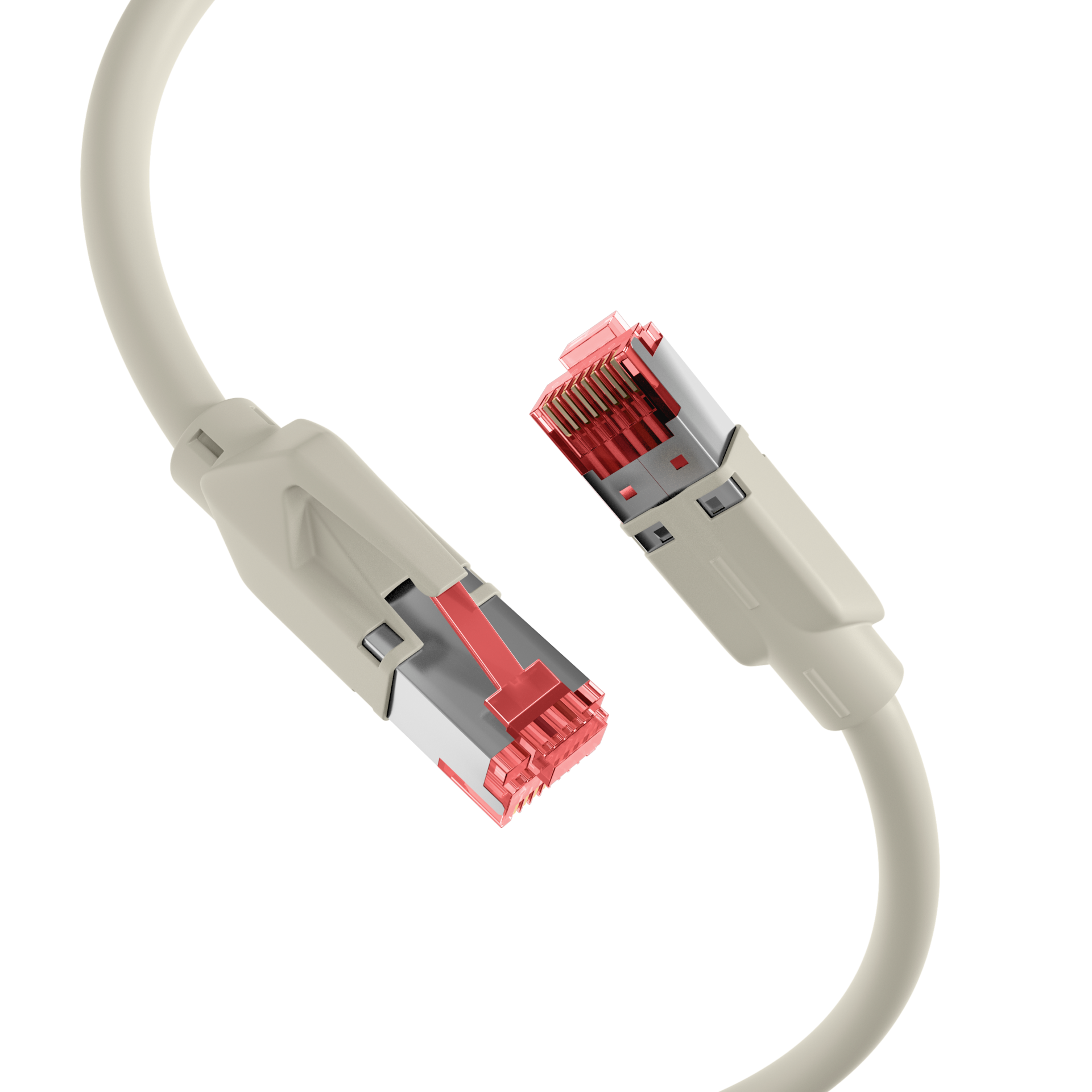

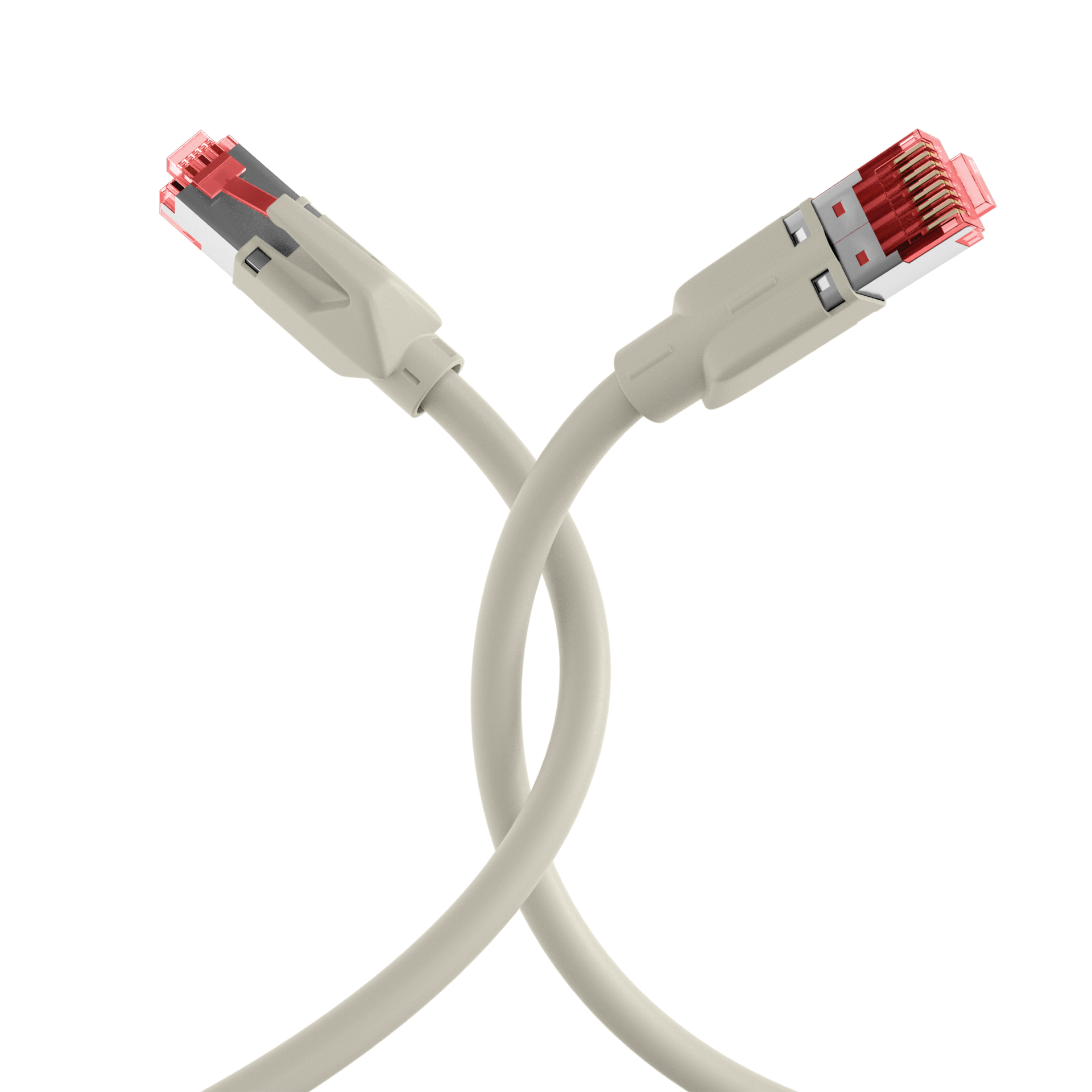

RJ45 Crossover Patch cable S/FTP, Cat.6, TM21, UC900, grey
RJ45 Patch Cord Cat.6 S/FTP LSZH Draka UC900 TM21red crossed grey 10m
Varenummer:
K8066.10
EAN Nr.:
4049759013639
Produktinformation til RJ45 Patch Cord Cat.6 S/FTP LSZH Draka UC900 TM21red crossed grey 10m
RJ45 patch cable Cat.6 S/FTP LSZH Draka UC900 TM21 red crossed
The Cat.6 patch cable has gold-plated contacts and enables 1Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6
• S/FTP cable with AWG27
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the red TM21 plugs is the classic crossover for Gigabit Ethernet: 1- 3, 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.
This enables a frequency range of 250 MHz.
The Cat.6 patch cable has gold-plated contacts and enables 1Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6
• S/FTP cable with AWG27
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the red TM21 plugs is the classic crossover for Gigabit Ethernet: 1- 3, 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.
This enables a frequency range of 250 MHz.
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 27 |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6 |
| Colour anti-kink sleeve: | red |
| Colour outer sheath: | grey |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Length imprint: | False |
| Locking lever: | True |
| NVP value: | - % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | crossed |
| Suitable for degree of protection (IP): | IP20 |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K8066.2 | RJ45 Patch Cord Cat.6 S/FTP LSZH Draka UC900 TM21red crossed grey 2m | 2.0 m | ±5 % | |
| K8066.5 | RJ45 Patch Cord Cat.6 S/FTP LSZH Draka UC900 TM21red crossed grey 5m | 5.0 m | ±5 % | |
| K8066.10 | RJ45 Patch Cord Cat.6 S/FTP LSZH Draka UC900 TM21red crossed grey 10m | 10.0 m | ±5 % | |
| K8066.0,50 | RJ45 Crossover Patch cable S/FTP, Cat.6, TM21, UC900, 0,5m, grey | 0.5 m | ±5 % | |
| K8066.3 | RJ45 Crossover Patch cable S/FTP, Cat.6, TM21, UC900, 3m, grey | 3.0 m | ±5 % |
