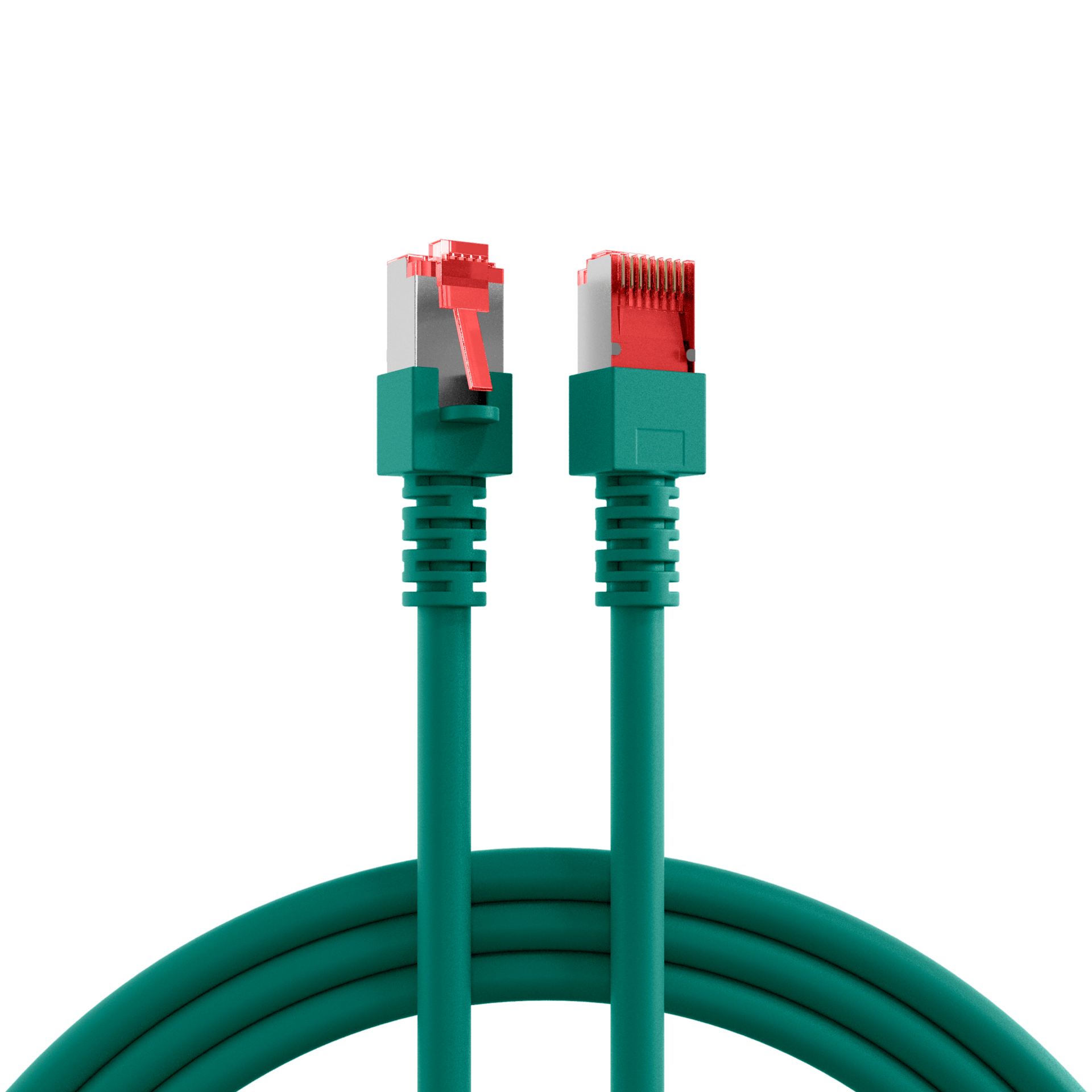

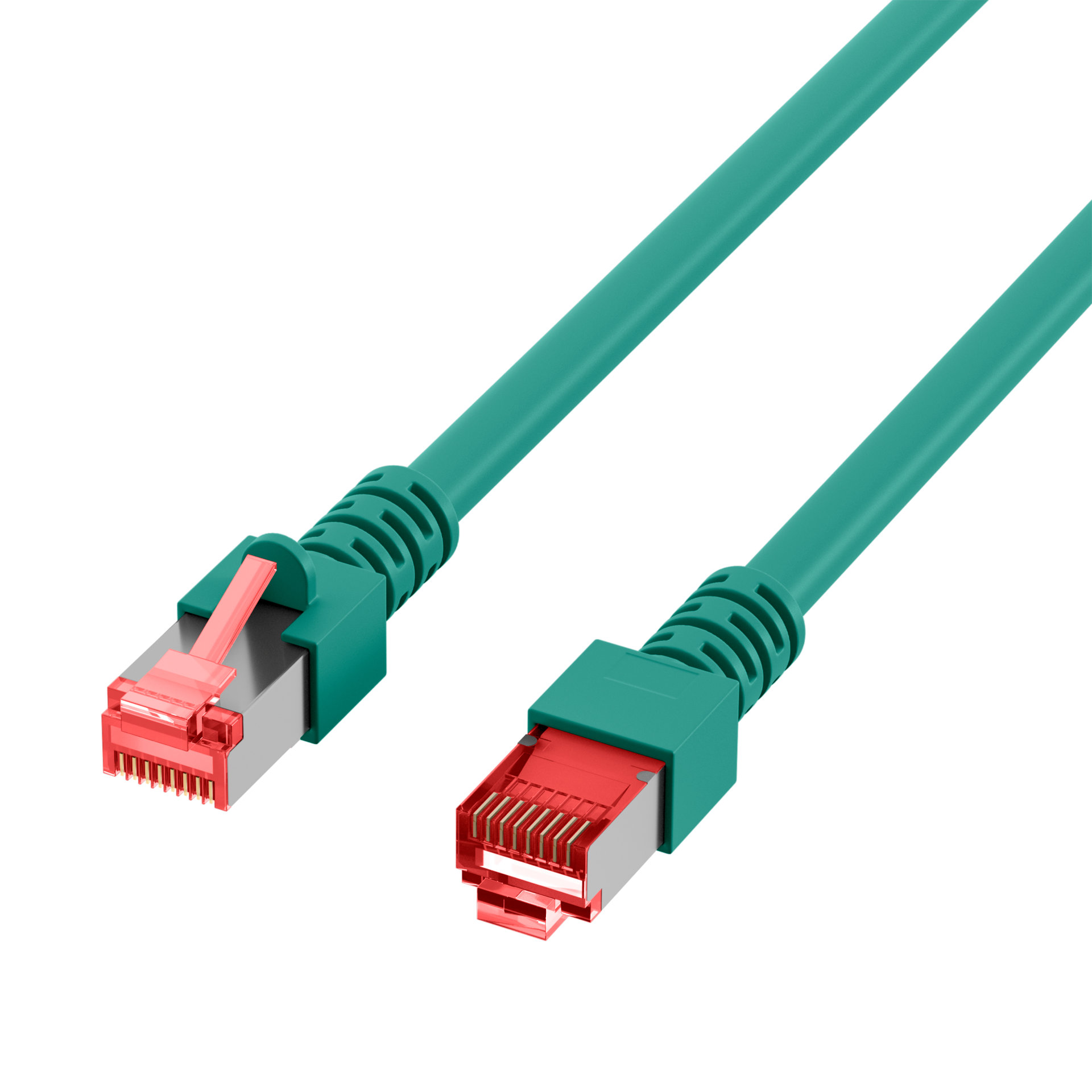

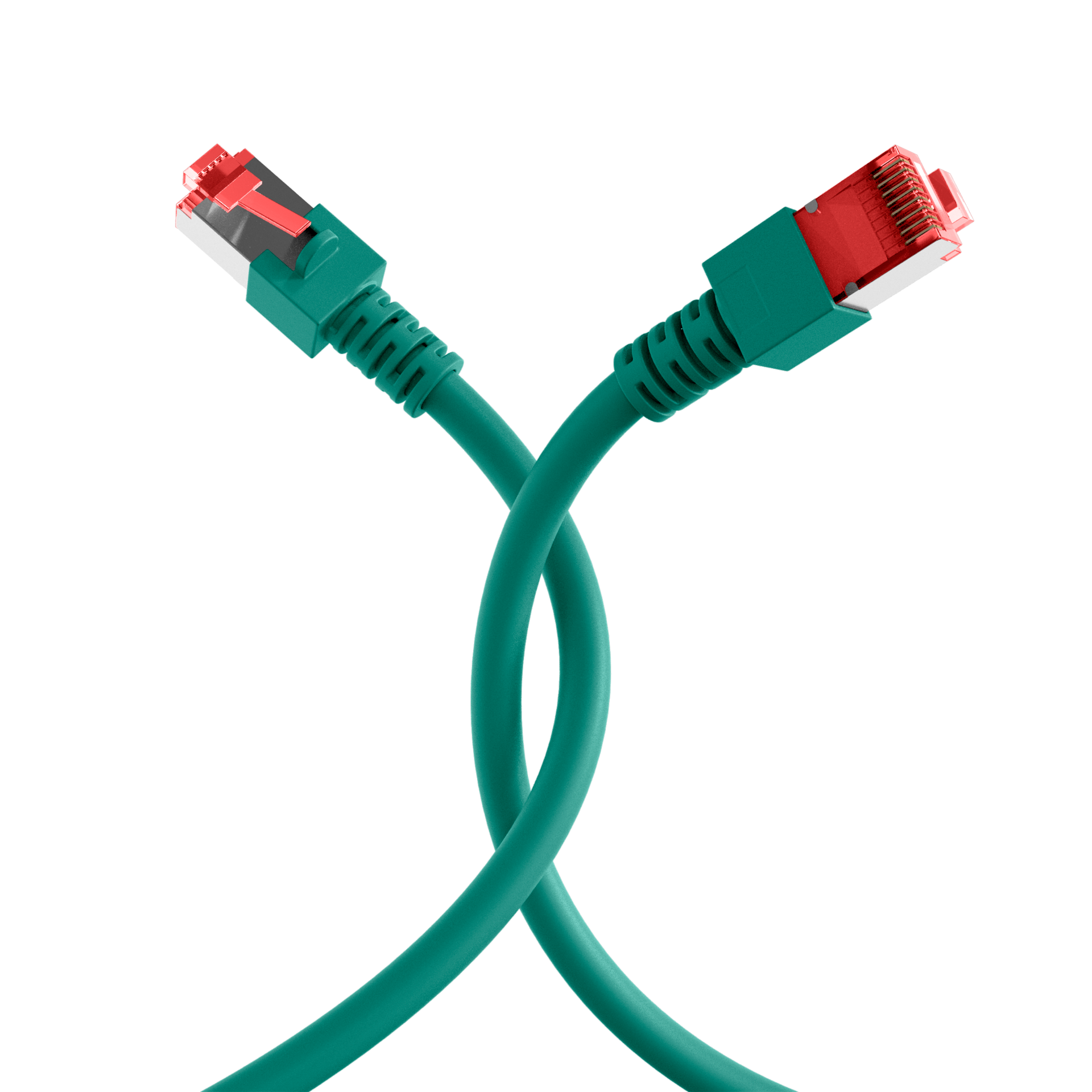

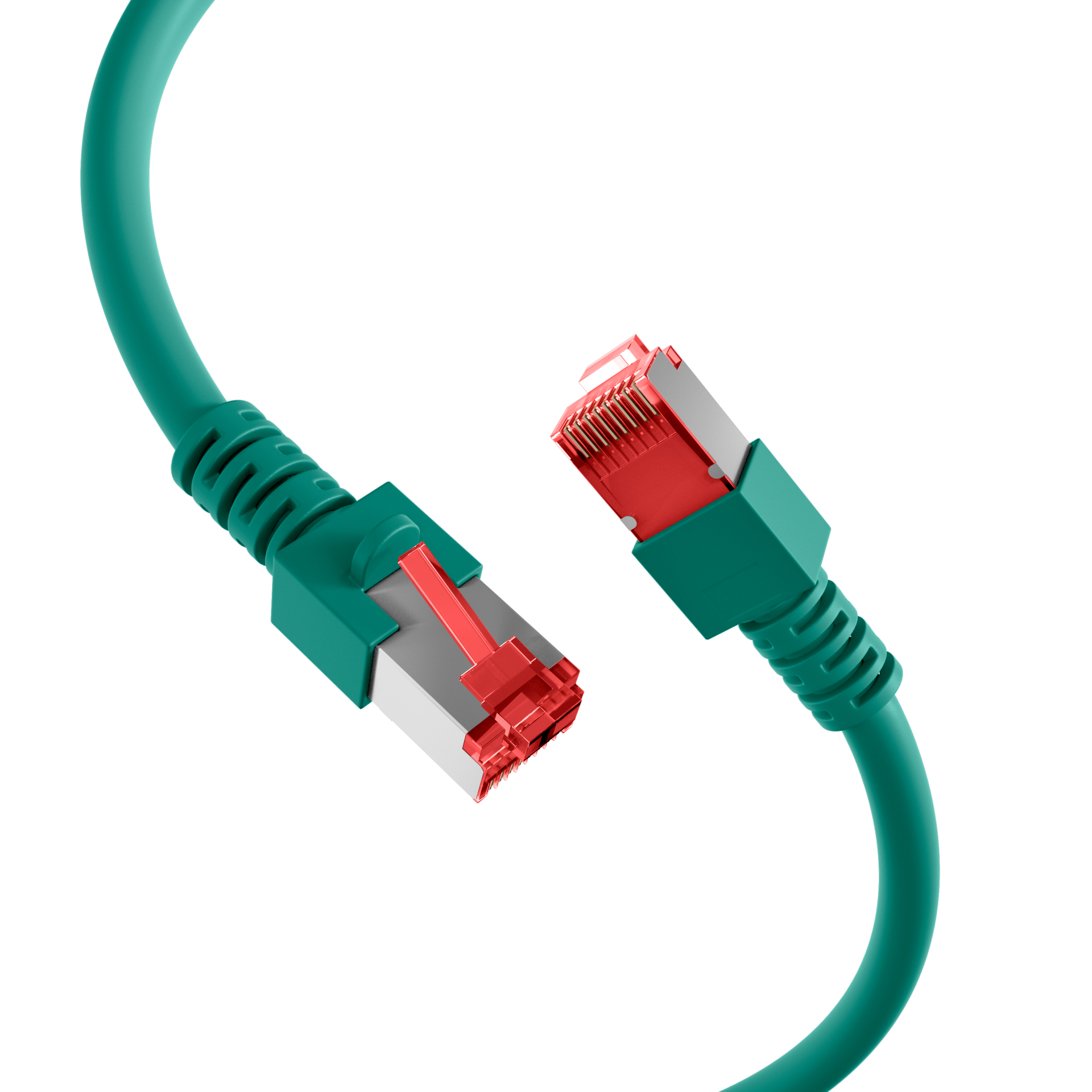

RJ45 Patch Cord Cat.6 S/FTP LSZH green
RJ45 Patch Cord Cat.6 S/FTP LSZH green 0,15m
Varenummer:
K5514.0,15
EAN Nr.:
4049759095536
Produktinformationen für RJ45 Patch Cord Cat.6 S/FTP LSZH green 0,15m
RJ45 patch cable Cat.6 S/FTP LSZH
The Cat.6 patch cable meets the requirements for 5Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6
• S/FTP cable with AWG27/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This achieves a bandwidth of 250 MHz.
The Cat.6 patch cable meets the requirements for 5Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6
• S/FTP cable with AWG27/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This achieves a bandwidth of 250 MHz.
Technische Eigenschaften
| (Halogenfree): | True |
|---|---|
| AWG-size: | 27/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 250MHz |
| Bending radius: | >31 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6 |
| Colour anti-kink sleeve: | green |
| Colour outer sheath: | green |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 185 Ω/km |
| Connector: | IEC 60603-7-5 |
| Connector type: | RJ45 Standard |
| Contact resistance: | 30 mΩ |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | True |
| Insulation resistance: | 10 MΩ |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 370 Ω/km |
| Low smoke: | True |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | - % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.2 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit*** www.efb-elektronik.de |
| Resistance unbalance: | 5 % |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | -20 – 60 °C |
| Temperature Range (Operation): | -20 – 75 °C |
| Temperature Range (Storage): | -20 – 60 °C |
| Temperature range: | 0 – 60 °C |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K5514.0,15 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 0,15m | 0.15 m | ±5 % | |
| K5514.0,25 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 0,25m | 0.25 m | ±5 % | |
| K5514.0,5 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 0,5m | 0.5 m | ±5 % | |
| K5514.1 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 1m | 1.0 m | ±5 % | |
| K5514.1,5 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 1,5m | 1.5 m | ±5 % | |
| K5514.2 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 2m | 2.0 m | ±5 % | |
| K5514.3 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 3m | 3.0 m | ±5 % | |
| K5514.5 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 5m | 5.0 m | ±5 % | |
| K5514.7,5 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 7,5m | 7.5 m | ±5 % | |
| K5514.10 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 10m | 10.0 m | ±5 % | |
| K5514.15 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 15m | 15.0 m | ±5 % | |
| K5514.20 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 20m | 20.0 m | ±5 % | |
| K5514.25 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 25m | 25.0 m | ±5 % | |
| K5514.30 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 30m | 30.0 m | ±5 % | |
| K5514.50 | RJ45 Patch Cord Cat.6 S/FTP LSZH green 50m | 50.0 m | ±5 % |
