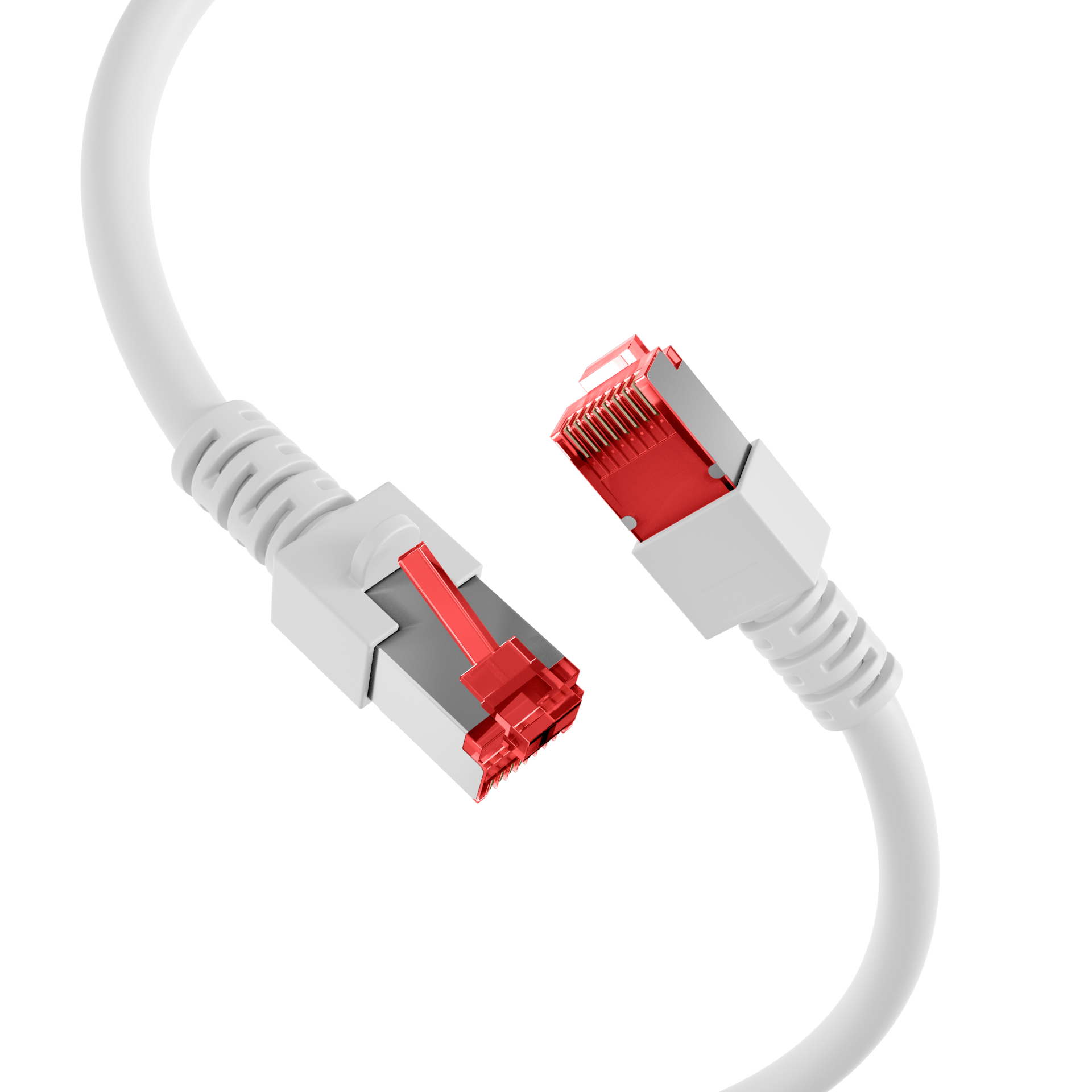

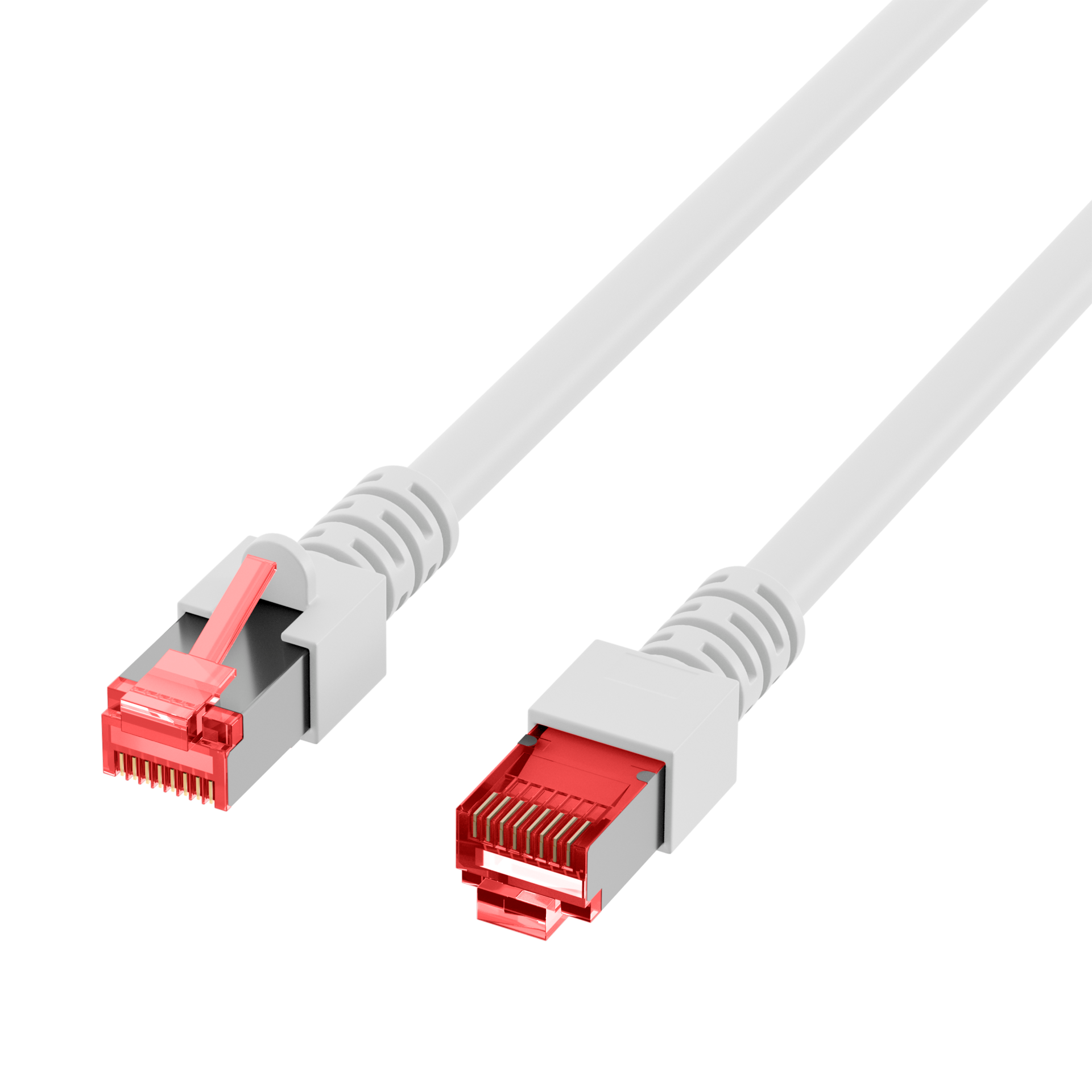

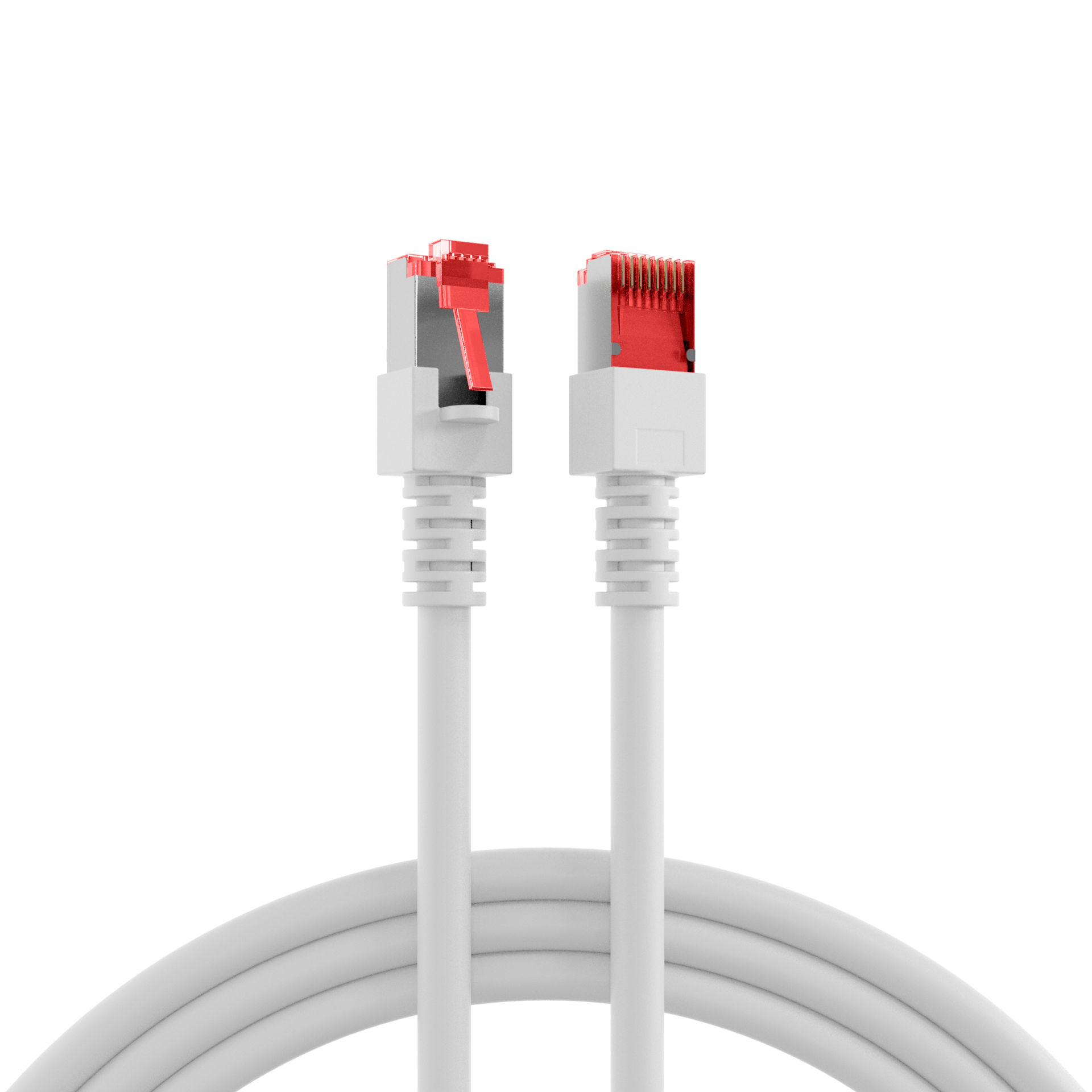

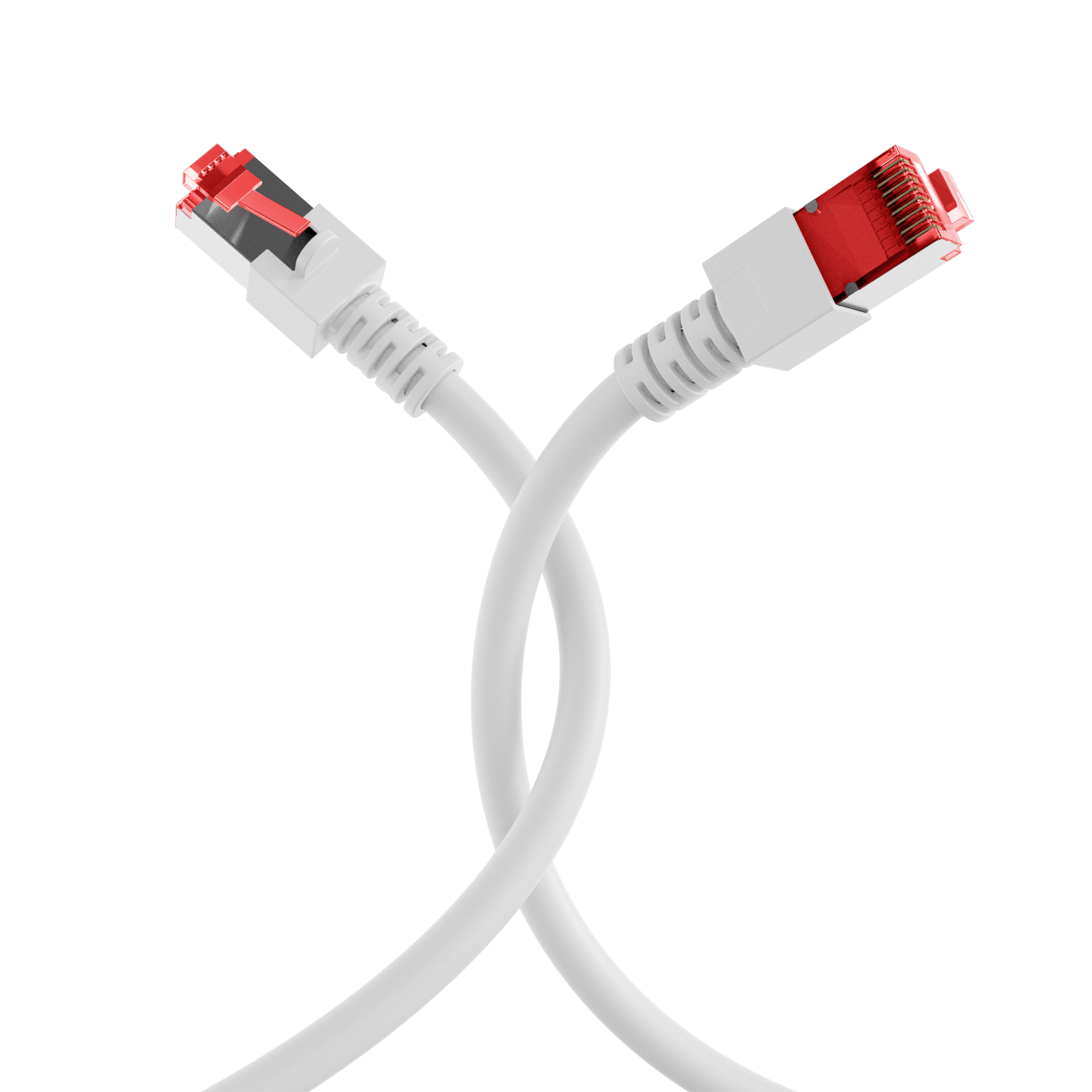

RJ45 Patch Cord Cat.6 S/FTP LSZH white
RJ45 Patch Cord Cat.6 S/FTP LSZH white 0,15m
Varenummer:
K5518.0,15
EAN Nr.:
4049759095581
Produktinformationen für RJ45 Patch Cord Cat.6 S/FTP LSZH white 0,15m
RJ45 patch cable Cat.6 S/FTP LSZH
The Cat.6 patch cable meets the requirements for 5Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6
• S/FTP cable with AWG27/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This achieves a bandwidth of 250 MHz.
The Cat.6 patch cable meets the requirements for 5Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6
• S/FTP cable with AWG27/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This achieves a bandwidth of 250 MHz.
Technische Eigenschaften
(Halogenfree): | True |
---|---|
AWG-size: | 27/7 |
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | plugged in |
Area of Application: |
Data center Industrial Ethernet Structured cabling |
Bandwidth: | 250MHz |
Bending radius: | >31 mm |
Cable construction: | 4x2 |
Cable type: | S/FTP |
Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
Category: | 6 |
Colour anti-kink sleeve: | white |
Colour outer sheath: | white |
Conductive shield: | Selected shield contact |
Conductor Material: | Copper |
Conductor resistance DC: | 185 Ω/km |
Connector: | IEC 60603-7-5 |
Connector type: | RJ45 Standard |
Contact resistance: | 30 mΩ |
Contacts: | Gold plated |
Current capacity: | max. 1 A |
Fire retardant version: | True |
Flame-retardant: | acc. IEC60332-1 |
Halogen-free: | True |
Insulation resistance: | 10 MΩ |
Jacket material: | LSZH |
Length imprint: | True |
Locking lever: | True |
Loop resistance: | 370 Ω/km |
Low smoke: | True |
Mating cycles: | 2000 |
Model: | Shielded |
NVP value: | - % |
Oil resistant (acc. EN 60811-2-1): | False |
Oil resistant (according to EN 60811-404): | False |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 6.2 mm |
POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: | Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit*** www.efb-elektronik.de |
Resistance unbalance: | 5 % |
Silicone-free: | True |
Suitable for degree of protection (IP): | IP20 |
Temperature range: | 0 – 60 °C |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
Varianten
Art. Nr. | Bezeichnung | Length | Length tolerance | |
---|---|---|---|---|
K5518.0,15 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 0,15m | 0.15 m | ±5 % | |
K5518.0,25 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 0,25m | 0.25 m | ±5 % | |
K5518.0,5 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 0,5m | 0.5 m | ±5 % | |
K5518.1 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 1m | 1.0 m | ±5 % | |
K5518.1,5 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 1,5m | 1.5 m | ±5 % | |
K5518.2 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 2m | 2.0 m | ±5 % | |
K5518.3 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 3m | 3.0 m | ±5 % | |
K5518.5 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 5m | 5.0 m | ±5 % | |
K5518.7,5 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 7,5m | 7.5 m | ±5 % | |
K5518.10 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 10m | 10.0 m | ±5 % | |
K5518.15 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 15m | 15.0 m | ±5 % | |
K5518.20 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 20m | 20.0 m | ±5 % | |
K5518.25 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 25m | 25.0 m | ±5 % | |
K5518.30 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 30m | 30.0 m | ±5 % | |
K5518.50 | RJ45 Patch Cord Cat.6 S/FTP LSZH white 50m | 50.0 m | ±5 % |
