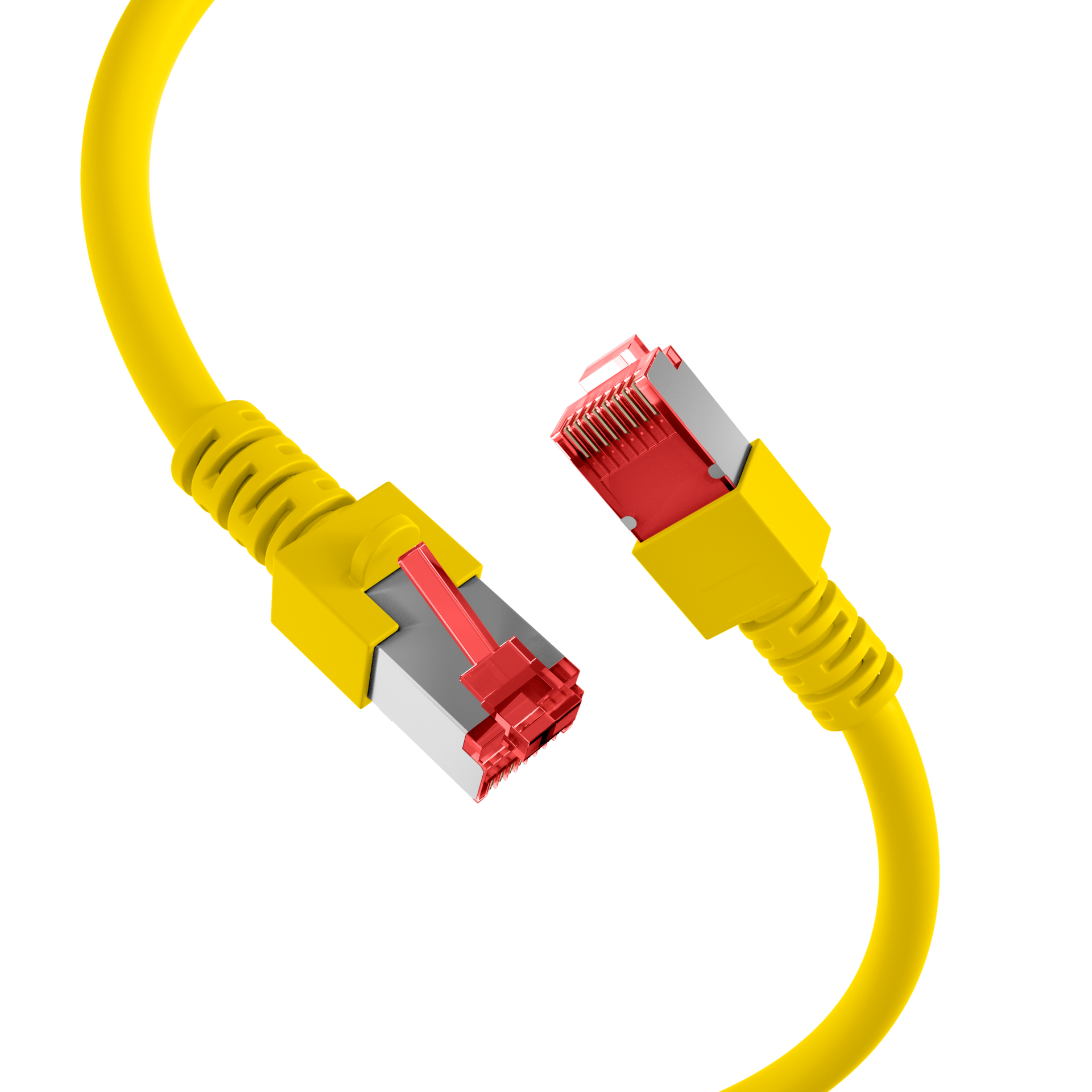

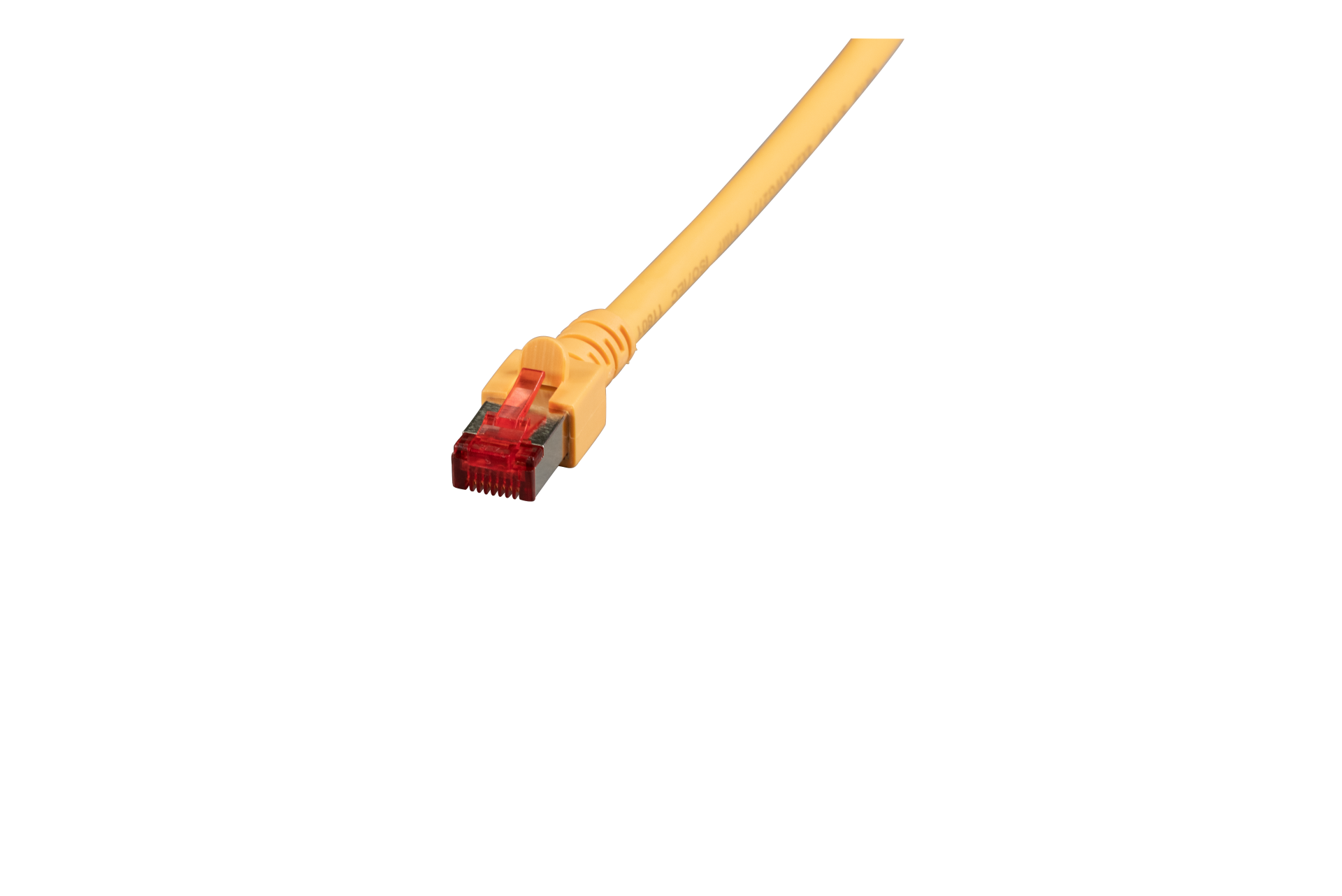

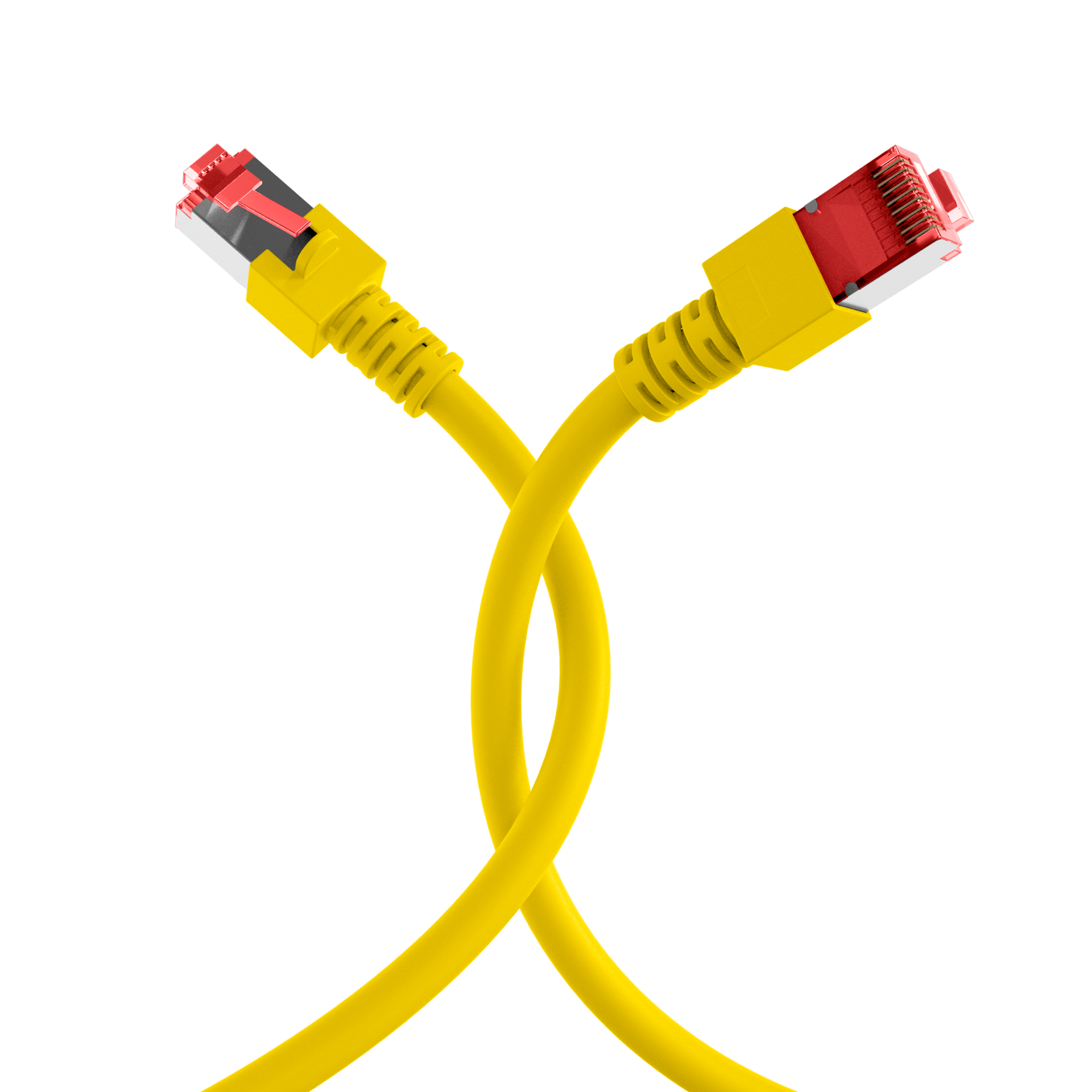

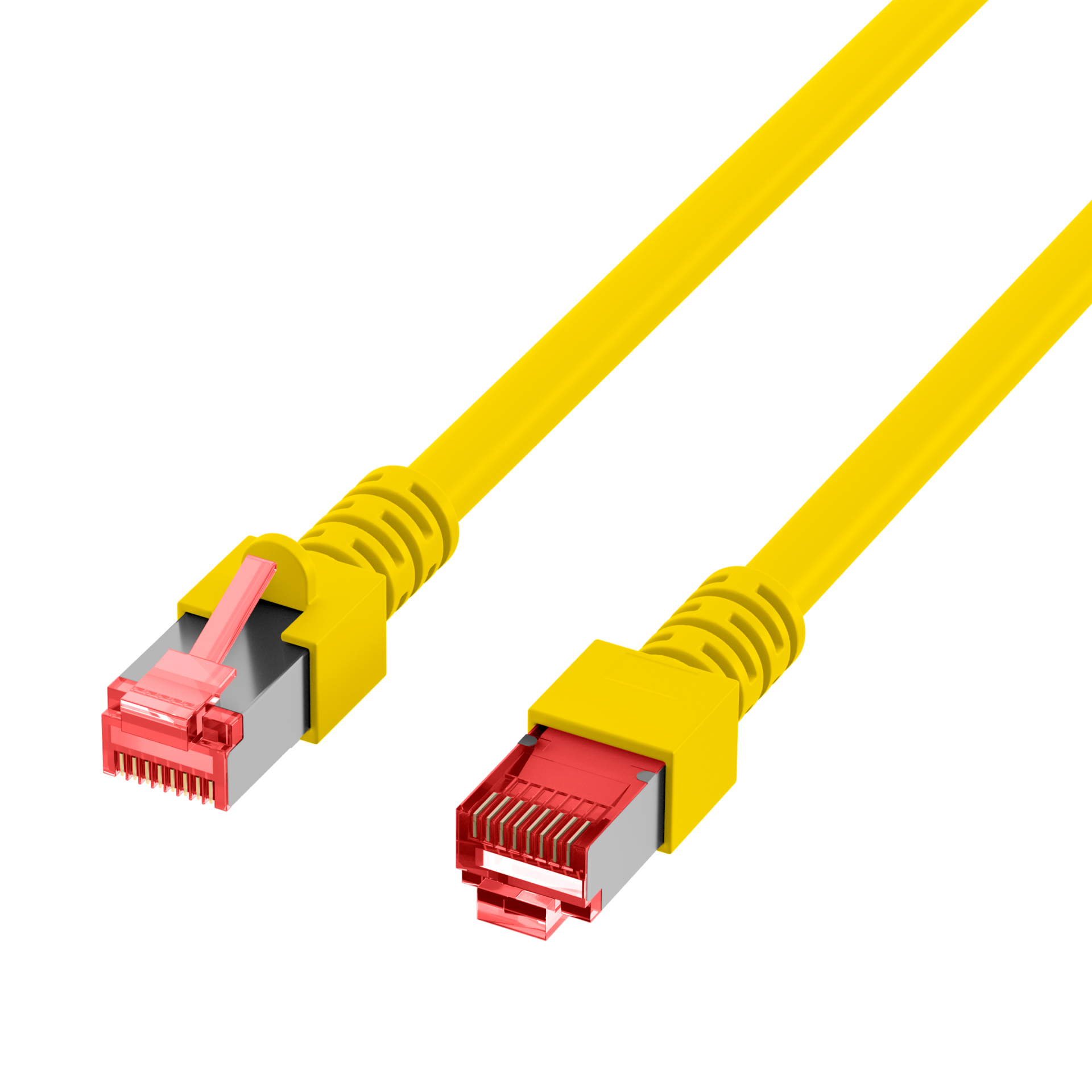

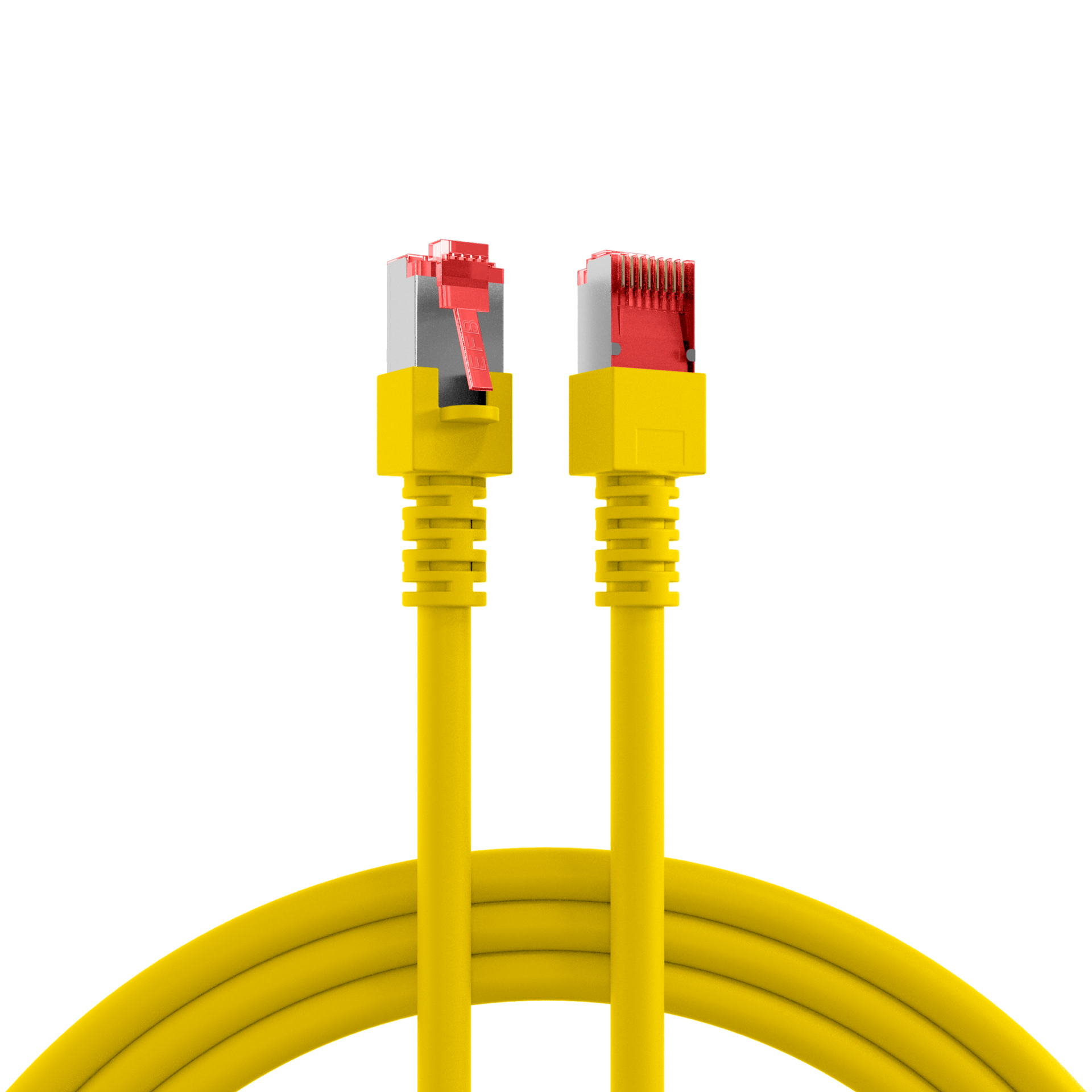

RJ45 Patch Cord Cat.6 S/FTP LSZH yellow
RJ45 Patch Cord Cat.6 S/FTP LSZH yellow
Varenummer:
K5511.40
EAN Nr.:
4049759156046
Produktinformation til RJ45 Patch Cord Cat.6 S/FTP LSZH yellow
RJ45 patch cable Cat.6 S/FTP LSZH
The Cat.6 patch cable meets the requirements for 5Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6
• S/FTP cable with AWG27/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This achieves a bandwidth of 250 MHz.
The Cat.6 patch cable meets the requirements for 5Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6
• S/FTP cable with AWG27/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This achieves a bandwidth of 250 MHz.
Tekniske egenskaber
| (Halogenfrei): | Ja |
|---|---|
| AWG-Querschnitt: | 27/7 |
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | Ja |
| Außendurchmesser des Kabels: | 6.2 mm |
| Bandbreite: | 250MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >31 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Einsatzort: | Rechenzentrum |
| Farbe der Knickschutztülle: | gelb |
| Flammwidrig: | nach IEC60332-1 |
| Geeignet für Schutzart (IP): | IP20 |
| Halogen frei: | nach IEC60754-2 |
| Impedanz: | 100 |
| Isolationswiderstand: | 10 MΩ |
| Kabelaufdruck: | Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit*** www.efb-elektronik.de |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | S/FTP |
| Kategorie: | 6 |
| Knickschutztülle: | angespritzt |
| Kontakte: | Vergoldet |
| Kontaktwiderstand: | 30 mΩ |
| Leitermaterial: | Kupfer |
| Leiterwiderstand DC: | 185 Ω/km |
| Längenaufdruck: | Ja |
| Mantel-Farbe: | gelb |
| Mantel-Material: | LSZH |
| NVP-Wert: | 0 % |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Raucharm: | Ja |
| Schirmkontaktierung: | Punktueller Schirmkontakt |
| Schleifenwiderstand: | 370 Ω/km |
| Silikonfrei: | Ja |
| Steckertyp: | RJ45 standard |
| Steckverbinder: | IEC 60603-7-5 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich: | 0 – 60 °C |
| Temperaturbereich (Betrieb): | -20 – 75 °C |
| Temperaturbereich (Installation): | -20,,60 – °C |
| Temperaturbereich (Lagerung): | -20 – 60 °C |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Widerstandsunsymmetrie: | 5 % |
| Ölbeständig: | Nein |
| Ölbeständig nach EN 60811-2-1: | Nein |
| Ölbeständig nach EN 60811-404: | Nein |
| Übertragung: | 5Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE Klasse | Längentoleranz | |
|---|---|---|---|---|---|
| K5511.0,15 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 0,15m | 0.15 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5511.0,25 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 0,25m | 0.25 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5511.0,5 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5511.1 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 1m | 1,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5511.1,5 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 1,5m | 1,5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5511.2 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 2m | 2,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5511.3 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 3m | 3,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5511.5 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5511.7,5 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5511.10 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 10m | 10,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5511.15 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 15m | 15,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K5511.20 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 20m | 20.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K5511.25 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 25m | 25.0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K5511.30 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 30m | 30,0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K5511.50 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow 50m | 50.0 m | No | ±5 % | |
| K5511.40 | RJ45 Patch Cord Cat.6 S/FTP LSZH yellow | 40.0 m | Nein | ±5 % |
