RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue

Priser kun synlige for indloggede brugere

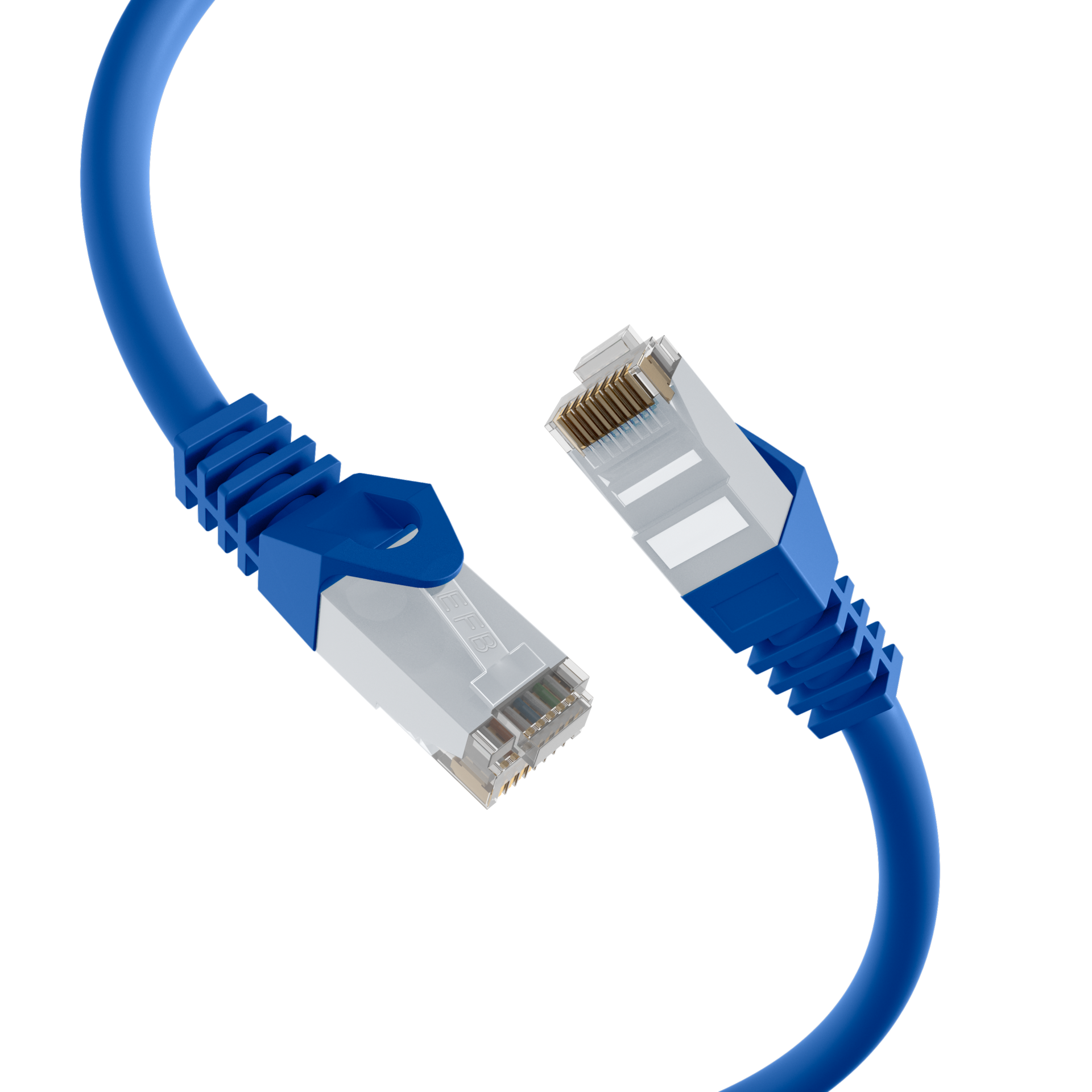

RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 0,25m
Varenummer: K8104BL.0,25
EAN nr.: 4049759206000
Stück

Produktinformation für RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 0,25m

The unshielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot

Tekniske egenskaber

(Halogenfree): True
AWG-size: 24/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Data center
Industrial Ethernet

Structured cabling
Bandwidth: 250MHz
Bending radius: 30 mm
Cable construction: 4x2
Cable type: U/UTP
Cabling Standard: EN50173
ISO/IEC 11801
Category: 6
Colour anti-kink sleeve: blue
Colour outer sheath: blue
Conductor Material: CCA
Connector: IEC 60603-7-4
Connector type: RJ45 Standard
Contacts: Gold plated µ" gold plated
Current capacity: max. 1 A
Fire retardant version: True
Flame-retardant: True
Halogen-free: True
Jacket material: LSZH
Locking lever: True
Low smoke: True
Mating cycles: ≥750
Model: Unshielded
NVP value: - %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 5.9 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at

PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: Cat.6 U/UTP AWG24/7 stranded x 4pairs LSZH cable www.efb-elektronik.de
Silicone-free: True
Suitable for degree of protection (IP): IP20
Transmission: 5Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
K8104BL.0,25 RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 0,25m 0.25 m ±5 %
K8104BL.0,5 RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 0,5m 0.5 m ±5 %
K8104BL.1 RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 1m 1.0 m ±5 %
K8104BL.1,5 RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 1,5m 1.5 m ±5 %
K8104BL.2 RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 2m 2.0 m ±5 %
K8104BL.3 RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 3m 3.0 m ±5 %
K8104BL.5 RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 5m 5.0 m ±5 %
K8104BL.7,5 RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 7,5m 7.5 m ±5 %
K8104BL.10 RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 10m 10.0 m ±5 %
K8104BL.15 RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 15m 15.0 m ±5 %
K8104BL.20 RJ45 Patch Cord Cat.6 U/UTP LSZH CCA blue 20m 20.0 m ±5 %
