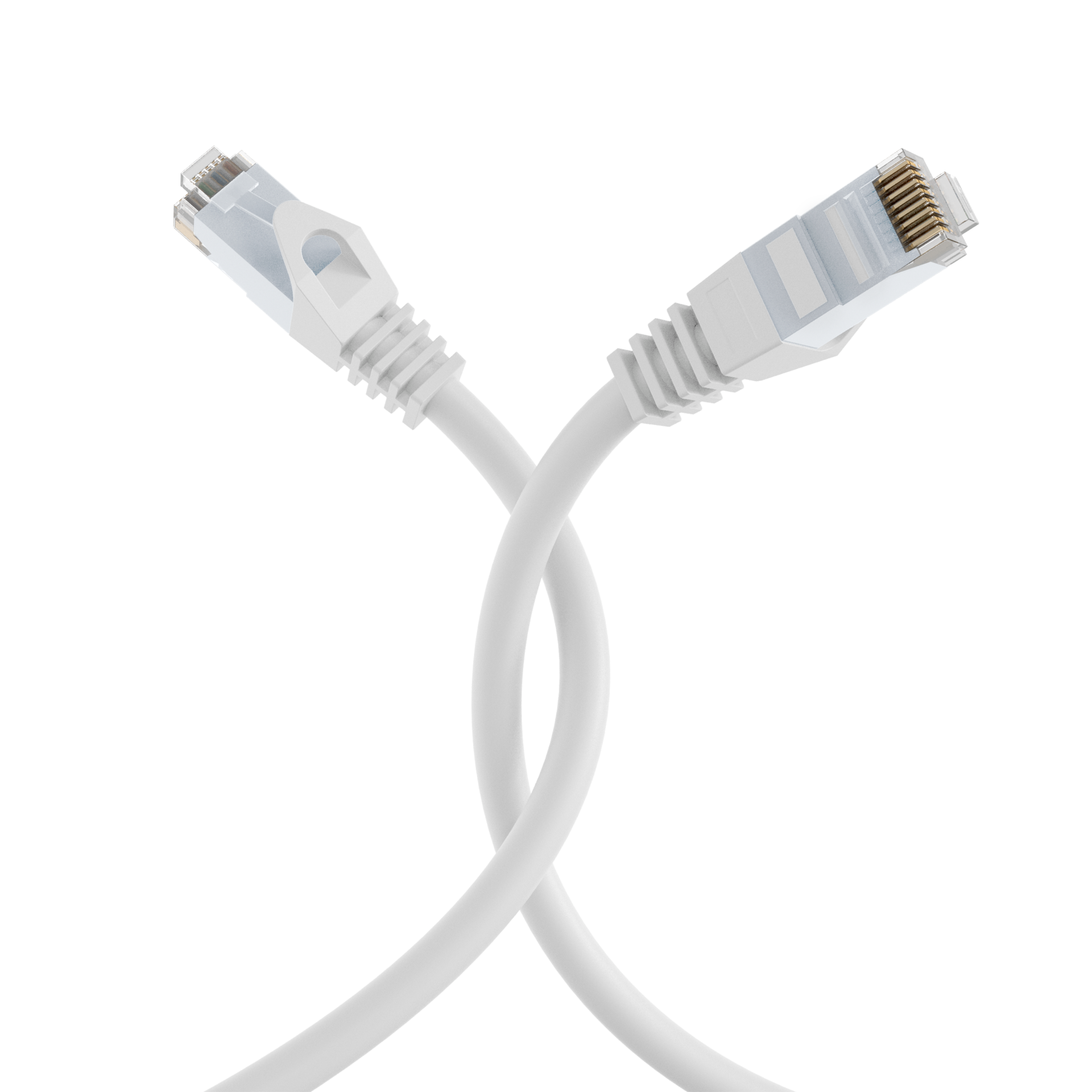

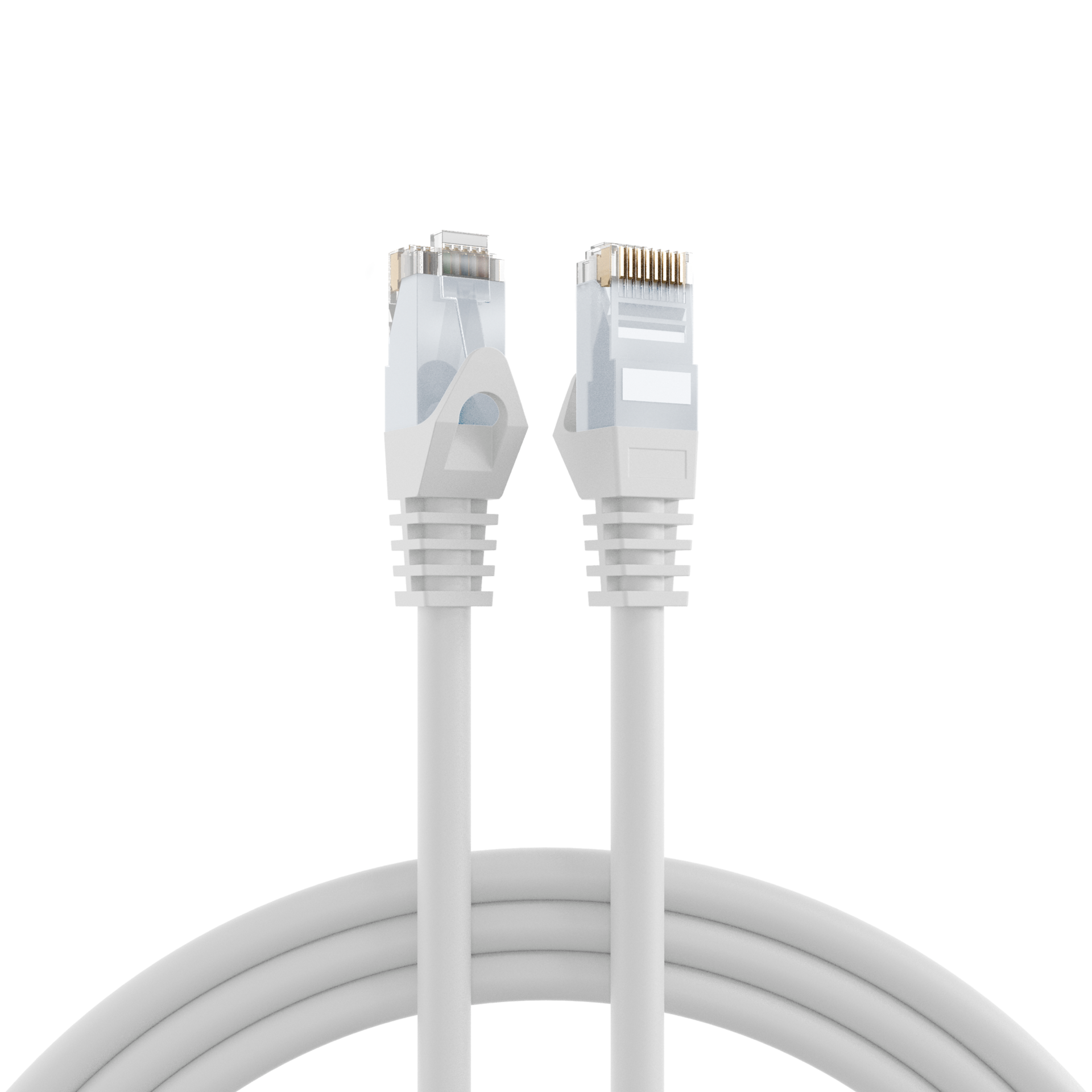

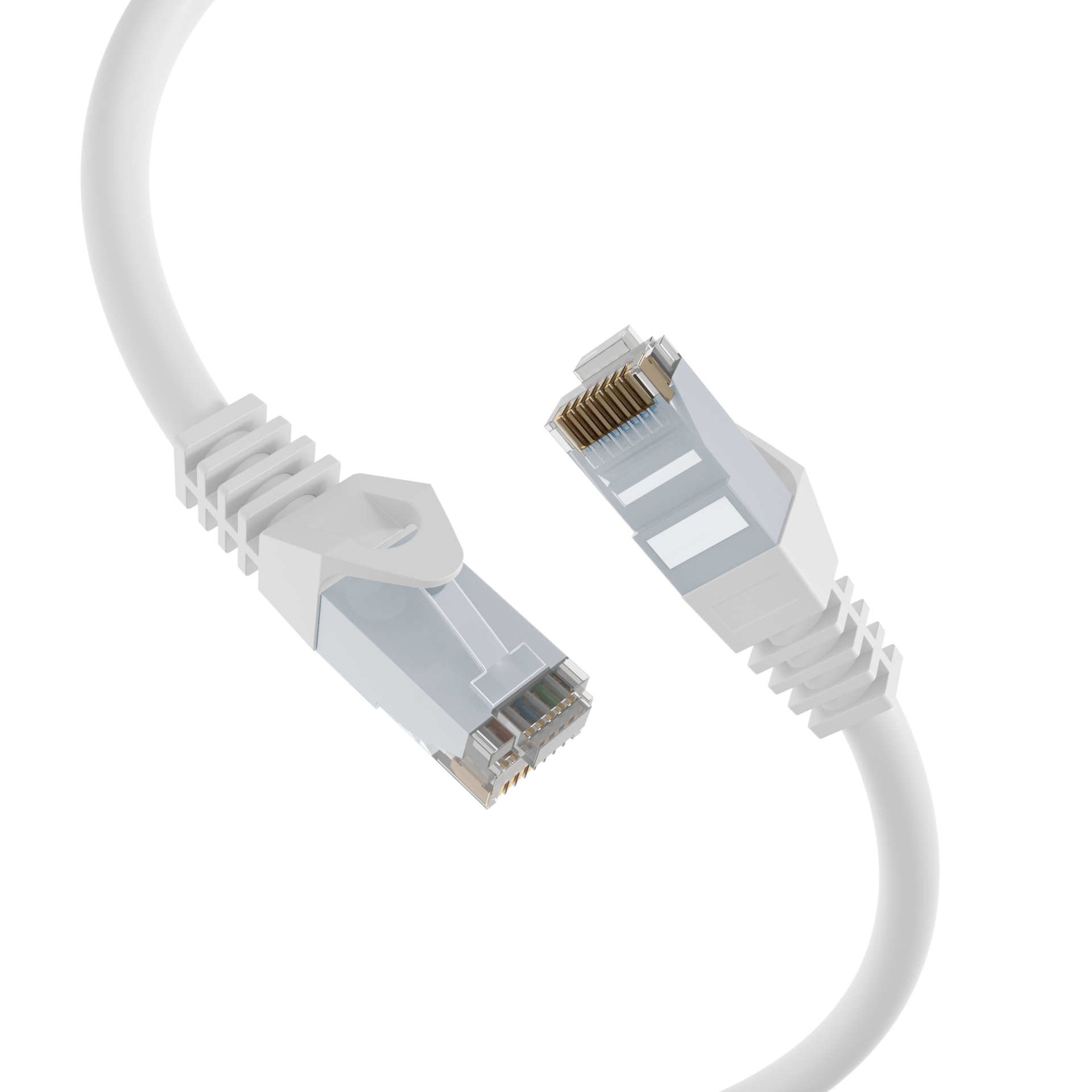

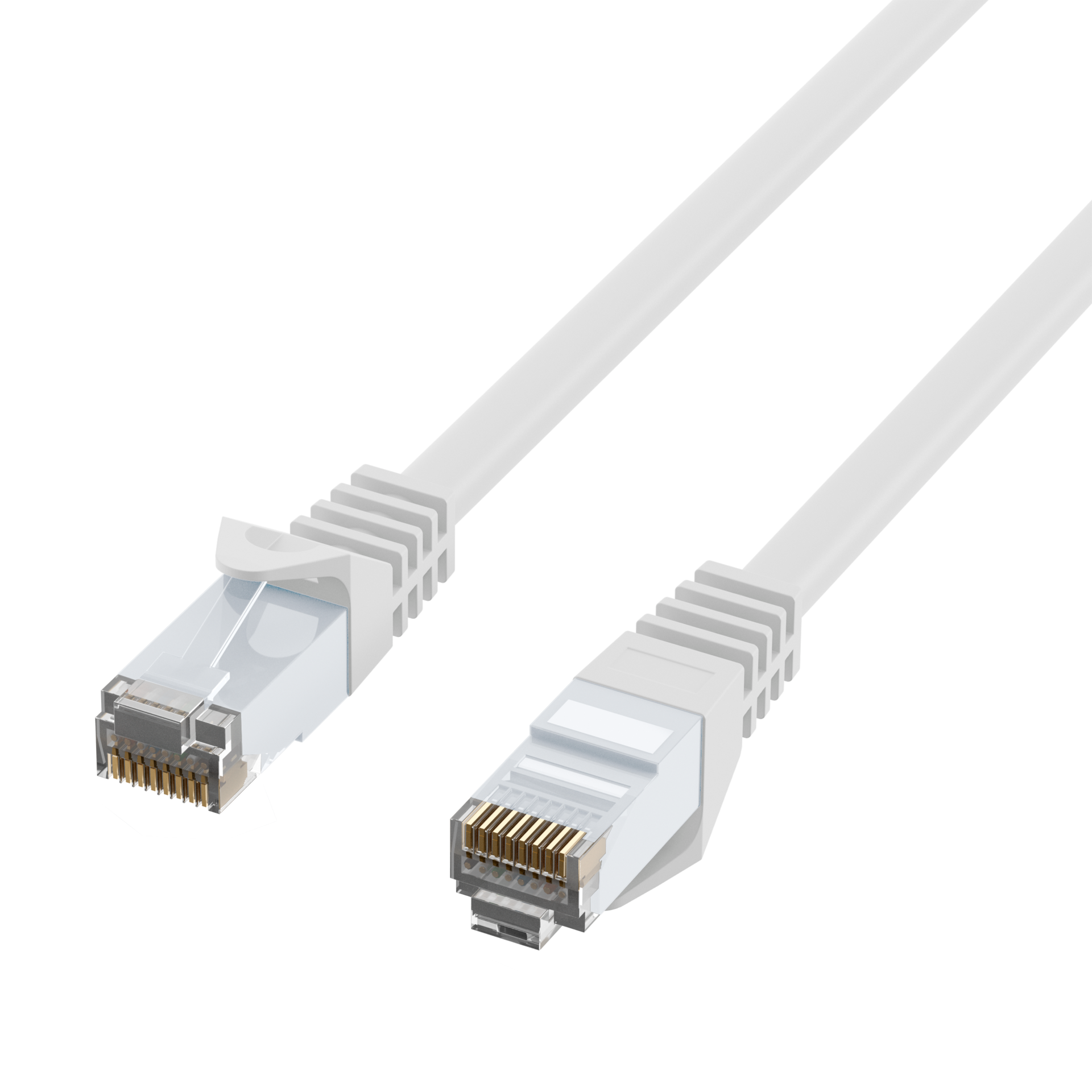

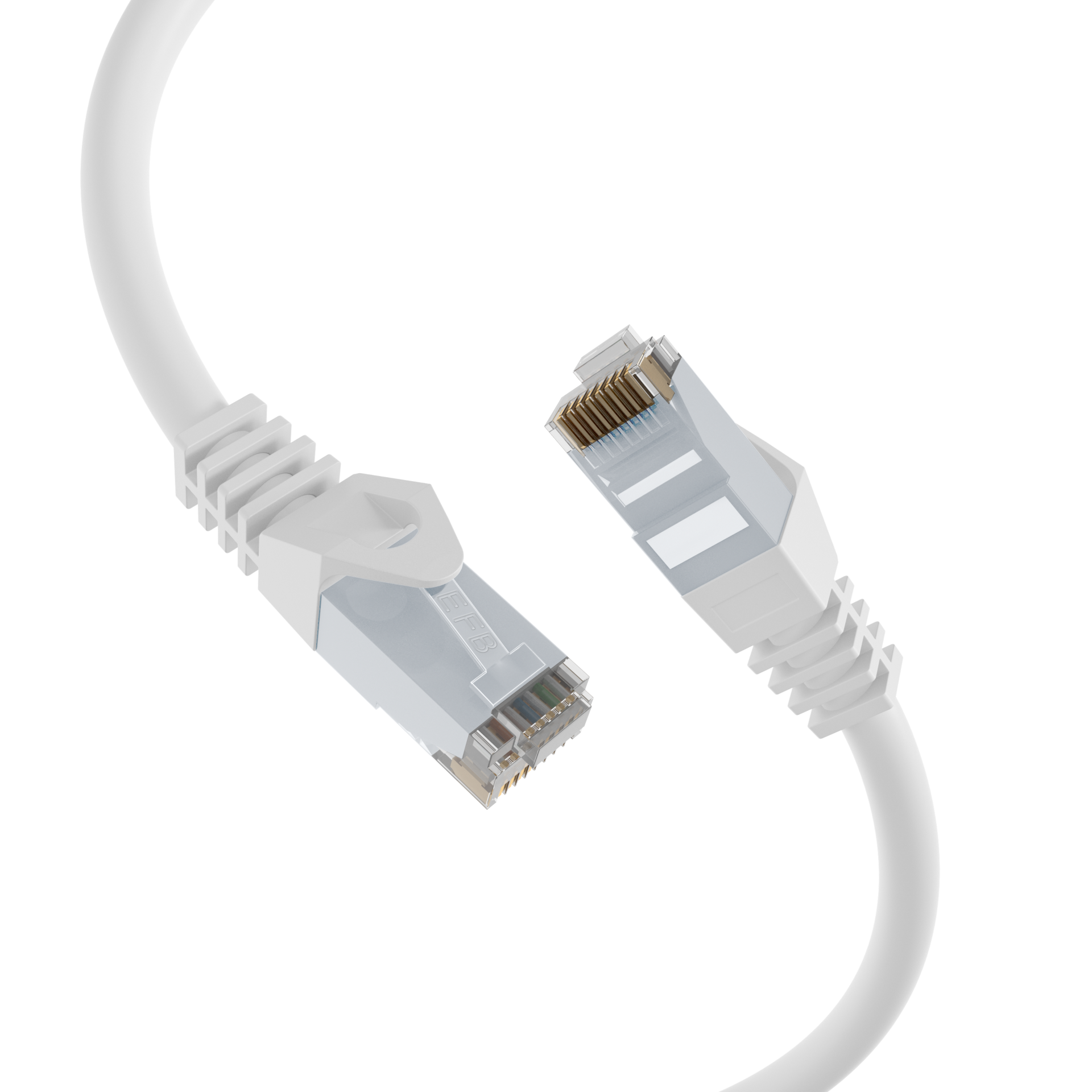

RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white
RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 0,25m
Varenummer:
K8104WS.0,25
EAN Nr.:
4049759206055
Produktinformationen für RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 0,25m
RJ45 patch cable Cat.6 U/UTP LSZH CCA
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B .
The data cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is up to 250 MHz.
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B .
The data cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is up to 250 MHz.
Technische Eigenschaften
| (Halogenfree): | True |
|---|---|
| AWG-size: | 24/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 250MHz |
| Bending radius: | 30 mm |
| Cable construction: | 4x2 |
| Cable type: | U/UTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6 |
| Colour anti-kink sleeve: | white |
| Colour outer sheath: | white |
| Conductor Material: | CCA |
| Connector: | IEC 60603-7-4 |
| Connector type: | RJ45 Standard |
| Contacts: | Gold plated µ" gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | True |
| Halogen-free: | True |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Low smoke: | True |
| Mating cycles: | ≥750 |
| Model: | Unshielded |
| NVP value: | - % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.9 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | Cat.6 U/UTP AWG24/7 stranded x 4pairs LSZH cable www.efb-elektronik.de |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Transmission: | 5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K8104WS.0,25 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 0,25m | 0.25 m | ±5 % | |
| K8104WS.0,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 0,5m | 0.5 m | ±5 % | |
| K8104WS.1 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 1m | 1.0 m | ±5 % | |
| K8104WS.1,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 1,5m | 1.5 m | ±5 % | |
| K8104WS.2 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 2m | 2.0 m | ±5 % | |
| K8104WS.3 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 3m | 3.0 m | ±5 % | |
| K8104WS.5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 5m | 5.0 m | ±5 % | |
| K8104WS.7,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 7,5m | 7.5 m | ±5 % | |
| K8104WS.10 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 10m | 10.0 m | ±5 % | |
| K8104WS.15 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 15m | 15.0 m | ±5 % | |
| K8104WS.20 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 20m | 20.0 m | ±5 % | |
| K8104WS.25 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 25m | 25.0 m | ±5 % | |
| K8104WS.30 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 30m | 30.0 m | ±5 % | |
| K8104WS.50 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA white 50m | 50.0 m | ±5 % |
