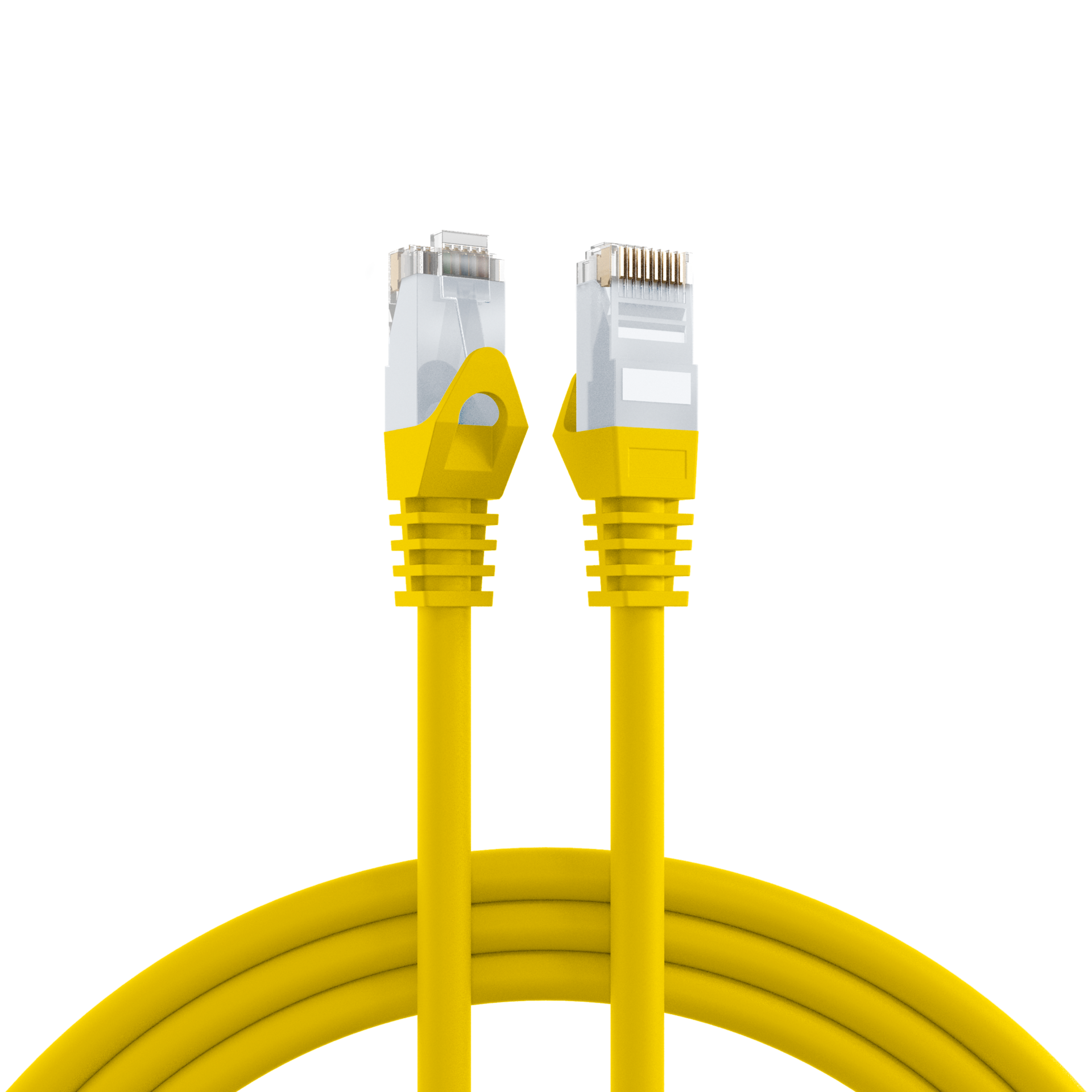

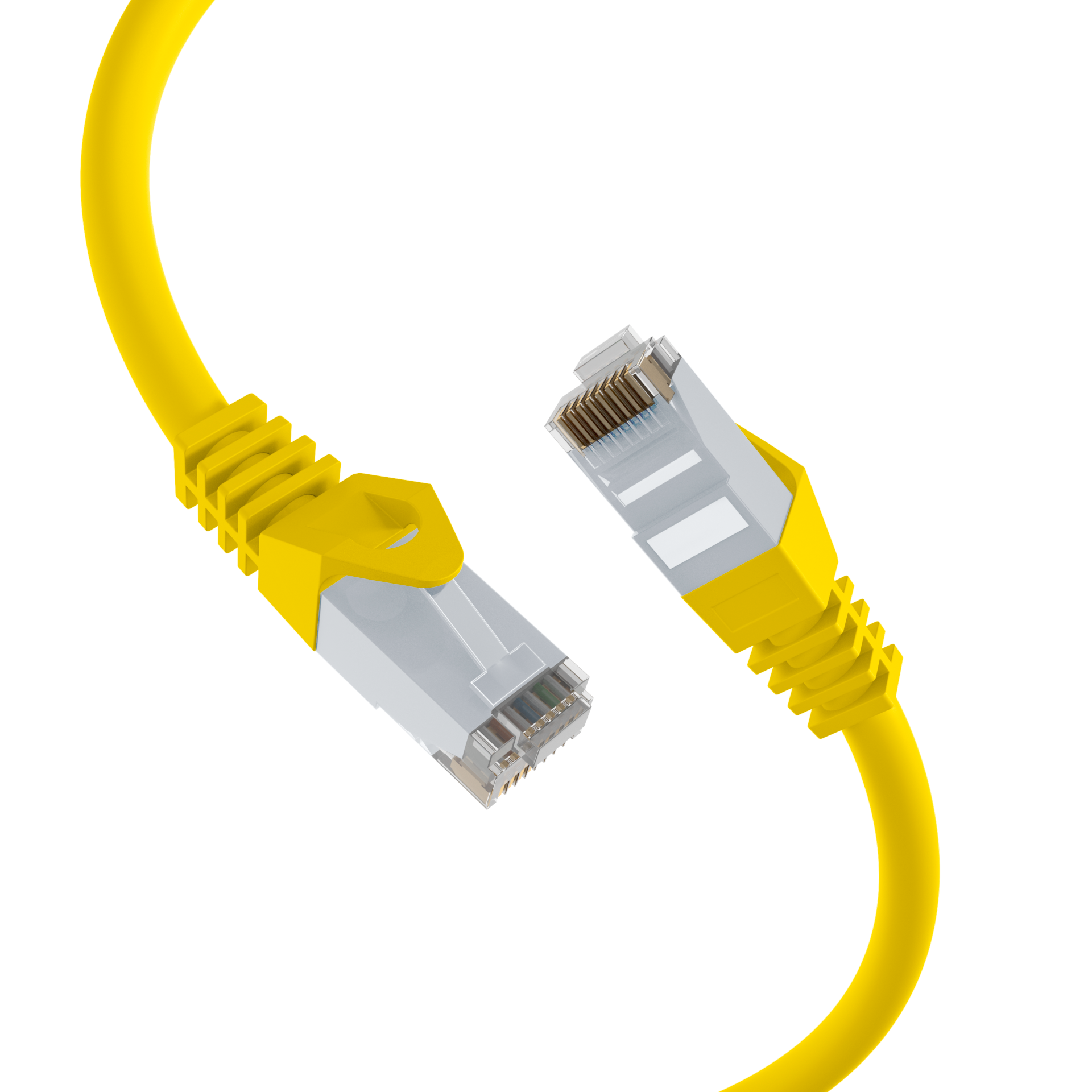

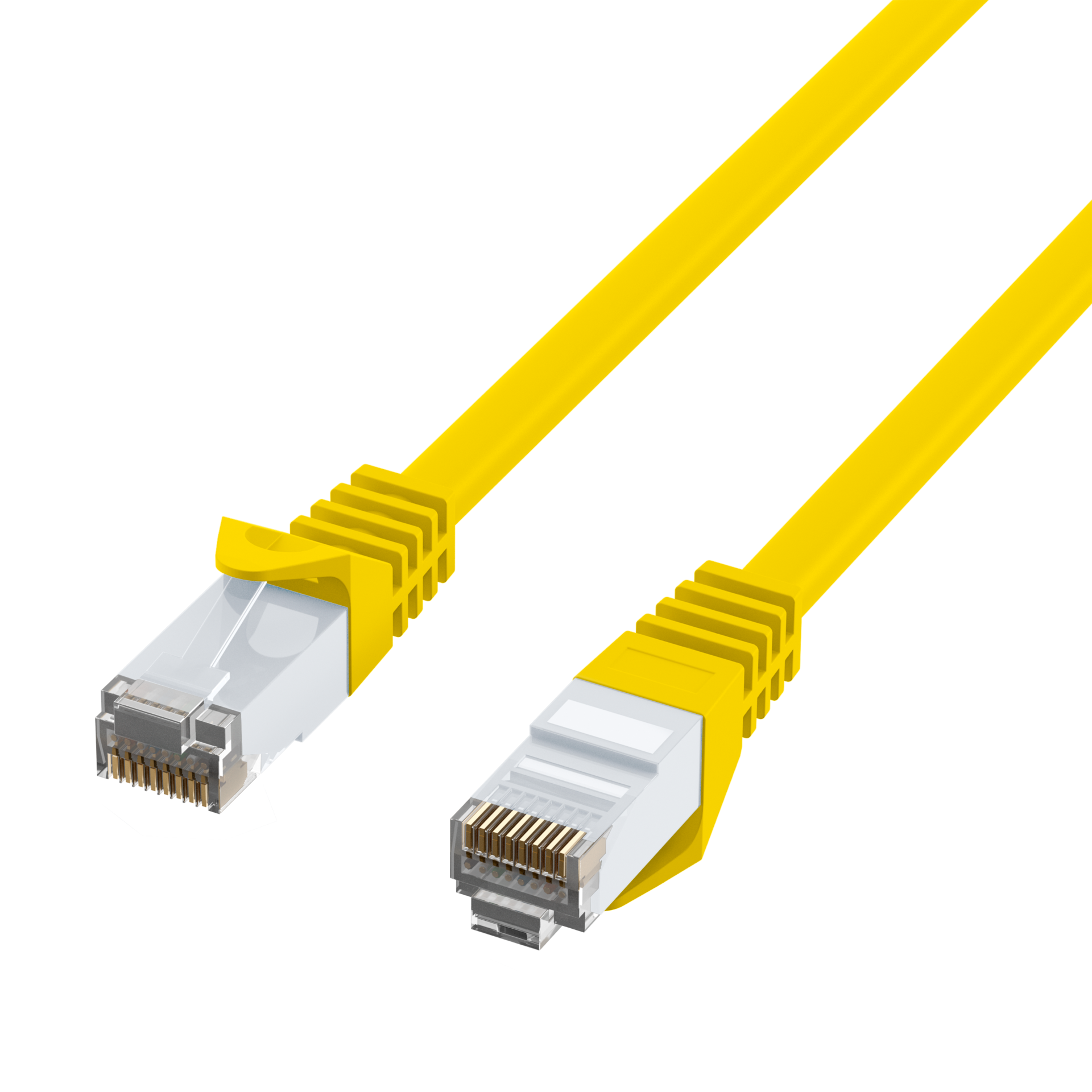

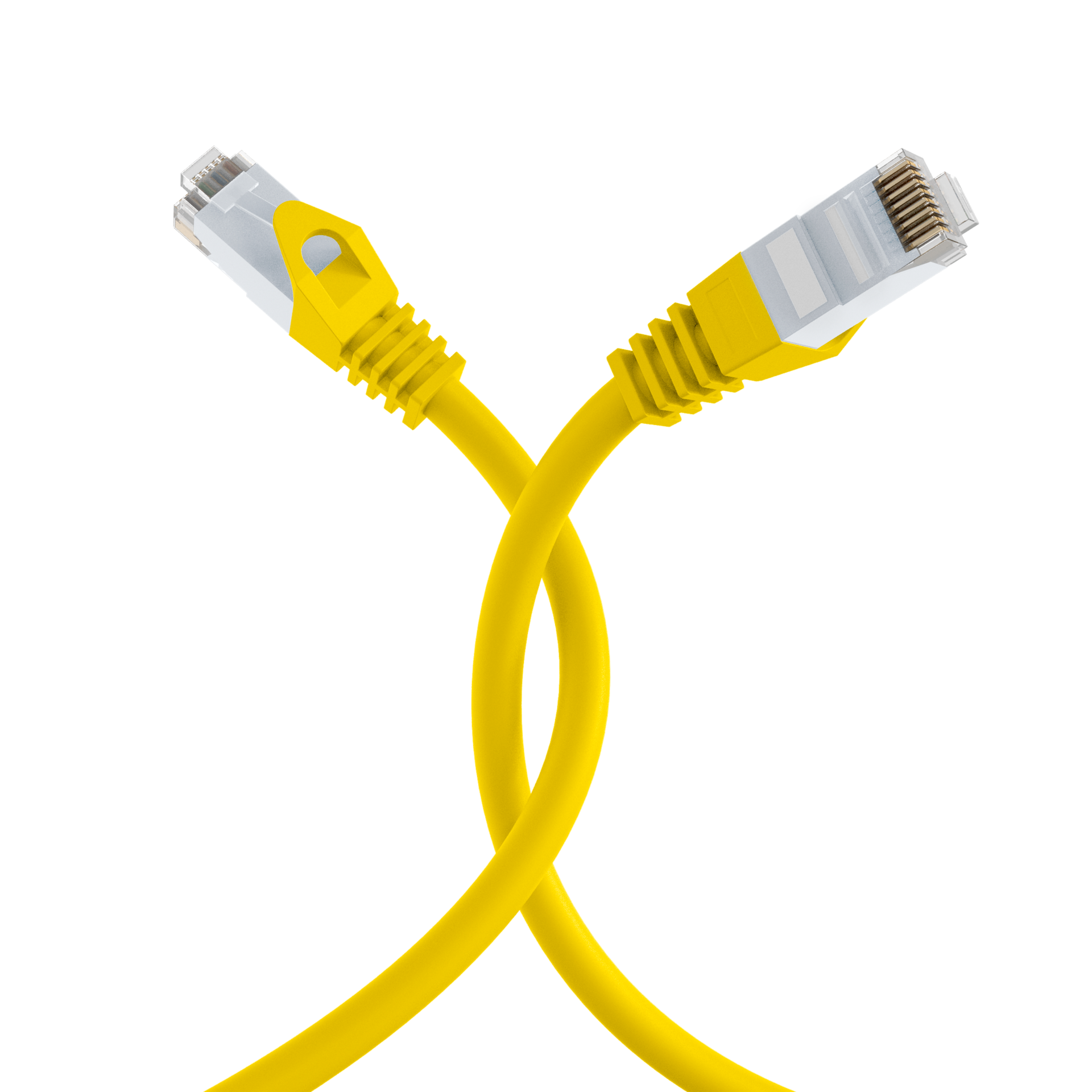

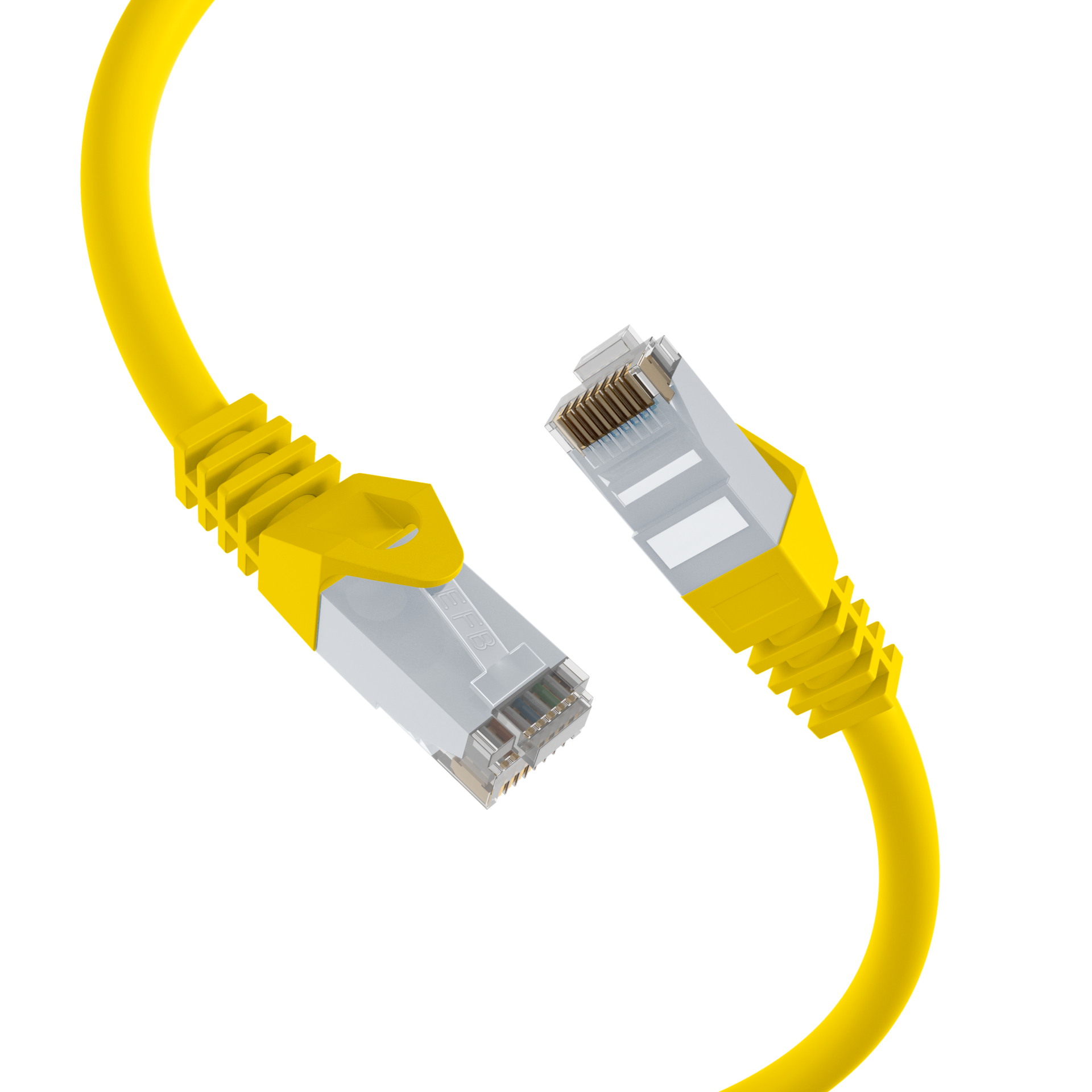

RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow
RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 0,25m
Varenummer:
K8104GE.0,25
EAN Nr.:
4049759206017
Produktinformation til RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 0,25m
RJ45 patch cable Cat.6 U/UTP LSZH CCA
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B .
The data cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is up to 250 MHz.
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B .
The data cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is up to 250 MHz.
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 24/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of Application: |
Industrial Ethernet Structured cabling |
| Bandwidth: | 250MHz |
| Bending radius: | >30 mm |
| Cable construction: | 4x2 |
| Cable type: | U/UTP |
| Cabling Standard: |
ANSI/TIA-568 EN50173 ISO/IEC 11801 |
| Category: | 6 |
| Colour anti-kink sleeve: | yellow |
| Colour outer sheath: | yellow |
| Conductive shield: | No |
| Conductor Material: | CCA |
| Connector: | IEC 60603-7-4 |
| Connector type: | RJ45 standard |
| Contacts: | Gold plated µ" gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | acc. IEC60754-2 |
| Impedance: | 100 |
| Jacket Material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Low smoke: | True |
| Mating cycles: | ≥750 |
| Model: | unshielded |
| NVP value: | 0 % |
| Oil resistant: | No |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.9 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Printing: | UTP Cat.5E 100MHZ 24AWGX4P Patch ISO/IEC 11801 & EN 50173 verified www.efb-elektronik.de |
| Resistant to chemicals: | False |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K8104GE.0,25 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 0,25m | 0.25 m | No | ±5 % | |
| K8104GE.0,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 0,5m | 0.5 m | No | ±5 % | |
| K8104GE.1 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 1m | 1.0 m | No | ±5 % | |
| K8104GE.1,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 1,5m | 1.5 m | No | ±5 % | |
| K8104GE.2 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 2m | 2.0 m | No | ±5 % | |
| K8104GE.3 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 3m | 3.0 m | No | ±5 % | |
| K8104GE.5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 5m | 5.0 m | No | ±5 % | |
| K8104GE.7,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 7,5m | 7.5 m | No | ±5 % | |
| K8104GE.10 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 10m | 10.0 m | No | ±5 % | |
| K8104GE.15 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 15m | 15.0 m | No | ±5 % | |
| K8104GE.20 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA yellow 20m | 20.0 m | No | ±5 % |
