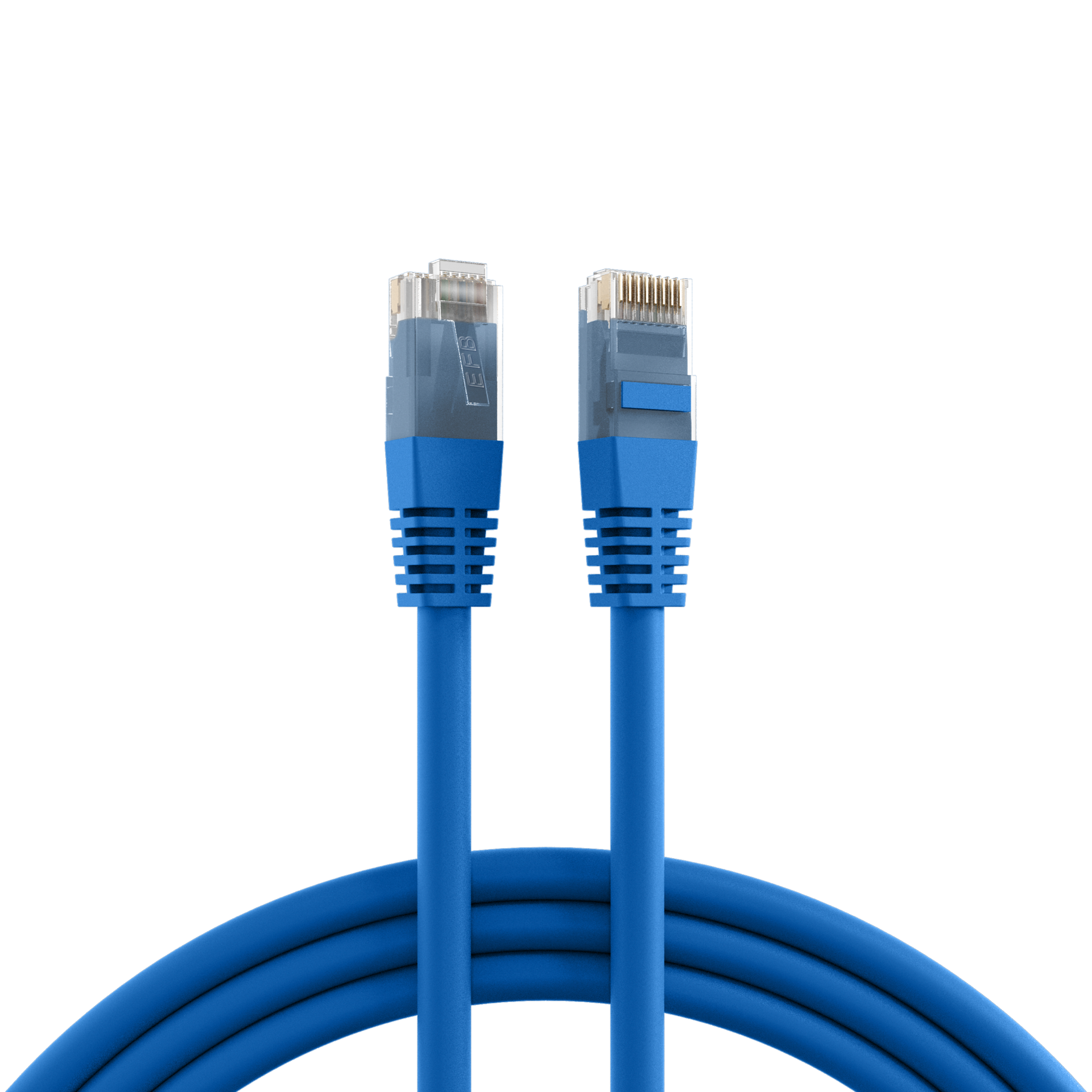

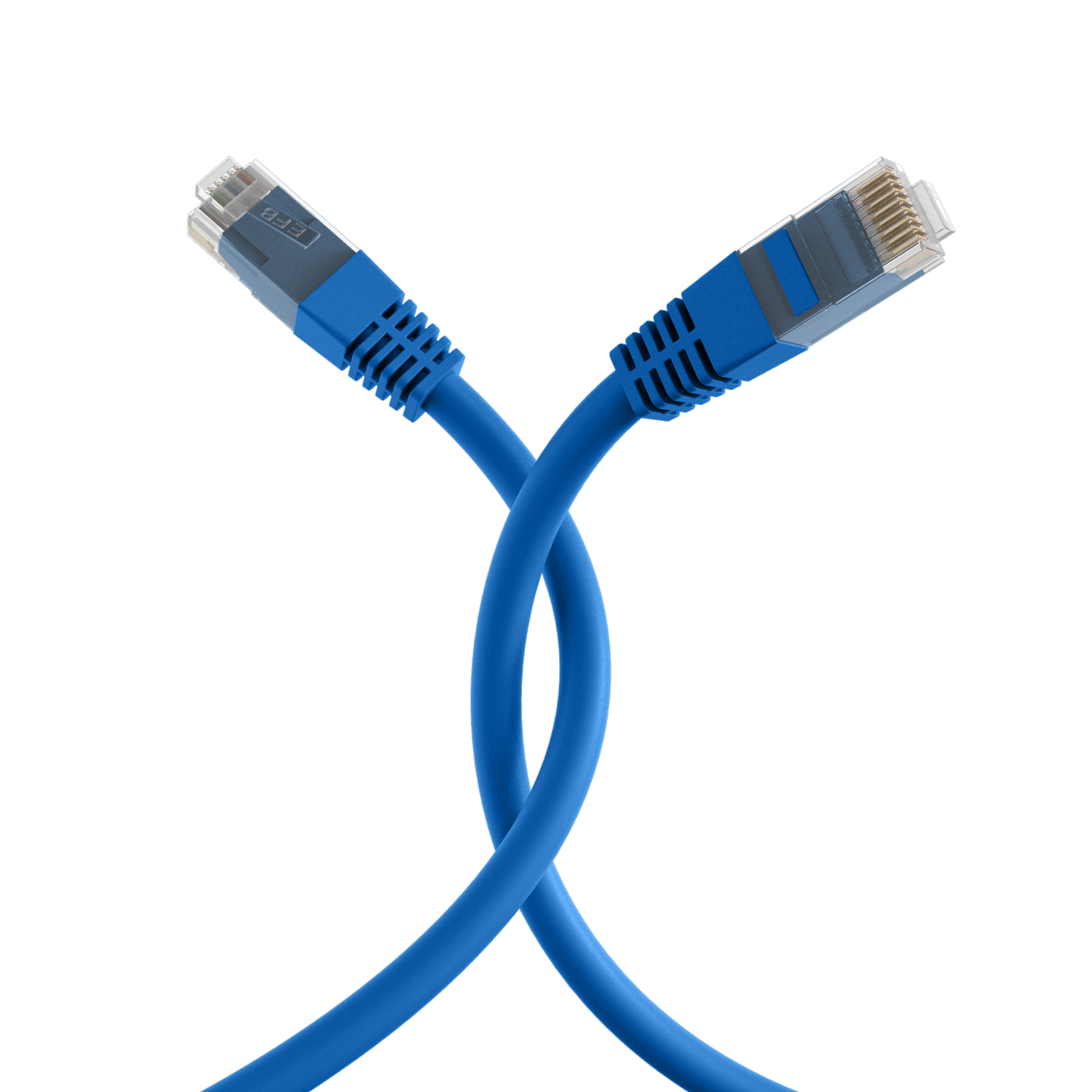

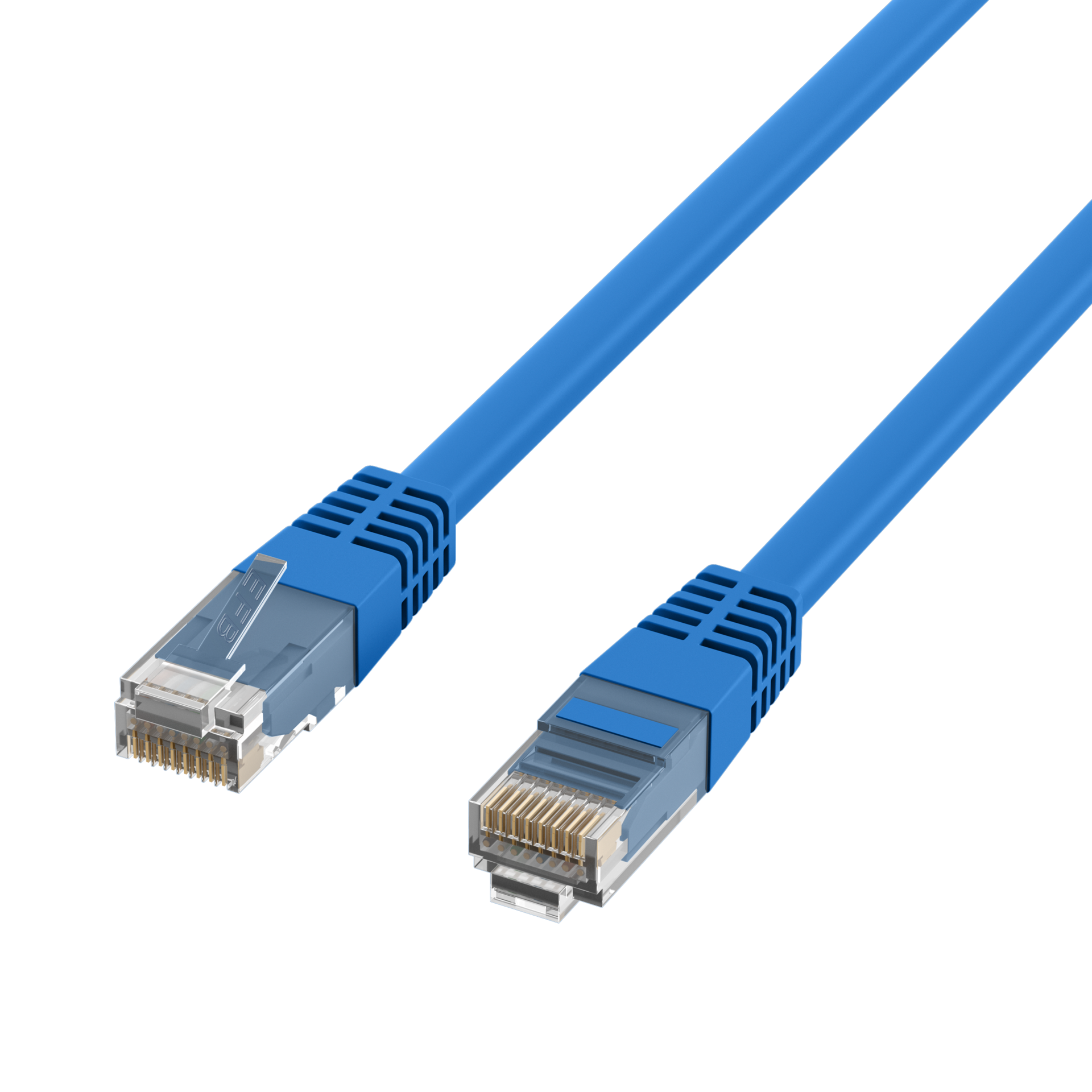

RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue
RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue
Varenummer:
K8100BL.0,25
EAN Nr.:
4049759160296
Produktinformation til RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue
RJ45 patch cable Cat.6 U/UTP PVC CCA
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the patch cable is made of polyvinyl chloride (PVC ) material and has a length print on the nozzle. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the extended temperature range -20 - 70 °C.
The Ethernet cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. A bandwidth of up to 250 MHz is achieved.
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the patch cable is made of polyvinyl chloride (PVC ) material and has a length print on the nozzle. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the extended temperature range -20 - 70 °C.
The Ethernet cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. A bandwidth of up to 250 MHz is achieved.
Tekniske egenskaber
| (Halogenfrei): | Nein |
|---|---|
| AWG-Querschnitt: | 24/7 |
| Ausführung: | ungeschirmt |
| Ausführung flammwidrig: | Nein |
| Außendurchmesser des Kabels: | 5,9 mm |
| Bandbreite: | 250MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >30 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Farbe der Knickschutztülle: | blau |
| Flammwidrig: | nach IEC60332-1 |
| Geeignet für Schutzart (IP): | IP20 |
| Halogen frei: | Nein |
| Impedanz: | 100 |
| Kabelaufdruck: | Cat.6 UTP AWG24 stranded x 4pairs cable www.efb-elektronik.de |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | U/UTP |
| Kategorie: | 6 |
| Knickschutztülle: | angespritzt |
| Kontakte: | Vergoldet µ" Vergoldet |
| Leitermaterial: | CCA |
| Längenaufdruck: | Ja |
| Mantel-Farbe: | blau |
| Mantel-Material: | Polyvinylchlorid (PVC) |
| NVP-Wert: | 0 % |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Nein |
| Schirmkontaktierung: | Nein |
| Silikonfrei: | Ja |
| Steckertyp: | RJ45 standard |
| Steckverbinder: | IEC 60603-7-4 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich: | -20 – 70 °C |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Ölbeständig: | Nein |
| Übertragung: | 5Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE Klasse | Längentoleranz | |
|---|---|---|---|---|---|
| K8100BL.0,5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue 0,5m | 0.5 m | No | ±5 % | |
| K8100BL.1 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue 1m | 1,0 m | No | ±5 % | |
| K8100BL.1,5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue 1,5m | 1,5 m | No | ±5 % | |
| K8100BL.2 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue 2m | 2,0 m | No | ±5 % | |
| K8100BL.3 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue 3m | 3,0 m | No | ±5 % | |
| K8100BL.5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue 5m | 5.0 m | No | ±5 % | |
| K8100BL.7,5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue 7,5m | 7.5 m | No | ±5 % | |
| K8100BL.10 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue 10m | 10,0 m | No | ±5 % | |
| K8100BL.15 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue 15m | 15,0 m | No | ±5 % | |
| K8100BL.20 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue 20m | 20.0 m | No | ±5 % | |
| K8100BL.30 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue 30m | 30,0 m | No | ±5 % | |
| K8100BL.0,25 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA blue | 0.25 m | Nein | ±5 % |
