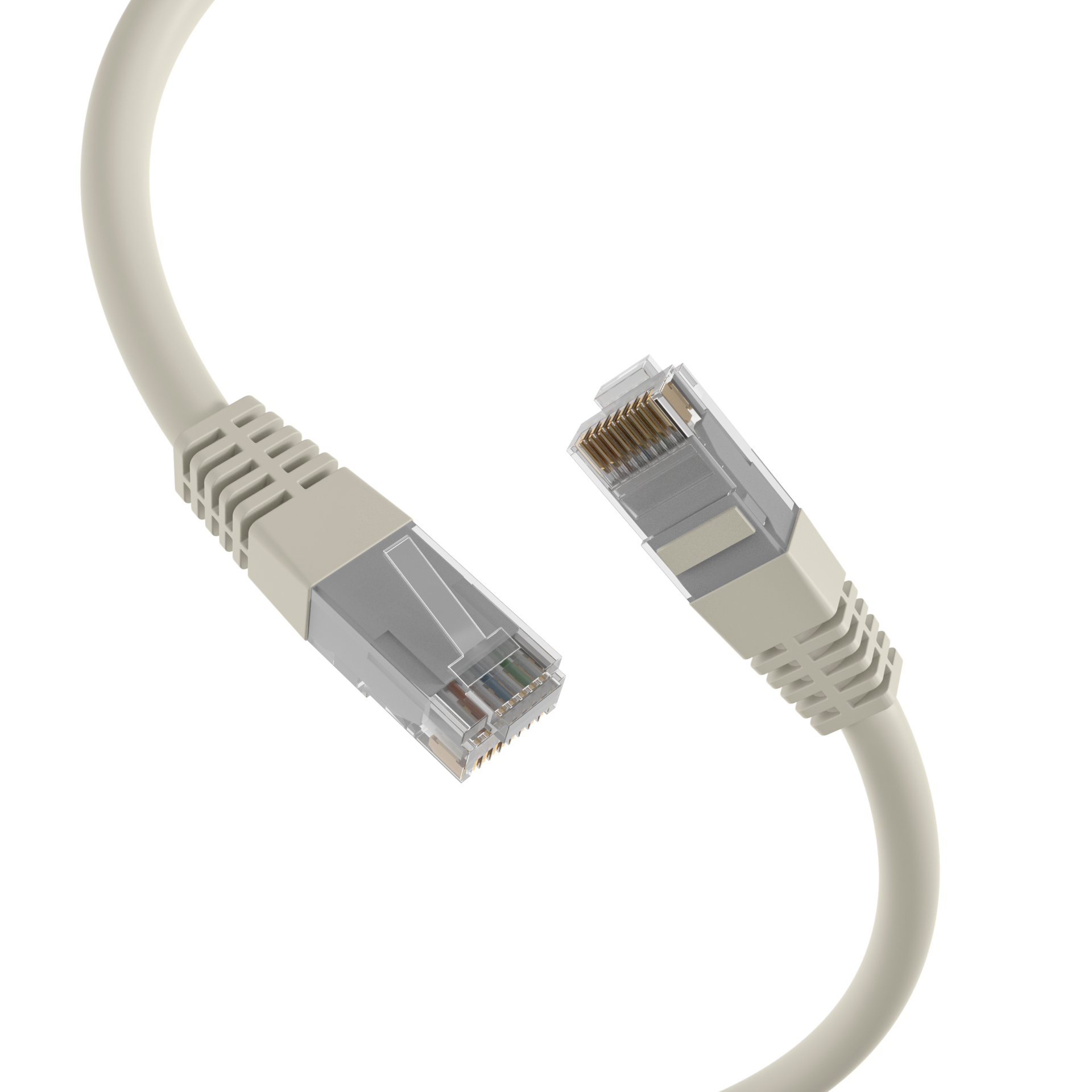

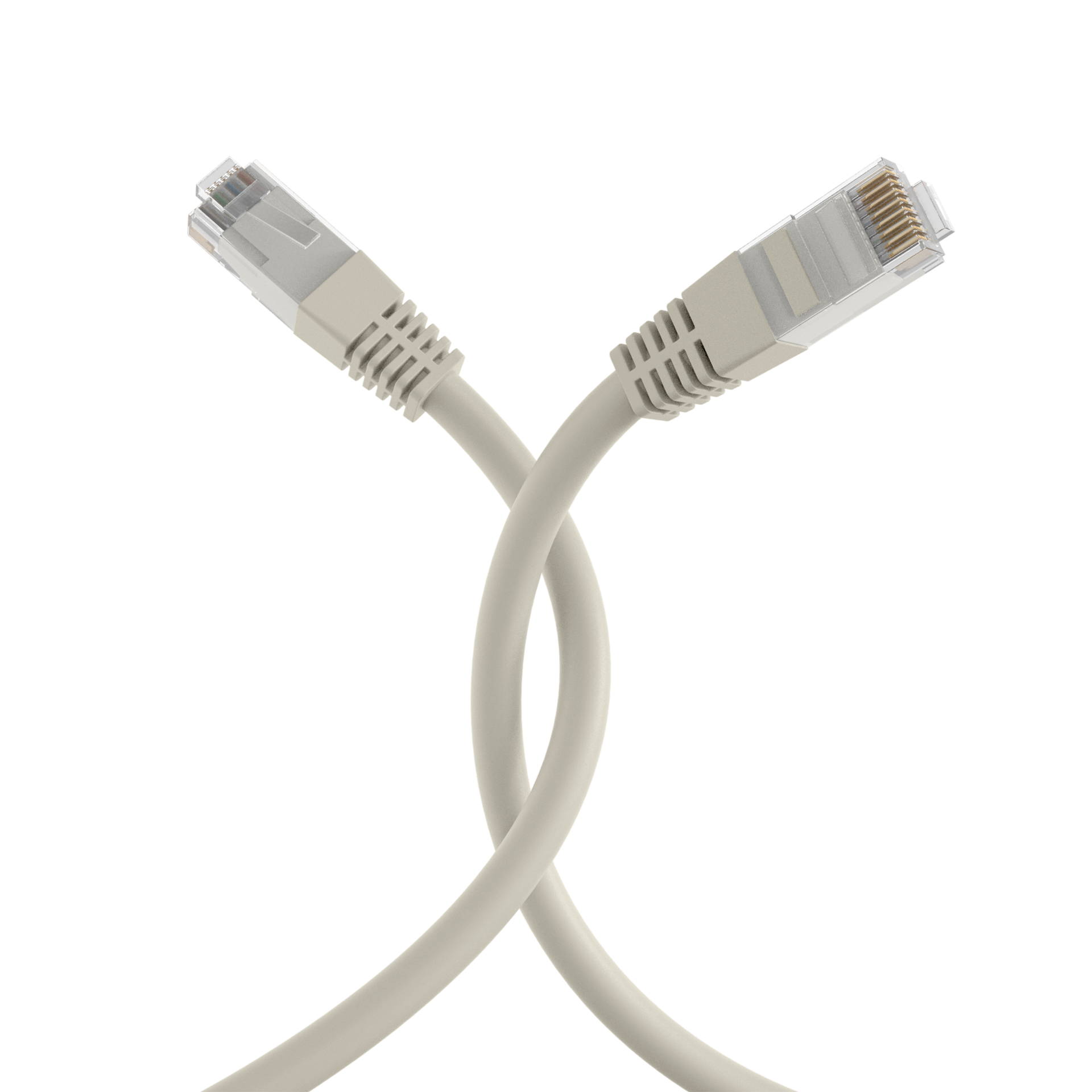

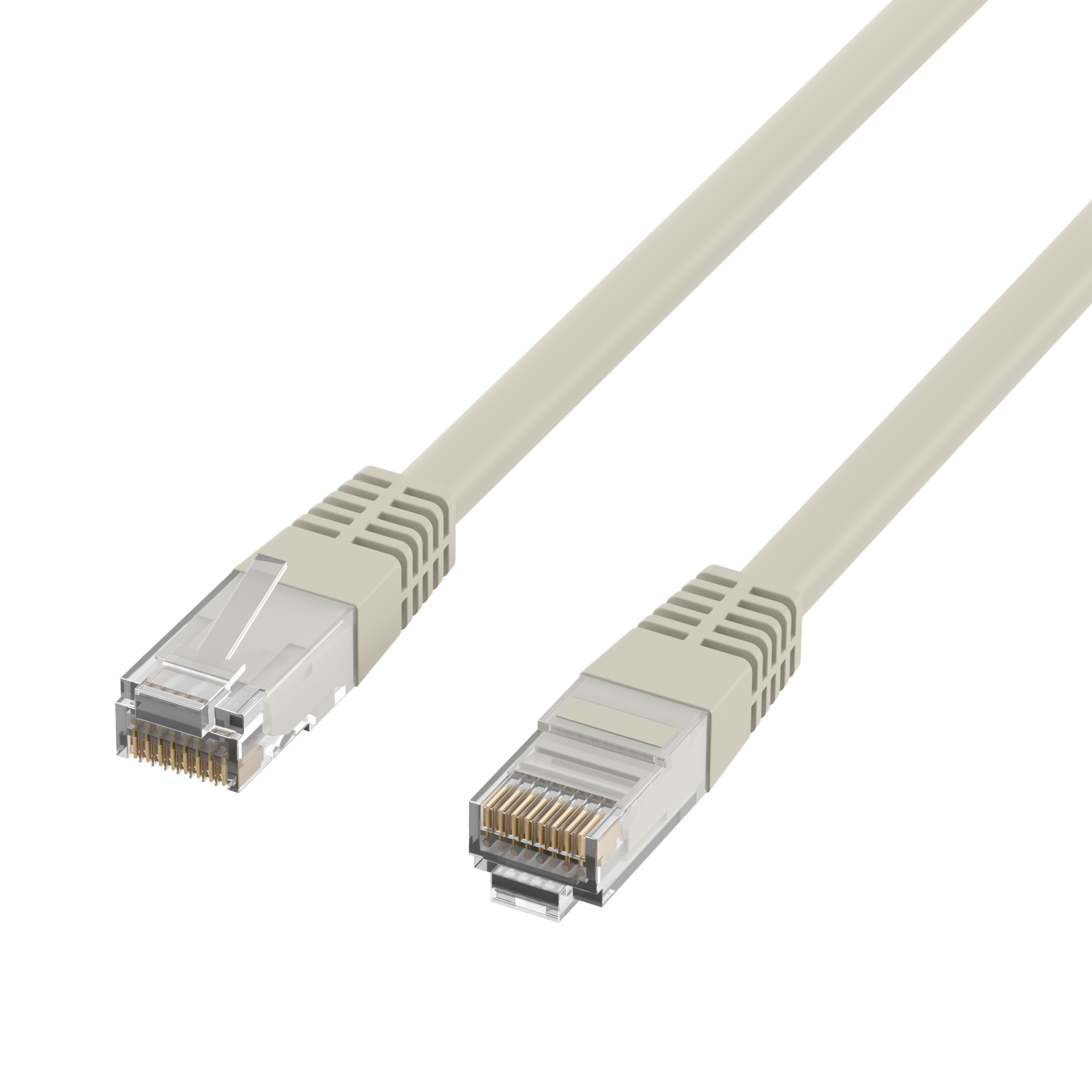

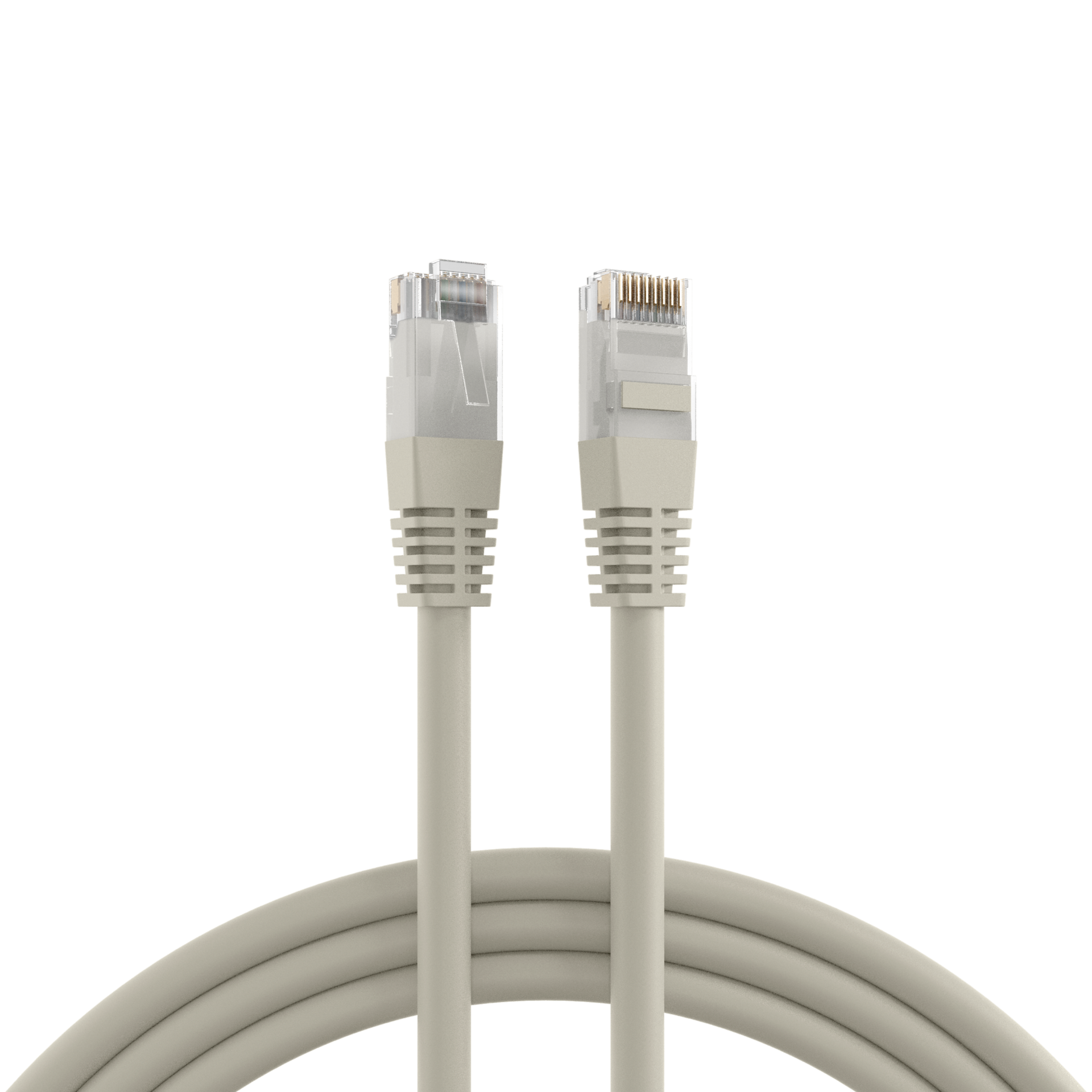

RJ45 Patch cable U/UTP, Cat.6, PVC, CCA, grey





Priser kun synlige for indloggede brugere
RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 0,25m
Varenummer:
K8100GR.0,25
EAN nr.:
4049759115807
Produktinformation für RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 0,25m
The unshielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot
Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot
Tekniske egenskaber
(Halogenfree): | False |
---|---|
AWG-size: | 24/7 |
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | plugged in |
Area of Application: |
Data center Industrial Ethernet Structured cabling |
Bandwidth: | 250MHz |
Bending radius: | 30 mm |
Cable construction: | 4x2 |
Cable type: | U/UTP |
Cabling Standard: |
EN50173 ISO/IEC 11801 |
Category: | 6 |
Colour anti-kink sleeve: | grey |
Colour outer sheath: | grey |
Conductor Material: | CCA |
Connector: | IEC 60603-7-4 |
Connector type: | RJ45 Standard |
Contacts: | Gold plated µ" gold plated |
Current capacity: | max. 1 A |
Fire retardant version: | False |
Jacket material: | Polyvinylchlorid (PVC) |
Length imprint: | True |
Locking lever: | False |
Mating cycles: | ≥750 |
Model: | Unshielded |
NVP value: | - % |
Oil resistant (acc. EN 60811-2-1): | False |
Oil resistant (according to EN 60811-404): | False |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 5.9 mm |
POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: | Cat.6 UTP AWG24 stranded x 4pairs cable www.efb-elektronik.de |
Silicone-free: | True |
Suitable for degree of protection (IP): | IP20 |
Temperature range: | -20 – 70 °C |
Transmission: | 5Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
Varianter
Art. Nej. | Betegnelse | Length | Length tolerance | |
---|---|---|---|---|
K8100GR.0,25 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 0,25m | 0.25 m | ±5 % | |
K8100GR.0,5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 0,5m | 0.5 m | ±5 % | |
K8100GR.1 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 1m | 1.0 m | ±5 % | |
K8100GR.1,5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 1,5m | 1.5 m | ±5 % | |
K8100GR.2 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 2m | 2.0 m | ±5 % | |
K8100GR.3 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 3m | 3.0 m | ±5 % | |
K8100GR.5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 5m | 5.0 m | ±5 % | |
K8100GR.7,5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 7,5m | 7.5 m | ±5 % | |
K8100GR.10 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 10m | 10.0 m | ±5 % | |
K8100GR.15 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 15m | 15.0 m | ±5 % | |
K8100GR.20 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 20m | 20.0 m | ±5 % | |
K8100GR.30 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA grey 30m | 30.0 m | ±5 % |
