RJ45 Patch Cord Cat.6A S/FTP LSZH black

Priser kun synlige for indloggede brugere

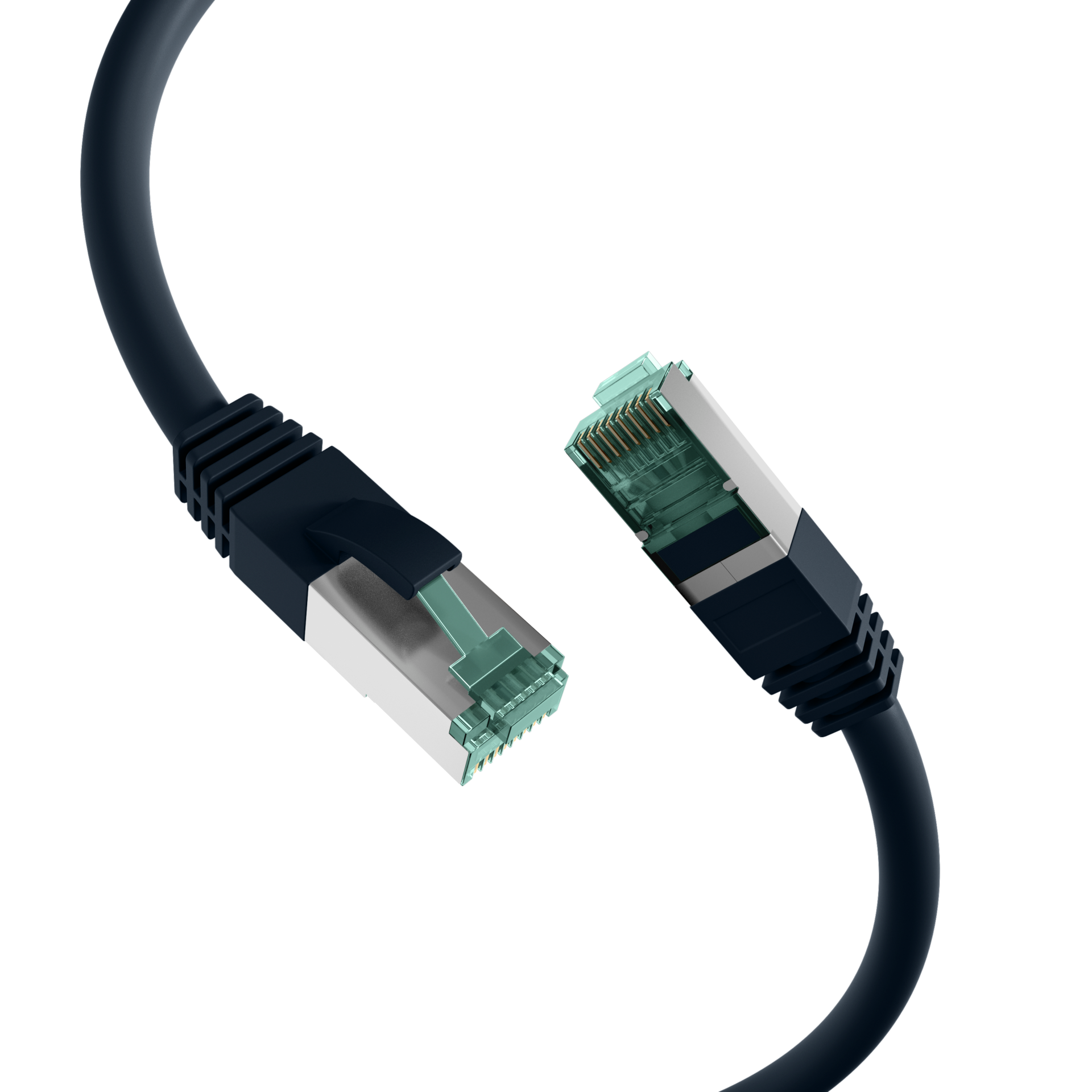

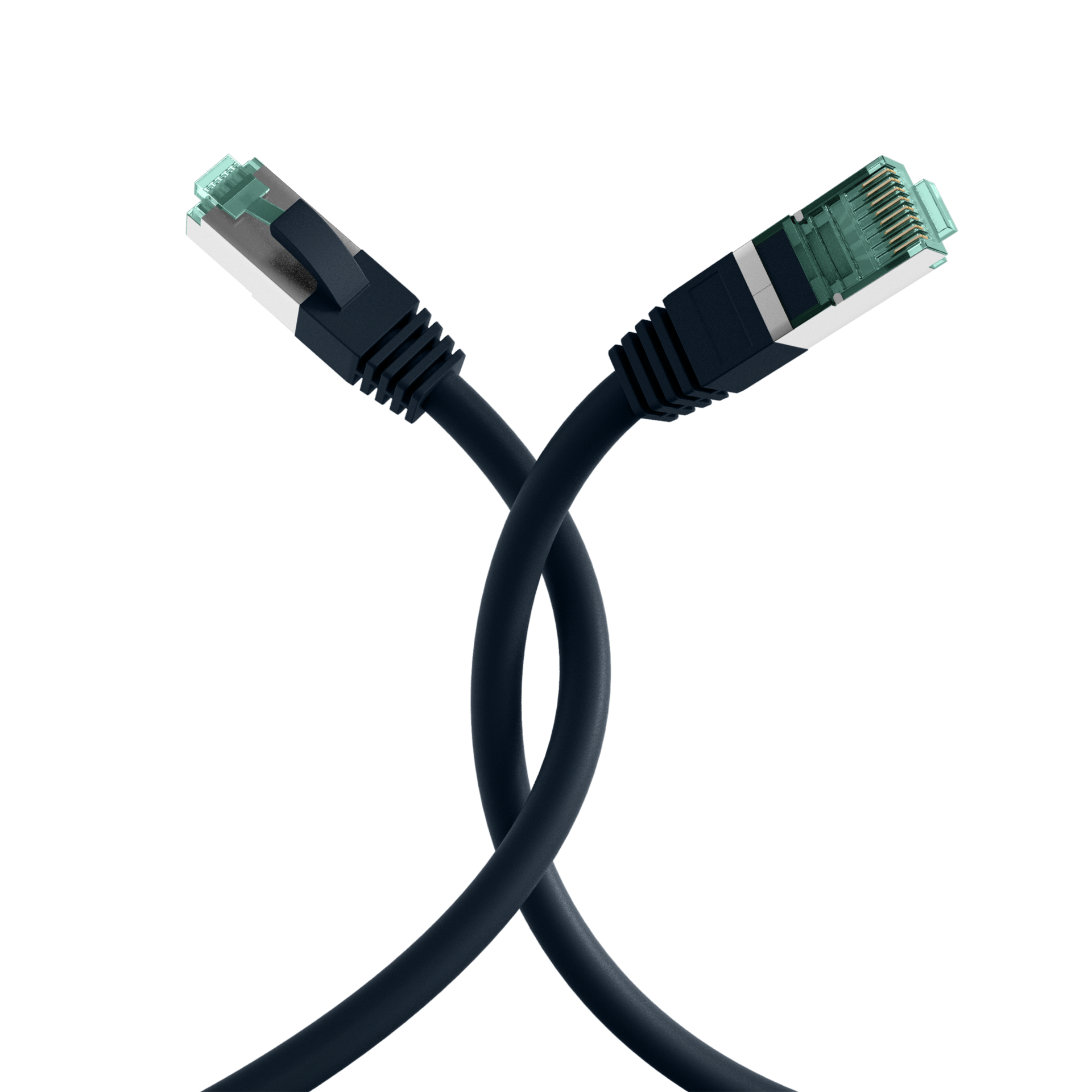

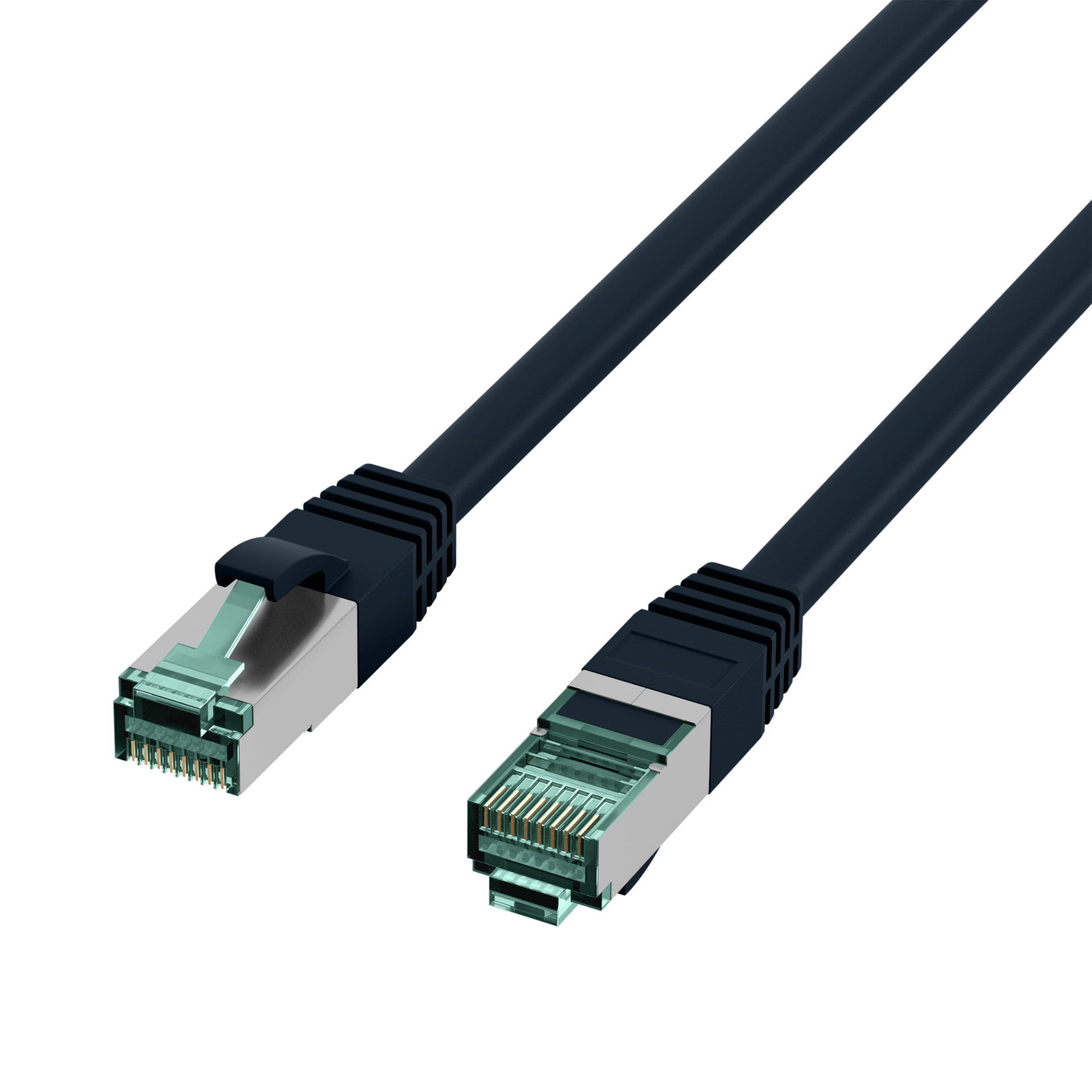

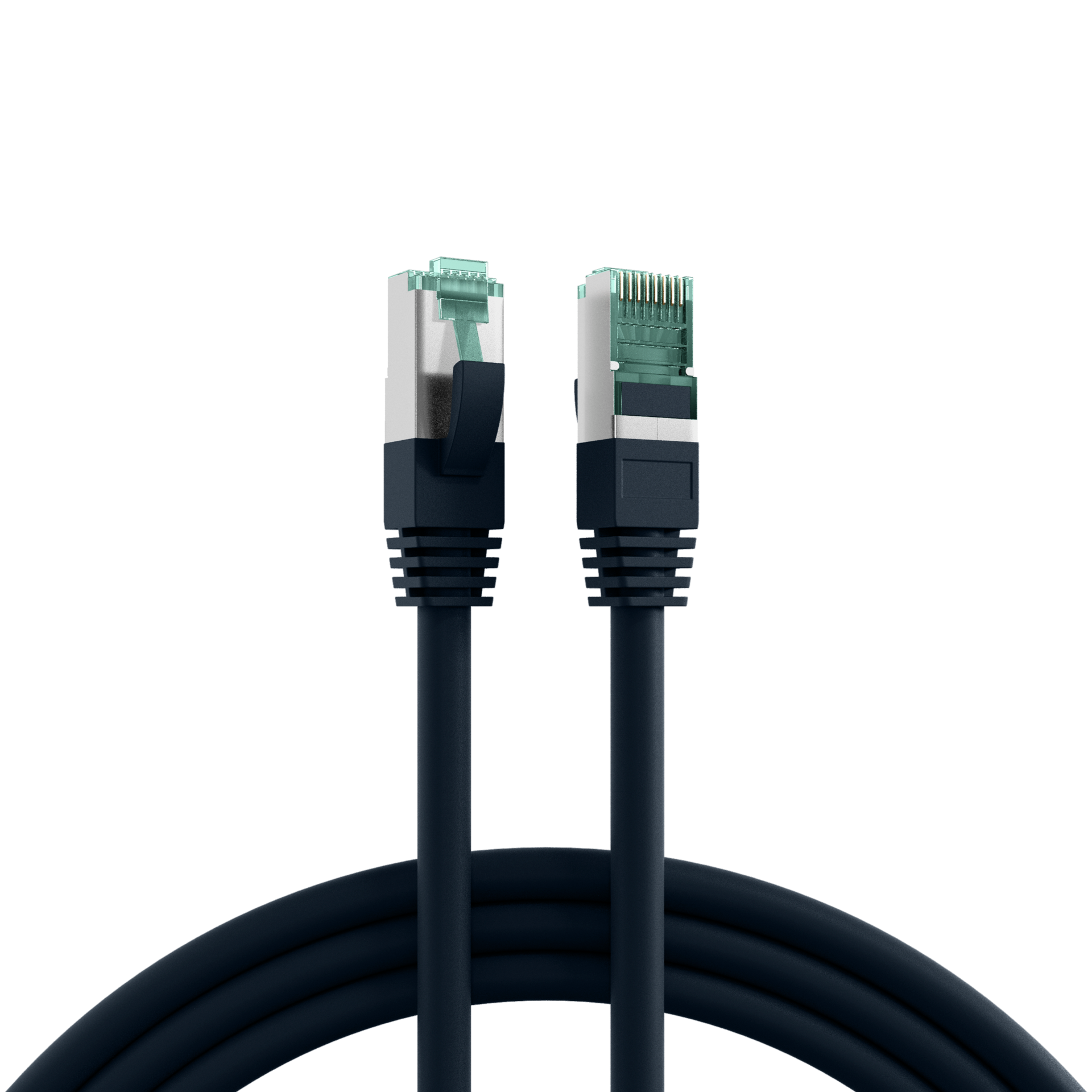

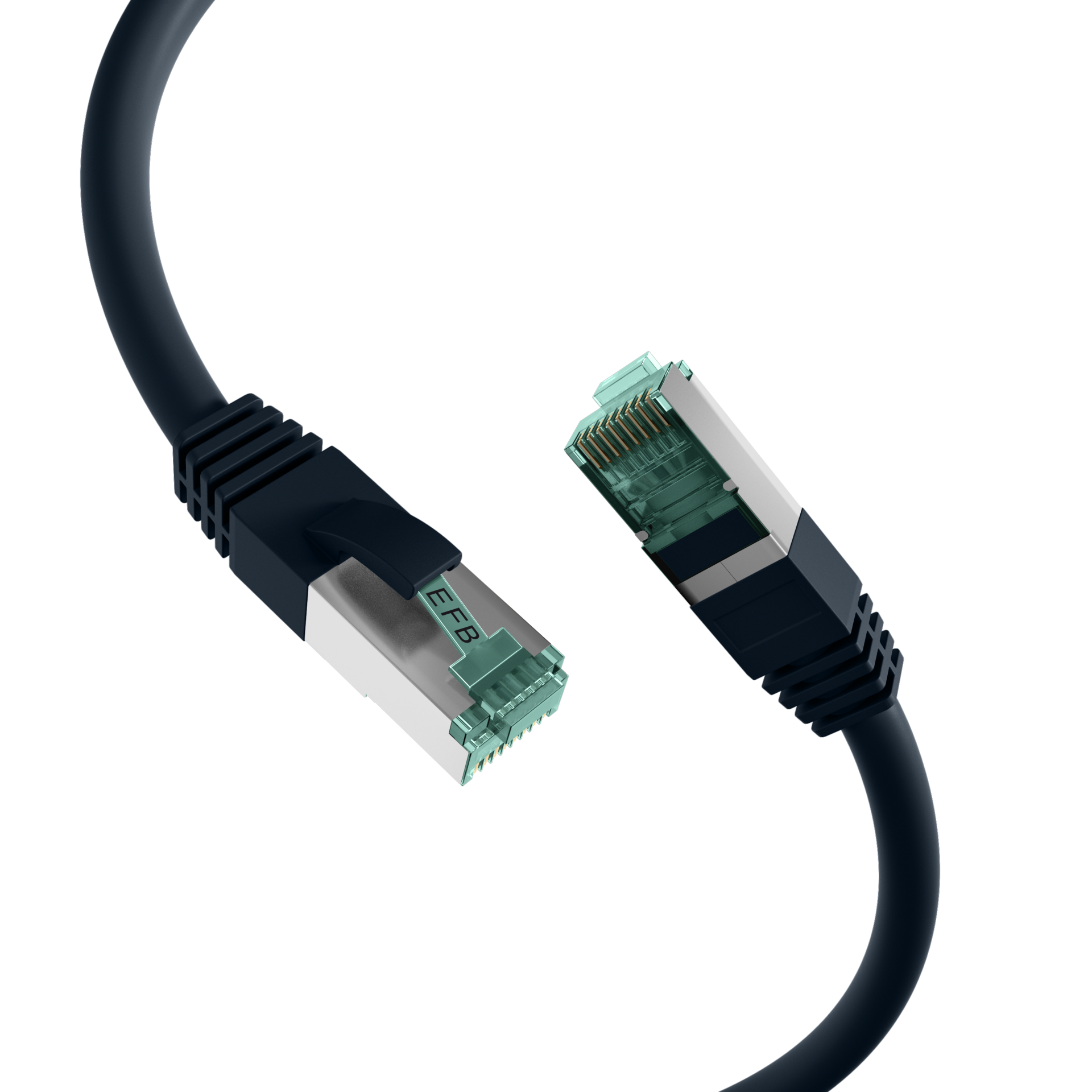

RJ45 Patch Cord Cat.6A S/FTP LSZH black 0,15m
Varenummer: MK6001.0,15B
EAN nr.: 4049759226190
Stück

Produktinformation für RJ45 Patch Cord Cat.6A S/FTP LSZH black 0,15m

The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG27/7
Length imprint on boot

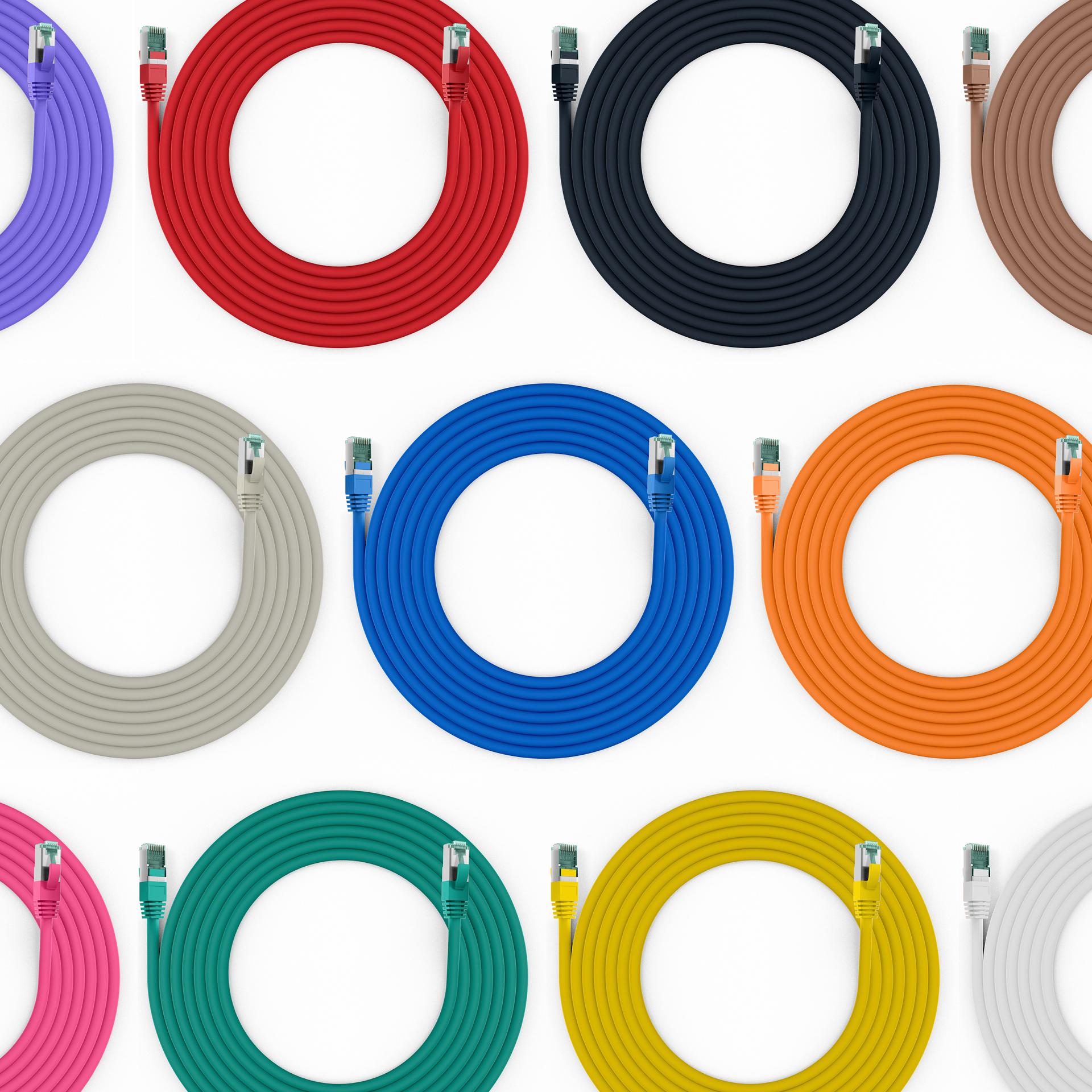

Available in 11 colours

Tekniske egenskaber

(Halogenfree): True
AWG-size: 27/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Data center
Industrial Ethernet

Structured cabling
Bandwidth: 500MHz
Bending radius: >30 mm
Cable construction: 4x2
Cable type: S/FTP
Category: 6A (TIA)
Colour anti-kink sleeve: black
Colour outer sheath: black
Conductive shield: Selected shield contact
Conductor Material: Copper
Conductor resistance DC: 185 Ω/km
Connector: IEC 60603-7-51
Connector type: RJ45 Standard green
Contact resistance: 30 mΩ
Contacts: Gold plated
Current capacity: max. 1 A
Fire retardant version: True
Flame-retardant: True
Halogen-free: True
Impedance: 100 ±15 Ω
Insulation resistance: 10 MΩ
Jacket material: LSZH
Length imprint: True
Locking lever: True
Loop resistance: 370 Ω/km
Low smoke: True
Mating cycles: 2000
Model: Shielded
NVP value: 74 %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.0 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at

PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: Cat.6A PATCH S/FTP 4x2xAWG27/7 LSZH ISO/IEC11801 ANSI/TIA-568-C.2 ***10Gigabit Ethernet*** www.efb-elektronik.de
Raw cable: Cat.6A
Resistance unbalance: 3 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: -20 – 60 °C
Test voltage: 1000 V DC, 1min
Total screening: 80 %
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
UL approbated: False

Varianter

Art. Nej. Betegnelse Length Length tolerance
MK6001.0,15B RJ45 Patch Cord Cat.6A S/FTP LSZH black 0,15m 0.15 m ±5 %
MK6001.0,25B RJ45 Patch Cord Cat.6A S/FTP LSZH black 0,25m 0.25 m ±5 %
MK6001.0,5B RJ45 Patch Cord Cat.6A S/FTP LSZH black 0,5m 0.5 m ±5 %
MK6001.1B RJ45 Patch Cord Cat.6A S/FTP LSZH black 1m 1.0 m ±5 %
MK6001.1,5B RJ45 Patch Cord Cat.6A S/FTP LSZH black 1,5m 1.5 m ±5 %
MK6001.2B RJ45 Patch Cord Cat.6A S/FTP LSZH black 2m 2.0 m ±5 %
MK6001.3B RJ45 Patch Cord Cat.6A S/FTP LSZH black 3m 3.0 m ±5 %
MK6001.5B RJ45 Patch Cord Cat.6A S/FTP LSZH black 5m 5.0 m ±5 %
MK6001.7,5B RJ45 Patch Cord Cat.6A S/FTP LSZH black 7,5m 7.5 m ±5 %
MK6001.10B RJ45 Patch Cord Cat.6A S/FTP LSZH black 10m 10.0 m ±5 %
MK6001.15B RJ45 Patch Cord Cat.6A S/FTP LSZH black 15m 15.0 m ±5 %
MK6001.20B RJ45 Patch Cord Cat.6A S/FTP LSZH black 20m 20.0 m ±5 %
MK6001.25B RJ45 Patch Cord Cat.6A S/FTP LSZH black 25m 25.0 m ±5 %
MK6001.30B RJ45 Patch Cord Cat.6A S/FTP LSZH black 30 30.0 m ±5 %
MK6001.40B RJ45 Patch Cord Cat.6A S/FTP LSZH black 40m 40.0 m ±5 %
MK6001.50B RJ45 Patch Cord Cat.6A S/FTP LSZH black 50m 50.0 m ±5 %

similar product

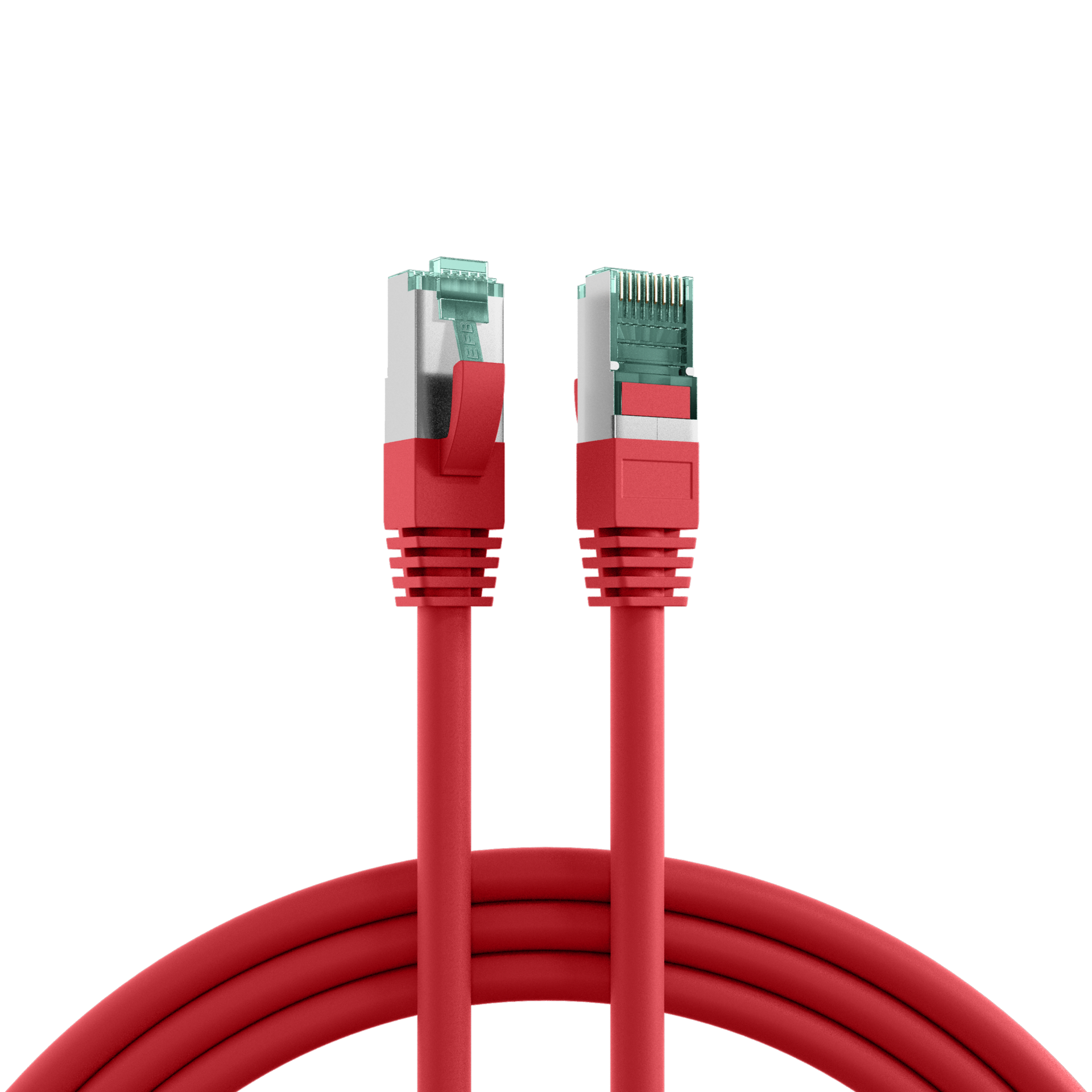

RJ45 Patch Cord Cat.6A S/FTP LSZH red 1m
