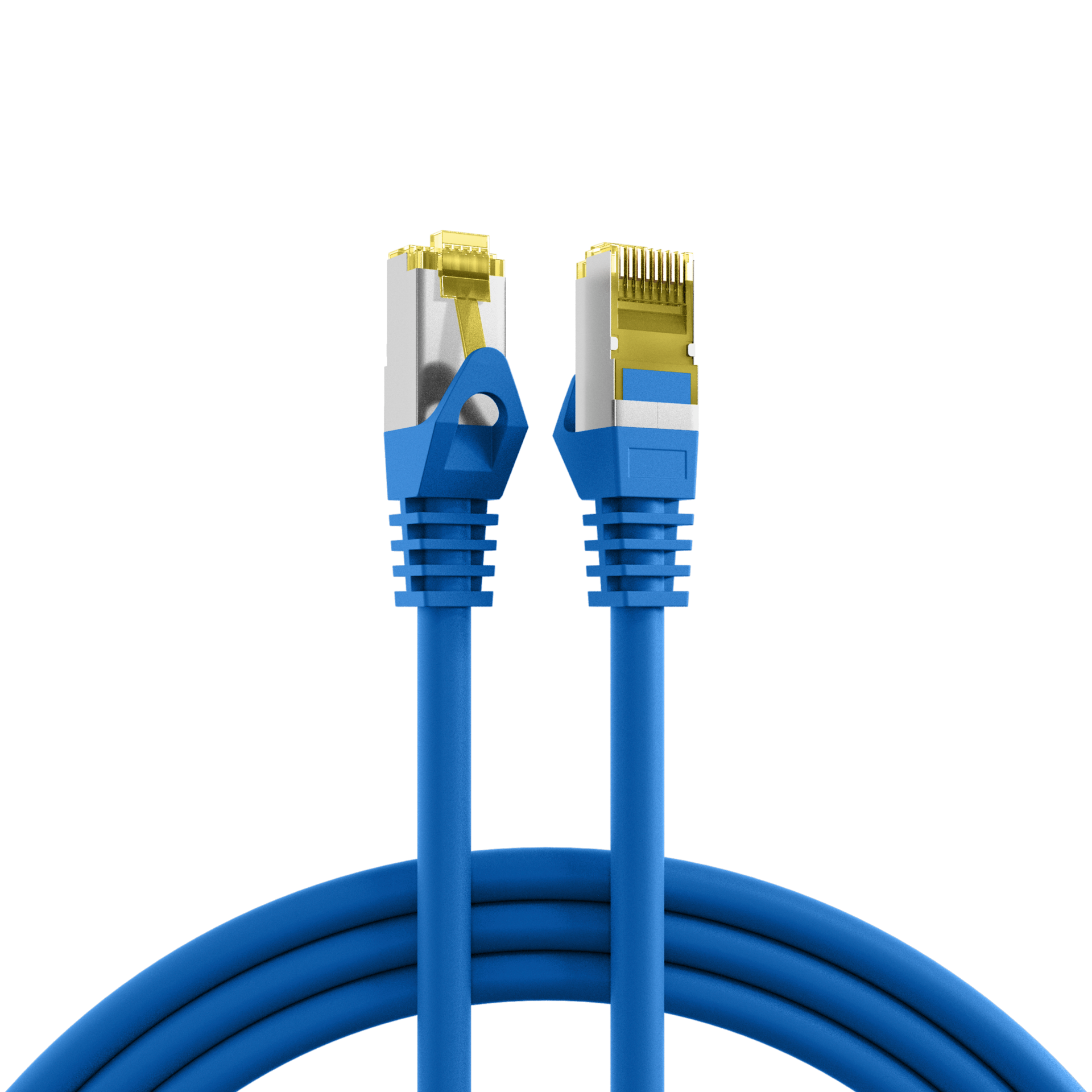

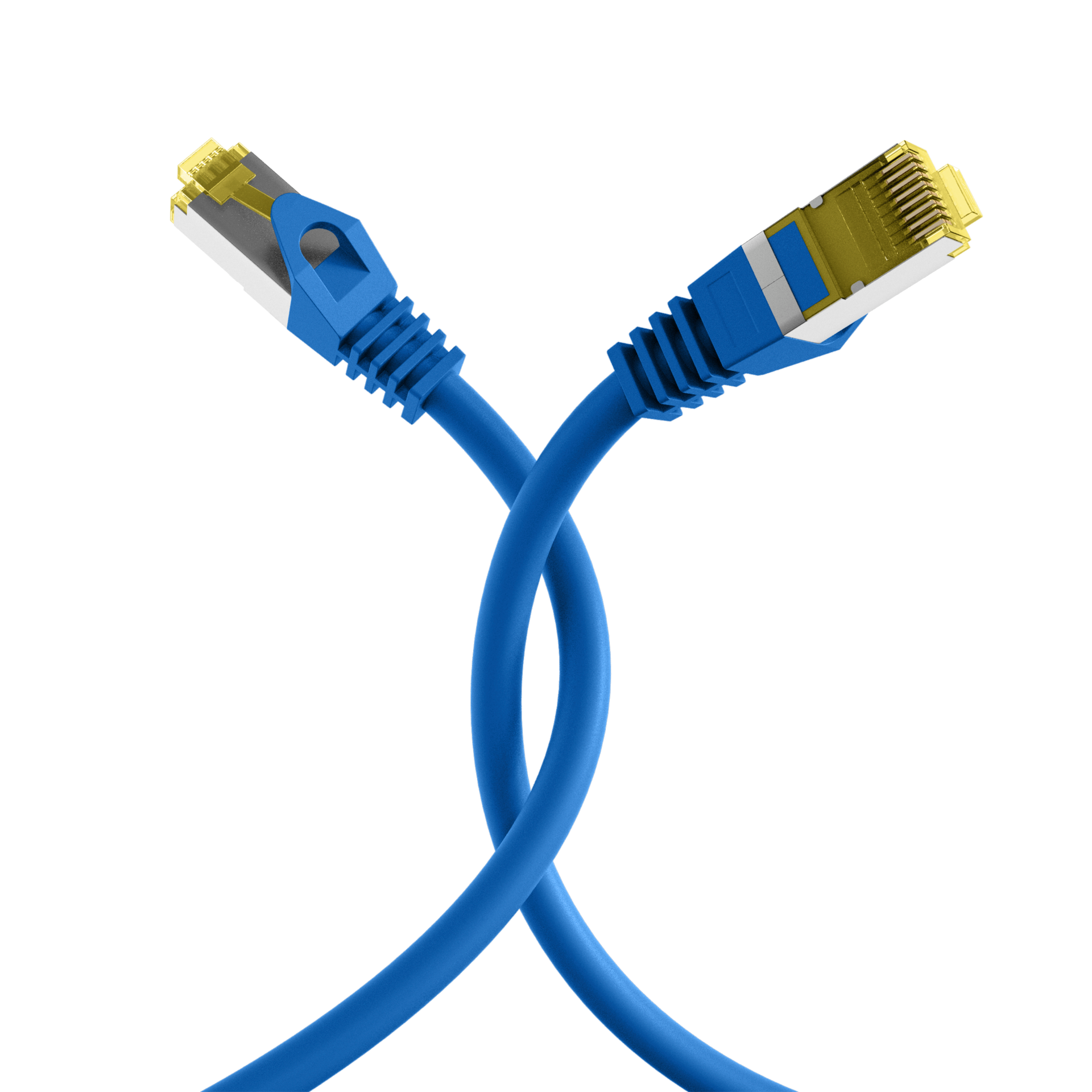

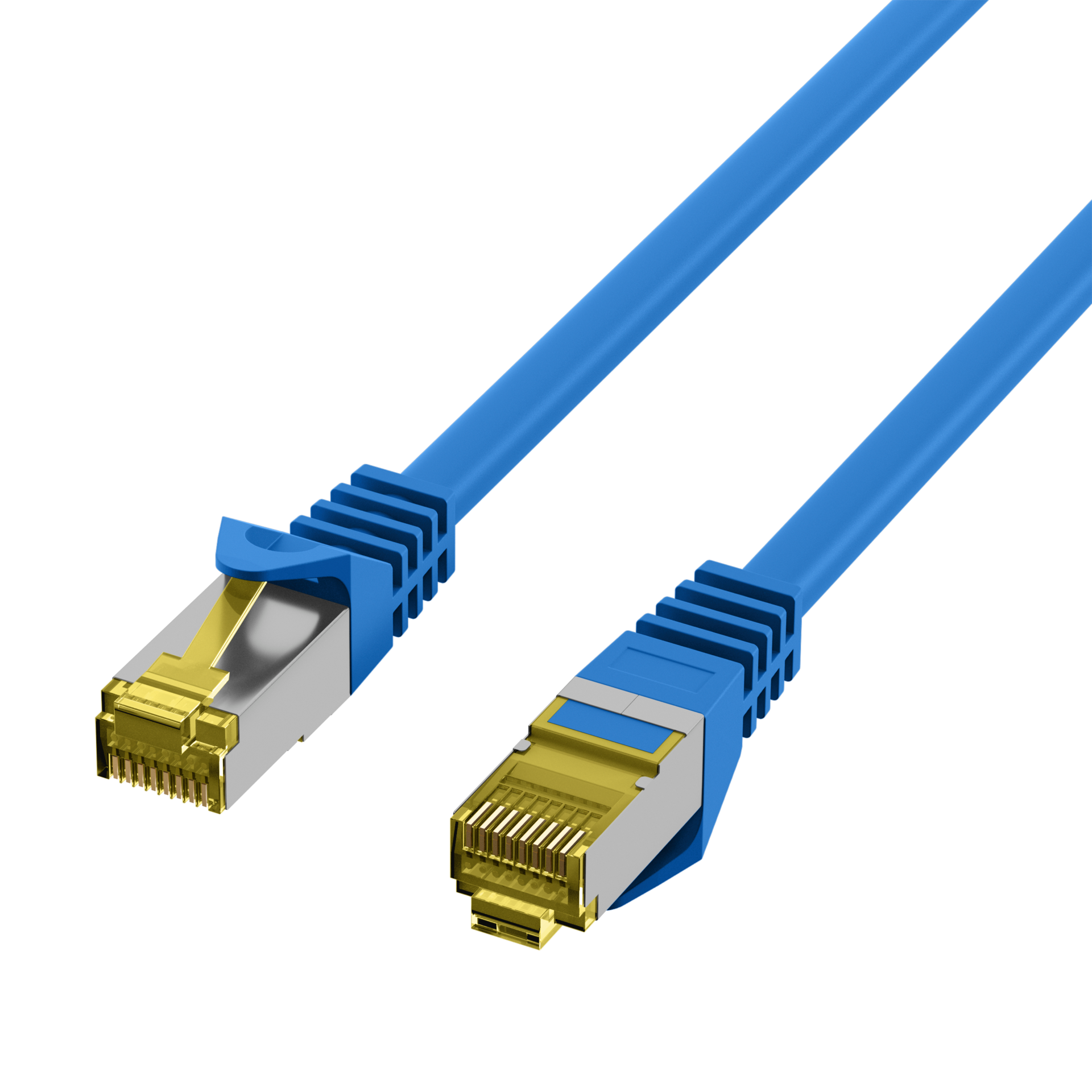

RJ45 Patch Cord Cat.6A S/FTP Cat.7 raw cable blue
RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 1,5m
Varenummer:
MK7001.1,5BL
EAN Nr.:
4049759154257
Produktinformationen für RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 1,5m
RJ45 patch cable Cat.6A S/FTP LSZH Cat.7 raw cable
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the yellow RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range -20 - 60 °C.
The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. The frequency range is 500 MHz.
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the yellow RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range -20 - 60 °C.
The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. The frequency range is 500 MHz.
Technische Eigenschaften
| (Halogenfree): | True |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >32.5 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | blue |
| Colour outer sheath: | blue |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 146 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 Standard yellow |
| Contact resistance: | 30 mΩ |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | yes |
| Impedance: | 100 ±5 Ω |
| Insulation resistance: | 10 MΩ |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 292 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | 2000 |
| Model: | Shielded |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.5 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | Cat.7 raw cable S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Halogen Free ***10GIGABIT*** www.efb-elektronik.de |
| Raw cable: | Cat.7 |
| Resistance unbalance: | 5 % |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -20 – 60 °C |
| Test voltage: | 1000 V DC, 1min |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |

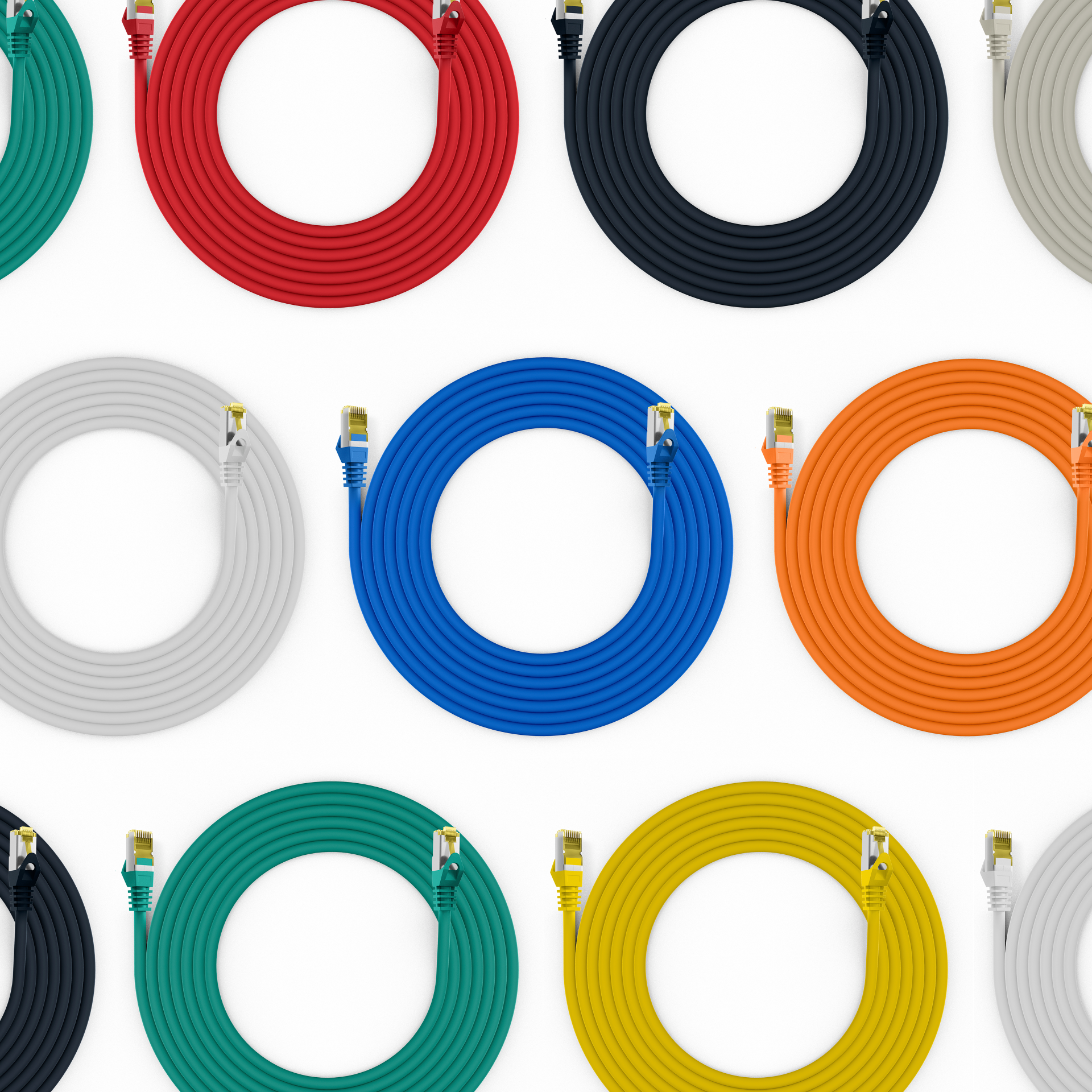

Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| MK7001.0,25BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 0,25m | 0.25 m | ±5 % | |
| MK7001.0,5BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 0,5m | 0.5 m | ±5 % | |
| MK7001.1BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 1m | 1.0 m | ±5 % | |
| MK7001.1,5BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 1,5m | 1.5 m | ±5 % | |
| MK7001.2BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 2m | 2.0 m | ±5 % | |
| MK7001.3BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 3m | 3.0 m | ±5 % | |
| MK7001.5BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 5m | 5.0 m | ±5 % | |
| MK7001.7,5BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 7,5m | 7.5 m | ±5 % | |
| MK7001.10BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 10m | 10.0 m | ±5 % | |
| MK7001.15BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 15m | 15.0 m | ±5 % | |
| MK7001.20BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 20m | 20.0 m | ±5 % | |
| MK7001.25BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 25m | 25.0 m | ±5 % | |
| MK7001.30BL | RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 30m | 30.0 m | ±5 % |
