RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green

Priser kun synlige for indloggede brugere

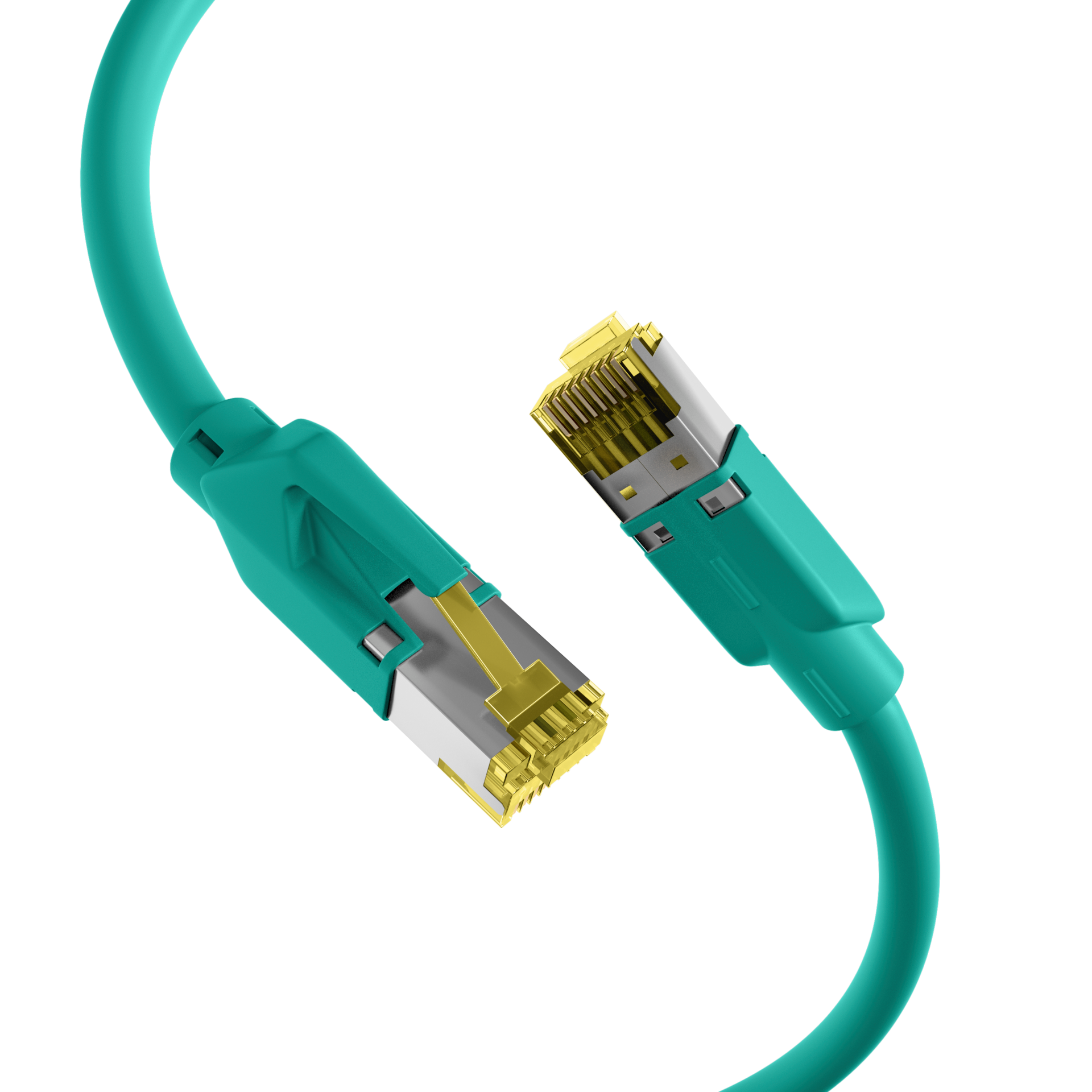

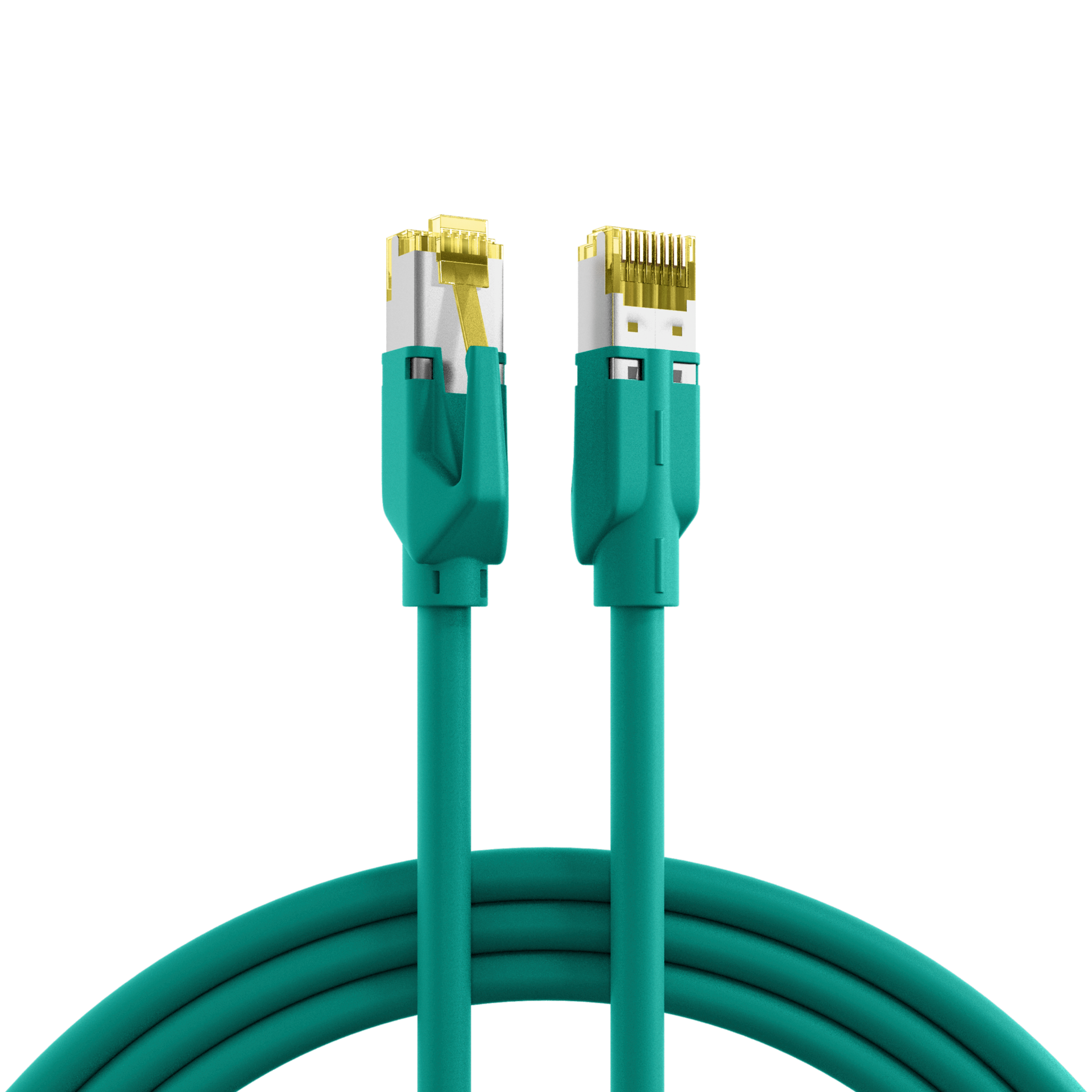

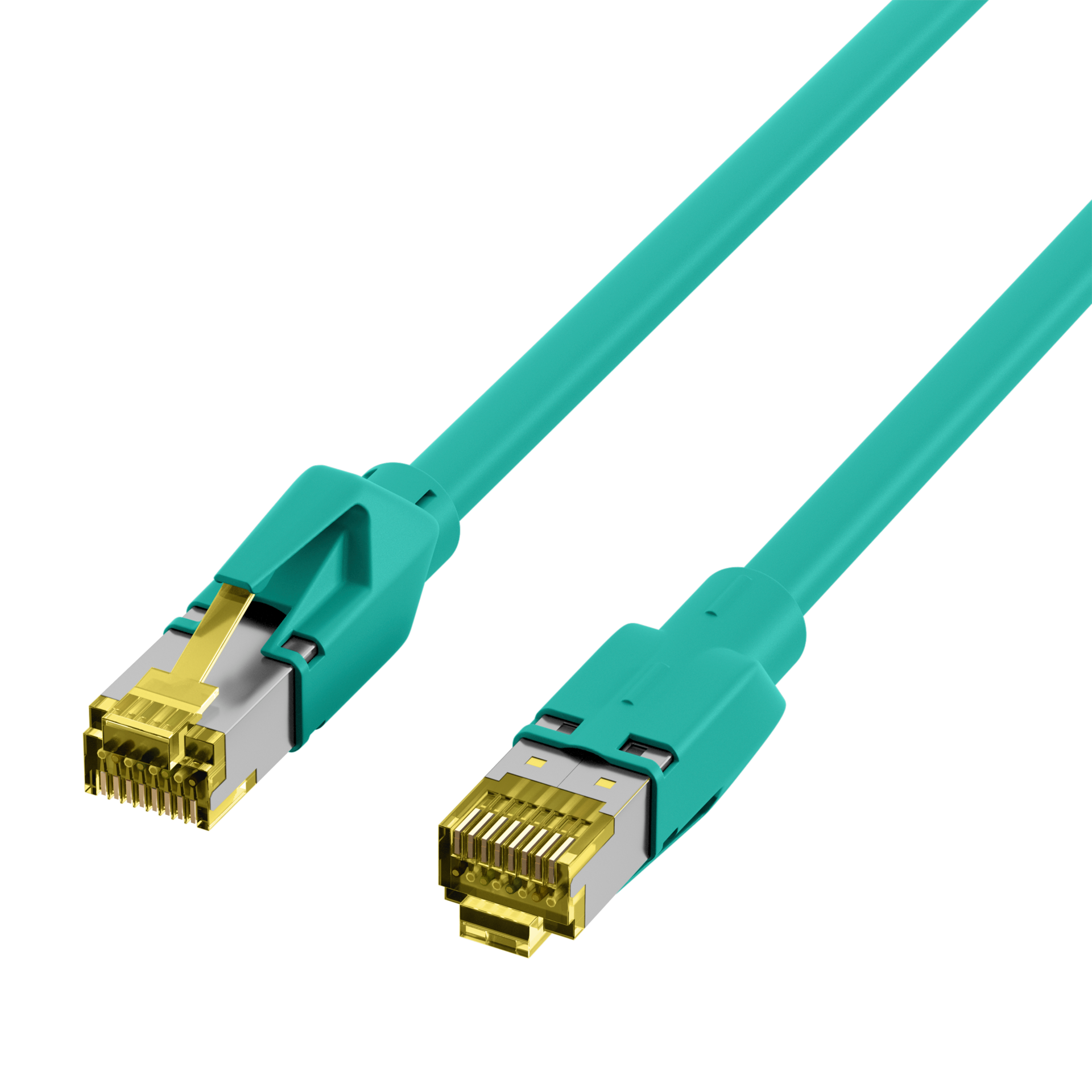

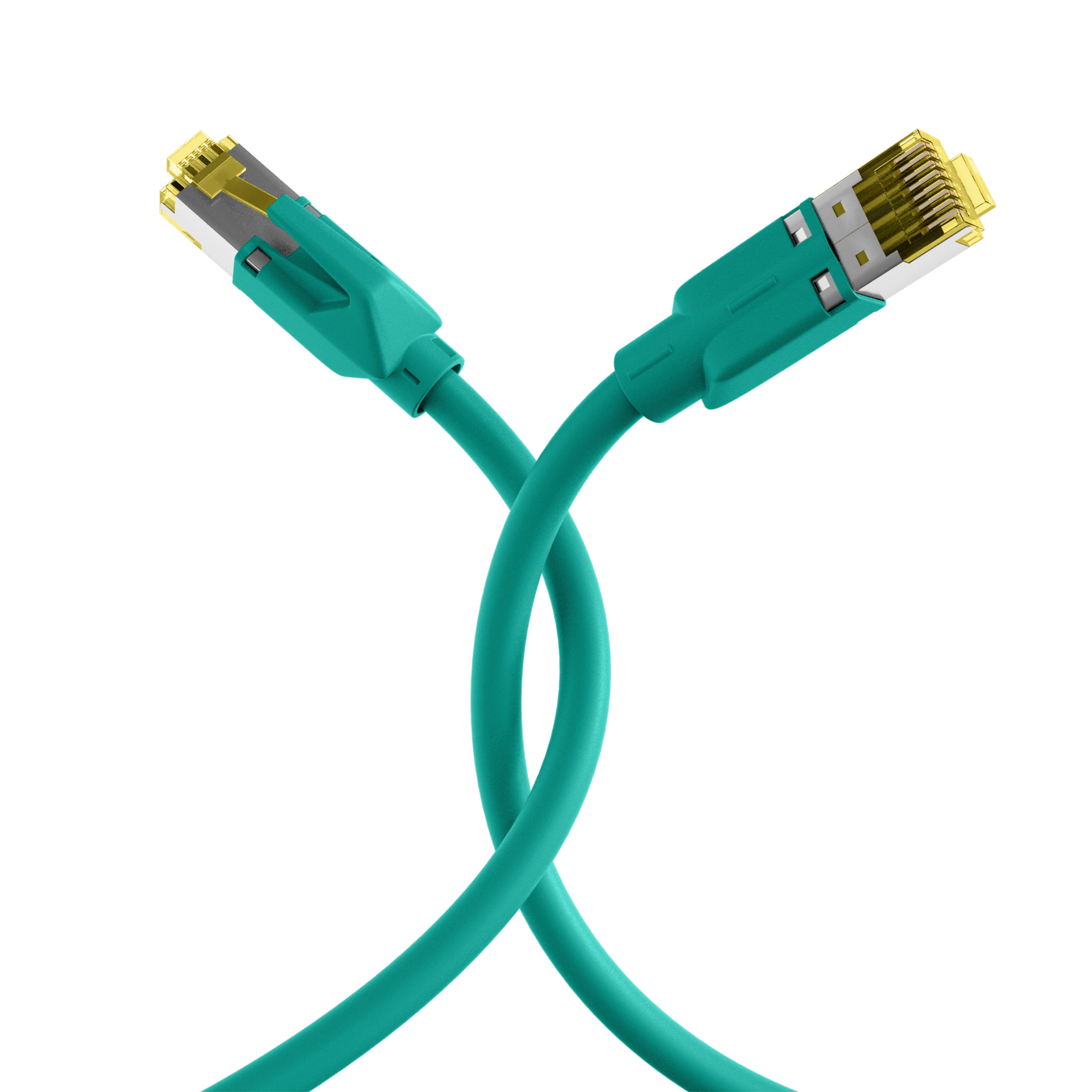

RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 0,5m
Varenummer: K8580GN.0,50
EAN nr.: 4049759017651
Stück

Produktinformation für RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 0,5m

The Cat.6A RJ45 patch cable manufactured in Europe guarantees very good characteristics for 10 Gigabit Ethernet applications. The patch cable is composed of the Cat.7 raw cable CU 7702 flex from Daetwyler and TM31 connectors from Hirose.

Cross section 4 x 2 x AWG26/7
Mounted anti-kink grommet
Clear differentiation of the cores in the assembled connector thanks to different core colours

Tekniske egenskaber

(Halogenfree): True
AWG-size: 26/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: put-on
Area of Application: Data center
Industrial Ethernet

Structured cabling
Bandwidth: 500MHz
Bending radius: >20 mm
Cable construction: 4x2
Cable type: S/FTP
Cable type acc. to Manufacturer: Dätwyler CU 7702 flex
Cabling Standard: ANSI/TIA-568-C.2
EN50173

ISO/IEC 11801
Category: 6A (TIA)
Colour anti-kink sleeve: green
Colour outer sheath: green
Conductive shield: 360° shield contact
Conductor Material: Copper
Conductor resistance DC: 135 Ω/km
Connector: IEC 60603-7-51
Connector type: TM31 yellow
Contacts: Gold plated
Current capacity: max. 1 A
Fire retardant version: True
Flame-retardant: acc. IEC60332-1
Halogen-free: yes
Impedance: 100 ±5 Ω
Jacket material: LSZH
Locking lever: True
Loop resistance: 270 Ω/km
Low smoke: acc. IEC61034
Mating cycles: 2000
Model: Shielded
NVP value: 78 %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 5.8 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at

PoE acc. to IEEE802.3af
Pin assignment: 1:1
Raw cable: Cat.7
Suitable for degree of protection (IP): IP20
Temperature Range (Installation): 0 – 50 °C
Temperature Range (Operation): -20 – 60 °C
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
K8580GN.0,50 RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 0,5m 0.5 m ±5 %
K8580GN.1 RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 1m 1.0 m ±5 %
K8580GN.1,5 RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 1,5m 1.5 m ±5 %
K8580GN.2 RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 2m 2.0 m ±5 %
K8580GN.3 RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 3m 3.0 m ±5 %
K8580GN.5 RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 5m 5.0 m ±5 %
K8580GN.7,5 RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 7,5m 7.5 m ±5 %
K8580GN.10 RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 10m 10.0 m ±5 %
K8580GN.15 RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 15m 15.0 m ±5 %
K8580GN.20 RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 20m 20.0 m ±5 %
K8580GN.25 RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 25m 25.0 m ±5 %
K8580GN.30 RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 green 30m 30.0 m ±5 %

similar product

RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 1m

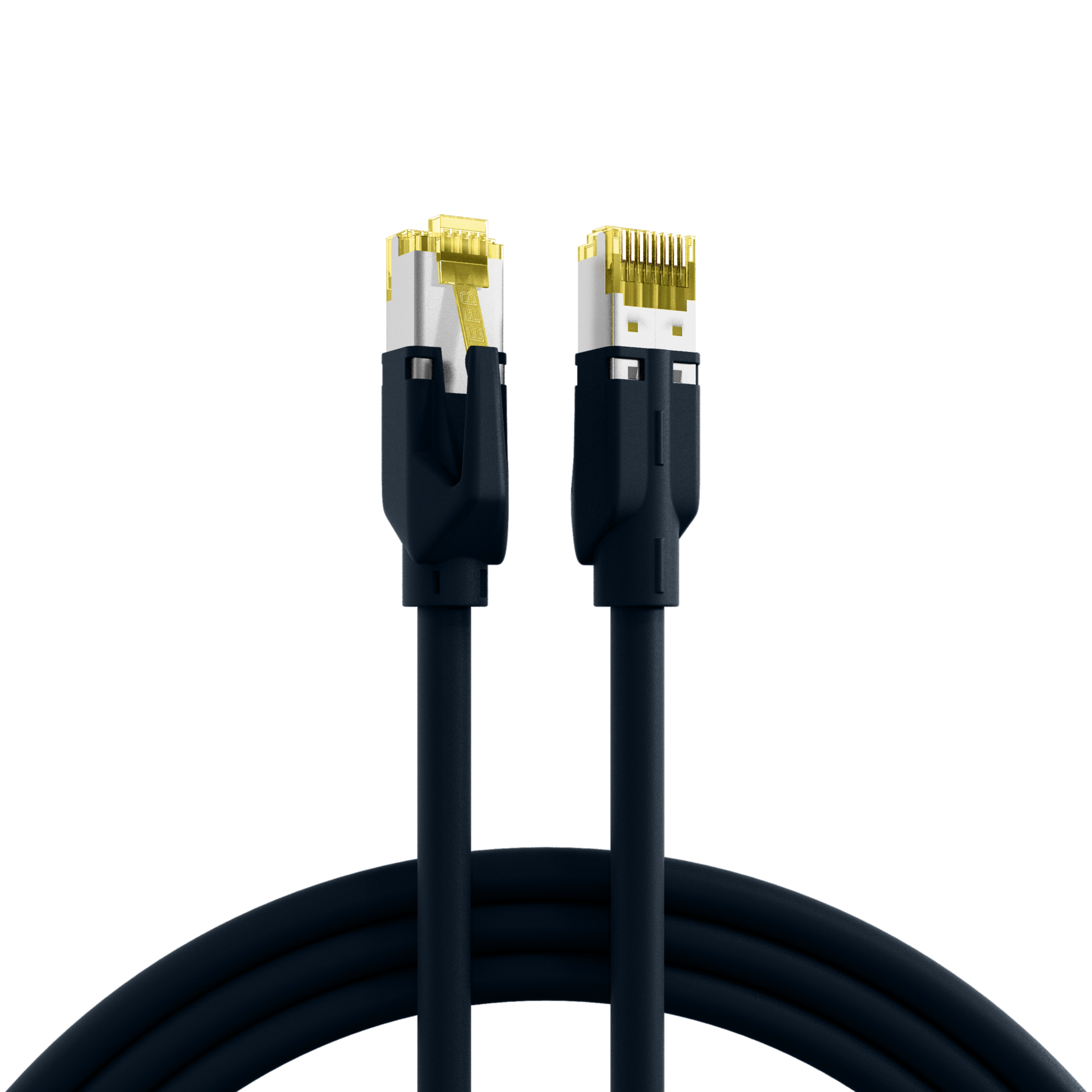

RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 black 1m

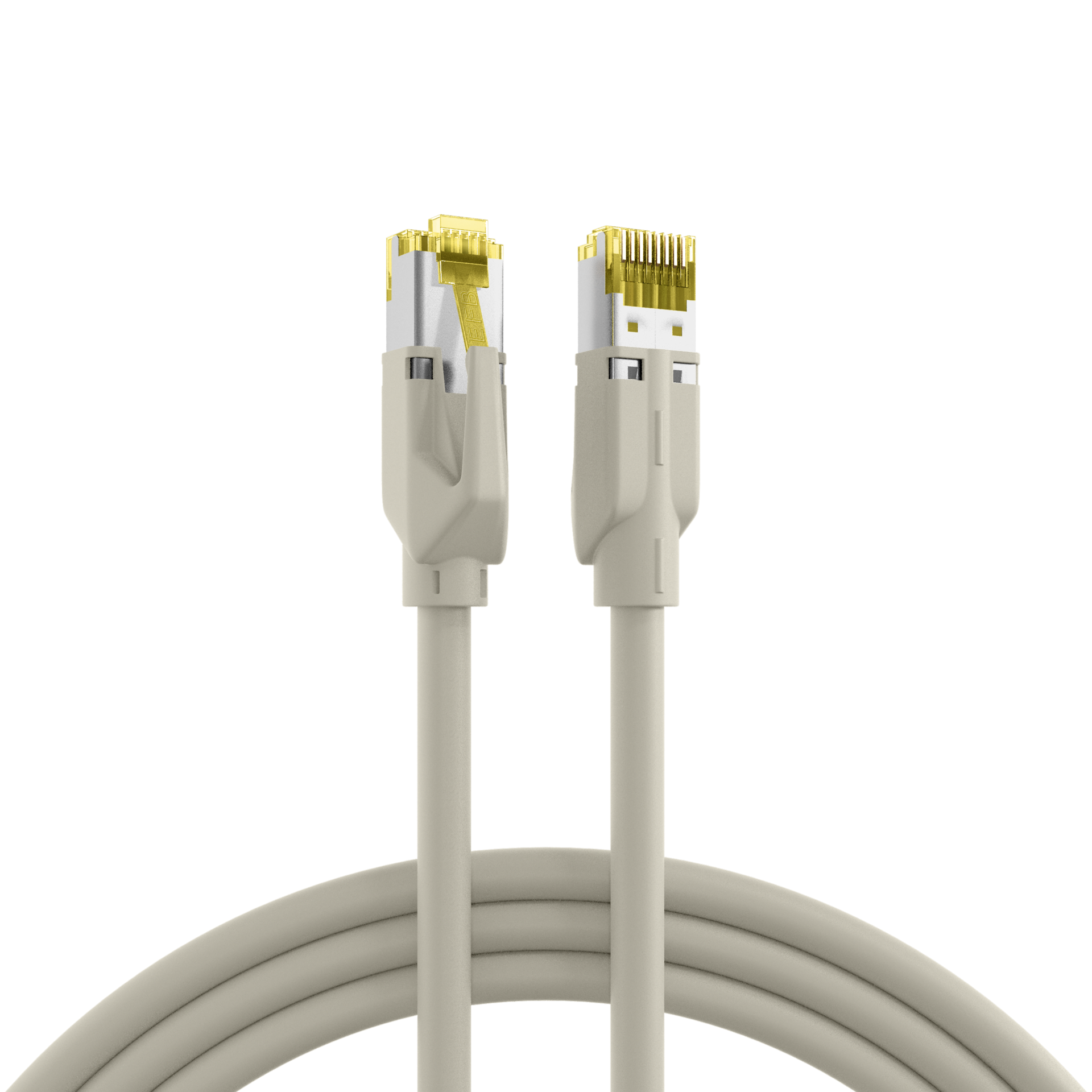

RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 grey 1m
