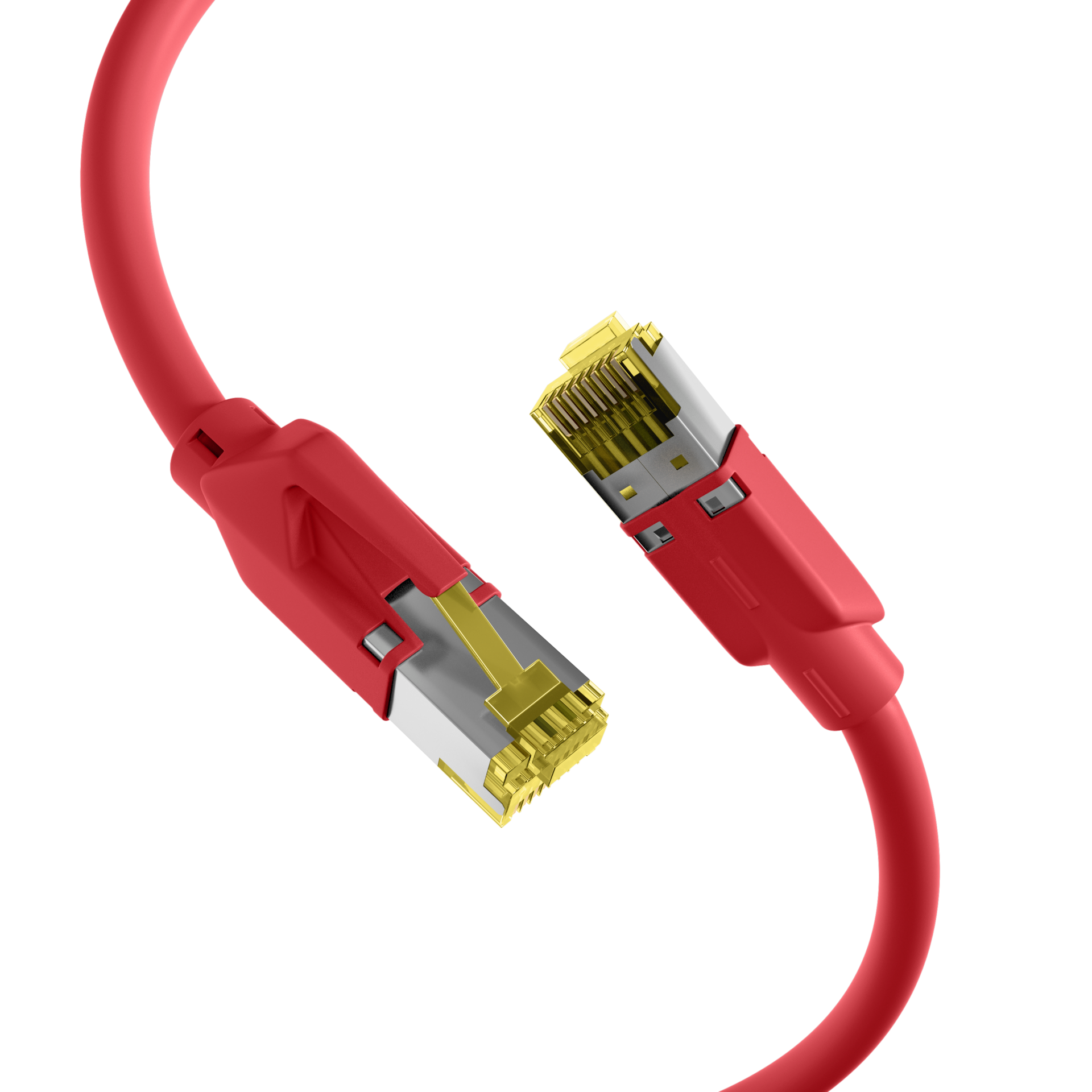

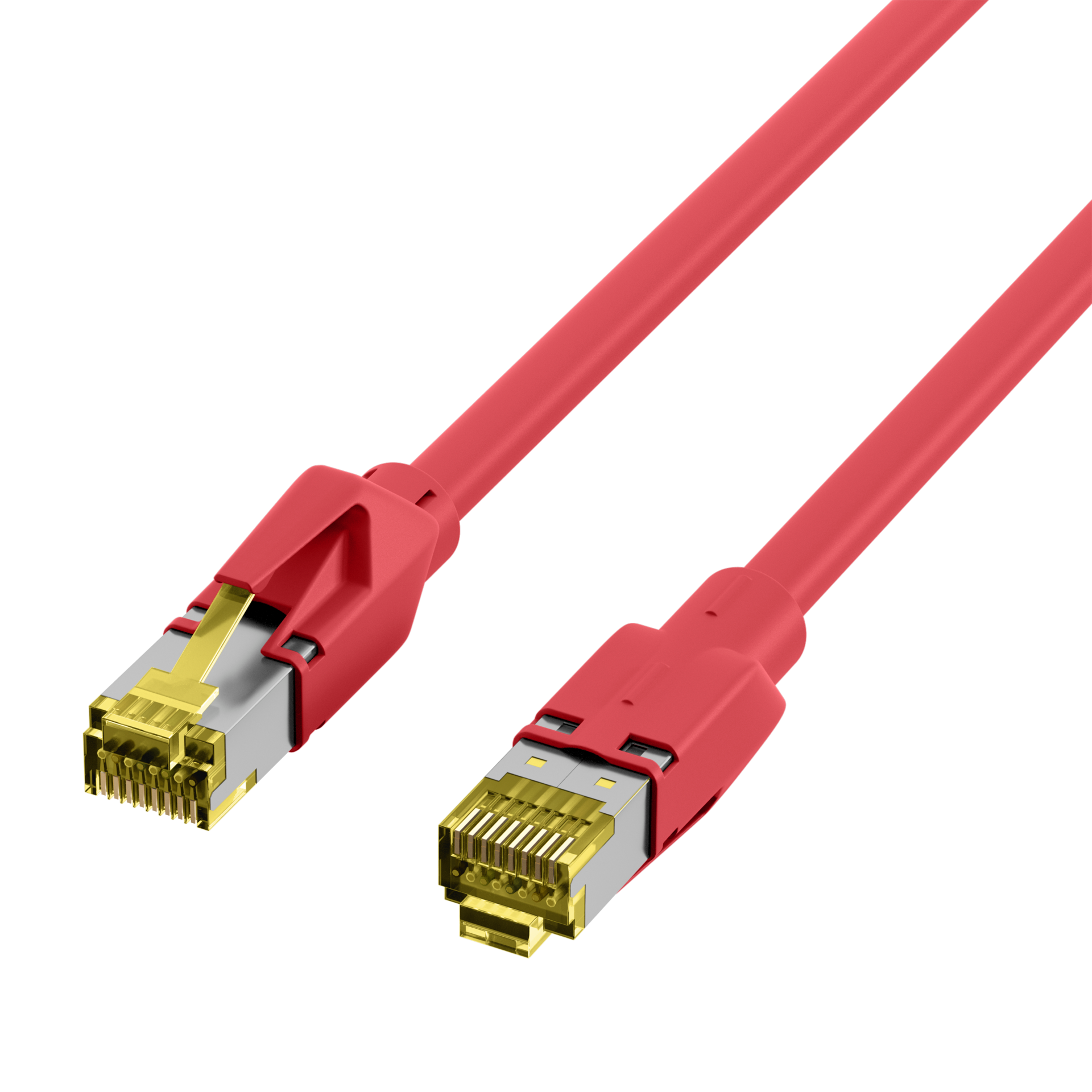

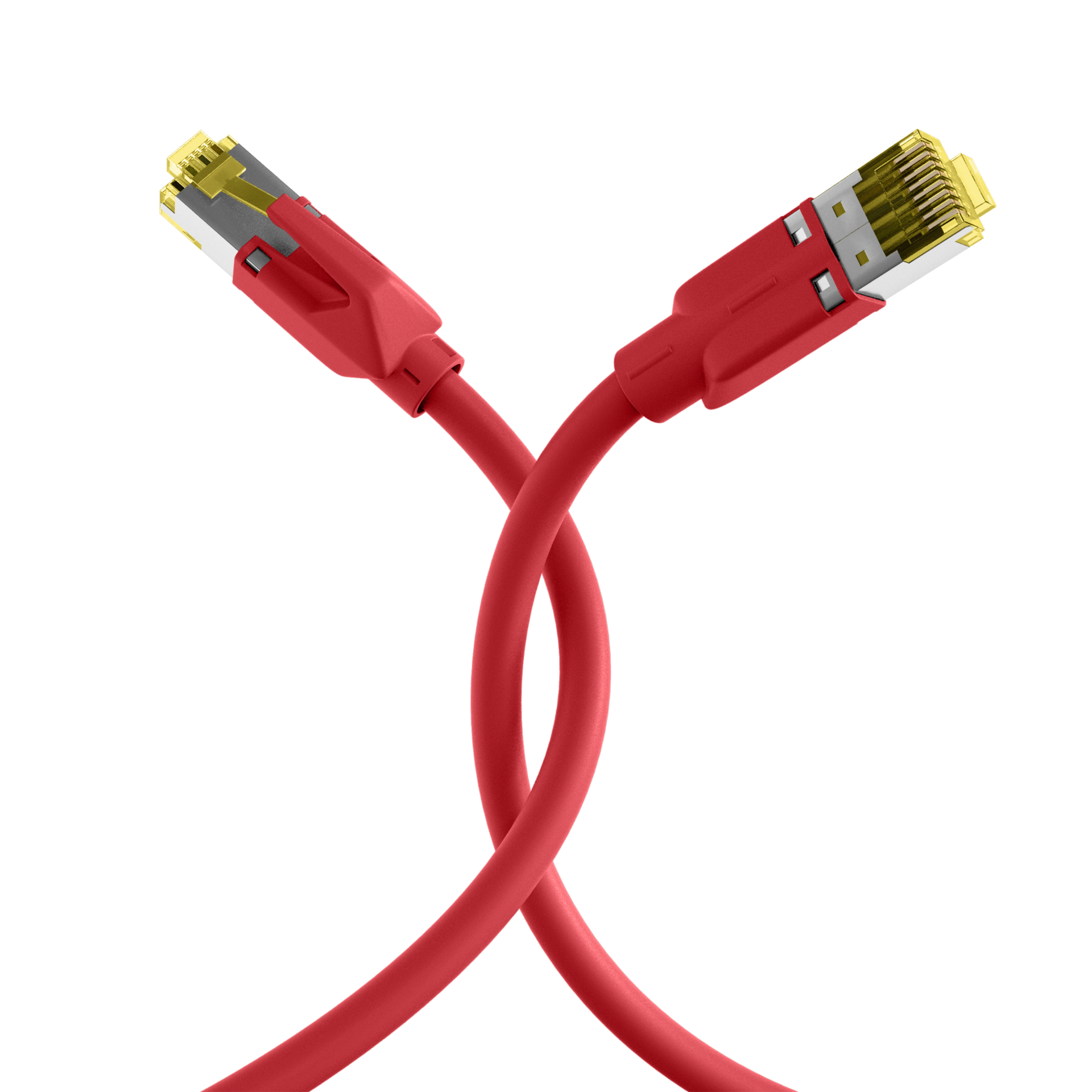

RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red
RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 0,5m
Varenummer:
K8580RT.0,50
EAN Nr.:
4049759017897
Produktinformation til RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 0,5m
RJ45 patch cable Cat.6A S/FTP LSZH Datwyler 7702 TM31
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.
Technical product features
• Cat. 6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the yellow TM31 plugs is 1:1 and follows TIA/EIA 568B.
The data cable has a conductor material made of copper and is ideal for use in structured building cabling, Industrial Ethernet and in data centers. The bandwidth is 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.
Technical product features
• Cat. 6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the yellow TM31 plugs is 1:1 and follows TIA/EIA 568B.
The data cable has a conductor material made of copper and is ideal for use in structured building cabling, Industrial Ethernet and in data centers. The bandwidth is 500 MHz.
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >20 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cable type acc. to Manufacturer: | Dätwyler CU 7702 flex |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | red |
| Colour outer sheath: | red |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 135 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | TM31 yellow |
| Contacts: | Gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | yes |
| Impedance: | 100 ±5 Ω |
| Jacket Material: | LSZH |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | 270 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 78 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.8 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.7 |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K8580RT.0,50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 0,5m | 0.5 m | ±5 % | |
| K8580RT.1 | RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 1m | 1.0 m | ±5 % | |
| K8580RT.1,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 1,5m | 1.5 m | ±5 % | |
| K8580RT.2 | RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 2m | 2.0 m | ±5 % | |
| K8580RT.3 | RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 3m | 3.0 m | ±5 % | |
| K8580RT.5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 5m | 5.0 m | ±5 % | |
| K8580RT.7,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 7,5m | 7.5 m | ±5 % | |
| K8580RT.10 | RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 10m | 10.0 m | ±5 % | |
| K8580RT.15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 15m | 15.0 m | ±5 % | |
| K8580RT.20 | RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 20m | 20.0 m | ±5 % | |
| K8580RT.25 | RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 25m | 25.0 m | ±5 % | |
| K8580RT.30 | RJ45 Patch Cord Cat.6A S/FTP LSZH Dätwyler 7702 TM31 red 30m | 30.0 m | ±5 % |
