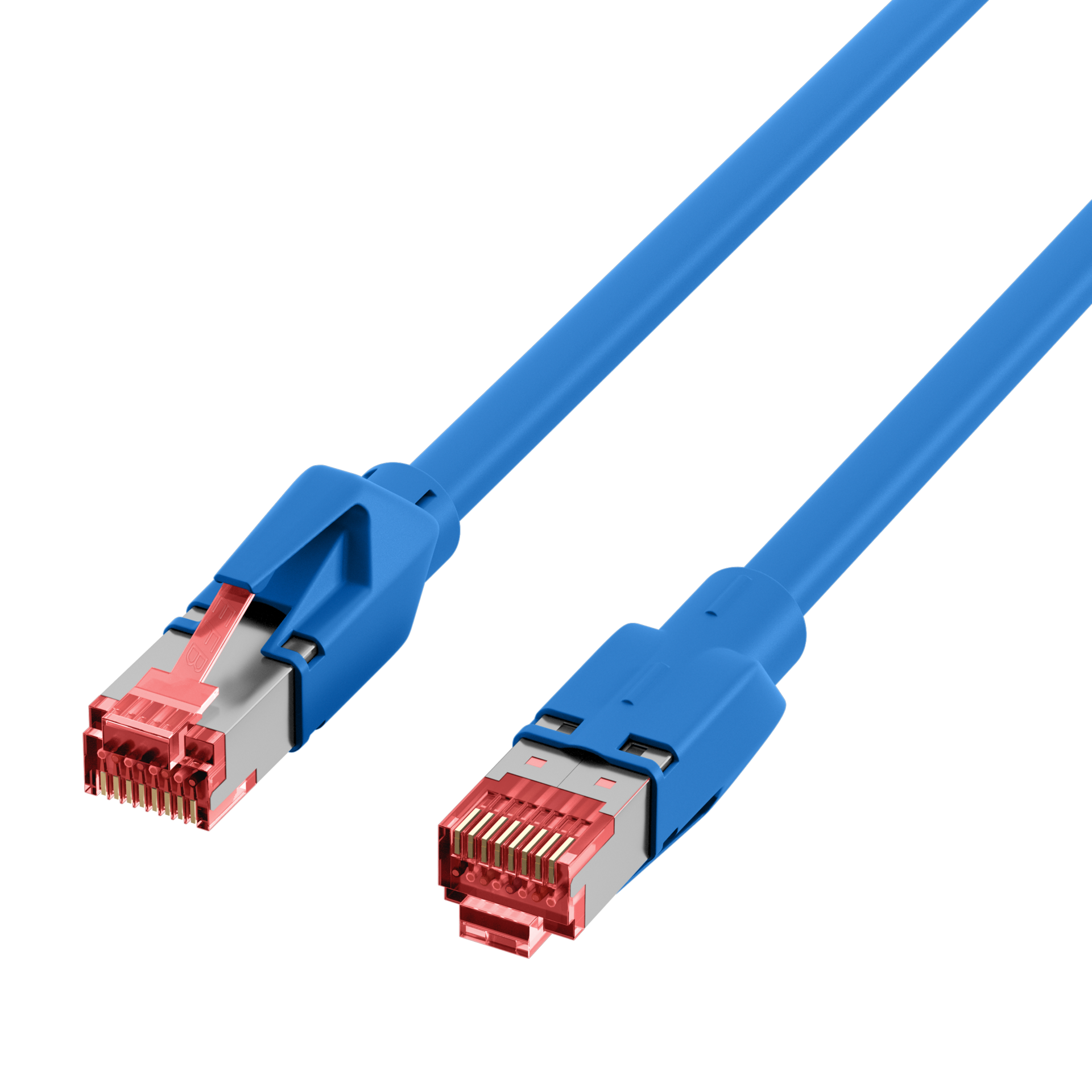

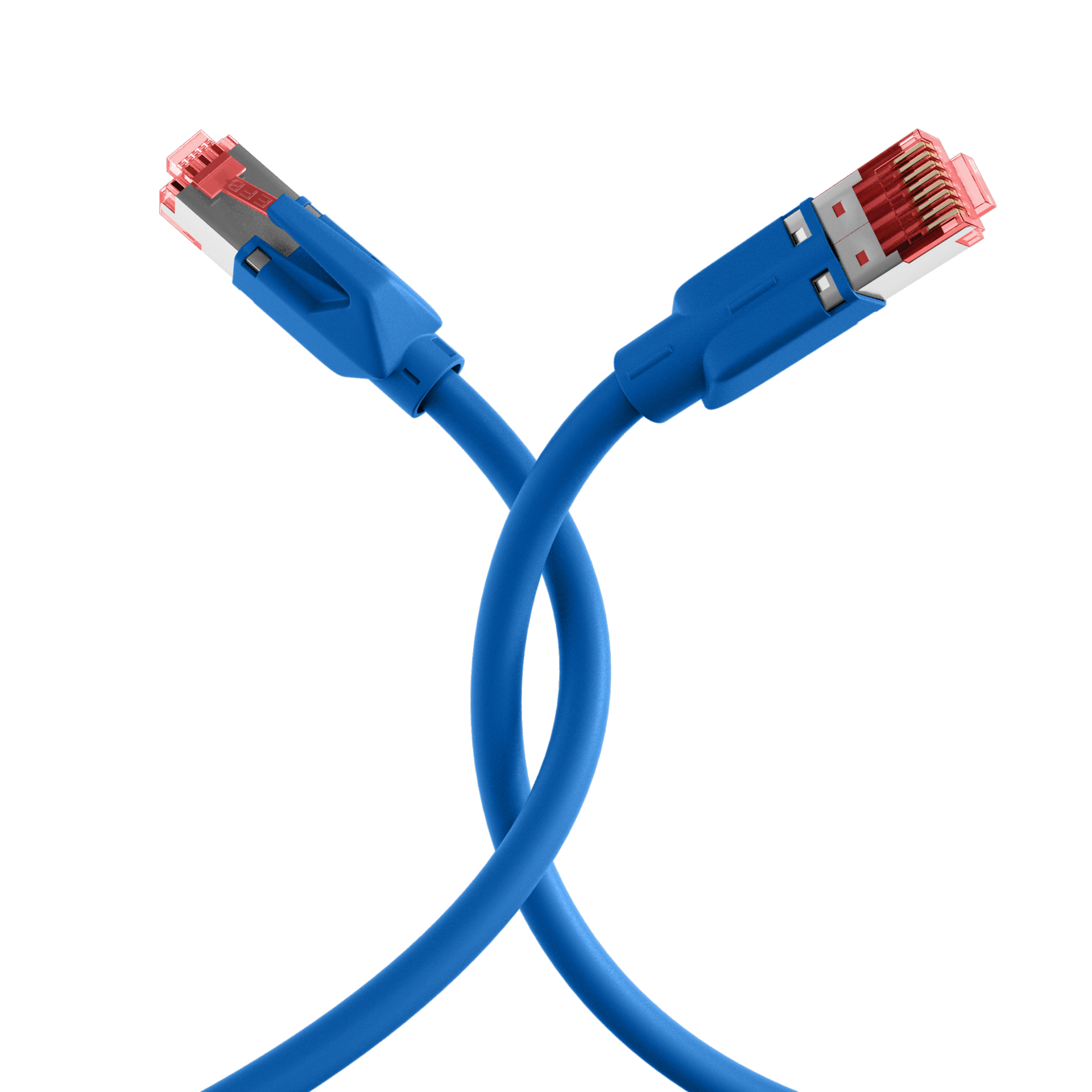

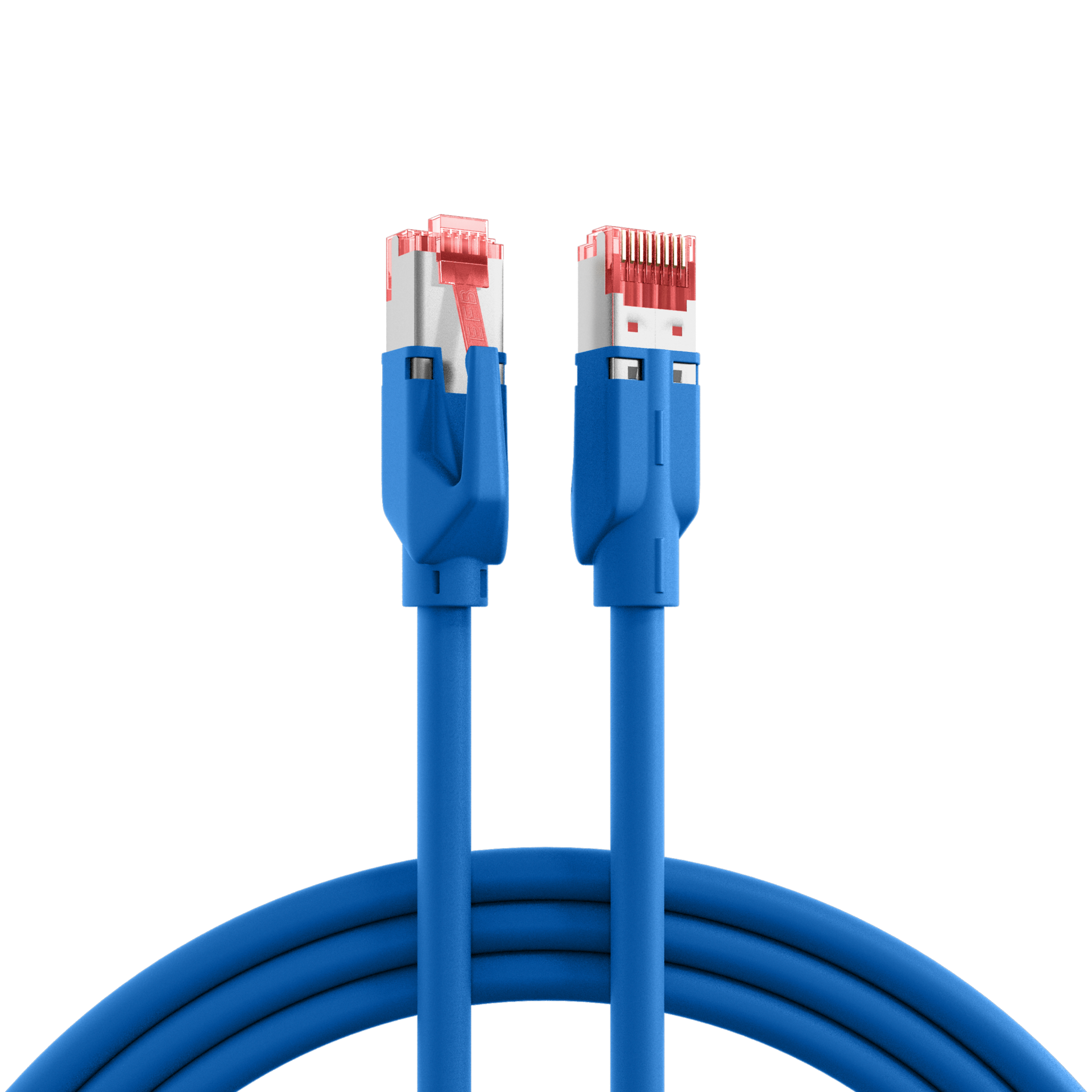

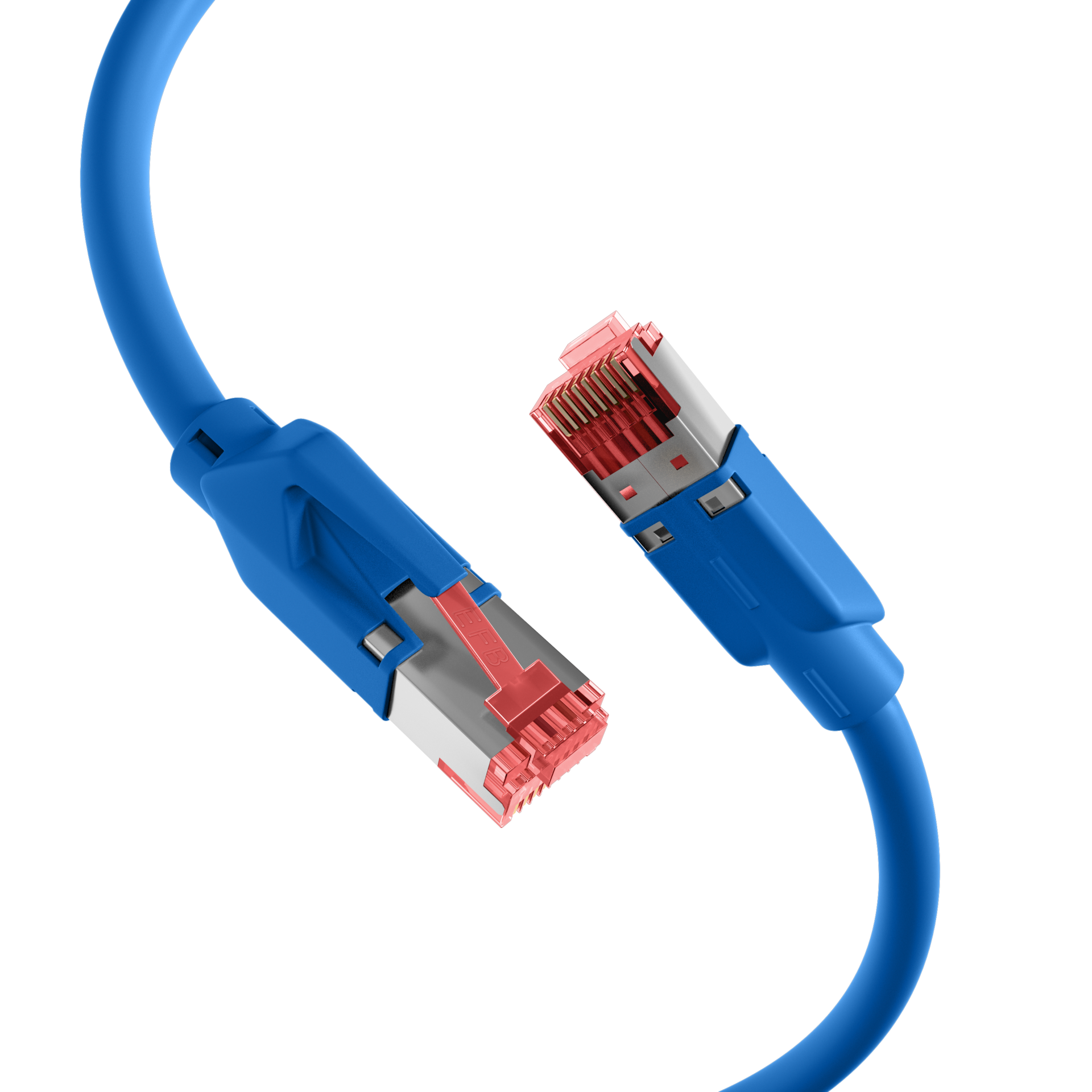

Name: RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 2m
Brand: EFB-Elektronik
SKU: K8054.2
Availability: InStock

RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue

RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 2m

Varenummer: K8054.2

EAN Nr.: 4049759013271

Length

Log ind for at se priser og bestille.

Forudbestil det ønskede antal nu, eller få besked, når det er tilgængeligt:

Piece

Log ind som kunde

Bitte erlauben Sie die Ausführung von JavaScript

Für dieses Formular benötigen Sie auf Grund der CAPTCHA-Verifikation JavaScript.

Beskrivelse

Produktinformation til RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 2m

RJ45 patch cable Cat.6A S/FTP LSZH Draka UC900 TM21

The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.

Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts

The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.

The assignment of the red TM21 plugs is 1:1 and follows TIA/EIA 568B.

The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The frequency range is up to 500 MHz.

Tekniske egenskaber

AWG-size:	26/7
Allocation:	acc. TIA/EIA 568B
Anti-kink sleeve:	put-on
Area of application:	Industrial Ethernet
Area of application:	Structured cabling
Area of application:	Data center
Bending radius:	>25 mm
Cable construction:	4x2
Cable shape:	rund
Cable type:	S/FTP
Cabling standard:	EN50173
Cabling standard:	ISO/IEC 11801
Cabling standard:	ANSI/TIA-568
Category:	6A (TIA)
Colour anti-kink sleeve:	blue
Colour outer sheath:	blue
Conductive shield:	360° shield contact
Conductor Material:	Copper
Conductor resistance DC:	170 Ω/km
Connector:	IEC 60603-7-51
Connector type:	TM21 red
Contacts:	Gold plated
Current capacity:	max. 1 A
Euro class:	Eca
Fire retardant version:	acc. IEC60332-1
Halogen free:	acc. IEC60754-2
Harmonised Standard:	EN 50575
Impedance:	100 ±25 Ω
Insulation Resistance:	> 2000 MΩ
Jacket material:	LSZH
Length imprint:	False
Locking lever:	True
Loop resistance:	< 340 Ω/km
Low smoke:	acc. IEC61034
Mating cycles:	≥750
Model:	shielded
NVP value:	79 %
Oil resistant:	no
Operating-/ tempering voltage:	max. 50 V DC
Operating Temperature:	-20 – 60 °C
Outer diameter of the cable:	5.9 mm
Ozone resistance:	No
Pin assignment:	1:1
Raw cable:	Cat.7
Resistance unbalance:	3 %
Resistant to chemicals:	False
Suitable for degree of protection (IP):	IP20
Tape width:	500MHz
Temperature Range (Installation):	0 – 50 °C
Temperature Range (Operation):	-20 – 60 °C
Test voltage:	1000 (V DC, 1min) core/core und core/screen
Total screening:	ca. 45 %
Transmission:	10Gbit
Type of connector connection 1:	RJ45 8(8)
Type of connector connection 2:	RJ45 8(8)
UL approbated:	False
UV resistant:	no

Varianten

Art. Nr.	Bezeichnung	Length	POE class	Length tolerance
K8054.0,50	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 0,5m	0.5 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8054.1	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 1m	1.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8054.1,5	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 1,5m	1.5 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8054.2	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 2m	2.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8054.3	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 3m	3.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8054.5	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 5m	5.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8054.7,5	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 7,5m	7.5 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8054.10	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 10m	10.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8054.15	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 15m	15.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at	±5 %	Vælg varianter
K8054.20	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 20m	20.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at	±5 %	Vælg varianter
K8054.25	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 25m	25.0 m	PoE acc. to IEEE802.3af	±5 %	Vælg varianter
K8054.30	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue 30m	30.0 m	PoE acc. to IEEE802.3af	±5 %	Vælg varianter
K8054.0,15	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue	0.15 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8054.025	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue	0.25 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8054.40	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue	40.0 m	No	±5 %	Vælg varianter
K8054.50	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 blue	50.0 m	No	±5 %	Vælg varianter
