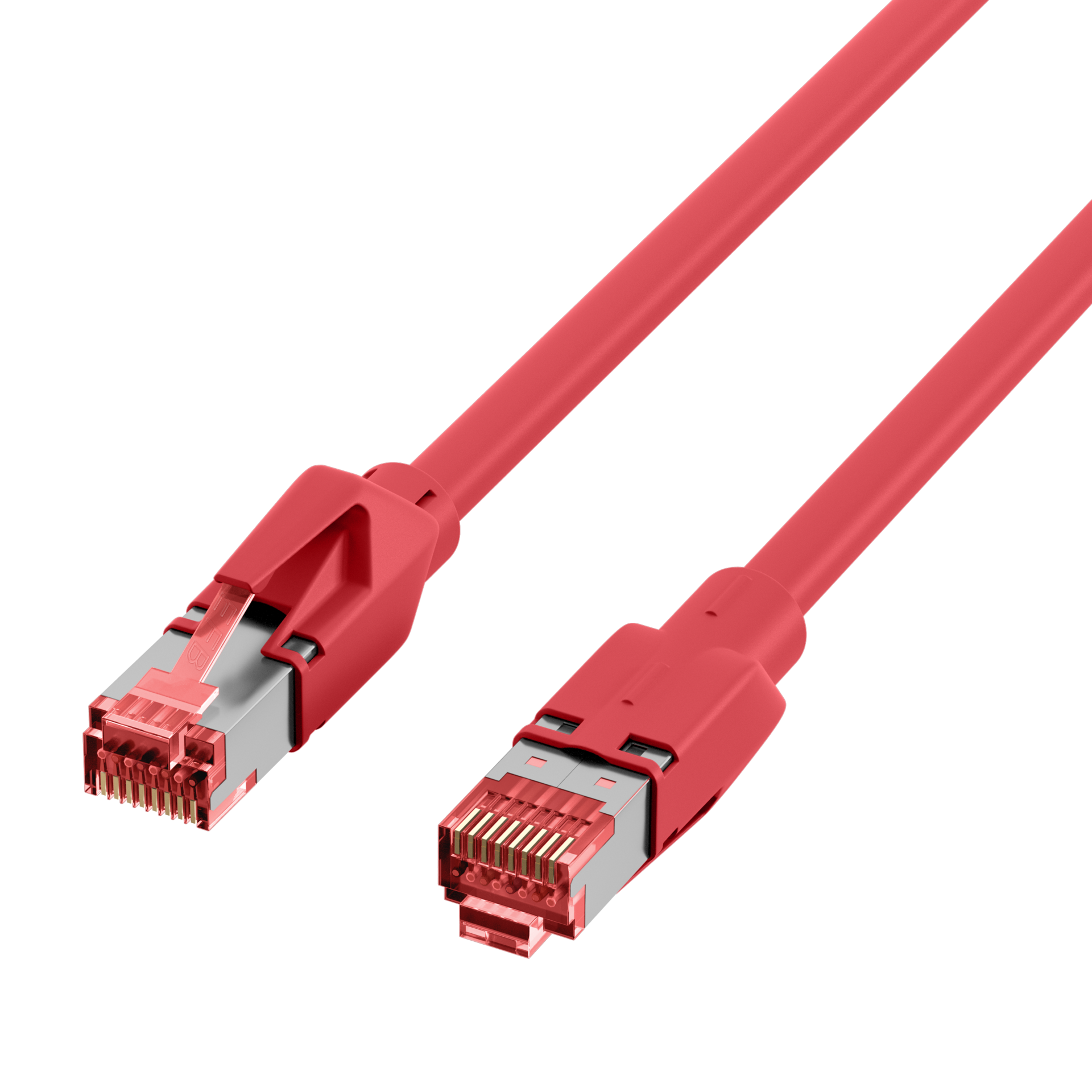

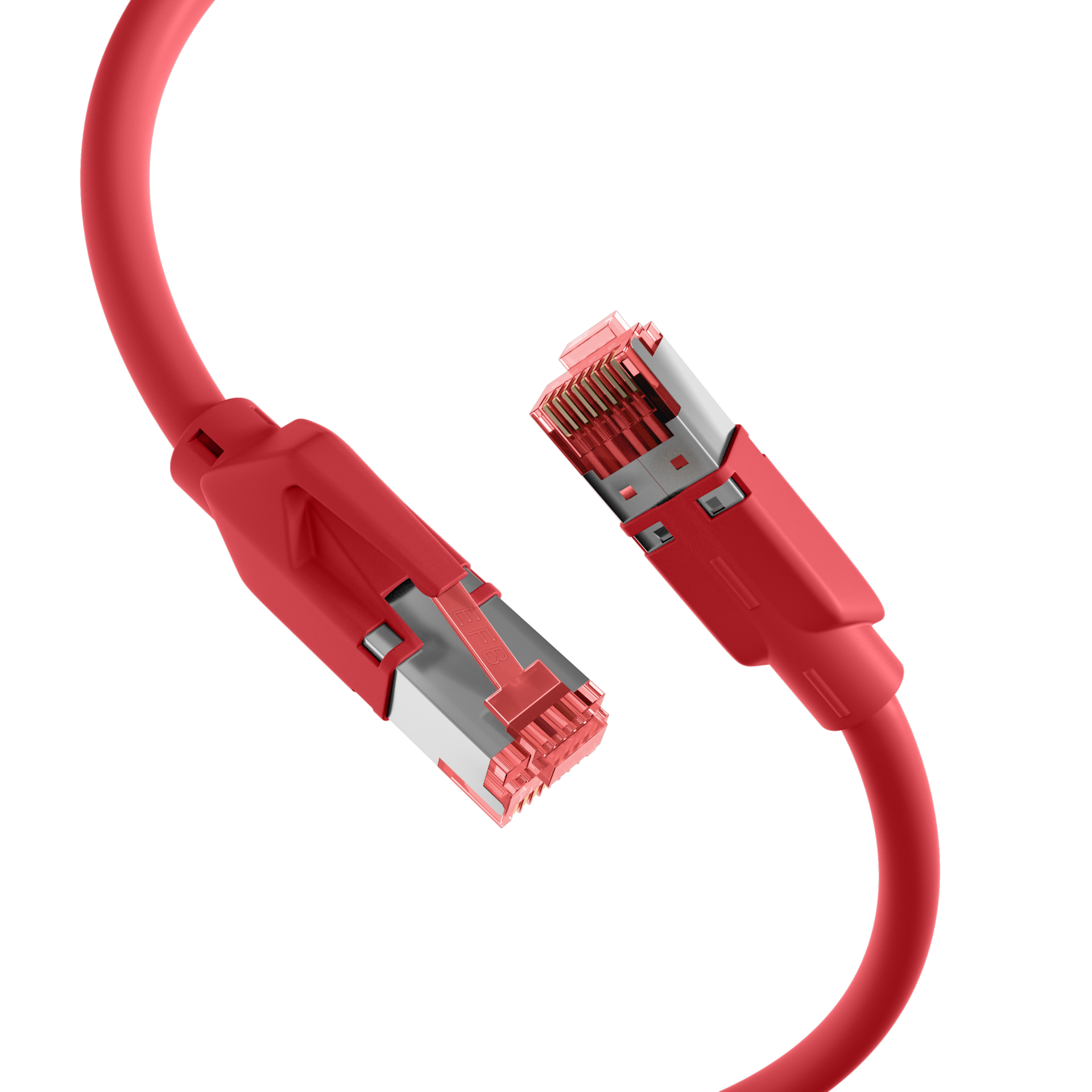

RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red
RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red
Varenummer:
K8052.0,25
EAN Nr.:
4049759175863
Produktinformation til RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red
RJ45 patch cable Cat.6A S/FTP LSZH Draka UC900 TM21
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the red TM21 plugs is 1:1 and follows TIA/EIA 568B.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The frequency range is up to 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the red TM21 plugs is 1:1 and follows TIA/EIA 568B.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The frequency range is up to 500 MHz.
Tekniske egenskaber
| (Halogenfrei): | Ja |
|---|---|
| AWG-Querschnitt: | 26/7 |
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | Ja |
| Außendurchmesser des Kabels: | 5,9 mm |
| Bandbreite: | 500MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >25 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Einsatzort: | Rechenzentrum |
| Farbe der Knickschutztülle: | rot |
| Flammwidrig: | nach IEC60332-1 |
| Geeignet für Schutzart (IP): | IP20 |
| Gesamtabschirmung: | ca. 45 % |
| Halogen frei: | nach IEC60754-2 |
| Impedanz: | 100 ±25 Ω |
| Isolationswiderstand: | > 2000 MΩ |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | S/FTP |
| Kategorie: | 6A (TIA) |
| Knickschutztülle: | aufgesteckt |
| Kontakte: | Vergoldet |
| Leitermaterial: | Kupfer |
| Leiterwiderstand DC: | 170 Ω/km |
| Längenaufdruck: | Nein |
| Mantel-Farbe: | rot |
| Mantel-Material: | LSZH |
| NVP-Wert: | 79 % |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Raucharm: | nach IEC61034 |
| Rohkabel: | Cat.7 |
| Schirmkontaktierung: | 360° Schirmbefestigung |
| Schleifenwiderstand: | < 340 Ω/km |
| Steckertyp: | TM21 rot |
| Steckverbinder: | IEC 60603-7-51 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich (Betrieb): | -20 – 60 °C |
| Temperaturbereich (Installation): | 0 – 50 °C |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Widerstandsunsymmetrie: | 3 % |
| Ölbeständig: | Nein |
| Ölbeständig nach EN 60811-2-1: | Nein |
| Ölbeständig nach EN 60811-404: | Nein |
| Übertragung: | 10Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE Klasse | Längentoleranz | |
|---|---|---|---|---|---|
| K8052.0,50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8052.1 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red 1m | 1,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8052.1,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red 1,5m | 1,5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8052.2 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red 2m | 2,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8052.3 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red 3m | 3,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8052.5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8052.7,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8052.10 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red 10m | 10,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8052.15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red 15m | 15,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8052.20 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red 20m | 20.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8052.25 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red 25m | 25.0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8052.30 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red 30m | 30,0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8052.0,25 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red | 0.25 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
| K8052.40 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red | 40.0 m | Nein | ±5 % | |
| K8052.50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 red | 50.0 m | Nein | ±5 % |
