RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow
RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow
Varenummer:
K8055.025
EAN Nr.:
4049759268107
Produktinformation til RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow

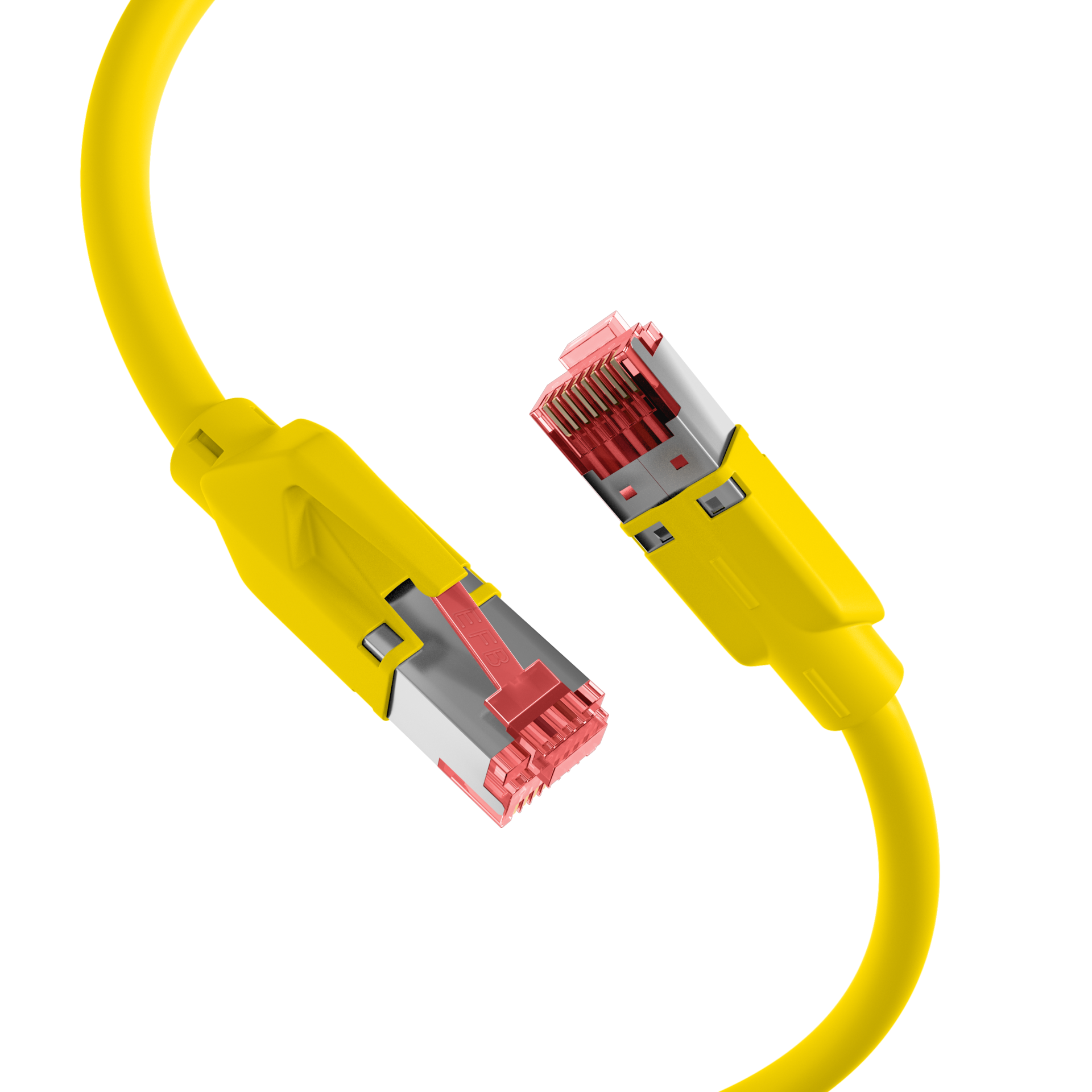

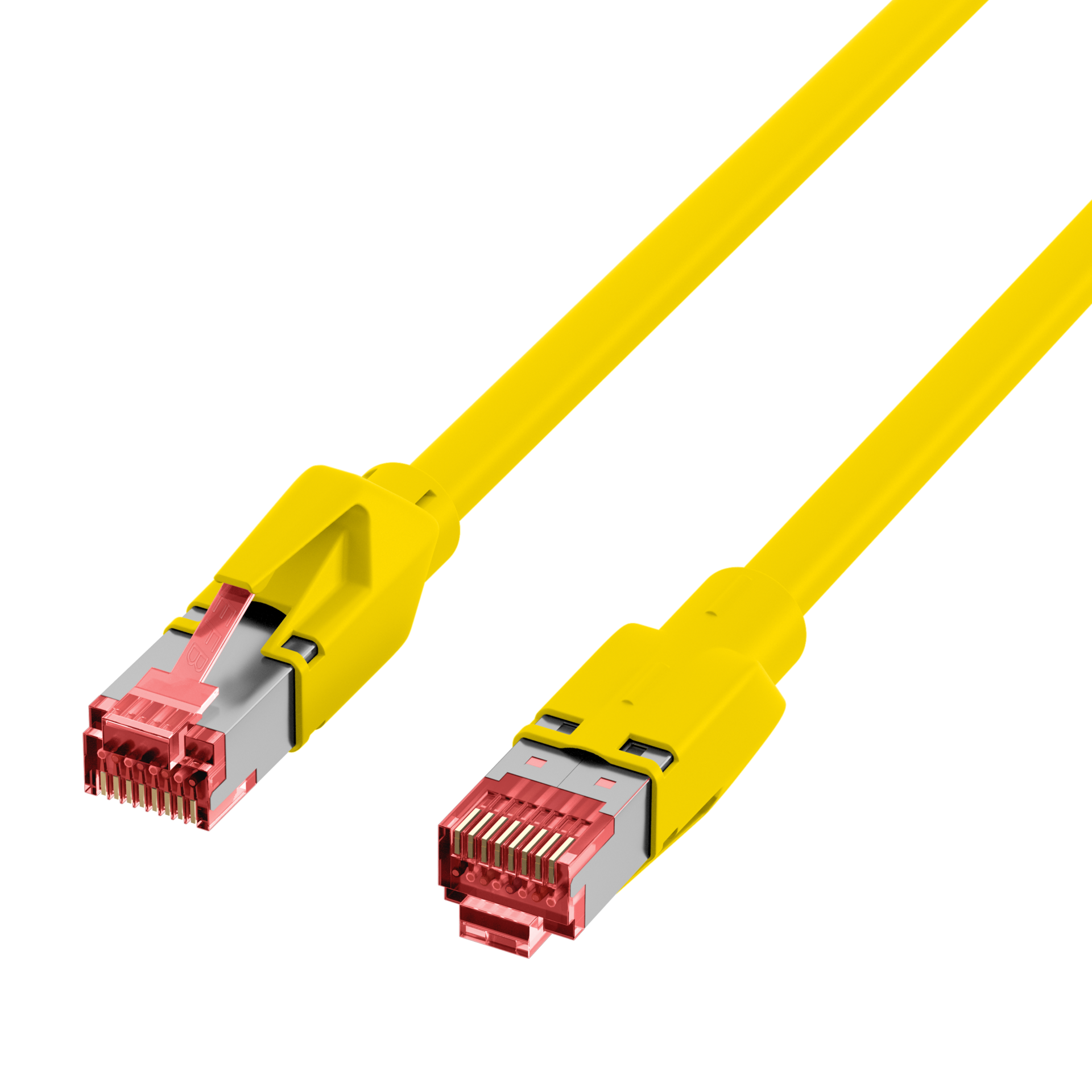

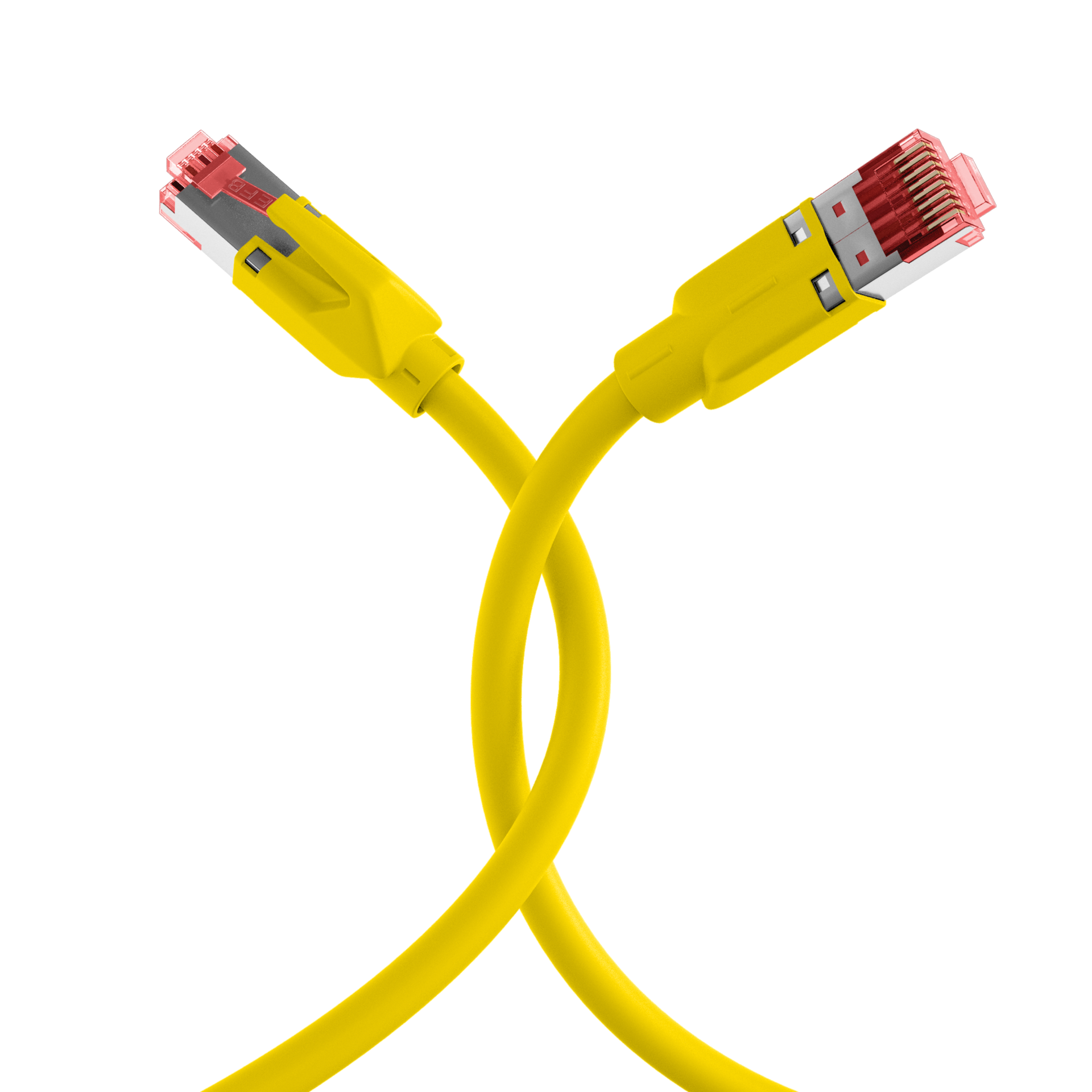

RJ45 patch cable Cat.6A S/FTP LSZH Draka UC900 TM21
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the red TM21 plugs is 1:1 and follows TIA/EIA 568B.
The data cable has a conductor material made of copper and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. A frequency range of 500 MHz is achieved.
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the red TM21 plugs is 1:1 and follows TIA/EIA 568B.
The data cable has a conductor material made of copper and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. A frequency range of 500 MHz is achieved.
Tekniske egenskaber
| AWG-Querschnitt: | 26/7 |
|---|---|
| Ausführung: | Geschirmt |
| Außendurchmesser des Kabels: | 5,9 mm |
| Bandbreite: | 500MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >25 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Einsatzort: | Rechenzentrum |
| Farbe der Knickschutztülle: | gelb |
| Geeignet für Schutzart (IP): | IP20 |
| Gesamtabschirmung: | ca. 45 % |
| Impedanz: | 100 ±25 Ω |
| Isolationswiderstand: | > 2000 MΩ |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | S/FTP |
| Kategorie: | 6A (TIA) |
| Knickschutztülle: | aufgesteckt |
| Kontakte: | Vergoldet |
| Leitermaterial: | Kupfer |
| Leiterwiderstand DC: | 170 Ω/km |
| Längenaufdruck: | Nein |
| Mantel-Farbe: | gelb |
| Mantel-Material: | LSZH |
| NVP-Wert: | 79 % |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Raucharm: | nach IEC61034 |
| Rohkabel: | Cat.7 |
| Schirmkontaktierung: | 360° Schirmbefestigung |
| Schleifenwiderstand: | < 340 Ω/km |
| Steckertyp: | TM21 rot |
| Steckverbinder: | IEC 60603-7-51 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich (Betrieb): | -20 – 60 °C |
| Temperaturbereich (Installation): | 0 – 50 °C |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Widerstandsunsymmetrie: | 3 % |
| Ölbeständig: | Nein |
| Übertragung: | 10Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE Klasse | Längentoleranz | |
|---|---|---|---|---|---|
| K8055.0,50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8055.1 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow 1m | 1,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8055.1,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow 1,5m | 1,5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8055.2 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow 2m | 2,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8055.3 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow 3m | 3,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8055.5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8055.7,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8055.10 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow 10m | 10,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8055.15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow 15m | 15,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8055.20 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow 20m | 20.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8055.25 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow 25m | 25.0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8055.30 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow 30m | 30,0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8055.0,15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow | 0.15 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
| K8055.025 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow | 0.25 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
| K8055.40 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow | 40.0 m | Nein | ±5 % | |
| K8055.50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 yellow | 50.0 m | Nein | ±5 % |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
