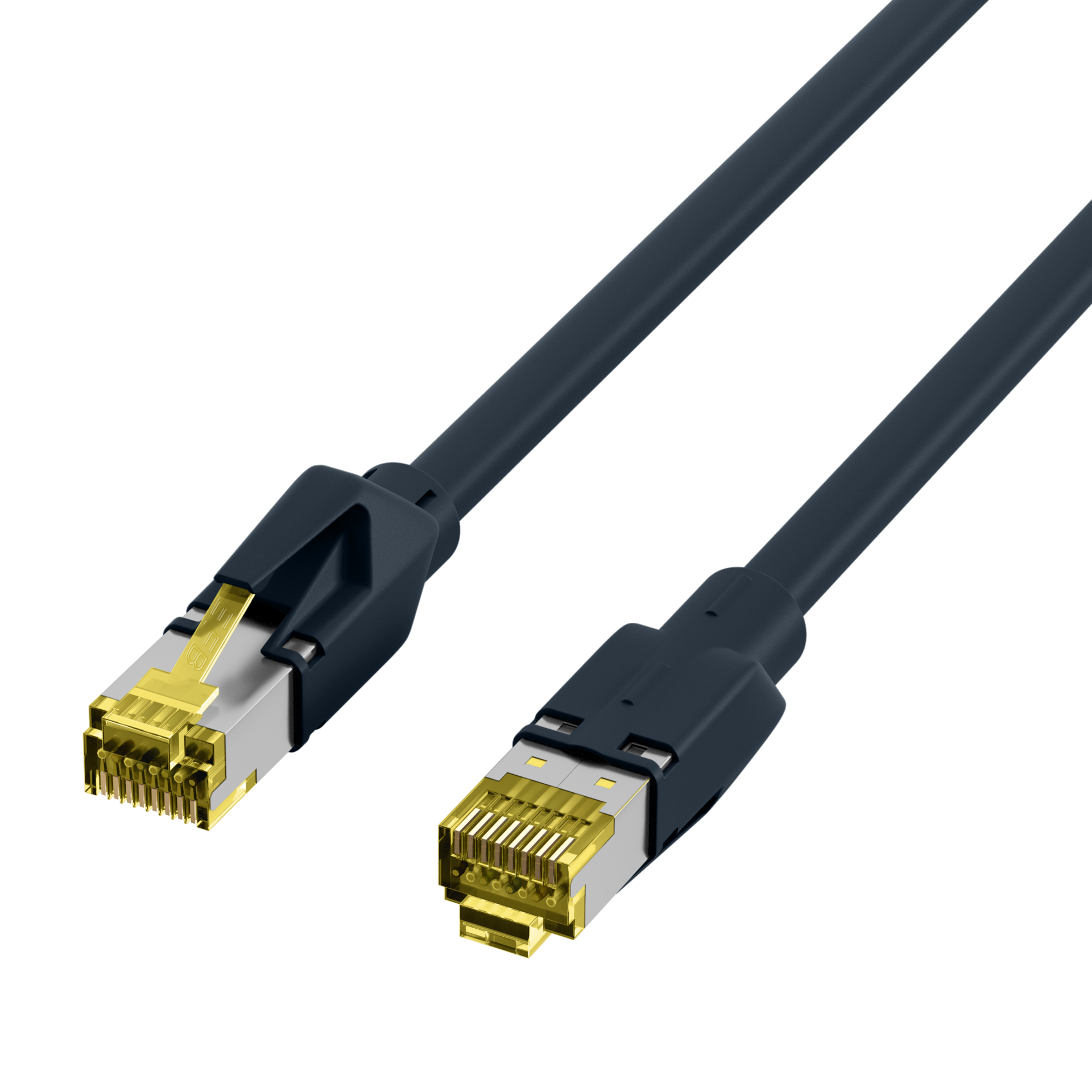

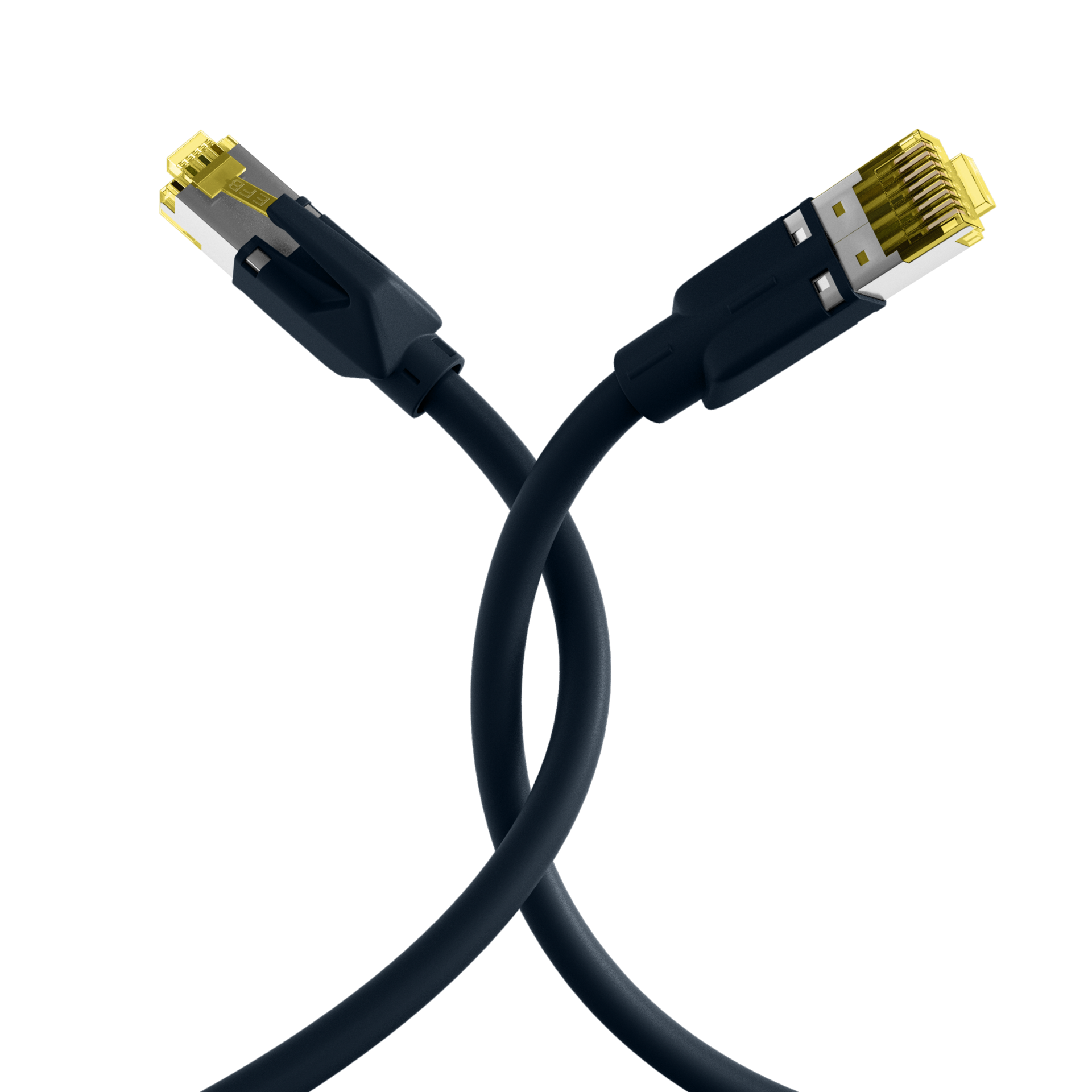

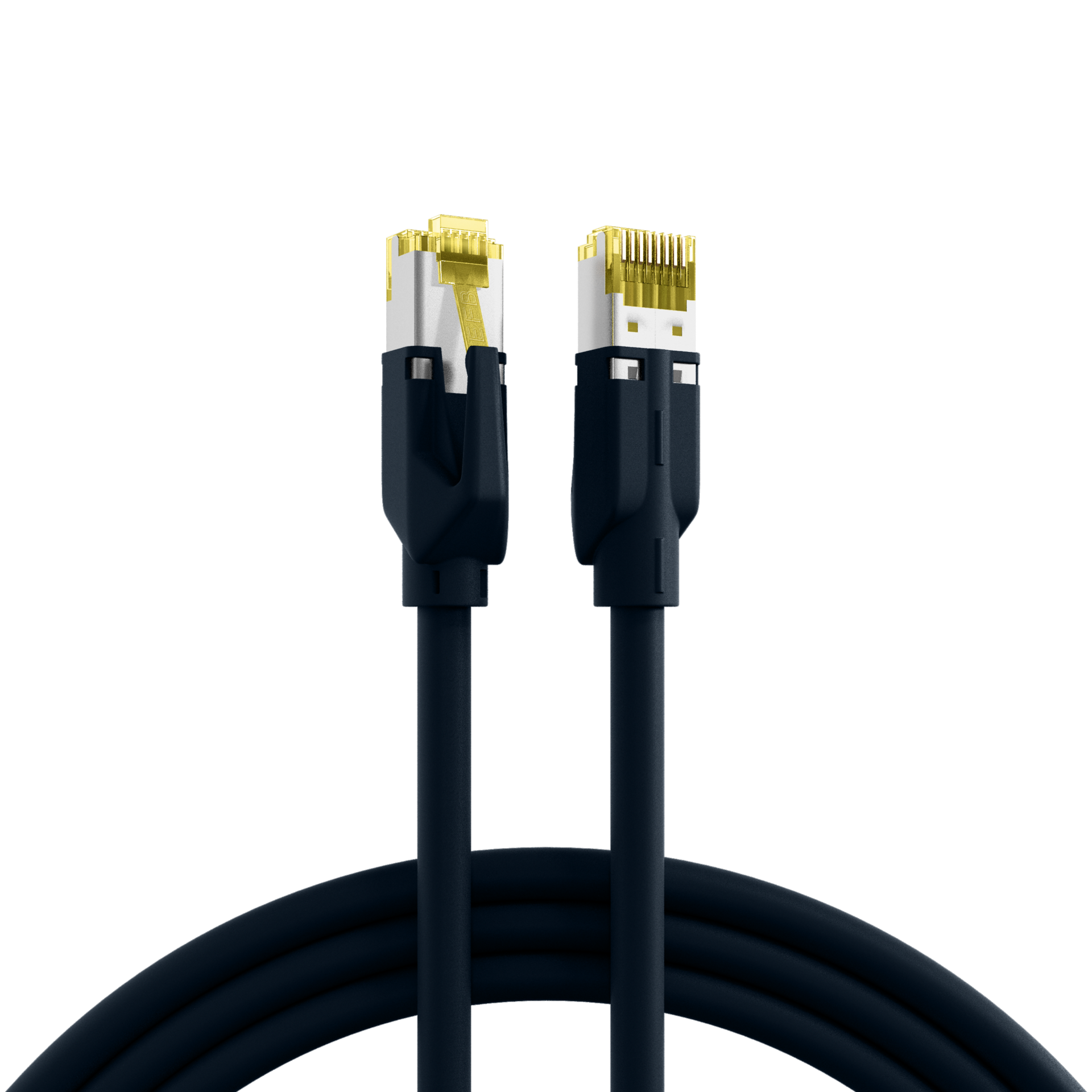

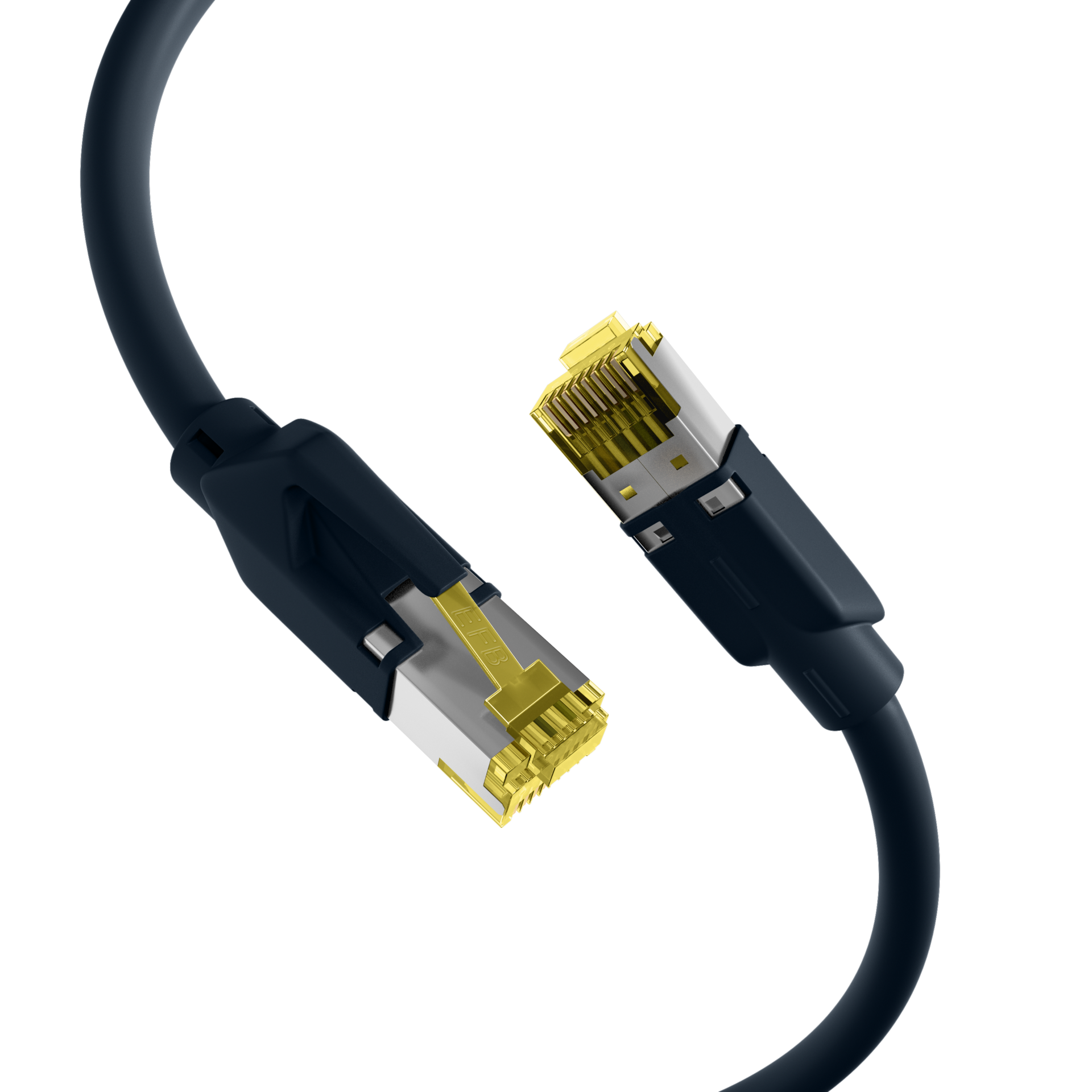

RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black
RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black
Varenummer:
K8560SW.50
EAN Nr.:
4049759236809
Produktinformation til RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black
RJ45 patch cable Cat.6A S/FTP LSZH Draka UC900 TM31
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the yellow TM31 plugs is 1:1 and follows TIA/EIA 568B.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and data centers. A bandwidth of up to 500 MHz is possible.
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the yellow TM31 plugs is 1:1 and follows TIA/EIA 568B.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and data centers. A bandwidth of up to 500 MHz is possible.
Tekniske egenskaber
| AWG-Querschnitt: | 26/7 |
|---|---|
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | Ja |
| Außendurchmesser des Kabels: | 5,9 mm |
| Bandbreite: | 500MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >25 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Einsatzort: | Rechenzentrum |
| Euroklasse: | Eca |
| Farbe der Knickschutztülle: | schwarz |
| Geeignet für Schutzart (IP): | IP20 |
| Gesamtabschirmung: | ca. 45 % |
| Halogenfrei: | Ja |
| Harmonisierte Norm: | EN 50575 |
| Impedanz: | 100 ±5 Ω |
| Isolationswiderstand: | > 2000 MΩ |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | S/FTP |
| Kabeltyp nach Hersteller: | Draka UC900 SS27 |
| Kategorie: | 6A (TIA) |
| Knickschutztülle: | aufgesteckt |
| Kontakte: | Vergoldet |
| Leitermaterial: | Kupfer |
| Leiterwiderstand DC: | 170 Ω/km |
| Längenaufdruck: | Nein |
| Mantel-Farbe: | schwarz |
| Mantel-Material: | LSZH |
| NVP-Wert: | 79 % |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Raucharm: | nach IEC61034 |
| Rohkabel: | Cat.7 |
| Schirmkontaktierung: | 360° Schirmbefestigung |
| Schleifenwiderstand: | < 340 Ω/km |
| Steckertyp: | TM31 gelb |
| Steckverbinder: | IEC 60603-7-51 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich (Betrieb): | -20 – 60 °C |
| Temperaturbereich (Installation): | 0 – 50 °C |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Widerstandsunsymmetrie: | 3 % |
| Ölbeständig: | Nein |
| Übertragung: | 10Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE Klasse | Längentoleranz | |
|---|---|---|---|---|---|
| K8560SW.0,50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560SW.1 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black 1m | 1,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560SW.1,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black 1,5m | 1,5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560SW.2 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black 2m | 2,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560SW.3 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black 3m | 3,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560SW.5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560SW.7,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560SW.10 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black 10m | 10,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560SW.15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black 15m | 15,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8560SW.20 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black 20m | 20.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8560SW.25 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black 25m | 25.0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8560SW.30 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black 30m | 30,0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8560SW.0,15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black | 0.15 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
| K8560SW.0,25 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black | 0.25 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
| K8560SW.40 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black | 40.0 m | Nein | ±5 % | |
| K8560SW.50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 black | 50.0 m | Nein | ±5 % |
