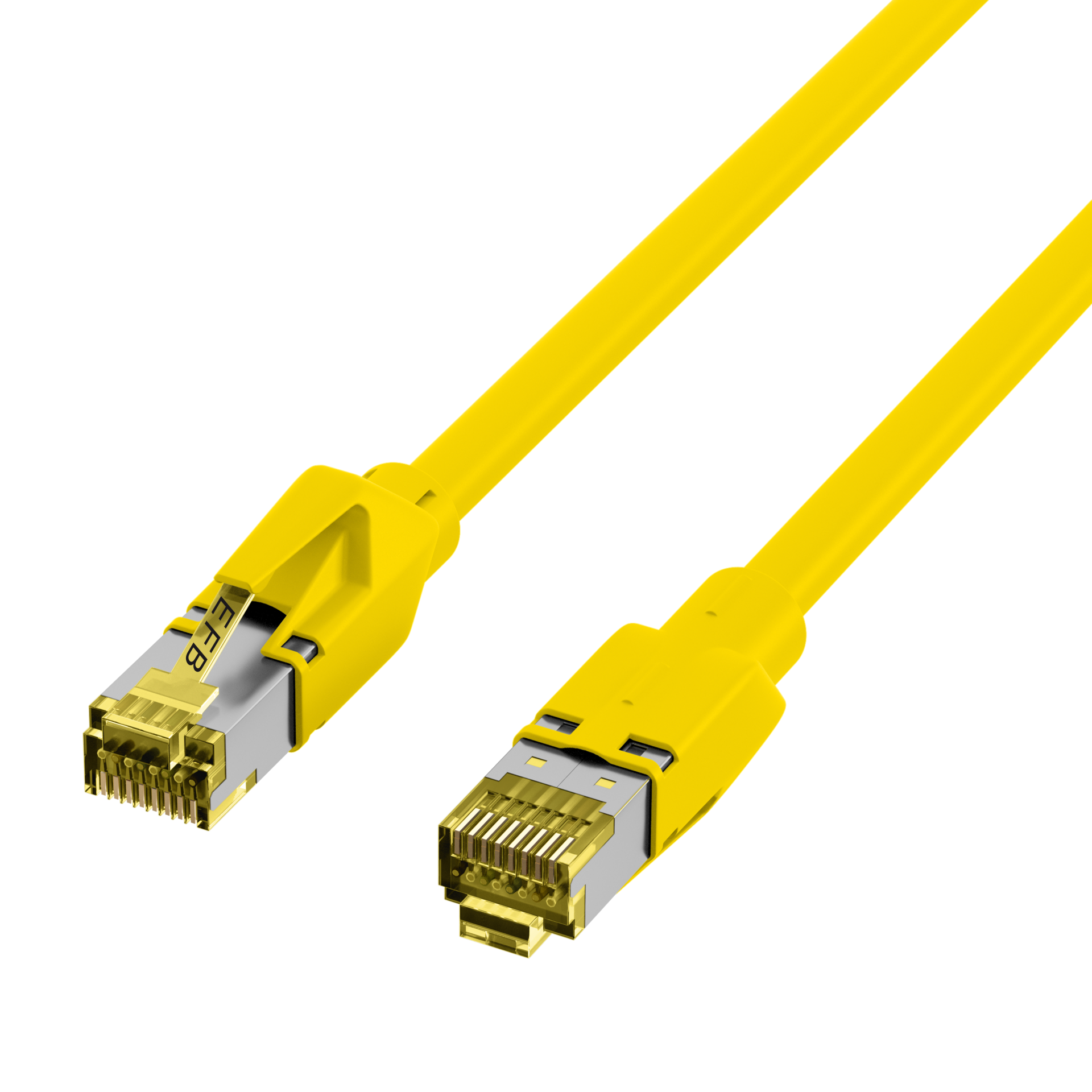

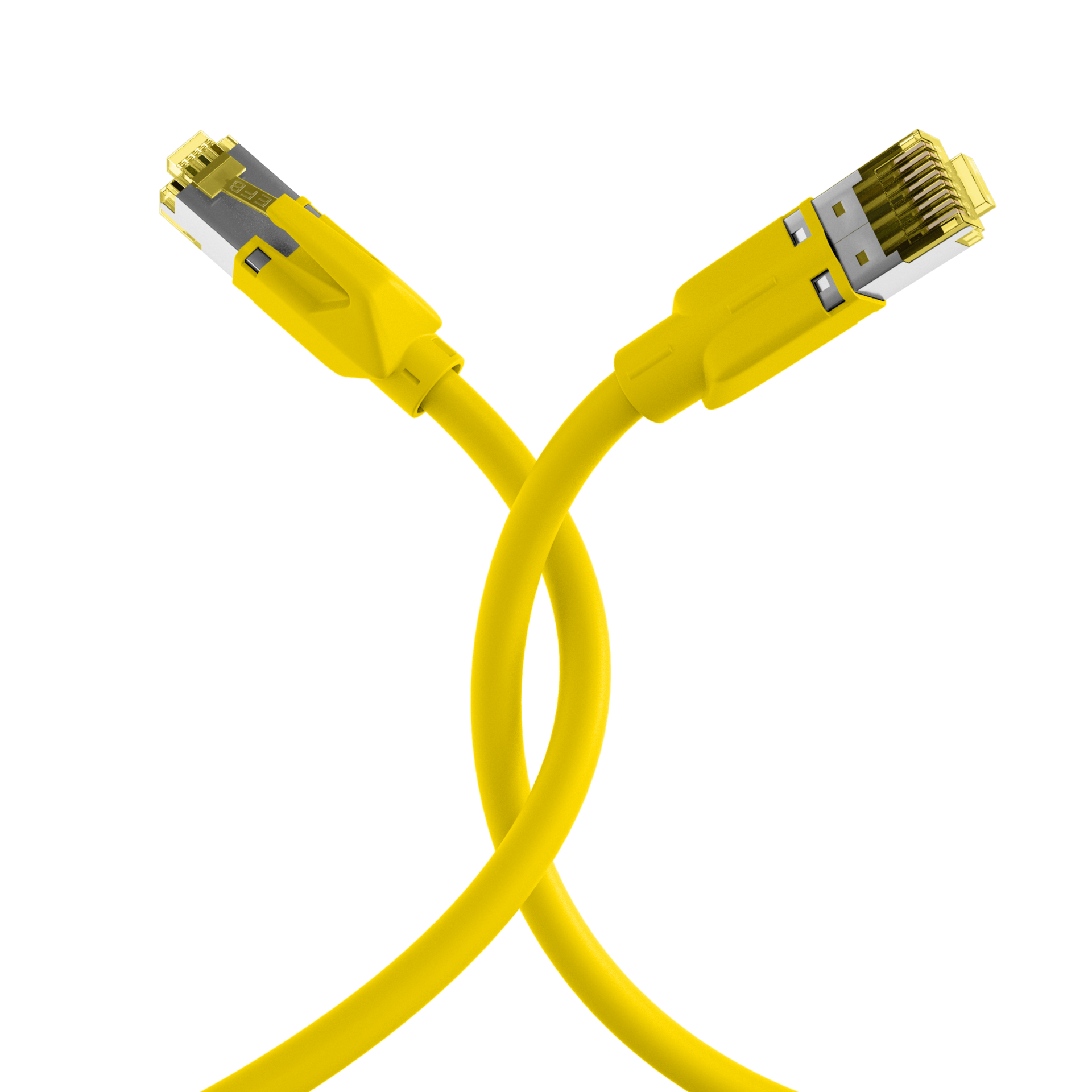

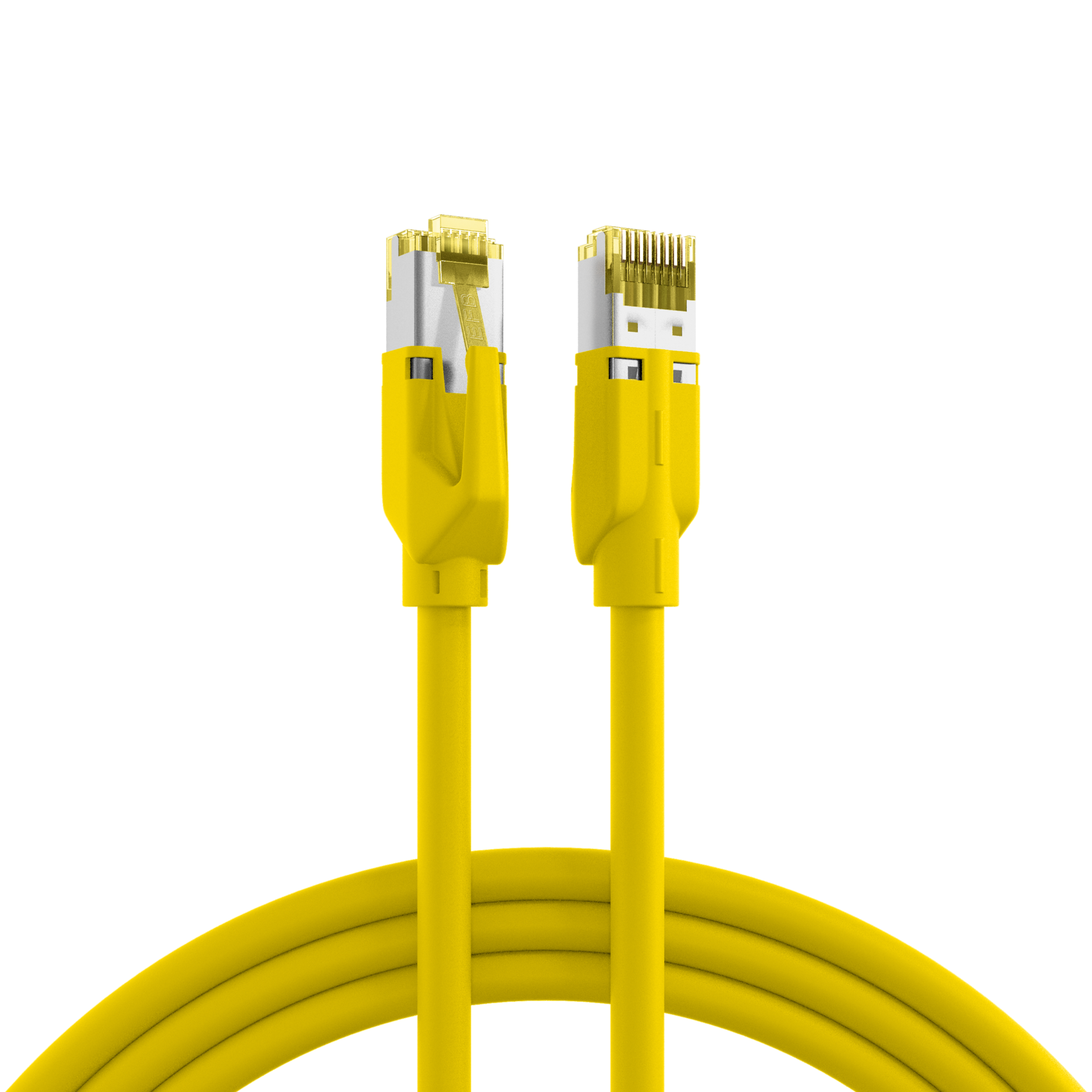

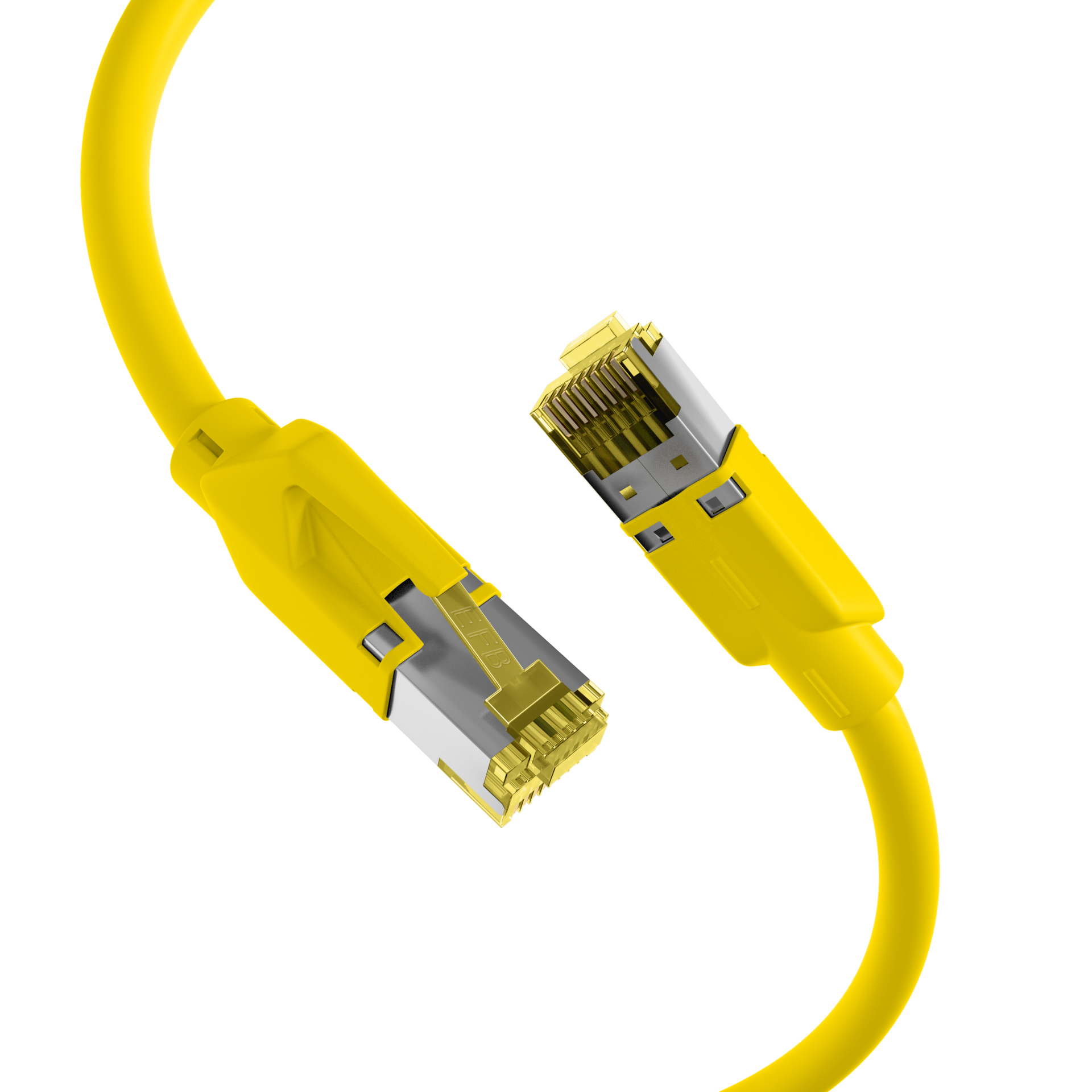

RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow
RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow
Varenummer:
K8560GE.0,15
EAN Nr.:
4049759236632
Produktinformation til RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow
RJ45 patch cable Cat.6A S/FTP LSZH Draka UC900 TM31
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the yellow TM31 plugs is 1:1 and follows TIA/EIA 568B.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and data centers. A bandwidth of up to 500 MHz is possible.
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the yellow TM31 plugs is 1:1 and follows TIA/EIA 568B.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and data centers. A bandwidth of up to 500 MHz is possible.
Tekniske egenskaber
| AWG-size: | 26/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Area of application: | Data center |
| Bending radius: | >25 mm |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | S/FTP |
| Cable type acc. to Manufacturer: | Draka UC900 SS26 |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | yellow |
| Colour outer sheath: | yellow |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 170 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | TM31 yellow |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Euro class: | Eca |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ±5 Ω |
| Insulation Resistance: | > 2000 MΩ |
| Jacket material: | LSZH |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | < 340 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥750 |
| Model: | shielded |
| NVP value: | 79 % |
| Oil resistant: | no |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | -20 – 60 °C |
| Outer diameter of the cable: | 5.9 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.7 |
| Resistance unbalance: | < 3 % |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 500MHz |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Total screening: | ca. 45 % |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | no |
Varianten
| Art. Nr. | Bezeichnung | Length | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K8560GE.0,50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560GE.1 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow 1m | 1.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560GE.1,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow 1,5m | 1.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8560GE.2 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow 2m | 2.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8560GE.3 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow 3m | 3.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560GE.5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560GE.7,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560GE.10 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow 10m | 10.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560GE.15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow 15m | 15.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8560GE.20 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow 20m | 20.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8560GE.25 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow 25m | 25.0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8560GE.30 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow 30m | 30.0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8560GE.0,15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow | 0.15 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560GE.0,25 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow | 0.25 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8560GE.40 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow | 40.0 m | No | ±5 % | |
| K8560GE.50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM31 yellow | 50.0 m | No | ±5 % |
