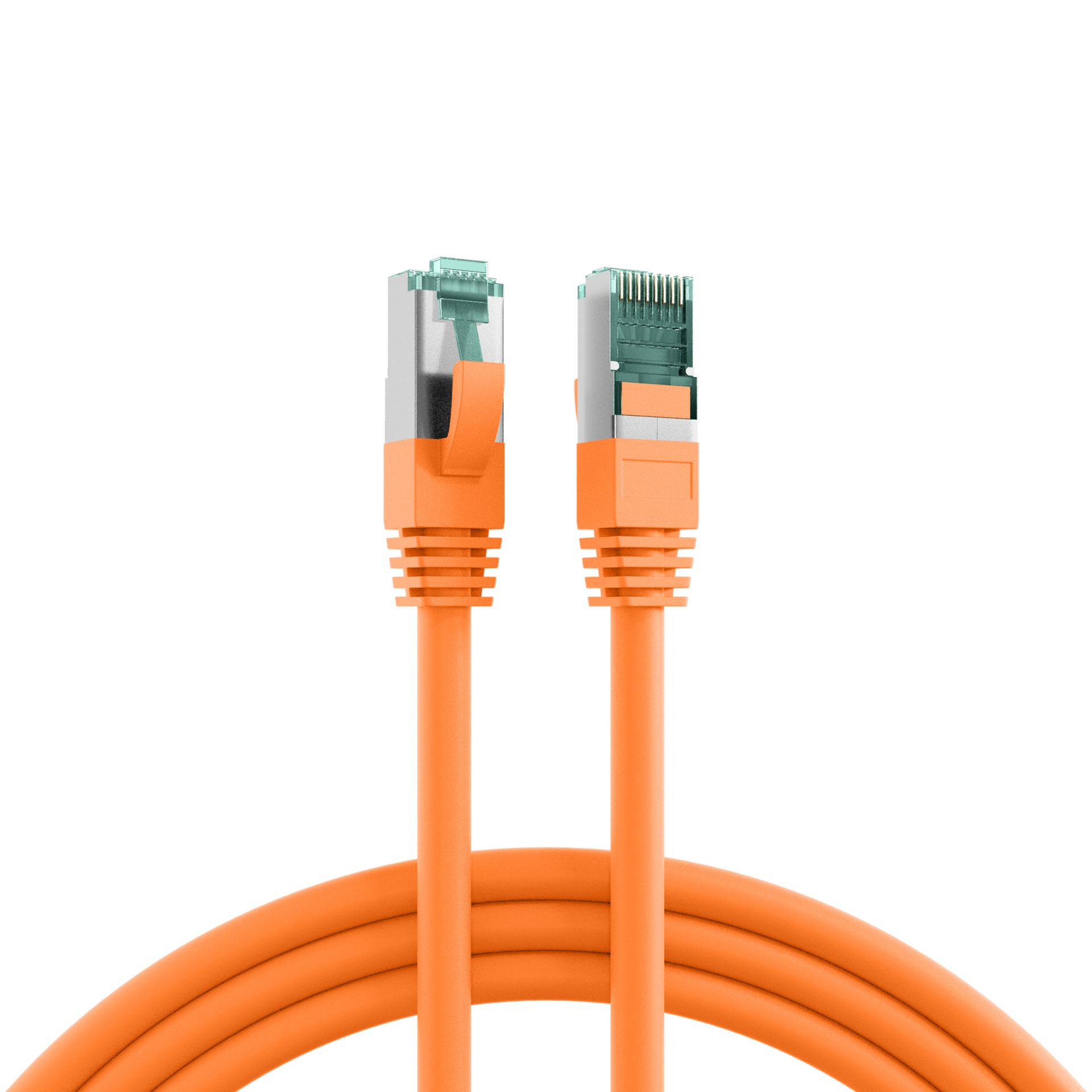

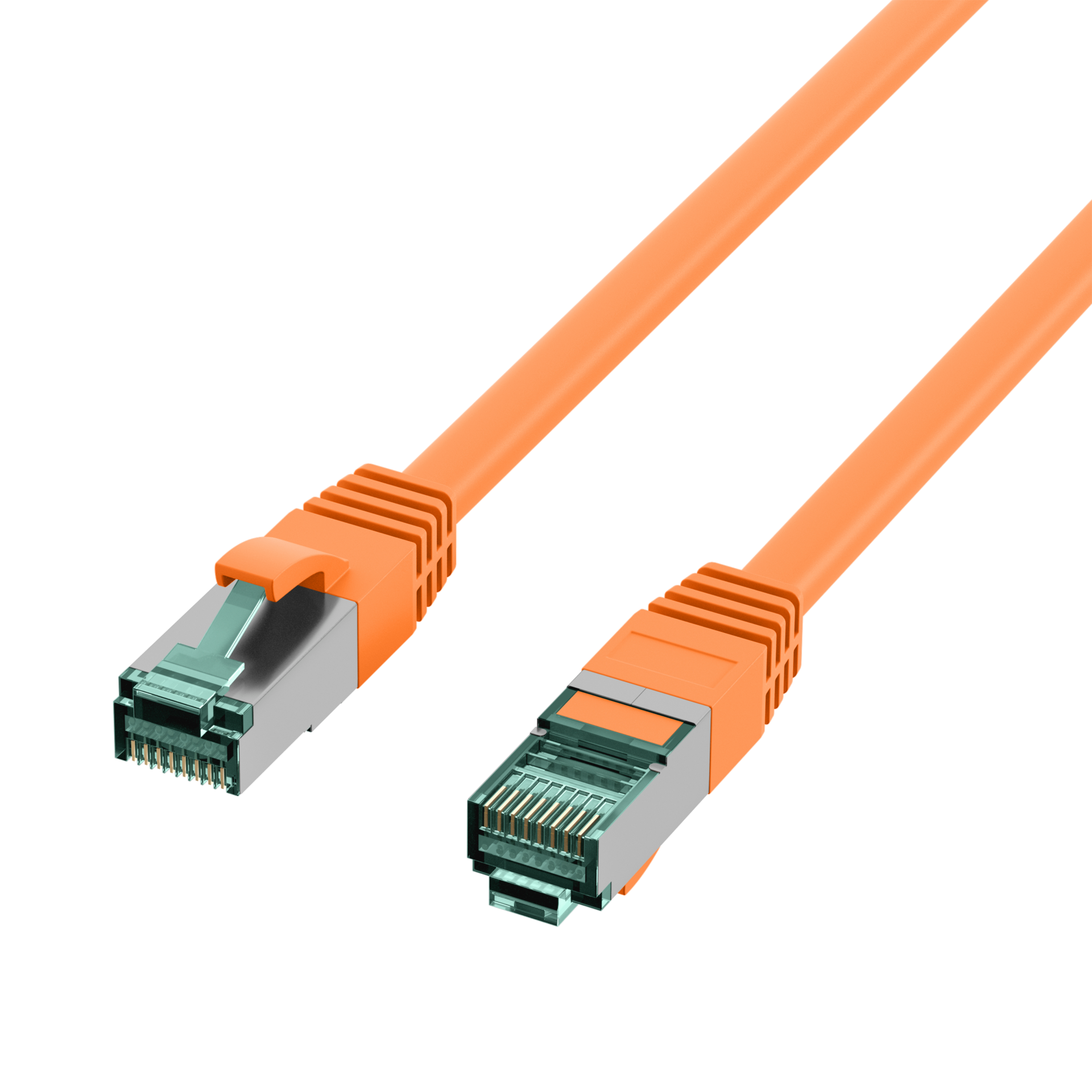

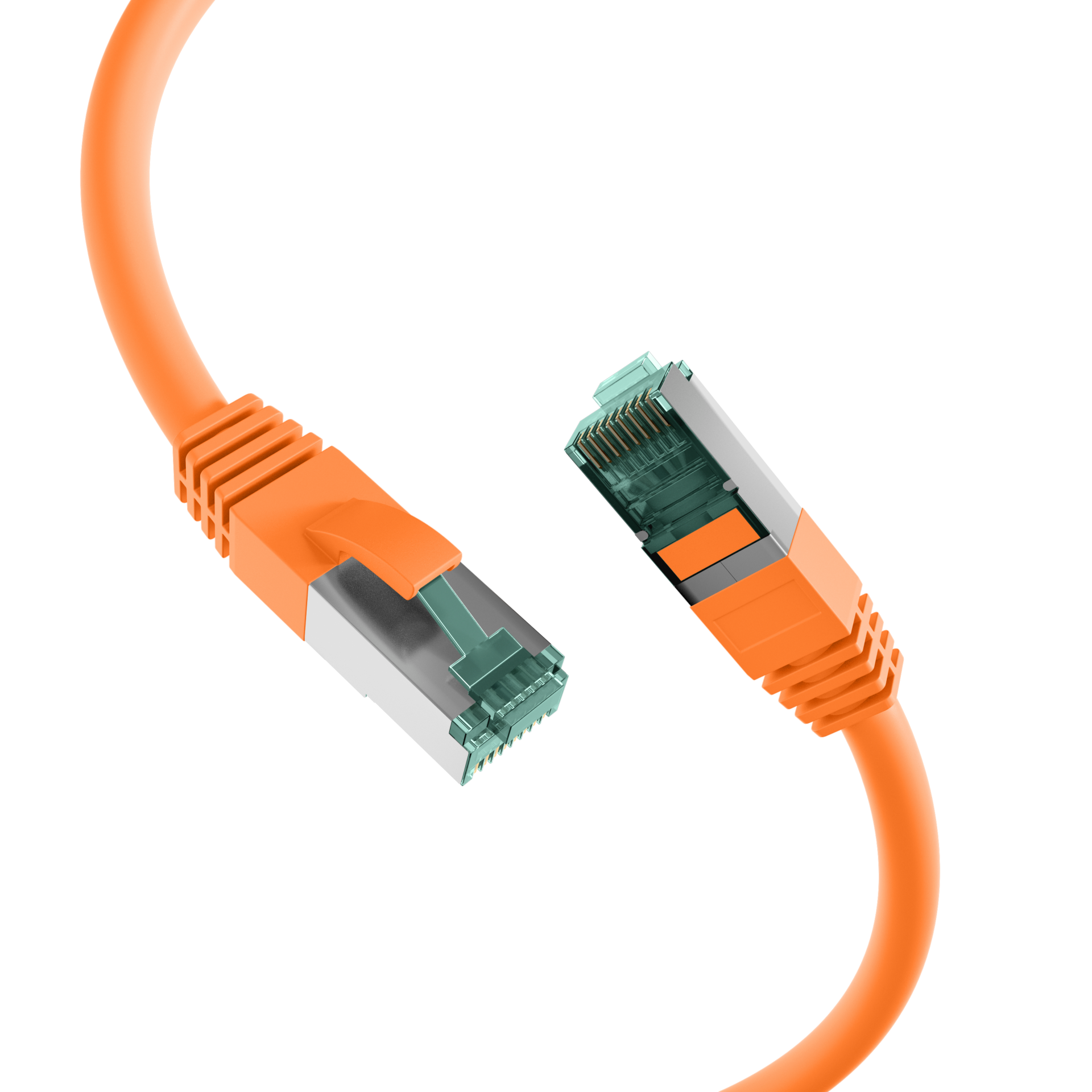

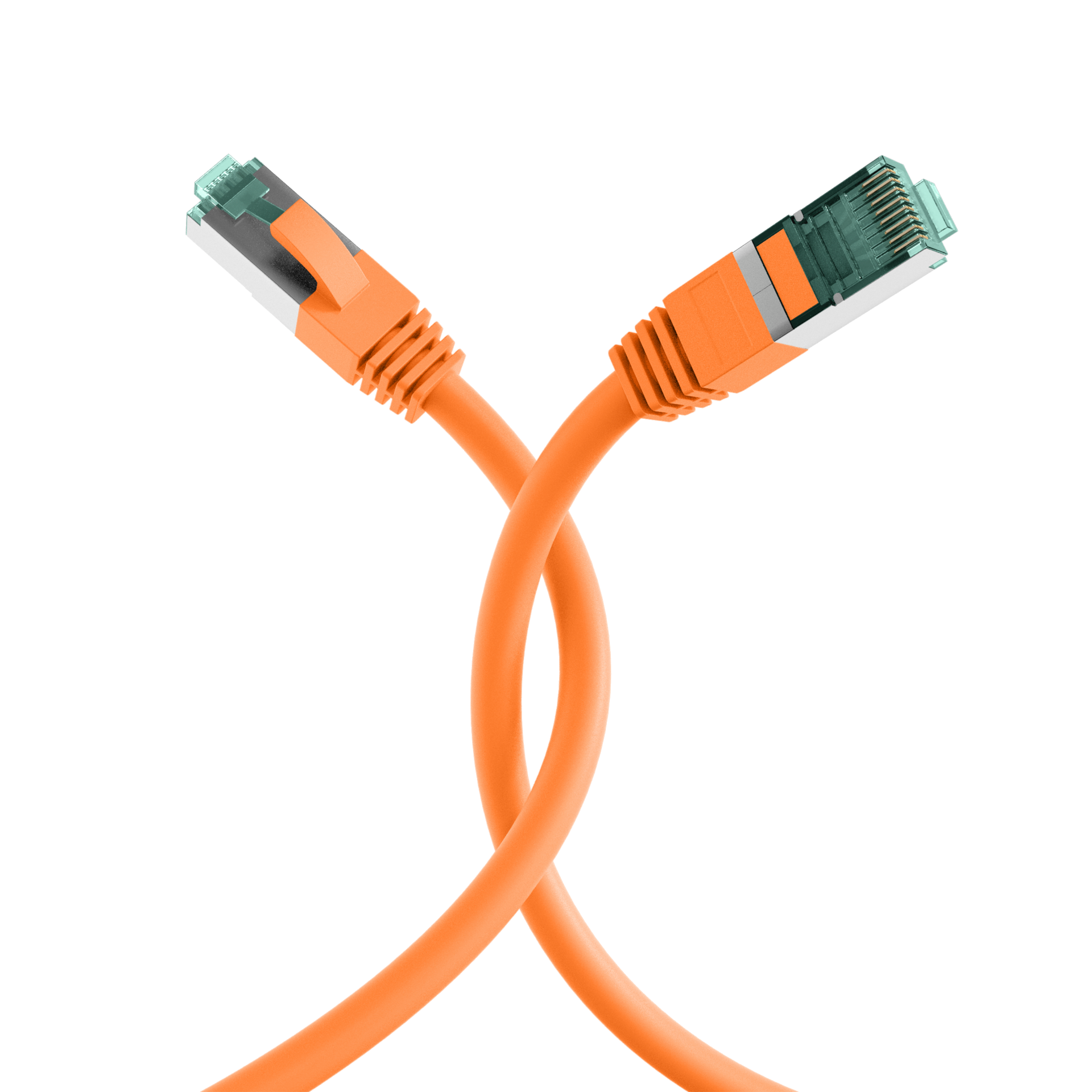

RJ45 Patch Cord Cat.6A S/FTP LSZH orange

Priser kun synlige for indloggede brugere

RJ45 Patch Cord Cat.6A S/FTP LSZH orange 0,15m
Varenummer: MK6001.0,15O
EAN nr.: 4049759226565
Piece

Produktinformation für RJ45 Patch Cord Cat.6A S/FTP LSZH orange 0,15m

The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG27/7
Length imprint on boot

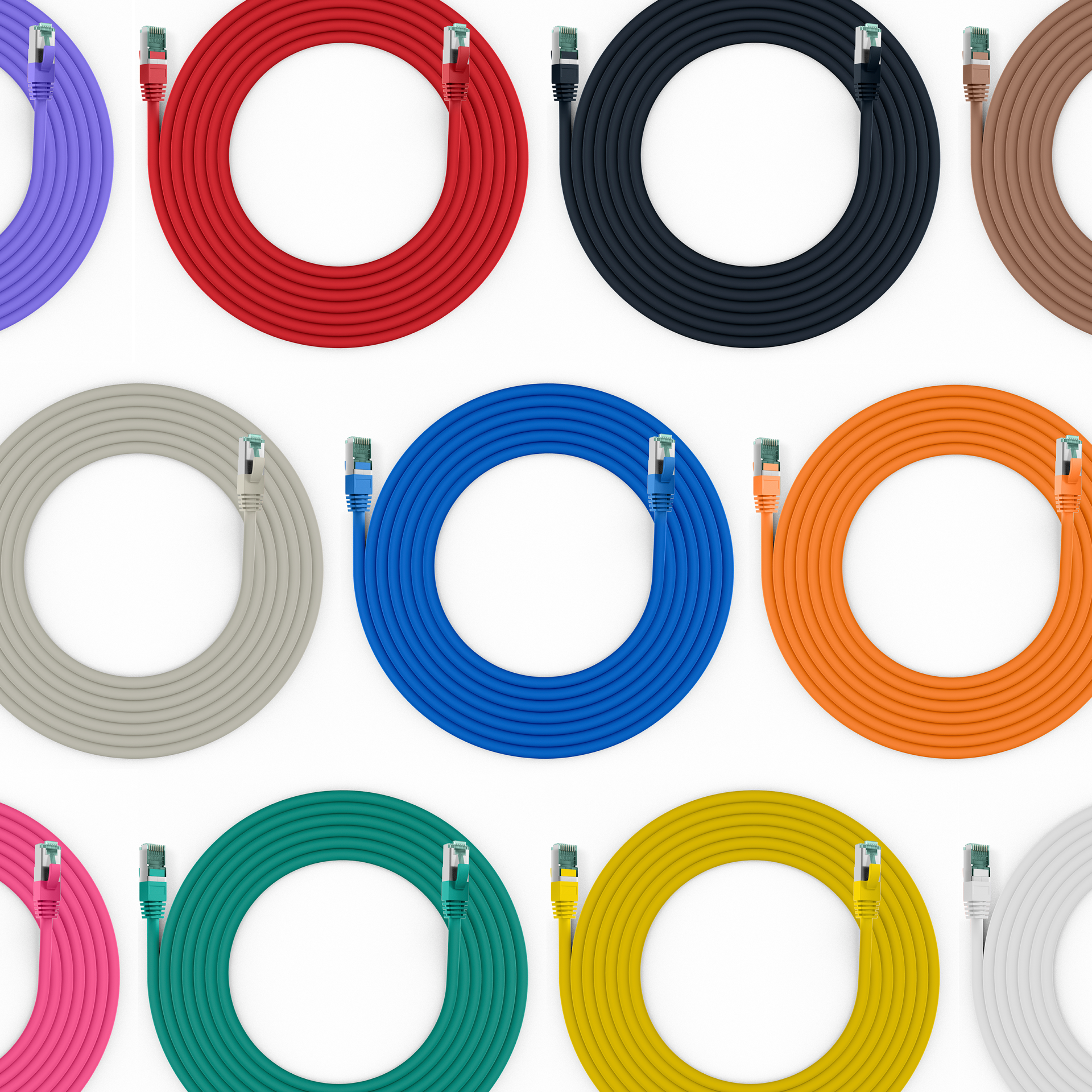

Available in 11 colours

Tekniske egenskaber

(Halogenfree): True
AWG-size: 27/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Data center
Industrial Ethernet

Structured cabling
Bandwidth: 500MHz
Bending radius: >30 mm
Cable construction: 4x2
Cable type: S/FTP
Cabling Standard: ANSI/TIA-568-C.2
EN50173

ISO/IEC 11801
Category: 6A (TIA)
Colour anti-kink sleeve: orange
Colour outer sheath: orange
Conductive shield: Selected shield contact
Conductor Material: Copper
Conductor resistance DC: 185 Ω/km
Connector: IEC 60603-7-51
Connector type: RJ45 Standard green
Contact resistance: 30 mΩ
Contacts: Gold plated
Current capacity: max. 1 A
Fire retardant version: True
Flame-retardant: True
Halogen-free: True
Impedance: 100 ±15 Ω
Insulation resistance: 10 MΩ
Jacket material: LSZH
Length imprint: True
Locking lever: True
Loop resistance: 370 Ω/km
Low smoke: True
Mating cycles: 2000
Model: Shielded
NVP value: 74 %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.0 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at

PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: Cat.6A PATCH S/FTP 4x2xAWG27/7 LSZH ISO/IEC11801 ANSI/TIA-568-C.2 ***10Gigabit Ethernet*** www.efb-elektronik.de
Raw cable: Cat.6A
Resistance unbalance: 3 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: -20 – 60 °C
Test voltage: 1000 V DC, 1min
Total screening: 80 %
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
UL approbated: False

Varianter

Art. Nej. Betegnelse Length Length tolerance
MK6001.0,15O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 0,15m 0.15 m ±5 %
MK6001.0,25O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 0,25m 0.25 m ±5 %
MK6001.0,5O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 0,5m 0.5 m ±5 %
MK6001.1O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 1m 1.0 m ±5 %
MK6001.1,5O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 1,5m 1.5 m ±5 %
MK6001.2O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 2m 2.0 m ±5 %
MK6001.3O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 3m 3.0 m ±5 %
MK6001.5O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 5m 5.0 m ±5 %
MK6001.7,5O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 7,5m 7.5 m ±5 %
MK6001.10O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 10m 10.0 m ±5 %
MK6001.15O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 15m 15.0 m ±5 %
MK6001.20O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 20m 20.0 m ±5 %
MK6001.25O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 25m 25.0 m ±5 %
MK6001.30O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 30m 30.0 m ±5 %
MK6001.40O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 40m 40.0 m ±5 %
MK6001.50O RJ45 Patch Cord Cat.6A S/FTP LSZH orange 50m 50.0 m ±5 %
