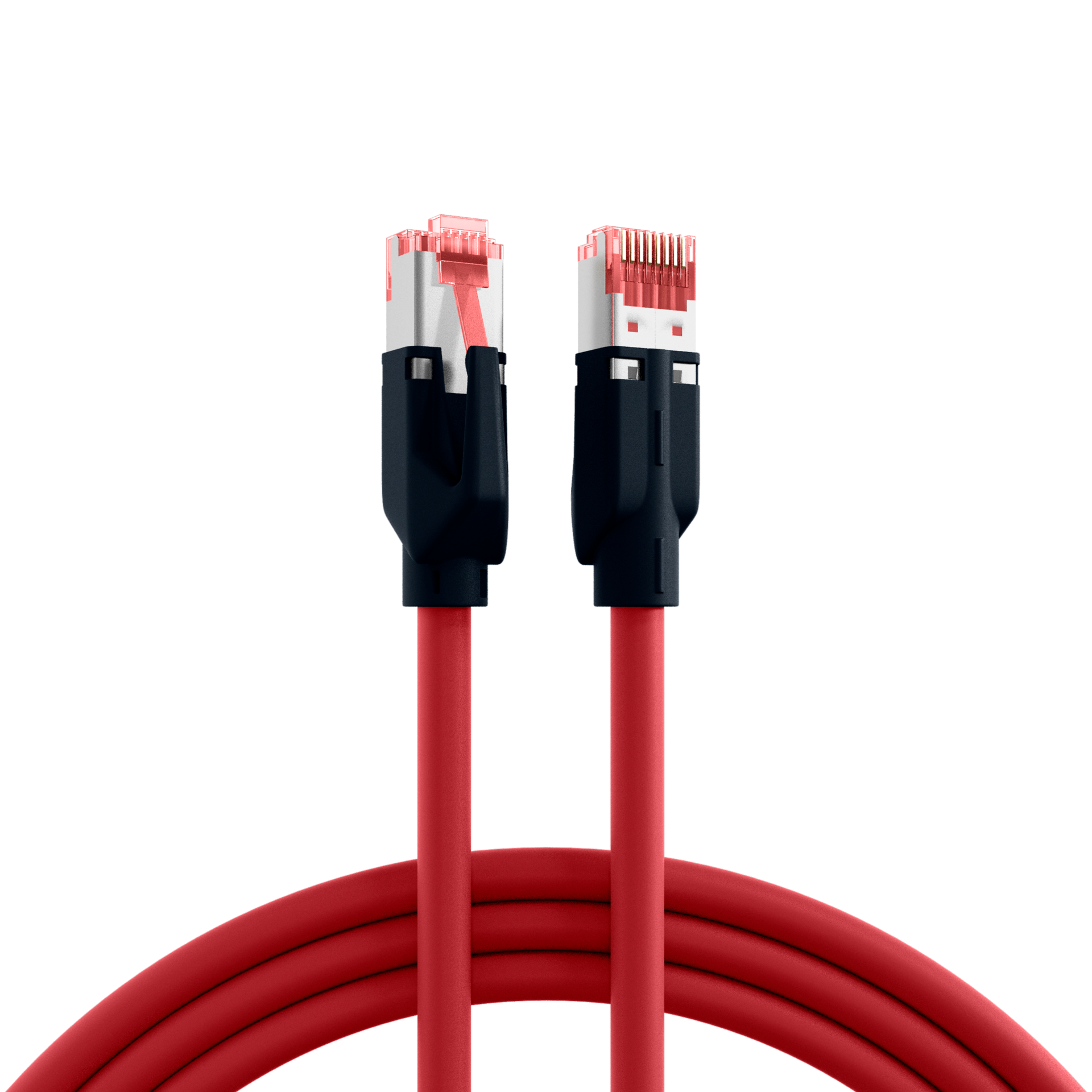

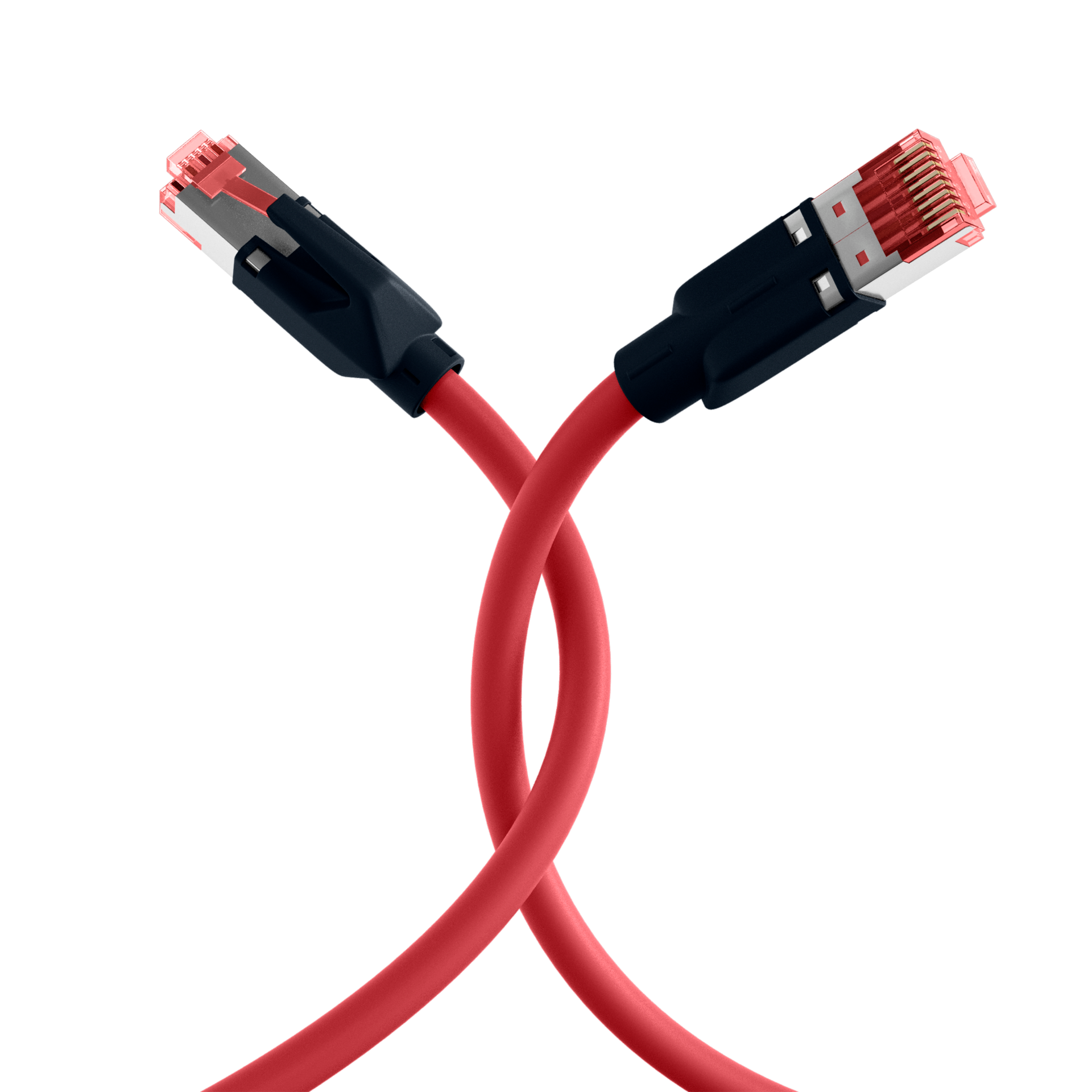

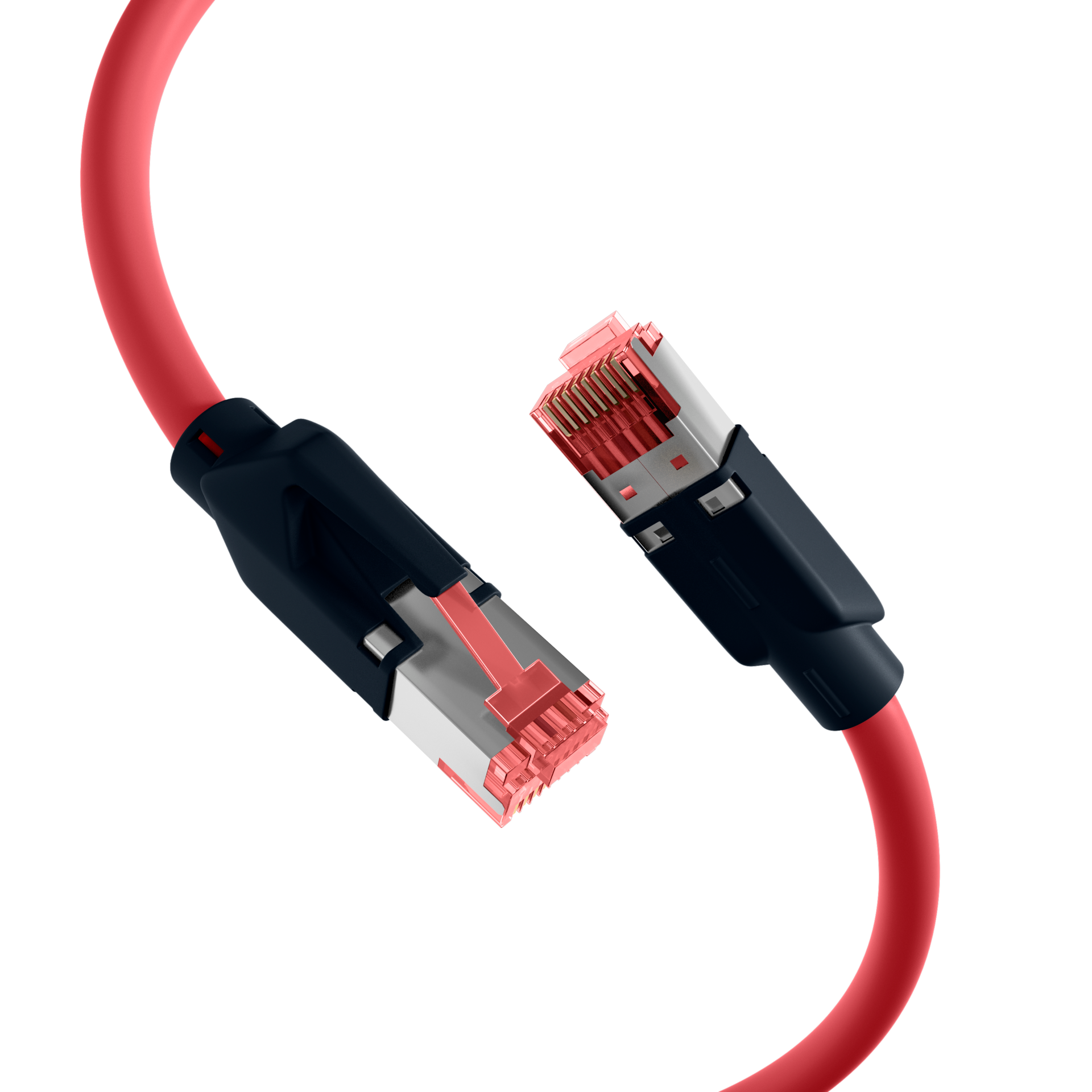

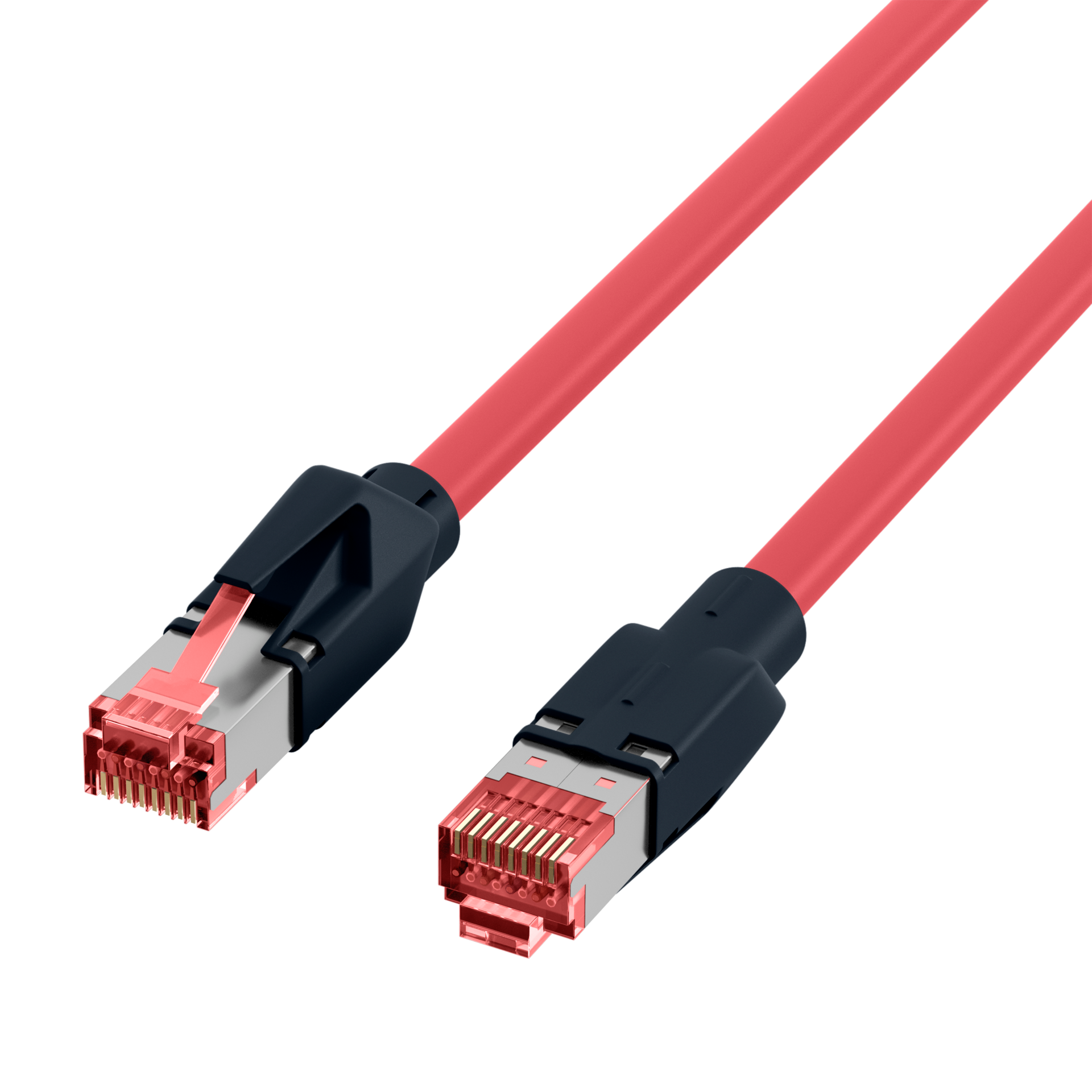

RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red
RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 7,5m
Varenummer:
K8048PUI7,5
EAN Nr.:
4049759236533
Produktinformation til RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 7,5m
RJ45 patch cable Cat.6A S/FTP PUR Draka UC900 TM21
The Cat.6A (IEC) patch cable has gold-plated contacts and meets the requirements for 2.5Gbit, 5Gbit and 10Gbit Ethernet.
Technical product features
• Cat.6A (IEC)
• S/FTP cable with AWG27/7
• Sheath material made of polyurethane (PUR)
• Fire protection: flame-retardant, halogen-free, low-smoke
• Sheath properties: oil-resistant, ozone-resistant, UV-resistant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of polyurethane (PUR) material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The red TM21 connectors are assigned according to TIA/EIA 568B and are 1:1.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The frequency range is 500 MHz.
The Cat.6A (IEC) patch cable has gold-plated contacts and meets the requirements for 2.5Gbit, 5Gbit and 10Gbit Ethernet.
Technical product features
• Cat.6A (IEC)
• S/FTP cable with AWG27/7
• Sheath material made of polyurethane (PUR)
• Fire protection: flame-retardant, halogen-free, low-smoke
• Sheath properties: oil-resistant, ozone-resistant, UV-resistant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of polyurethane (PUR) material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The red TM21 connectors are assigned according to TIA/EIA 568B and are 1:1.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The frequency range is 500 MHz.
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 27/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | 25 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cable type acc. to Manufacturer: | Draka UC900 SS27 Cat.7 PUR |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (IEC) |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | red |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 170 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | TM21 red |
| Contact Resistance: | < 20 mΩ |
| Contacts: | Gold plated µ" gold plated |
| Current Rating: | max. 1 A |
| Euro class: | Eca |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | yes |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ±5 Ω |
| Insulation Resistance: | ≥ 2000 MΩ |
| Jacket Material: | Polyurethan (PUR) |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | < 340 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥ 750 |
| Model: | Shielded |
| NVP value: | 79 % |
| Oil resistant: | No |
| Oil resistant (acc. EN 60811-2-1): | True |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.9 mm |
| Ozone resistance: | acc. EN60811-2-1 |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.7 |
| Resistance unbalance: | < 3 % |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -35 – 75 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: |
2.5Gbit 5Gbit 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UV resistance: | acc. IEC60068-2-5 |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K8048PUI0,5 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 0,5m | 0.5 m | ±5 % | |
| K8048PUI1 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 1m | 1.0 m | ±5 % | |
| K8048PUI2 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 2m | 2.0 m | ±5 % | |
| K8048PUI3 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 3m | 3.0 m | ±5 % | |
| K8048PUI5 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 5m | 5.0 m | ±5 % | |
| K8048PUI7,5 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 7,5m | 7.5 m | ±5 % | |
| K8048PUI10 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 10m | 10.0 m | ±5 % | |
| K8048PUI15 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 15m | 15.0 m | ±5 % | |
| K8048PUI20 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 20m | 20.0 m | ±5 % | |
| K8048PUI25 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 25m | 25.0 m | ±5 % | |
| K8048PUI30 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 30m | 30.0 m | ±5 % | |
| K8048PUI50 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 50m | 50.0 m | ±5 % |
