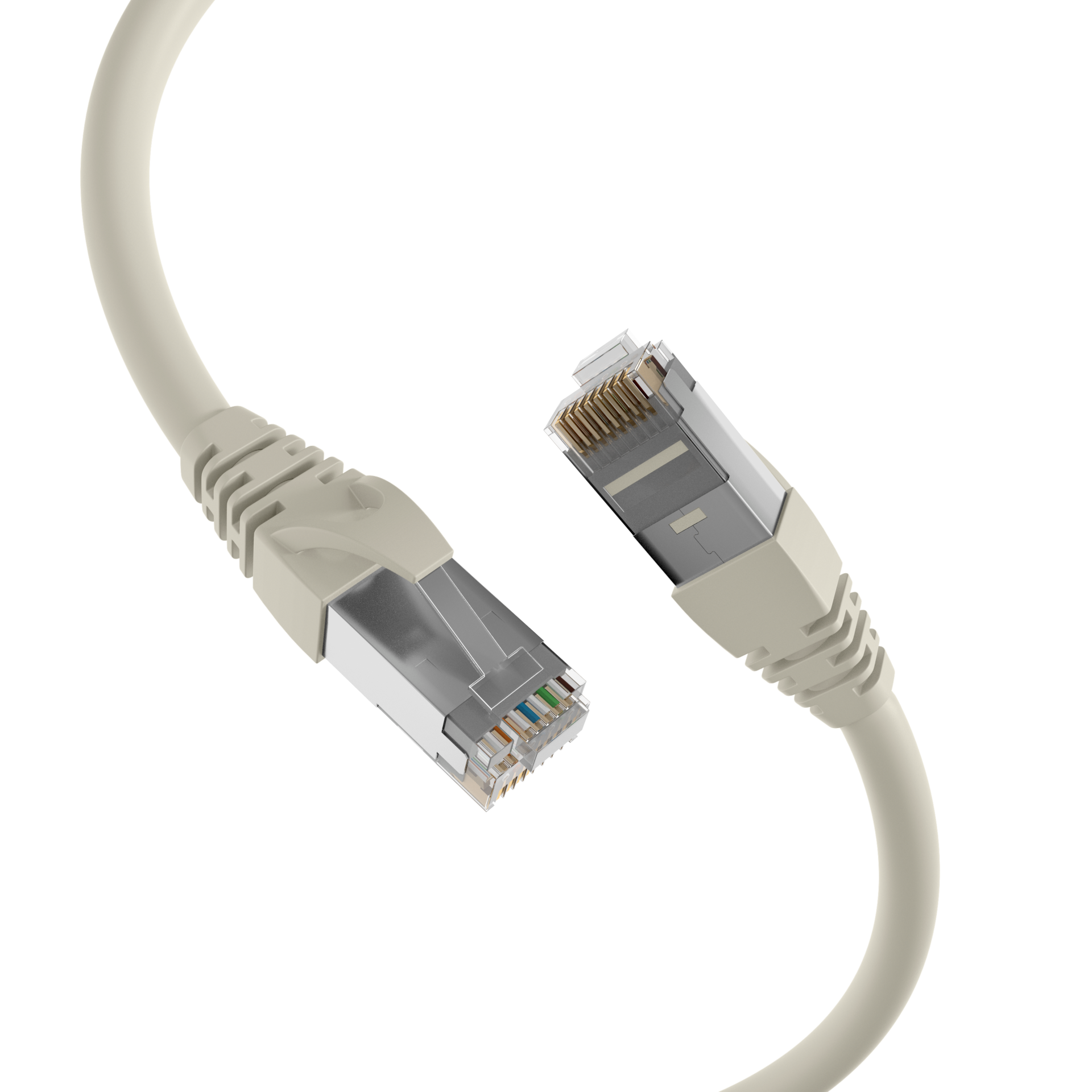

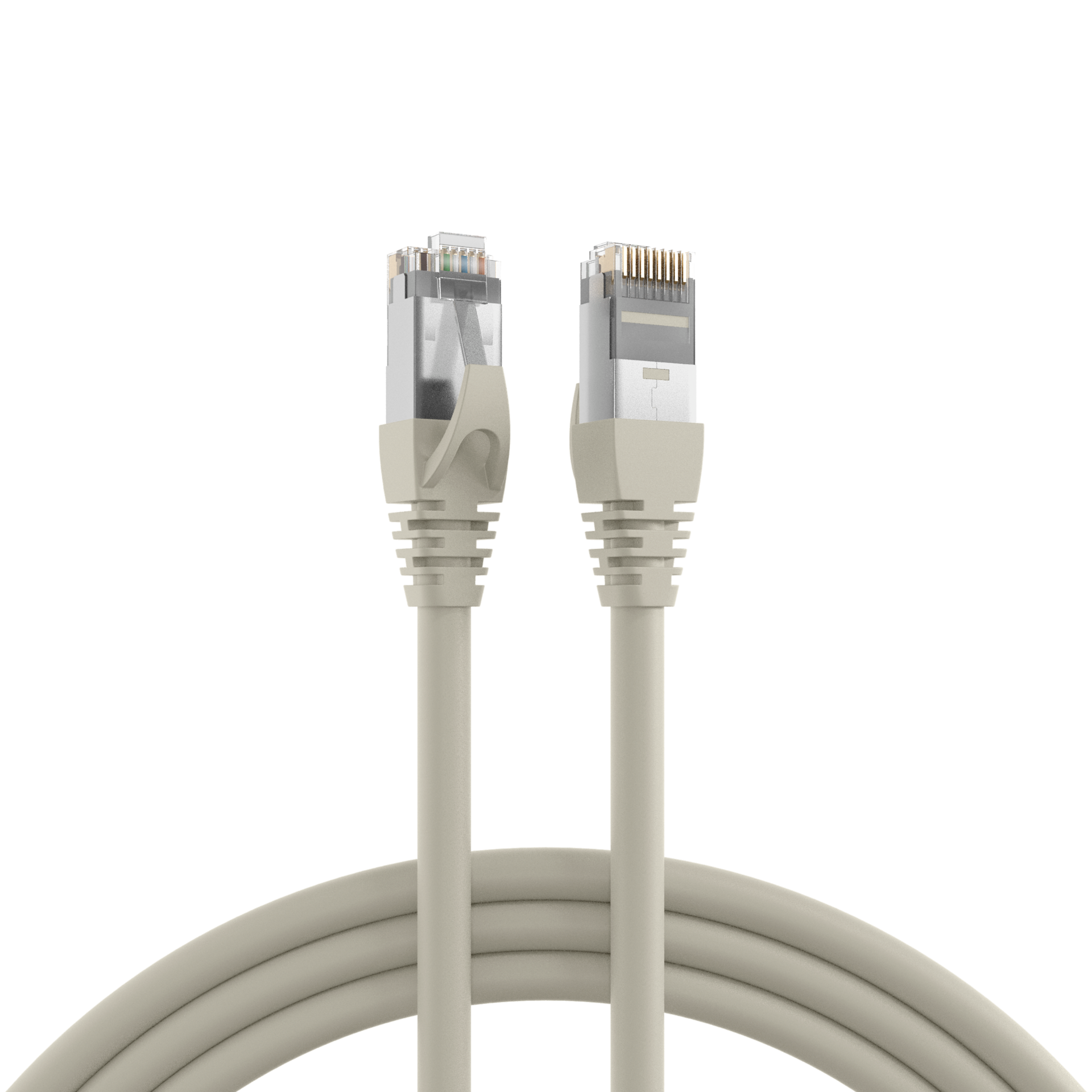

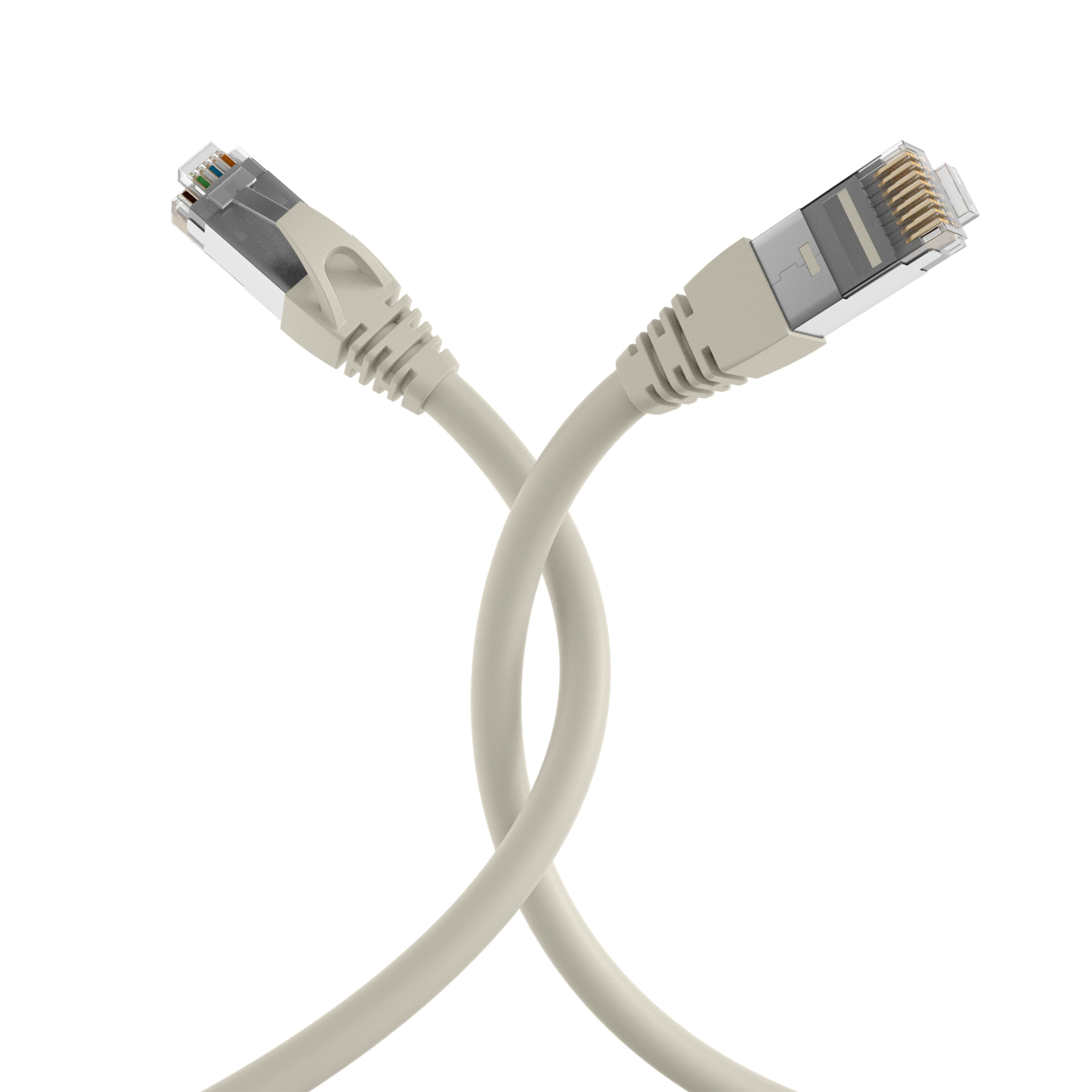

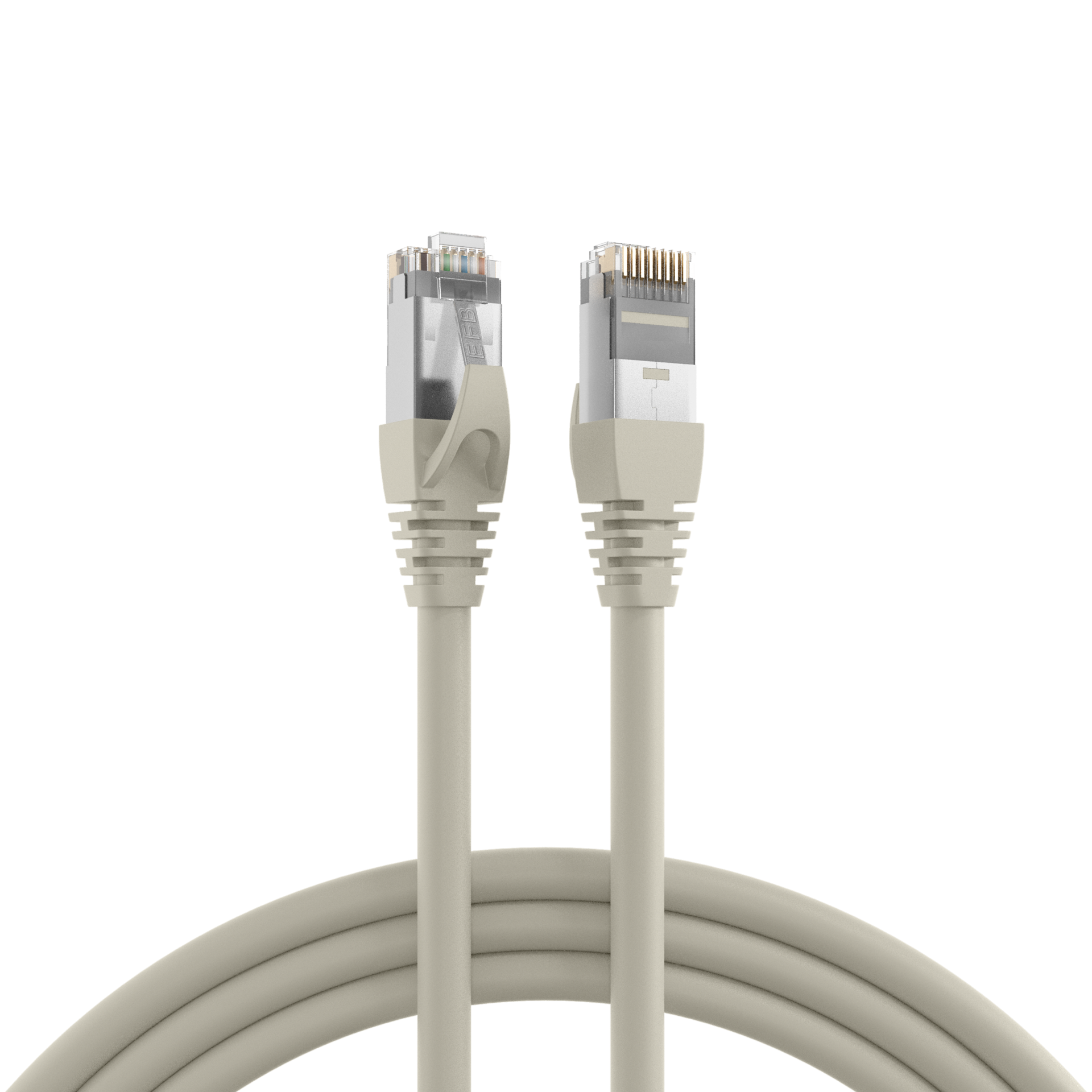

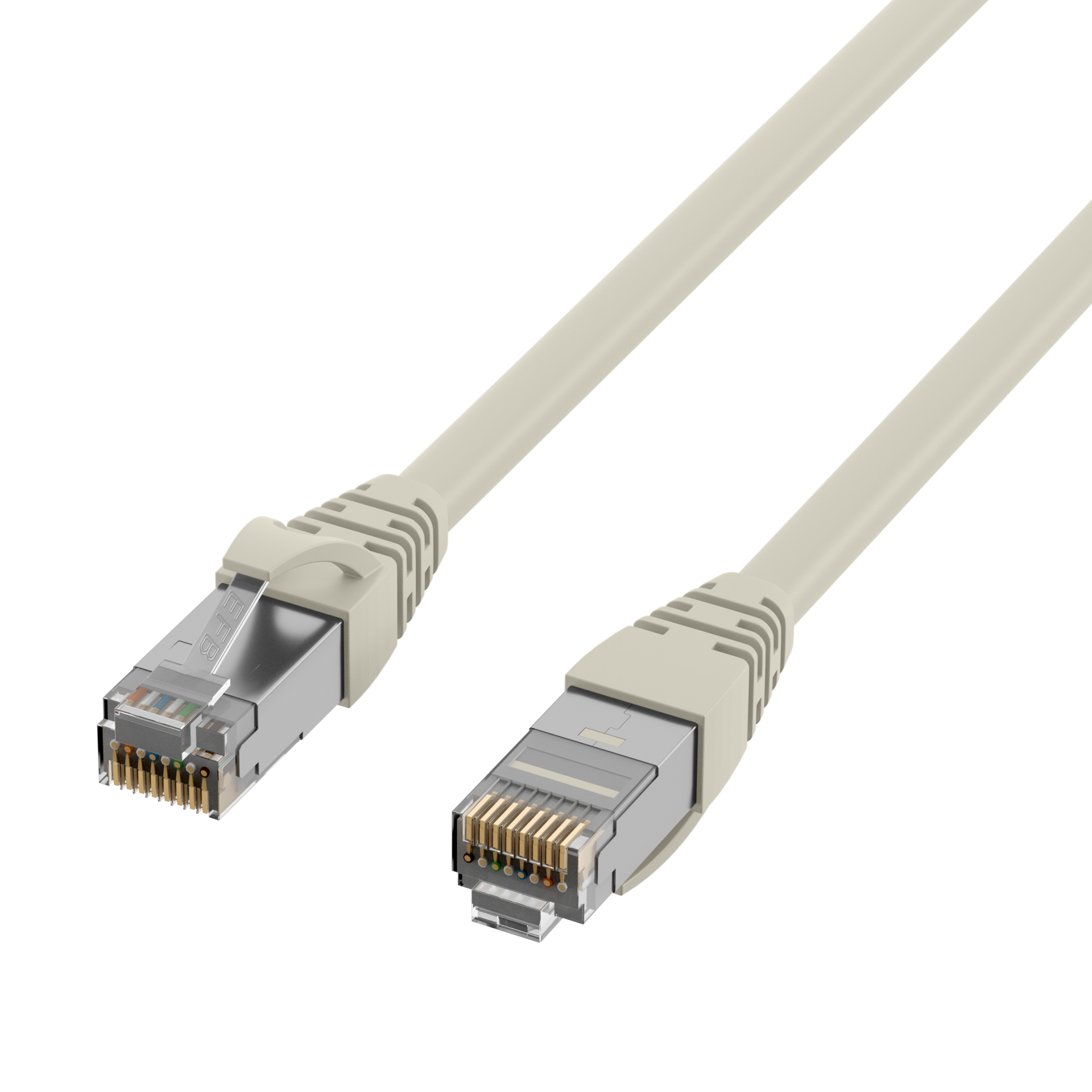

RJ45 Patch Cord Cat.6A S/FTP PVC UL Longlink grey
RJ45 Patch Cord Cat.6A S/FTP PVC UL grey 20m
Varenummer:
K5537GR.20
EAN Nr.:
4049759063344
Produktinformation til RJ45 Patch Cord Cat.6A S/FTP PVC UL grey 20m
RJ45 patch cable Cat.6A S/FTP PVC UL
The Cat.6A (TIA) patch cable enables 10Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product properties
• Cat.6A (TIA)
• S/FTP cable with AWG24/7
• Sheath material made of polyvinyl chloride (PVC)
• Fire protection: flame retardant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
• UL number of the assembly E337615
The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The RJ45 connectors are assigned according to TIA/EIA 568B and are 1:1. Suitable for the temperature range -10 – 75 °C.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. This enables a frequency range of up to 500 MHz.
The Cat.6A (TIA) patch cable enables 10Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product properties
• Cat.6A (TIA)
• S/FTP cable with AWG24/7
• Sheath material made of polyvinyl chloride (PVC)
• Fire protection: flame retardant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
• UL number of the assembly E337615
The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The RJ45 connectors are assigned according to TIA/EIA 568B and are 1:1. Suitable for the temperature range -10 – 75 °C.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. This enables a frequency range of up to 500 MHz.
Tekniske egenskaber
| (Halogenfree): | False |
|---|---|
| AWG-size: | 24/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | 34 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 Standard |
| Contact Resistance: | < 20 mΩ |
| Contacts: | 50 µ" gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | 500 MΩ |
| Jacket Material: | Polyvinylchlorid (PVC) |
| Length imprint: | False |
| Locking lever: | True |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | - % |
| Oil resistant: | no |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.8 mm |
| Ozone resistance: | No |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | E132276-C(UL) CM 75°C 4PR AWG24/7 CSA LL64151-C CMG 75°C FT4 Cat.6(A) S/FTP PATCH CORD |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -10 – 75 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | True |
| UV resistance: | No |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K5537GR.20 | RJ45 Patch Cord Cat.6A S/FTP PVC UL grey 20m | 20.0 m | ±5 % | |
| K5537GR.30 | RJ45 Patch Cord Cat.6A S/FTP PVC UL grey 30m | 30.0 m | ±5 % | |
| K5537GR.40 | RJ45 Patch Cord Cat.6A S/FTP PVC UL grey 40m | 40.0 m | ±5 % | |
| K5537GR.50 | RJ45 Patch Cord Cat.6A S/FTP PVC UL grey 50m | 50.0 m | ±5 % | |
| K5537GR.60 | RJ45 Patch Cord Cat.6A S/FTP PVC UL grey 60m | 60.0 m | ±5 % | |
| K5537GR.70 | RJ45 Patch Cord Cat.6A S/FTP PVC UL grey 70m | 70.0 m | ±5 % | |
| K5537GR.80 | RJ45 Patch Cord Cat.6A S/FTP PVC UL grey 80m | 80.0 m | ±5 % | |
| K5537GR.90 | RJ45 Patch Cord Cat.6A S/FTP PVC UL grey 90m | 90.0 m | ±5 % |
