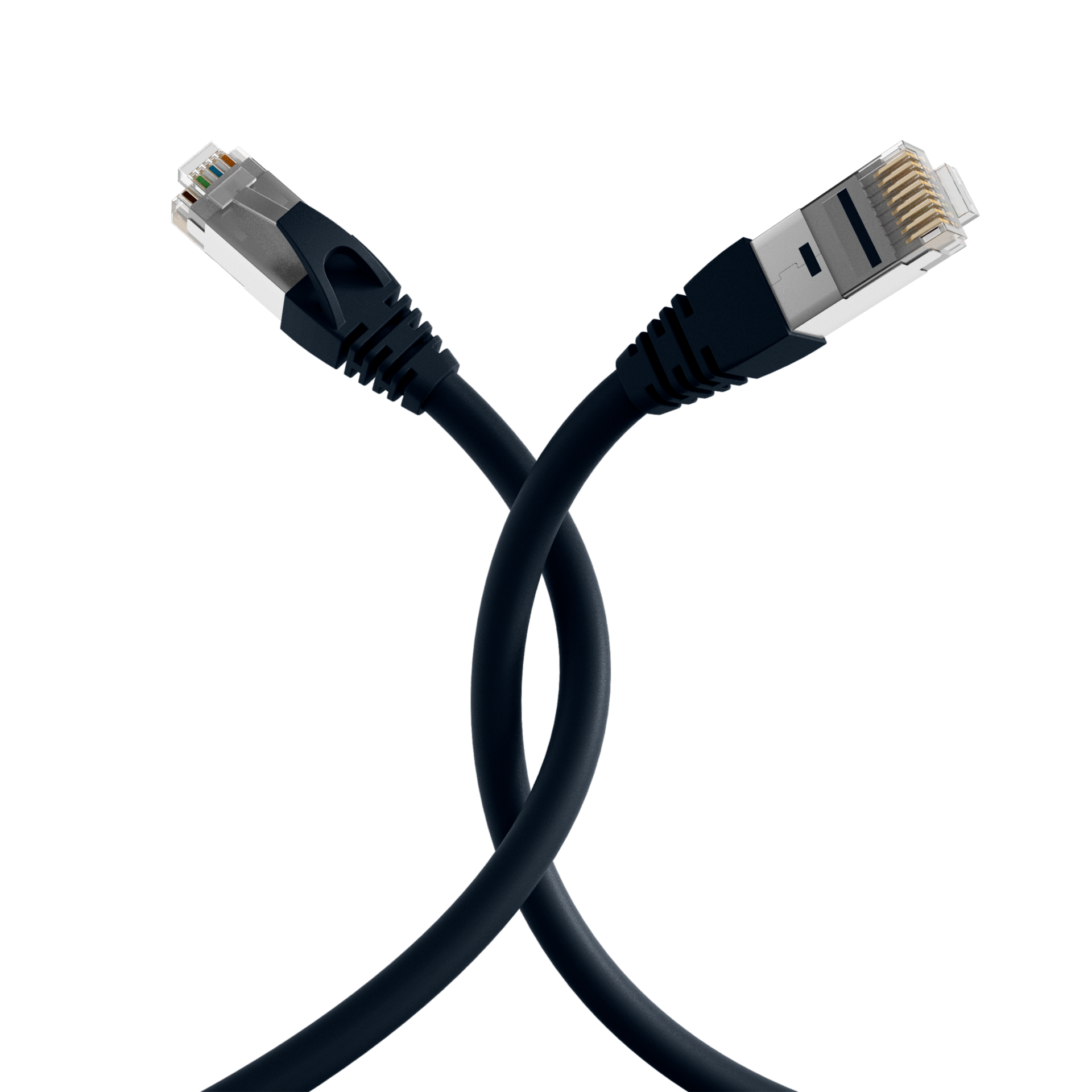

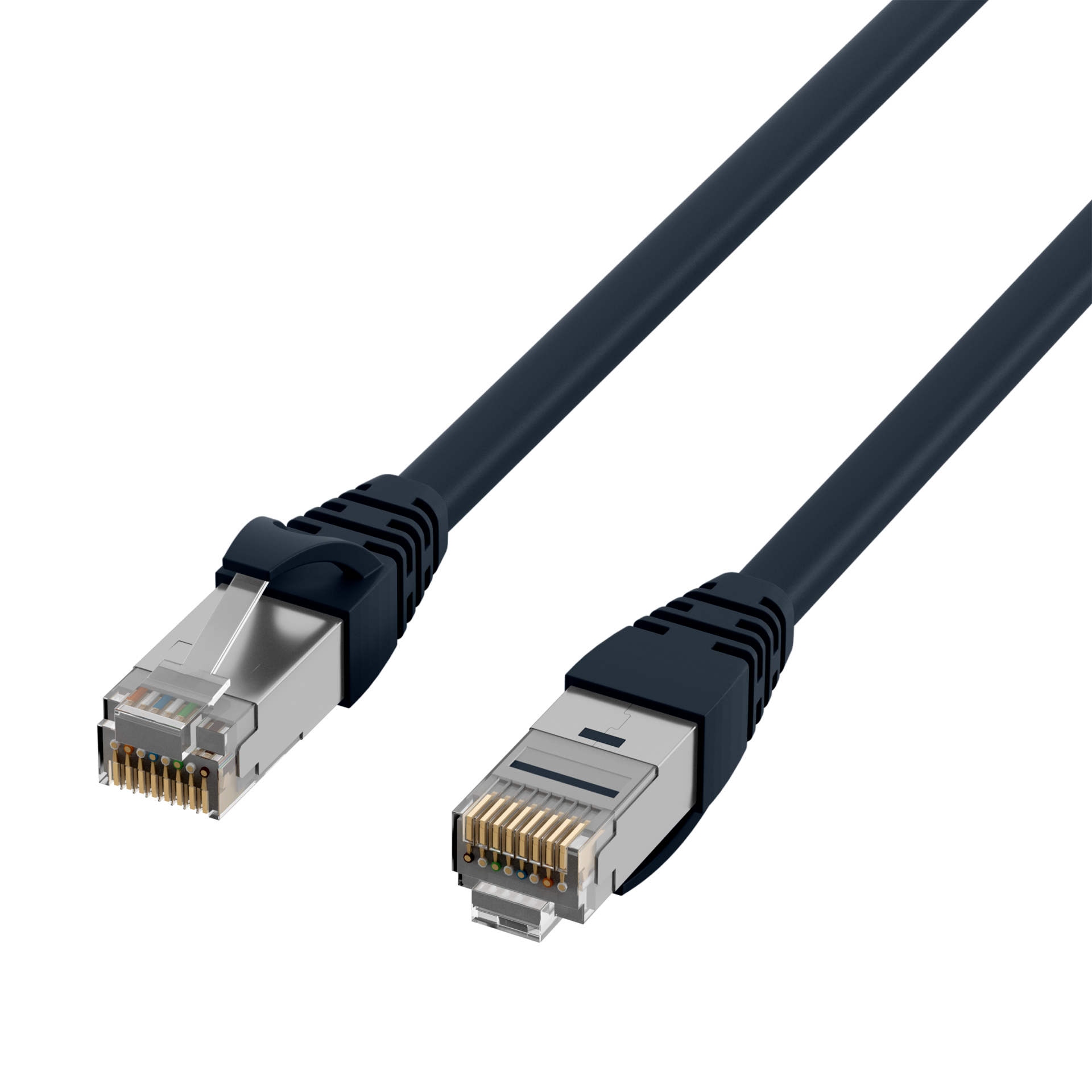

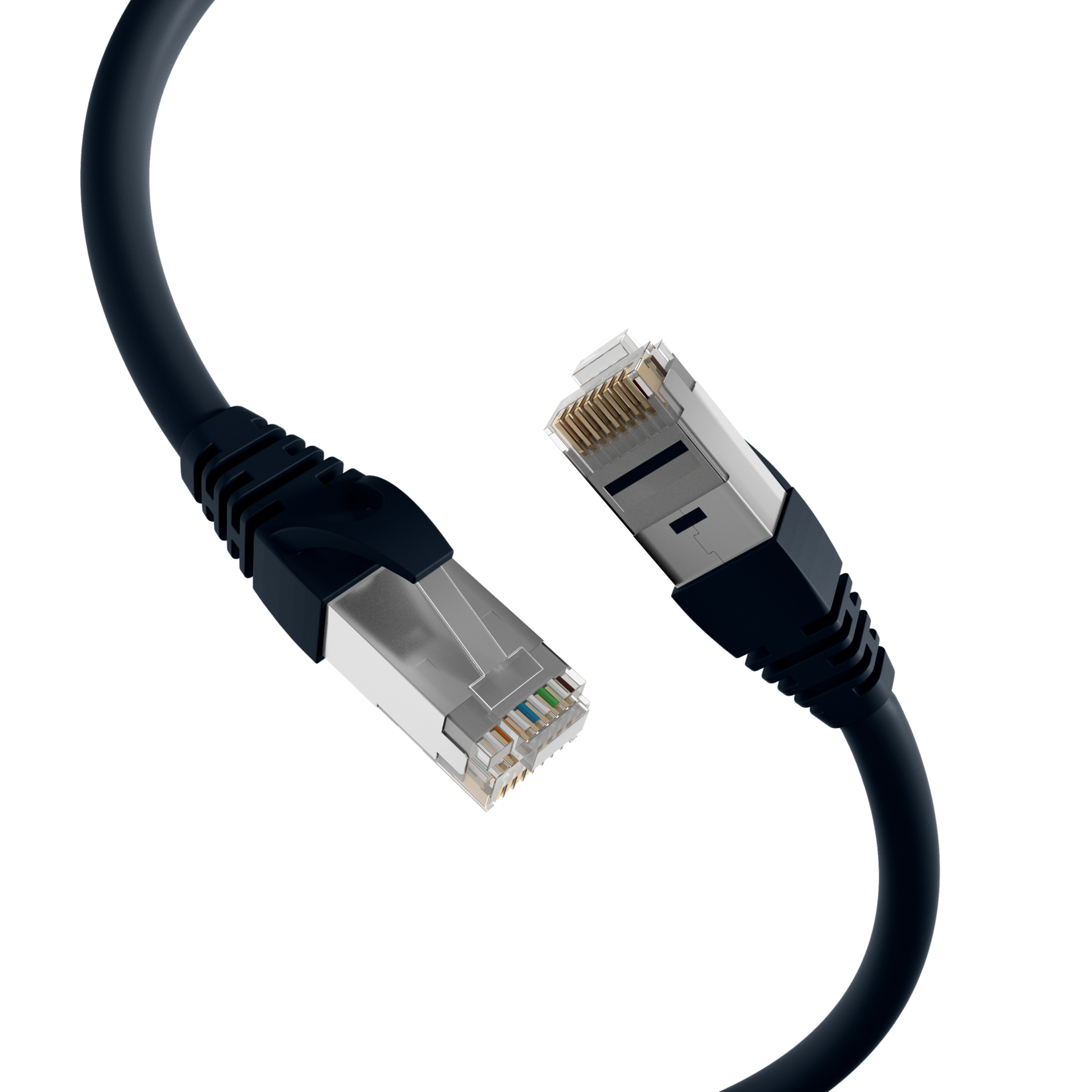

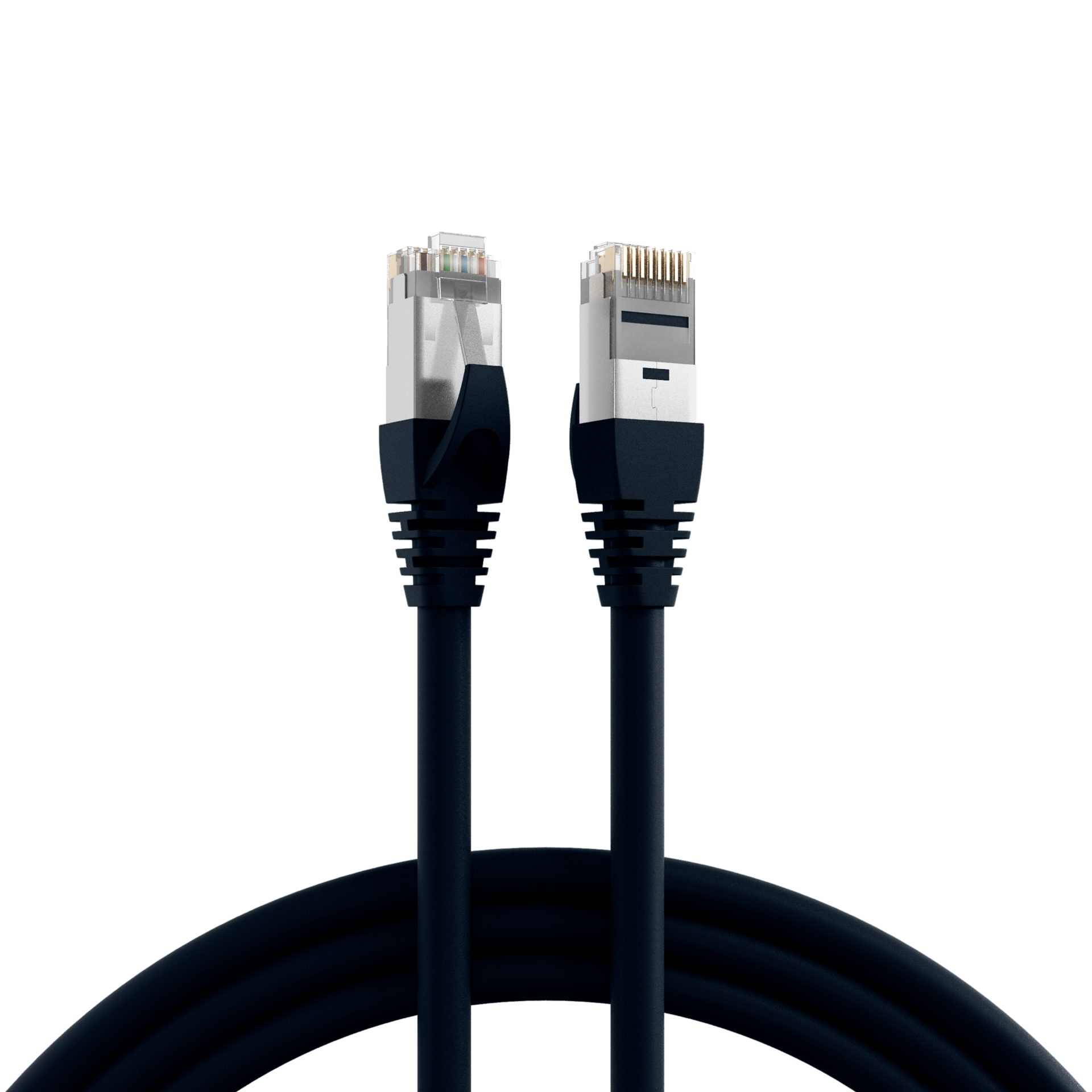

RJ45 Patch Cord Cat.6A S/FTP TPE black
Priser kun synlige for indloggede brugere
RJ45 Patch Cord Cat.6A S/FTP TPE black 20m
Varenummer:
K5538SW.20
EAN nr.:
4049759112141
Produktinformation für RJ45 Patch Cord Cat.6A S/FTP TPE black 20m
The shielded Cat.6A RJ45 patch cable provides excellent performance for 10 Gigabit Ethernet applications. The TPE outer sheath makes the cable highly flexible and therefore easier to handle. In addition, the patch cable is suitable for temperature ranges from -40°C to +80°C. The cast grommet captivates with its slim design and thus simplifies the plugging process in confined spaces.
Very flexible TPE/LSZH jacket superflex
Cross section 4 x 2 x AWG26/7
UV resistance
Cast anti-kink grommet, slim design
Temperature range -40°C ~ +80°C
Very flexible TPE/LSZH jacket superflex
Cross section 4 x 2 x AWG26/7
UV resistance
Cast anti-kink grommet, slim design
Temperature range -40°C ~ +80°C
Tekniske egenskaber
(Halogenfree): | True |
---|---|
AWG-size: | 26/7 |
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | plugged in |
Area of Application: |
Data center Industrial Ethernet Structured cabling |
Bandwidth: | 500MHz |
Bending radius: | 31 mm |
Cable construction: | 4x2 |
Cable type: | S/FTP |
Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
Category: | 6A (TIA) |
Colour anti-kink sleeve: | black |
Colour outer sheath: | black |
Conductive shield: | 360° shield contact |
Conductor Material: | Copper |
Conductor resistance DC: | 142 Ω/km |
Connector: | IEC 60603-7-51 |
Connector type: | RJ45 Standard |
Contact resistance: | < 20 mΩ |
Contacts: | 50 µ" gold plated |
Current capacity: | max. 1 A |
Fire retardant version: | True |
Flame-retardant: | True |
Halogen-free: | True |
Impedance: | 100 ±15 Ω |
Insulation resistance: | 100 MΩ |
Jacket material: | TPE/LSZH |
Length imprint: | False |
Locking lever: | True |
Loop resistance: | 284 Ω/km |
Low smoke: | True |
Mating cycles: | ≥750 |
Model: | Shielded |
NVP value: | - % |
Oil resistant: | no |
Oil resistant (acc. EN 60811-2-1): | False |
Oil resistant (according to EN 60811-404): | False |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 6.2 mm |
POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: |
CLASS EA S/FTP TPE PRE IUM INDUSTRIAL PATCH CORD -40°C - 80°C www.efb-elektronik.de |
Resistant to chemicals: | False |
Suitable for degree of protection (IP): | IP20 |
Temperature range: | -40 – 80 °C |
Test voltage: | 1000 V DC, 1min |
Transmission: | 10Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
UL approbated: | False |
UV resistance: | True |
Varianter
Art. Nej. | Betegnelse | Length | Length tolerance | |
---|---|---|---|---|
K5538SW.1 | RJ45 Patch Cord Cat.6A S/FTP TPE black 1m | 1.0 m | ±5 % | |
K5538SW.2 | RJ45 Patch Cord Cat.6A S/FTP TPE black 2m | 2.0 m | ±5 % | |
K5538SW.3 | RJ45 Patch Cord Cat.6A S/FTP TPE black 3m | 3.0 m | ±5 % | |
K5538SW.5 | RJ45 Patch Cord Cat.6A S/FTP TPE black 5m | 5.0 m | ±5 % | |
K5538SW.7,5 | RJ45 Patch Cord Cat.6A S/FTP TPE black 7,5m | 7.5 m | ±5 % | |
K5538SW.10 | RJ45 Patch Cord Cat.6A S/FTP TPE black 10m | 10.0 m | ±5 % | |
K5538SW.15 | RJ45 Patch Cord Cat.6A S/FTP TPE black 15m | 15.0 m | ±5 % | |
K5538SW.20 | RJ45 Patch Cord Cat.6A S/FTP TPE black 20m | 20.0 m | ±5 % | |
K5538SW.30 | RJ45 Patch Cord Cat.6A S/FTP TPE black 30m | 30.0 m | ±5 % |
