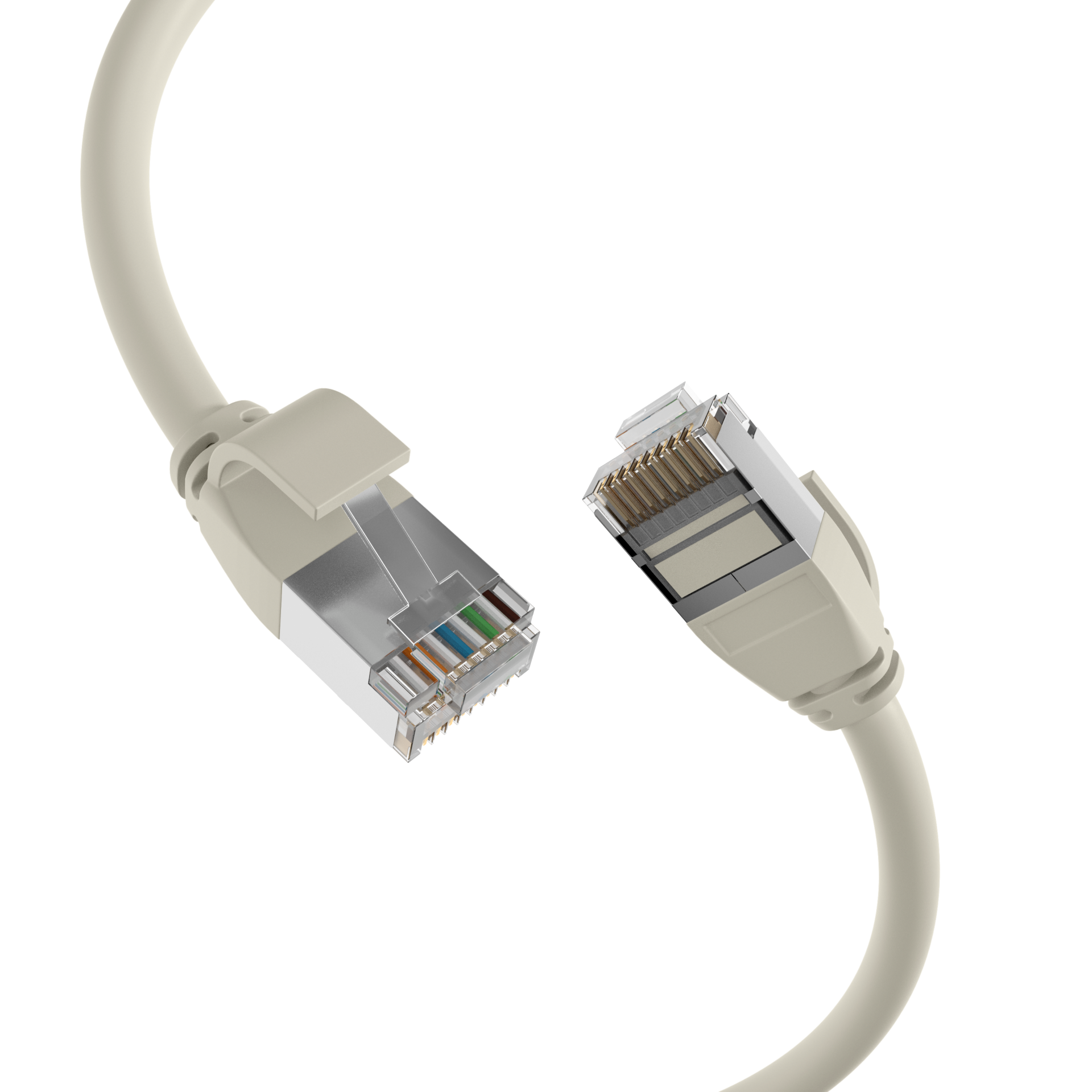

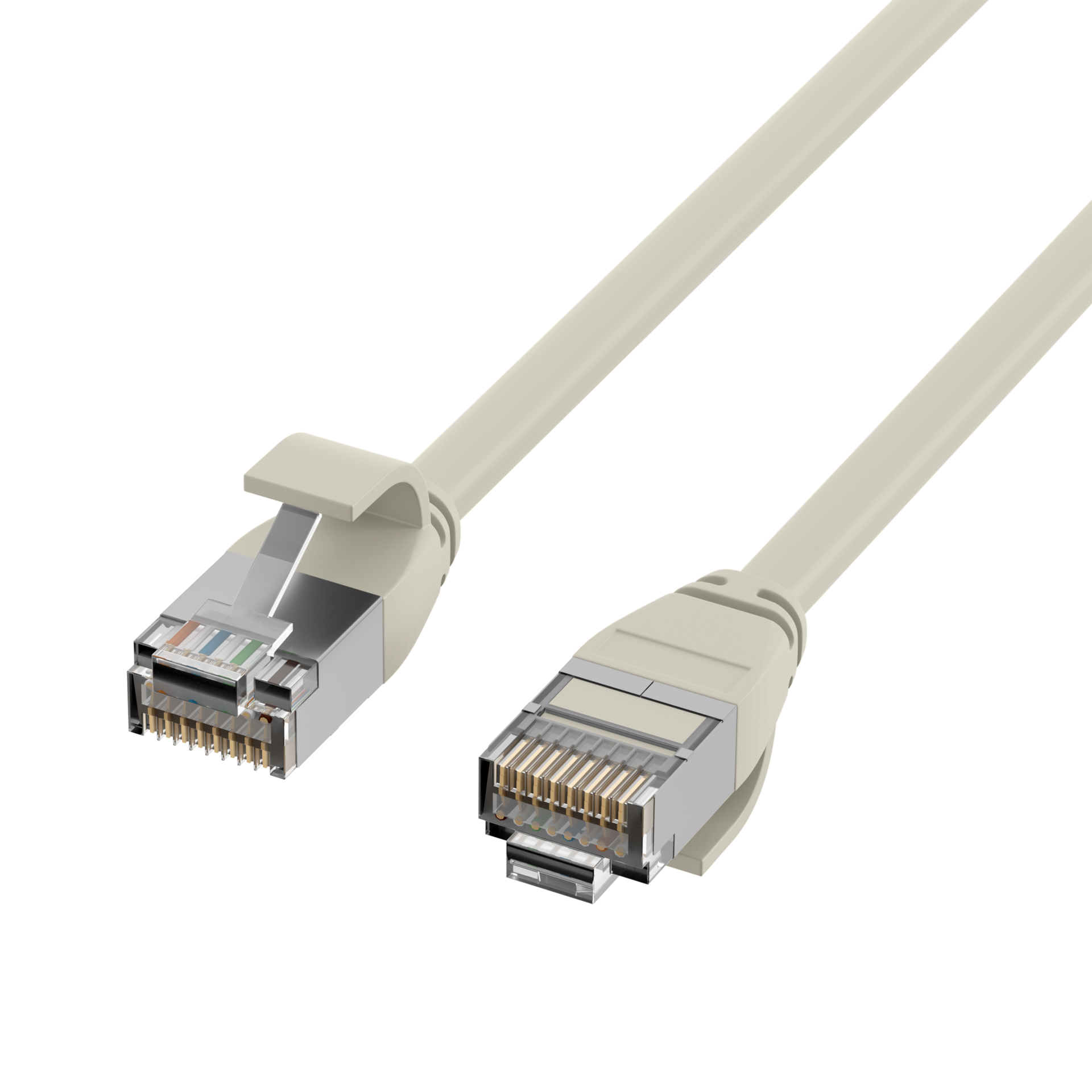

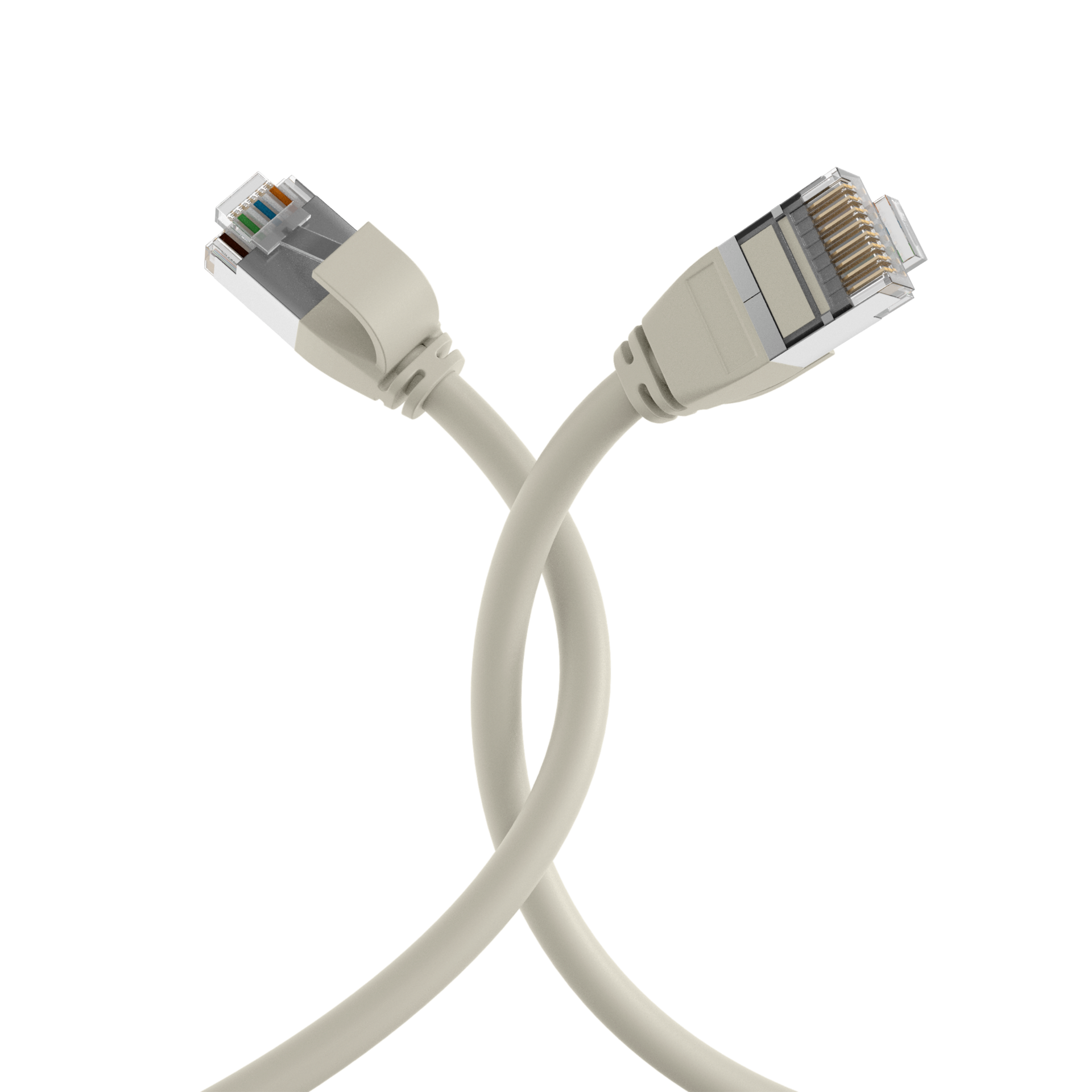

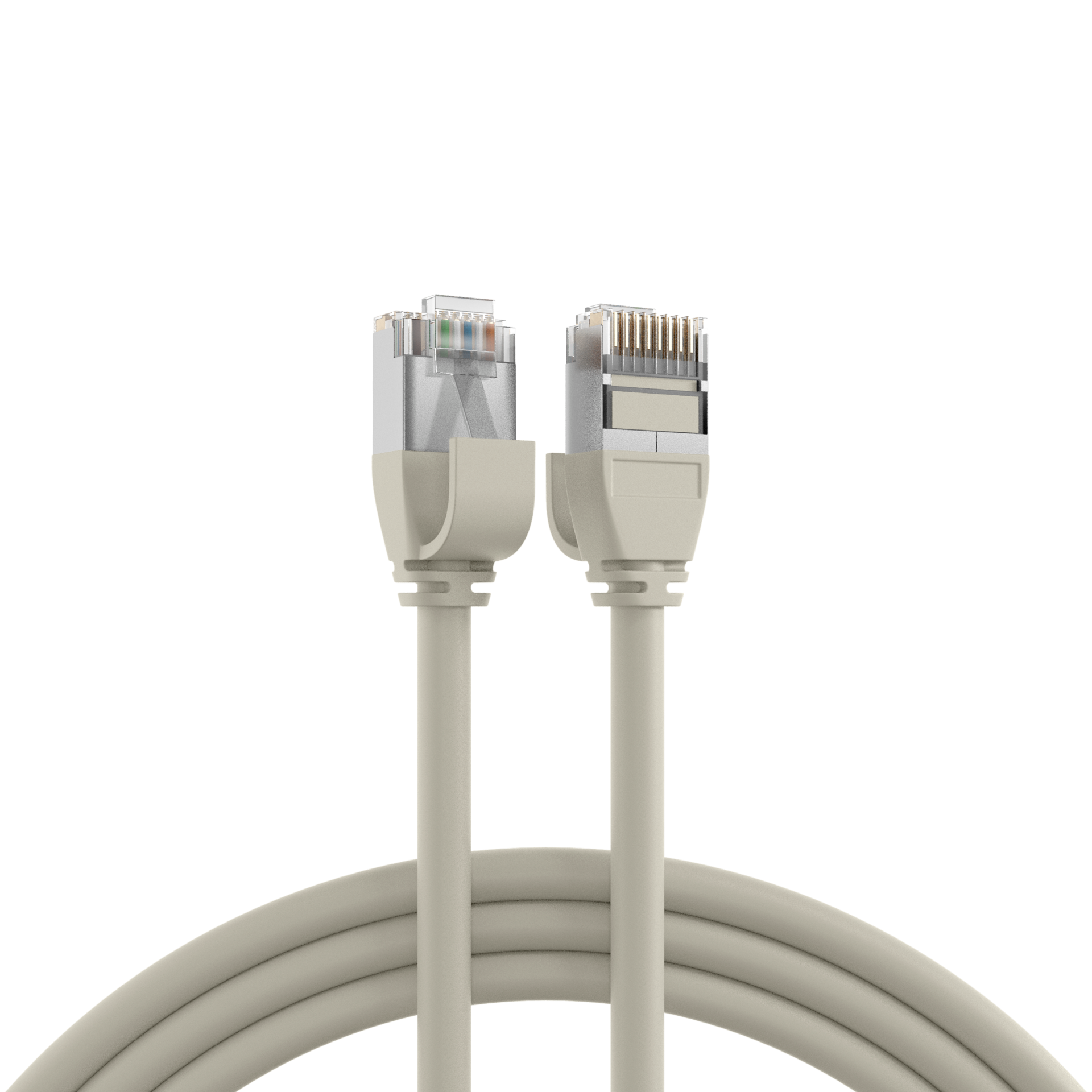

RJ45 Patch Cord Cat.6A U/FTP TPE 4mm ultraflex grey
RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex grey 0,15m
Varenummer:
K5547GR.0,15
EAN Nr.:
4049759266585
Produktinformation til RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex grey 0,15m
RJ45 flat patch cable Cat.6A U/FTP PVC
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product features
• Cat.6A (TIA)
• U/FTP cable with AWG30/7
• Sheath material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
< br>The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
The assignment of the particularly short RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the temperature range -20 - 55 °C.
The Ethernet cable has a copper conductor material and is ideal for applications in structured building cabling, industrial Ethernet and data centers. This achieves a bandwidth of 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product features
• Cat.6A (TIA)
• U/FTP cable with AWG30/7
• Sheath material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
< br>The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
The assignment of the particularly short RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the temperature range -20 - 55 °C.
The Ethernet cable has a copper conductor material and is ideal for applications in structured building cabling, industrial Ethernet and data centers. This achieves a bandwidth of 500 MHz.
Tekniske egenskaber
| AWG-size: | 30/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Bending radius: | >16 mm |
| Cable construction: | 4x2 |
| Cable shape: | slim |
| Cable type: | U/FTP |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 376 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 short version |
| Contact Resistance: | ≤ 20 mΩ |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | 100 MΩ |
| Jacket material: | TPE/LSZH |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | 752 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥750 |
| Model: | shielded |
| NVP value: | 76 |
| Oil resistant: | no |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | -20 – 75 °C |
| Outer diameter of the cable: | 4.0 mm |
| Ozone resistance: | No |

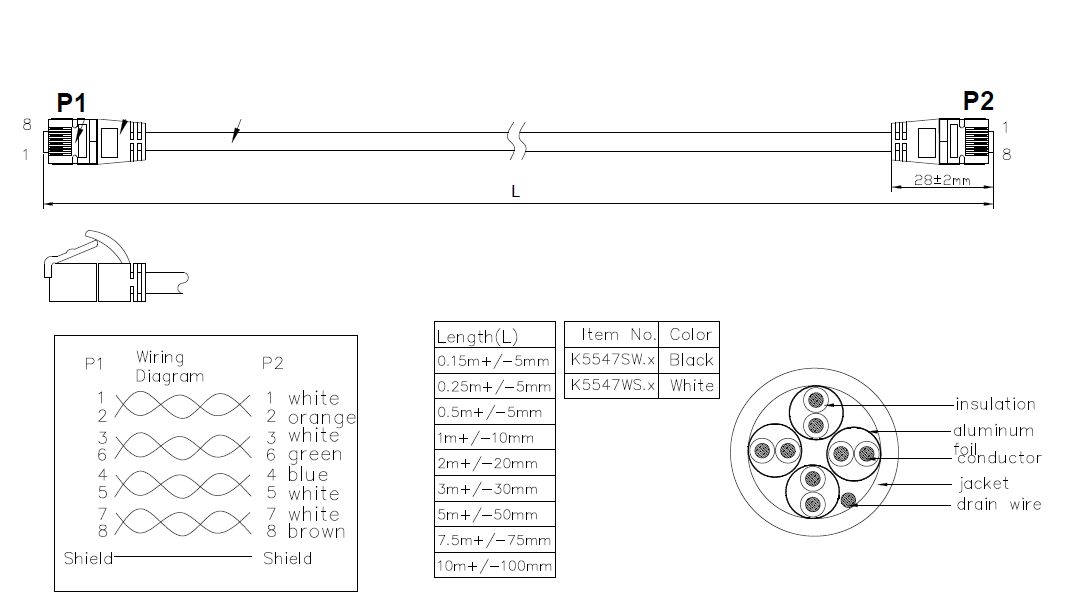

| Pin assignment: | 1:1 |
| Printing: | Cat.6A U/FTP ULTRAFLEX PATCHCABLE TPE ***10GE*** www.efb-elektronik.de |
| Resistance unbalance: | < 4 % |
| Resistant to chemicals: | False |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 500MHz |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | no |
Varianten
| Art. Nr. | Bezeichnung | Length | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K5547GR.0,15 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex grey 0,15m | 0.15 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K5547GR.0,25 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex grey 0,25m | 0.25 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K5547GR.0,5 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex grey 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K5547GR.1 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex grey 1m | 1.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K5547GR.1,5 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex grey 1,5m | 1.5 m | PoE acc. to IEEE802.3af | ±5 % | |
| K5547GR.2 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex grey 2m | 2.0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K5547GR.3 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex grey 3m | 3.0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K5547GR.5 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex grey 5m | 5.0 m | PoE acc. to IEEE802.3af | ±5 % |
