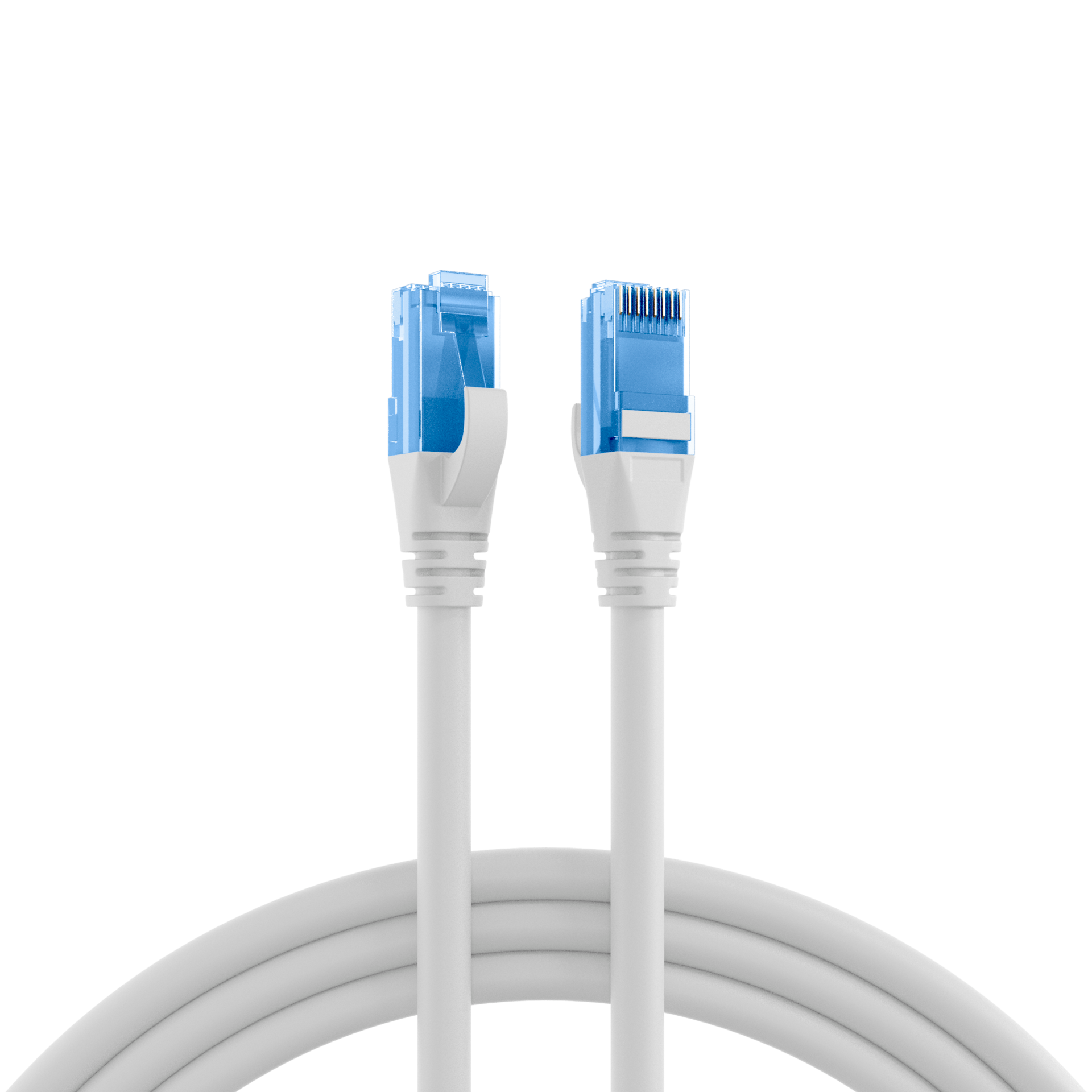

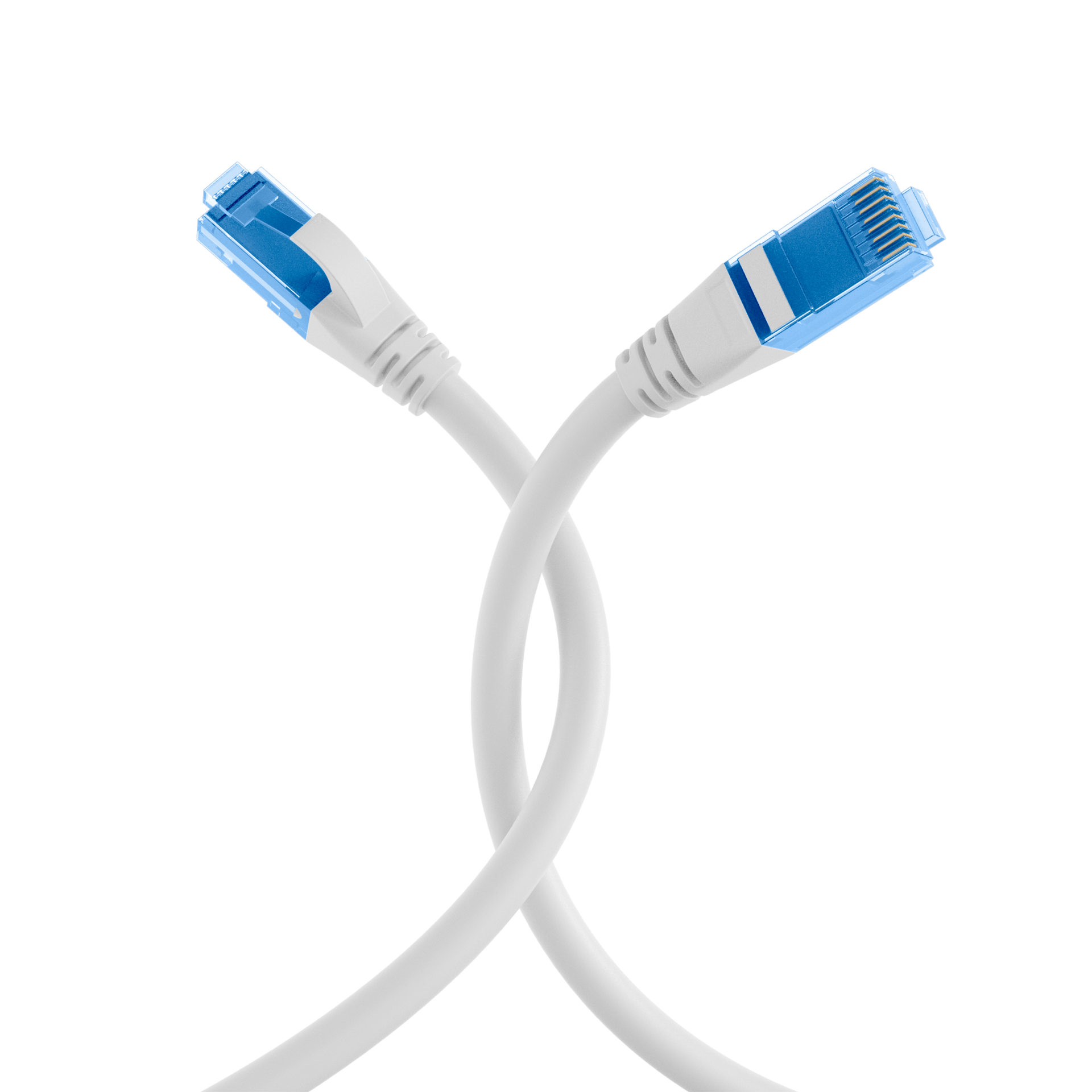

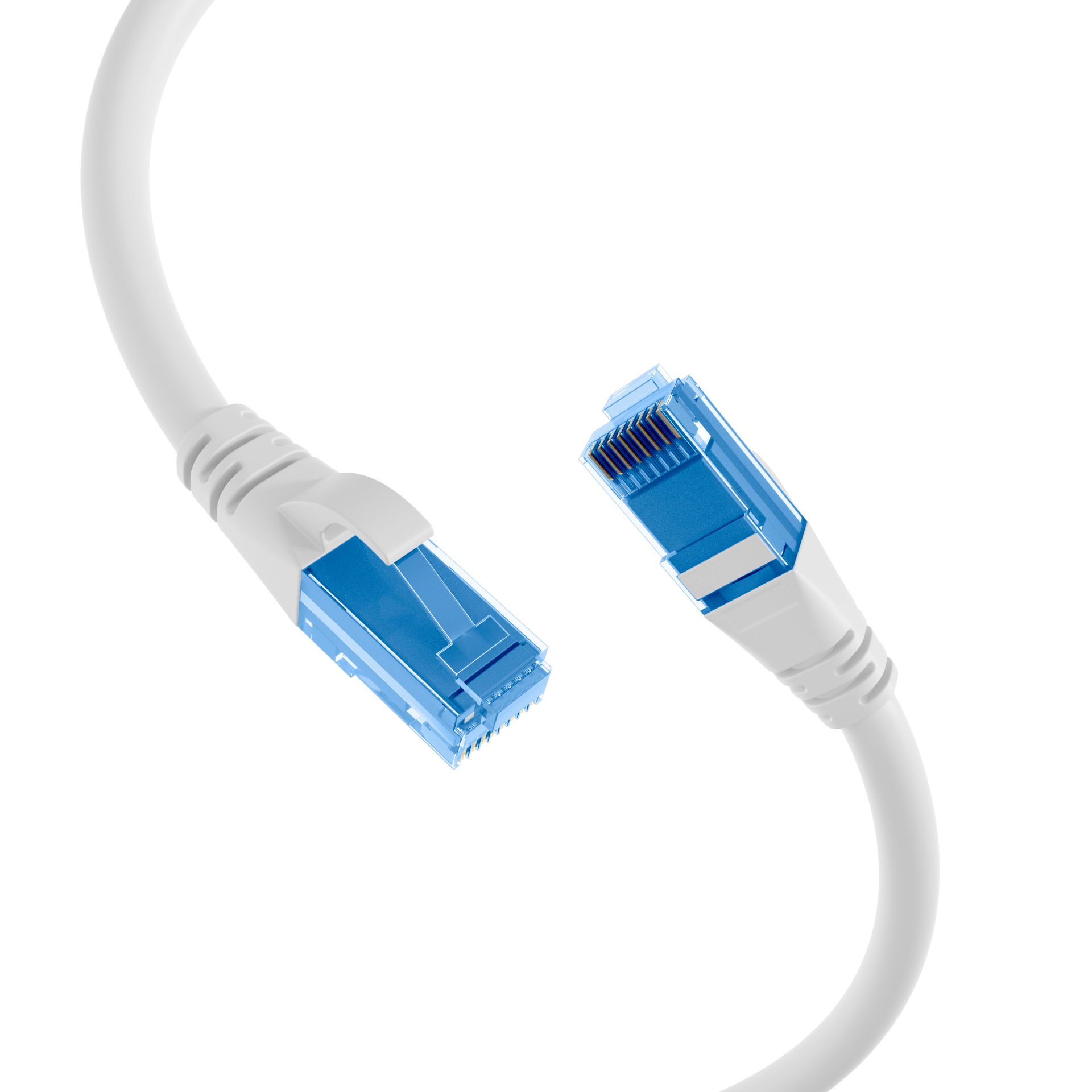

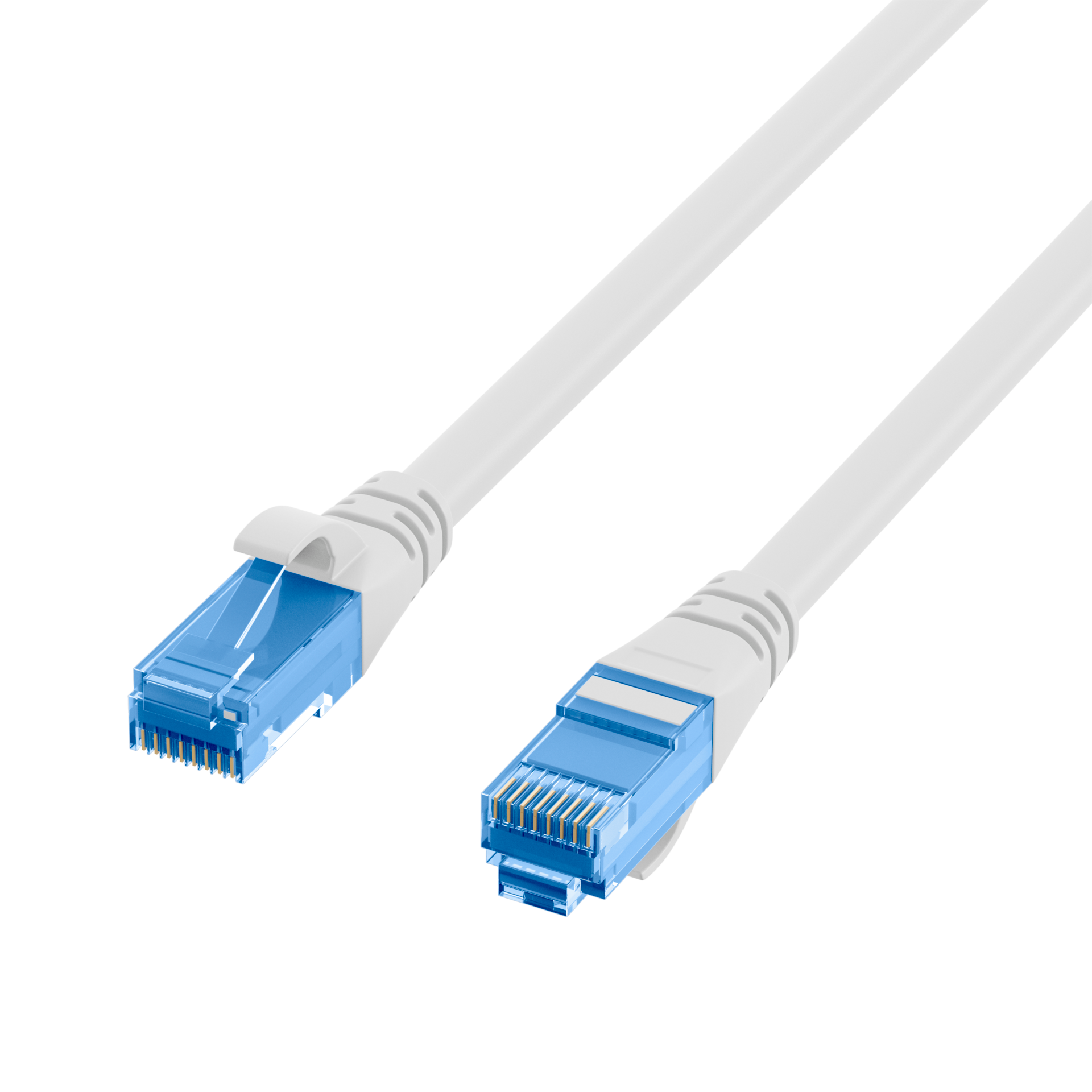

RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white

Priser kun synlige for indloggede brugere

RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 0,15m
Varenummer: K8109WS.0,15
EAN nr.: 4049759247492
Stück

Produktinformation für RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 0,15m

The unshielded Cat.6A RJ45 premium patch cable ensures very good characteristics for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG24/7
Cast anti-kink grommet with length imprint, slim design

Tekniske egenskaber

(Halogenfree): True
AWG-size: 24/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Data center
Structured cabling
Bandwidth: 500MHz
Bending radius: 30 mm
Cable construction: 4x2
Cable type: U/UTP
Cabling Standard: EN50173
ISO/IEC 11801
Category: 6A (TIA)
Colour anti-kink sleeve: white
Colour outer sheath: white
Conductor Material: Copper
Connector: IEC 60603-7-41
Connector type: RJ45 Standard blue
Contacts: 50 µ" gold plated
Current capacity: max. 1 A
Fire retardant version: True
Flame-retardant: acc. IEC60332-1
Halogen-free: True
Jacket material: LSZH
Locking lever: True
Low smoke: True
Mating cycles: 2000
Model: Unshielded
NVP value: - %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.0 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at

PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: Cat.6A PREMIUM Patchcord U/UTP 4x2xAWG24/7 ISO/IEC11801 TIA/EIA-568-C.2 ***10Gigabit Ethernet***
Suitable for degree of protection (IP): IP20
Temperature range: 0 – 60 °C
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
K8109WS.0,15 RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 0,15m 0.15 m ±5 %
K8109WS.0,25 RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 0,25m 0.25 m ±5 %
K8109WS.0,5 RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 0,5m 0.5 m ±5 %
K8109WS.1 RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 1m 1.0 m ±5 %
K8109WS.1,5 RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 1,5m 1.5 m ±5 %
K8109WS.2 RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 2m 2.0 m ±5 %
K8109WS.3 RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 3m 3.0 m ±5 %
K8109WS.5 RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 5m 5.0 m ±5 %
K8109WS.7,5 RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 7,5m 7.5 m ±5 %
K8109WS.10 RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 10m 10.0 m ±5 %
K8109WS.15 RJ45 Patch Cord Cat.6A U/UTP LSZH Premium 500MHz white 15m 15.0 m ±5 %
