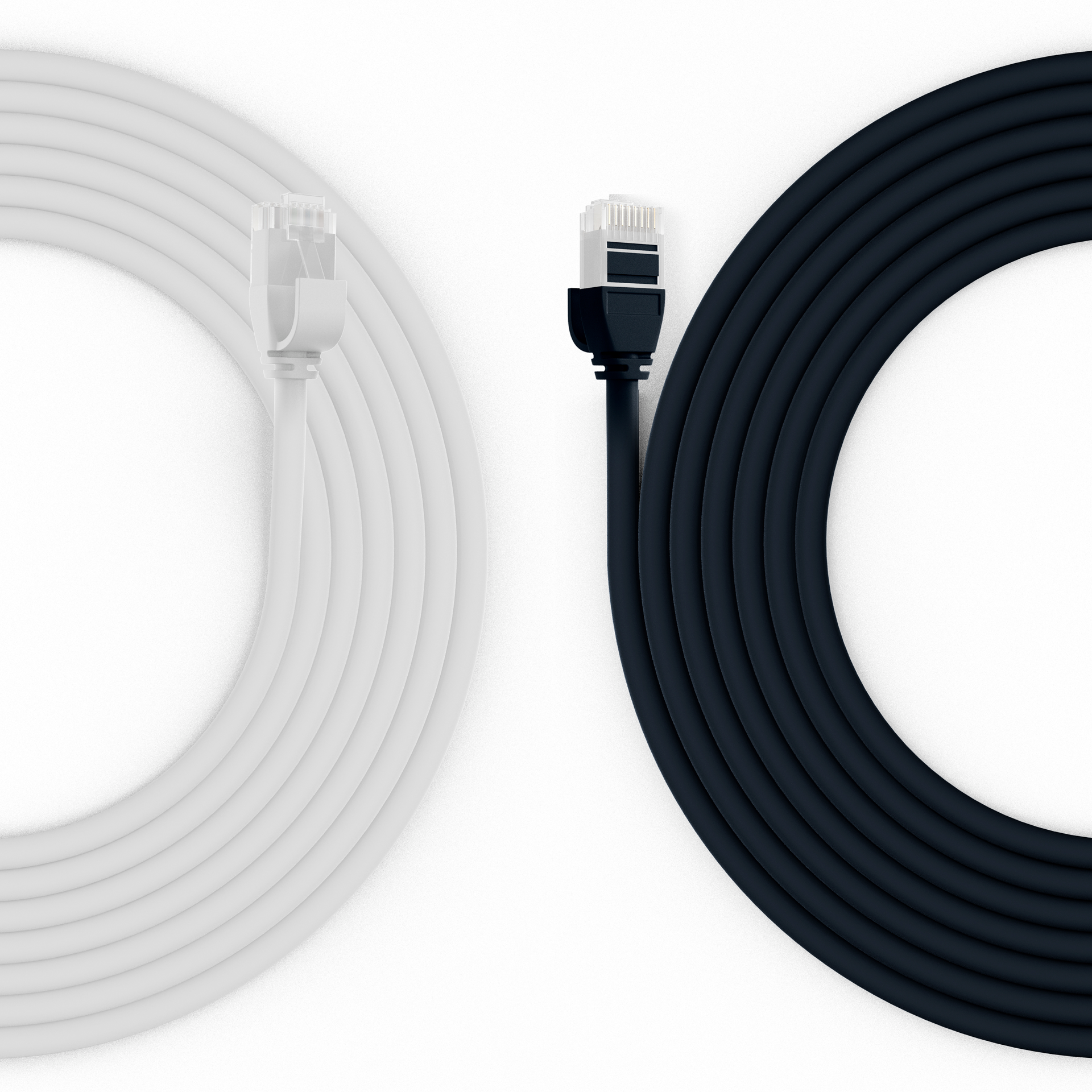

RJ45 Patch Cord Cat.6A U/UTP TPE 3,6mm ultraflex black
Priser kun synlige for indloggede brugere
RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex black 0,25m
Varenummer:
K8108SW.0,25
EAN nr.:
4049759187910
Produktinformation für RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex black 0,25m

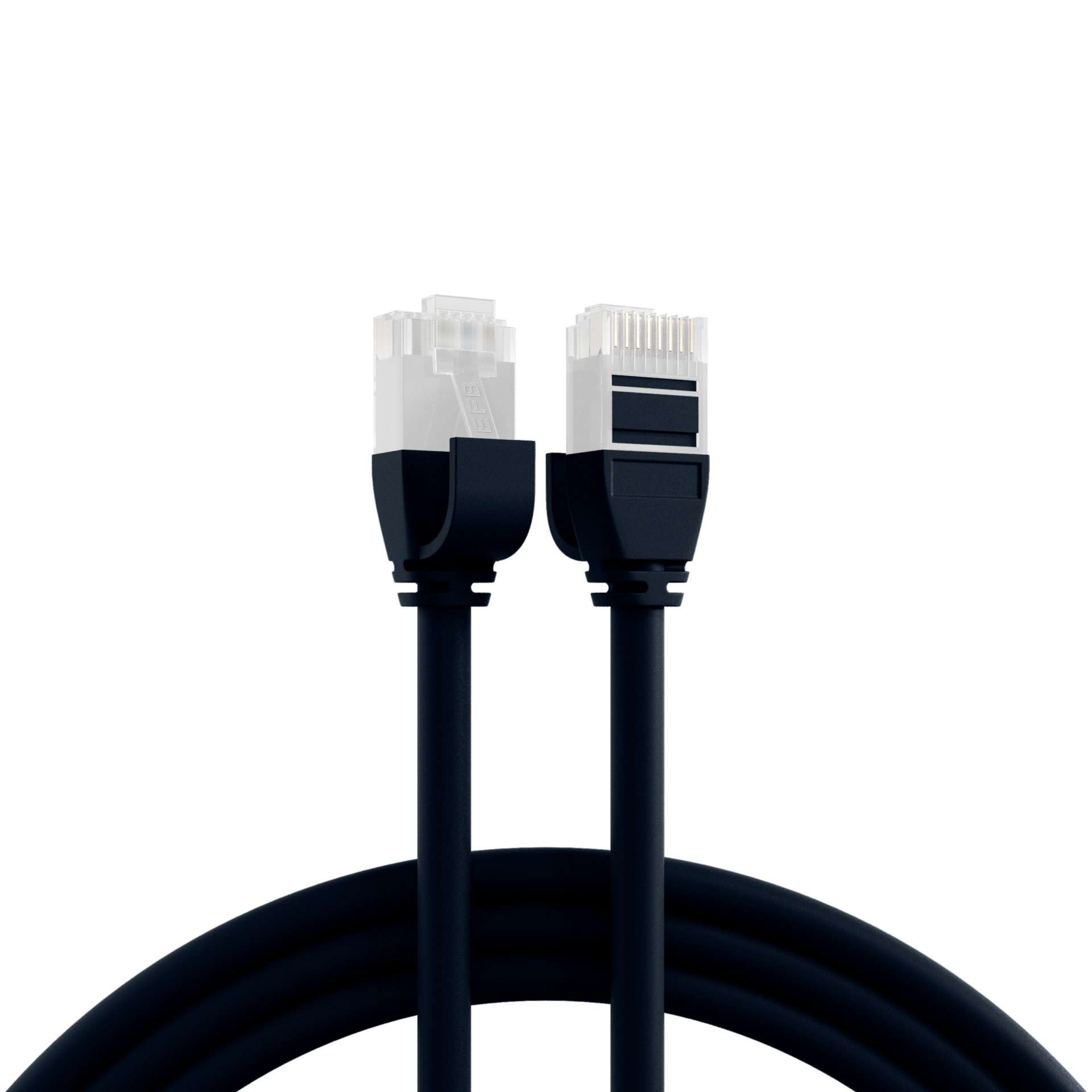

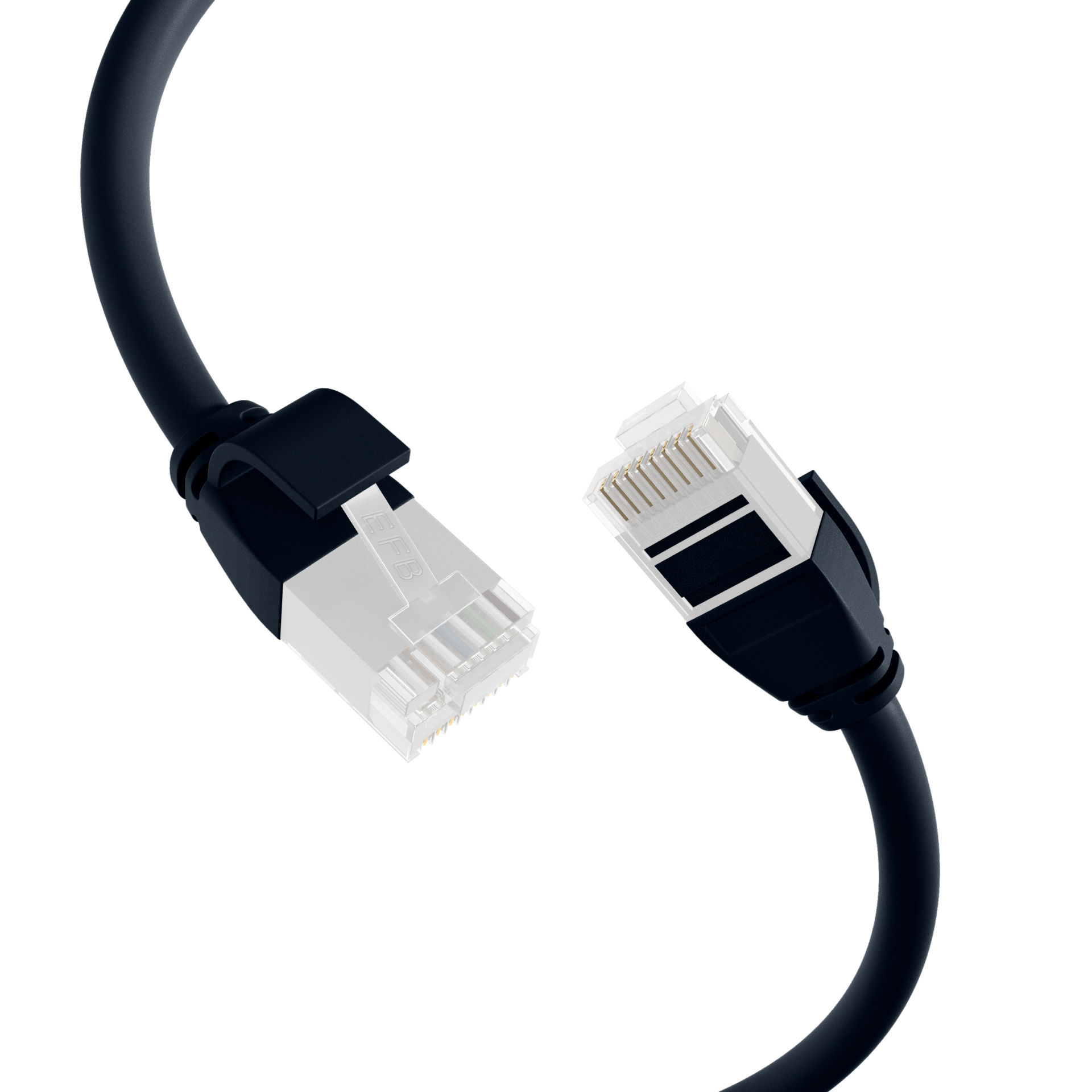

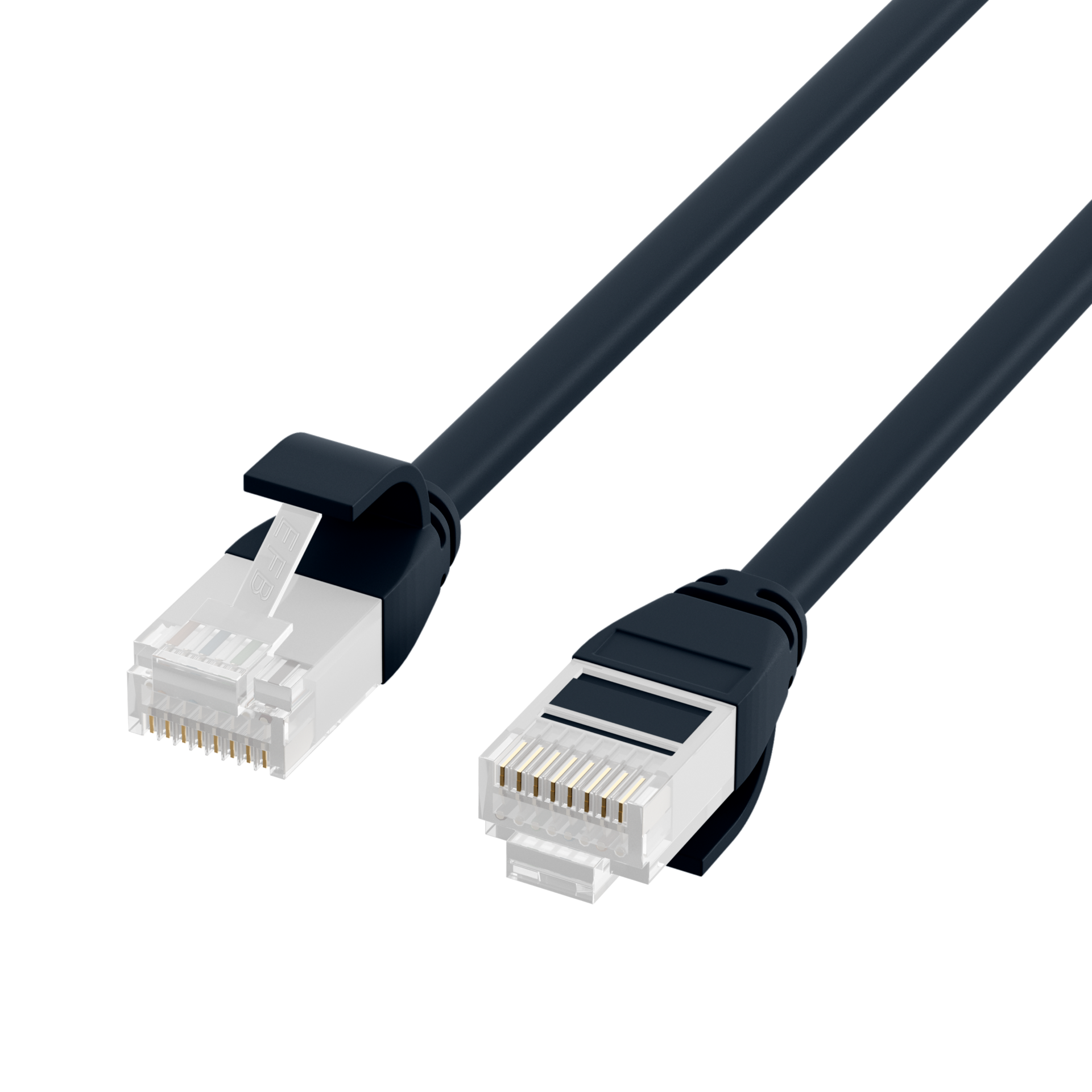

The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The TPE outer sheath makes the cable highly flexible and thus easier to handle. The moulded grommet captivates with its slim design and simplifies the plugging process in cramped conditions. The short connector in combination with the thin outer jacket enables a very high packing density.
Cross section: 4 x 2 x AWG30/7
Cable diameter: 3.6 mm
Cable structure: U/UTP
Cross section: 4 x 2 x AWG30/7
Cable diameter: 3.6 mm
Cable structure: U/UTP
Tekniske egenskaber
(Halogenfree): | True |
---|---|
AWG-size: | 30/7 |
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | plugged in |
Area of Application: | Structured cabling |
Bandwidth: | 500MHz |
Bending radius: | 15 mm |
Cable construction: | 4x2 |
Cable type: | U/UTP |
Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
Category: | 6A (TIA) |
Colour anti-kink sleeve: | black |
Colour outer sheath: | black |
Conductor Material: | Copper |
Conductor resistance DC: | 376 Ω/km |
Connector: | IEC 60603-7-41 |
Connector type: | RJ45 short version |
Contact resistance: | < 20 mΩ |
Contacts: | Gold plated µ" gold plated |
Current capacity: | max. 1 A |
Fire retardant version: | True |
Impedance: | 100 ±15 Ω |
Insulation resistance: | 100 MΩ |
Jacket material: | TPE/LSZH |
Locking lever: | True |
Loop resistance: | 752 Ω/km |
Low smoke: | True |
Mating cycles: | 2000 |
Model: | Unshielded |
NVP value: | 76 % |
Oil resistant (acc. EN 60811-2-1): | False |
Oil resistant (according to EN 60811-404): | False |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 3.6 mm |
POE class: |
PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: | Cat.6A Patchcord ULTRAFLEX U/UTP TPE 10G www.efb-elektronik.de |
Resistance unbalance: | < 4 % |
Silicone-free: | True |
Suitable for degree of protection (IP): | IP20 |
Temperature range: | -20 – 75 °C |
Test voltage: | 1000 V DC, 1min |
Transmission: | 10Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
Varianter
Art. Nej. | Betegnelse | Length | Length tolerance | |
---|---|---|---|---|
K8108SW.0,15 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex black 0,15m | 0.15 m | ±5 % | |
K8108SW.0,25 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex black 0,25m | 0.25 m | ±5 % | |
K8108SW.0,5 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex black 0,5m | 0.5 m | ±5 % | |
K8108SW.1 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex black 1m | 1.0 m | ±5 % | |
K8108SW.2 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex black 2m | 2.0 m | ±5 % | |
K8108SW.3 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex black 3m | 3.0 m | ±5 % | |
K8108SW.5 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex black 5m | 5.0 m | ±5 % |
