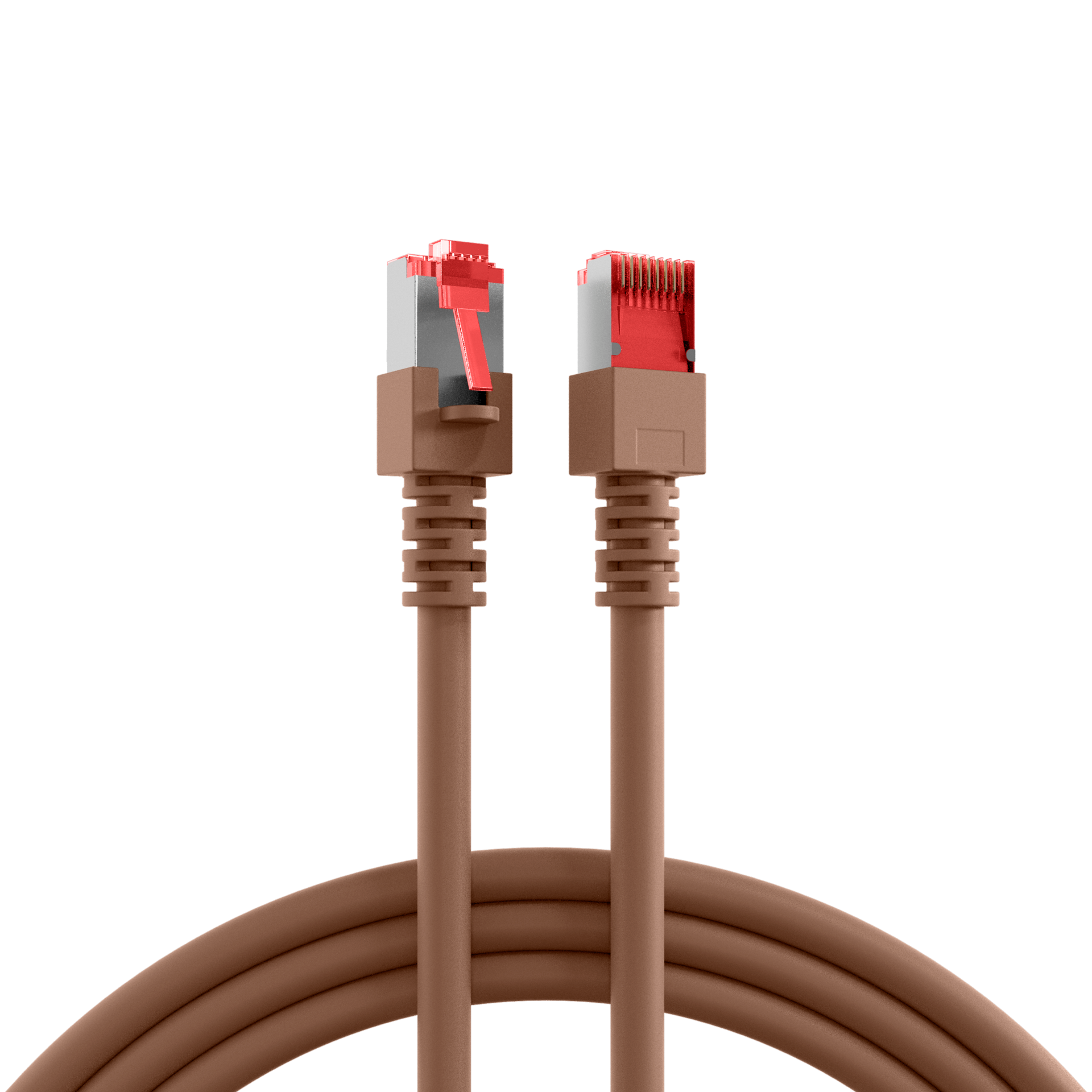

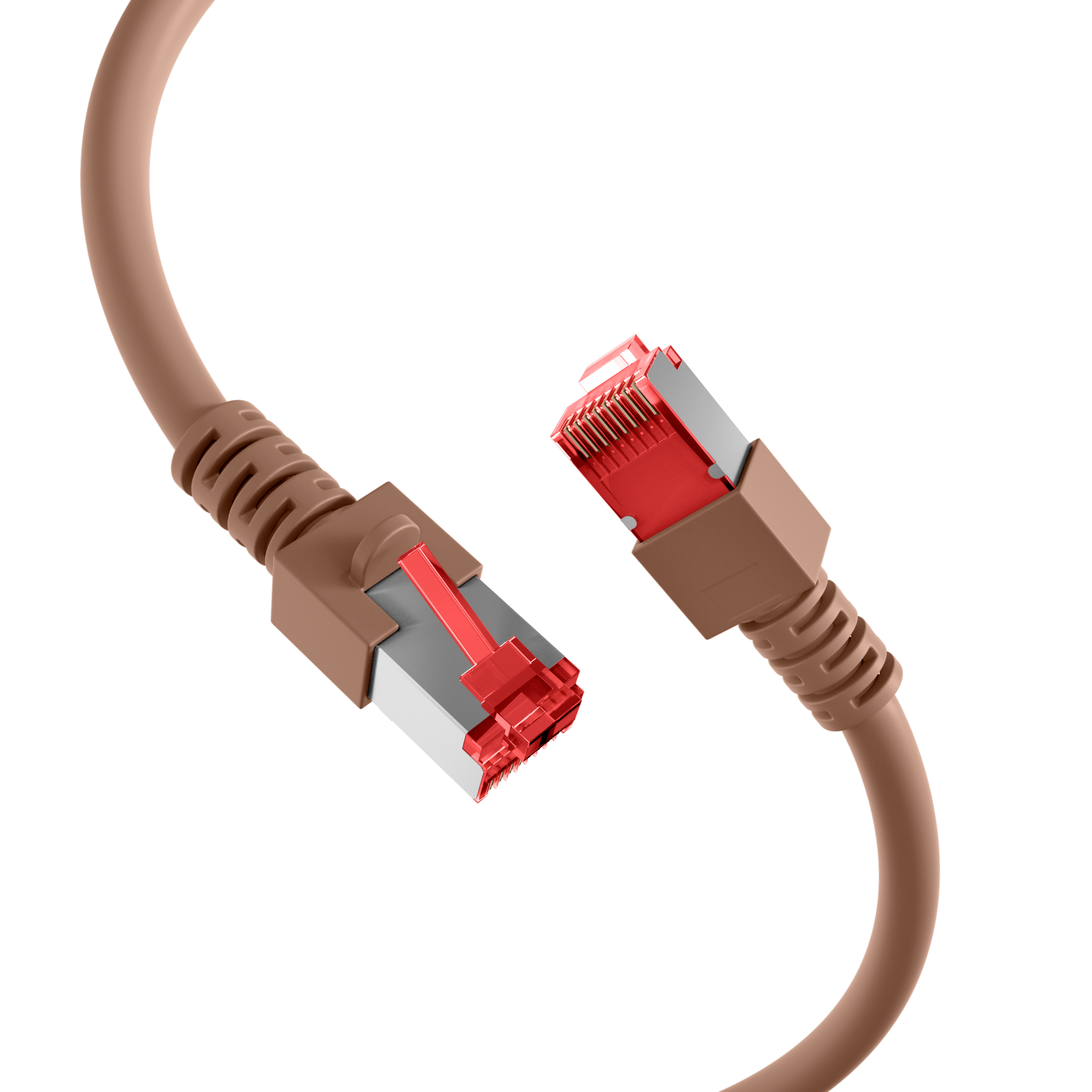

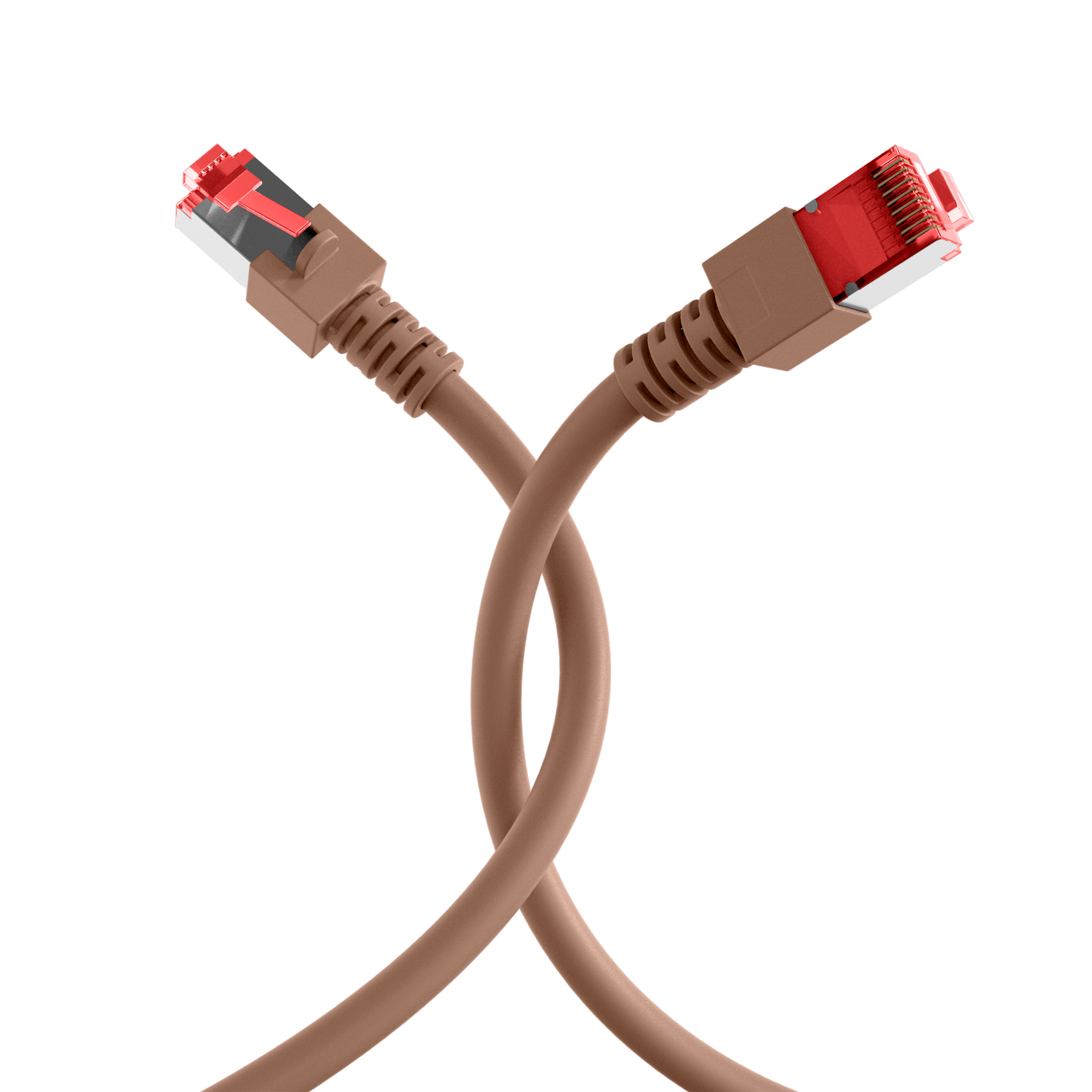

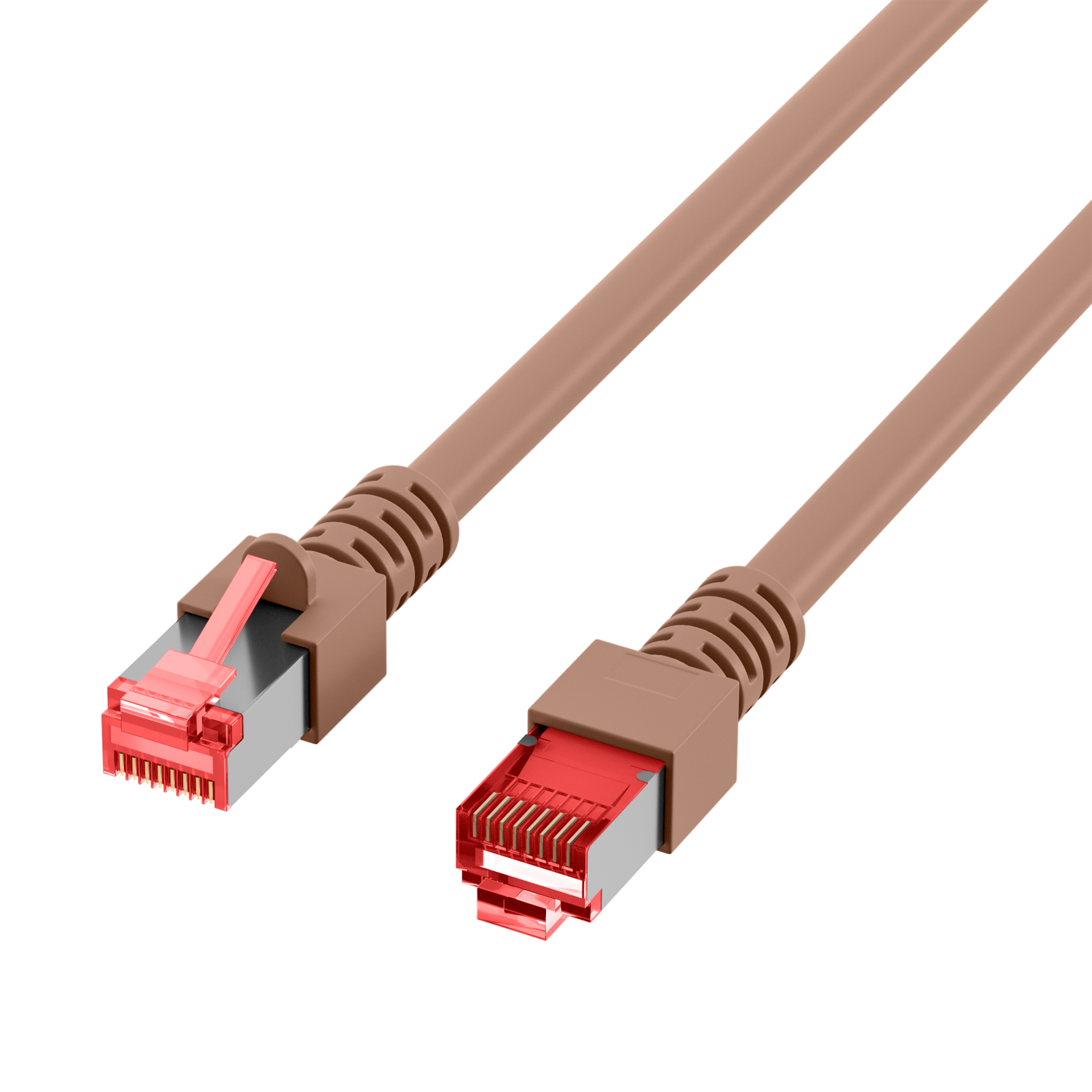

RJ45 Patchkabel Cat.6 S/FTP LSZH braun




RJ45 Patchkabel Cat.6 S/FTP LSZH braun 0,15m
Varenummer:
K5517.0,15
EAN Nr.:
4049759095567
Produktinformation til RJ45 Patchkabel Cat.6 S/FTP LSZH braun 0,15m
RJ45 Patchkabel Cat.6 S/FTP LSZH
Das Cat.6 Patchkabel hat vergoldete Kontakte und erfüllt die Anforderungen für 5Gbit Ethernet.
Technische Produkteigenschaften
• Cat.6
• S/FTP Kabel mit AWG27/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus halogenfreiem LSZH Material und besitzt einen Längenaufdruck auf der Tülle. Weiterhin bietet das Kabel die Option zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der RJ45-Stecker erfolgt nach TIA/EIA 568B und ist 1:1. Passend für den Temperaturbereich 0 – 60 °C.
Das Netzwerkkabel verfügt über ein Leitermaterial aus Kupfer und eignet sich ideal für Applikationen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Ein Frequenzbereich von bis zu 250 MHz wird dabei erzielt.
Das Cat.6 Patchkabel hat vergoldete Kontakte und erfüllt die Anforderungen für 5Gbit Ethernet.
Technische Produkteigenschaften
• Cat.6
• S/FTP Kabel mit AWG27/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus halogenfreiem LSZH Material und besitzt einen Längenaufdruck auf der Tülle. Weiterhin bietet das Kabel die Option zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der RJ45-Stecker erfolgt nach TIA/EIA 568B und ist 1:1. Passend für den Temperaturbereich 0 – 60 °C.
Das Netzwerkkabel verfügt über ein Leitermaterial aus Kupfer und eignet sich ideal für Applikationen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Ein Frequenzbereich von bis zu 250 MHz wird dabei erzielt.
Tekniske egenskaber
(Halogenfree): | True |
---|---|
AWG-size: | 27/7 |
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | moulded-on |
Area of Application: |
Data center Industrial Ethernet Structured cabling |
Bandwidth: | 250MHz |
Bending radius: | >31 mm |
Cable construction: | 4x2 |
Cable type: | S/FTP |
Cabling Standard: |
ANSI/TIA-568 EN50173 ISO/IEC 11801 |
Category: | 6 |
Colour anti-kink sleeve: | brown |
Colour outer sheath: | brown |
Conductive shield: | Selected shield contact |
Conductor Material: | Copper |
Conductor resistance DC: | 185 Ω/km |
Connector: | IEC 60603-7-5 |
Connector type: | RJ45 standard |
Contact Resistance: | 30 mΩ |
Contacts: | Gold plated |
Current Rating: | max. 1 A |
Fire retardant version: | True |
Flame-retardant: | acc. IEC60332-1 |
Halogen-free: | acc. IEC60754-2 |
Impedance: | 100 |
Insulation Resistance: | 10 MΩ |
Jacket Material: | LSZH |
Length imprint: | True |
Locking lever: | True |
Loop resistance: | 370 Ω/km |
Low smoke: | True |
Mating cycles: | ≥750 |
Model: | shielded |
NVP value: | 0 % |
Oil resistant: | No |
Oil resistant (acc. EN 60811-2-1): | False |
Oil resistant (according to EN 60811-404): | False |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 6.2 mm |
Ozone resistance: | No |
Pin assignment: | 1:1 |
Printing: | SFTP 300 CAT.5E 26AWGX4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED www.efb-elektronik.de |
Resistance unbalance: | 5 % |
Resistant to chemicals: | False |
Silicone-free: | True |
Suitable for degree of protection (IP): | IP20 |
Temperature Range (Installation): | -20 – 60 °C |
Temperature Range (Operation): | -20 – 75 °C |
Temperature Range (Storage): | -20 – 60 °C |
Temperature range: | 0 – 60 °C |
Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
Transmission: | 5Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
Varianten
Art. Nr. | Bezeichnung | Length | POE class | Length tolerance | |
---|---|---|---|---|---|
K5517.0,15 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 0,15m | 0.15 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K5517.0,25 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 0,25m | 0.25 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K5517.1 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 1m | 1.0 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K5517.10 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 10m | 10.0 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K5517.15 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 15m | 15.0 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at | ±5 % | |
K5517.2 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 2m | 2.0 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K5517.20 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 20m | 20.0 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at | ±5 % | |
K5517.25 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 25m | 25.0 m | PoE nach IEEE802.3af | ±5 % | |
K5517.3 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 3m | 3.0 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K5517.30 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 30m | 30.0 m | PoE nach IEEE802.3af | ±5 % | |
K5517.5 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 5m | 5.0 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K5517.50 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 50m | 50.0 m | Nein | ±5 % | |
K5517.7,5 | RJ45 Patchkabel Cat.6 S/FTP LSZH braun 7,5m | 7.5 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % |
