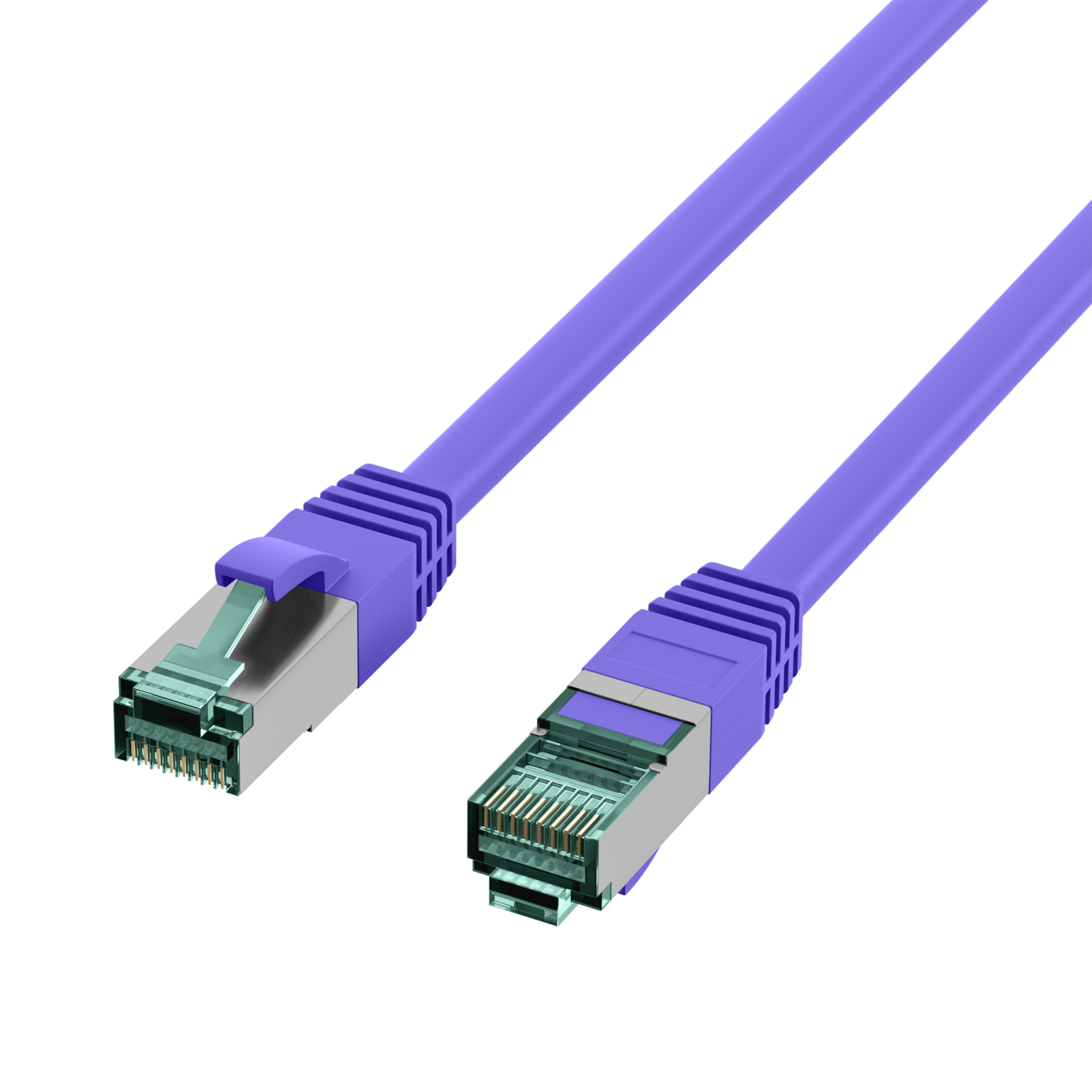

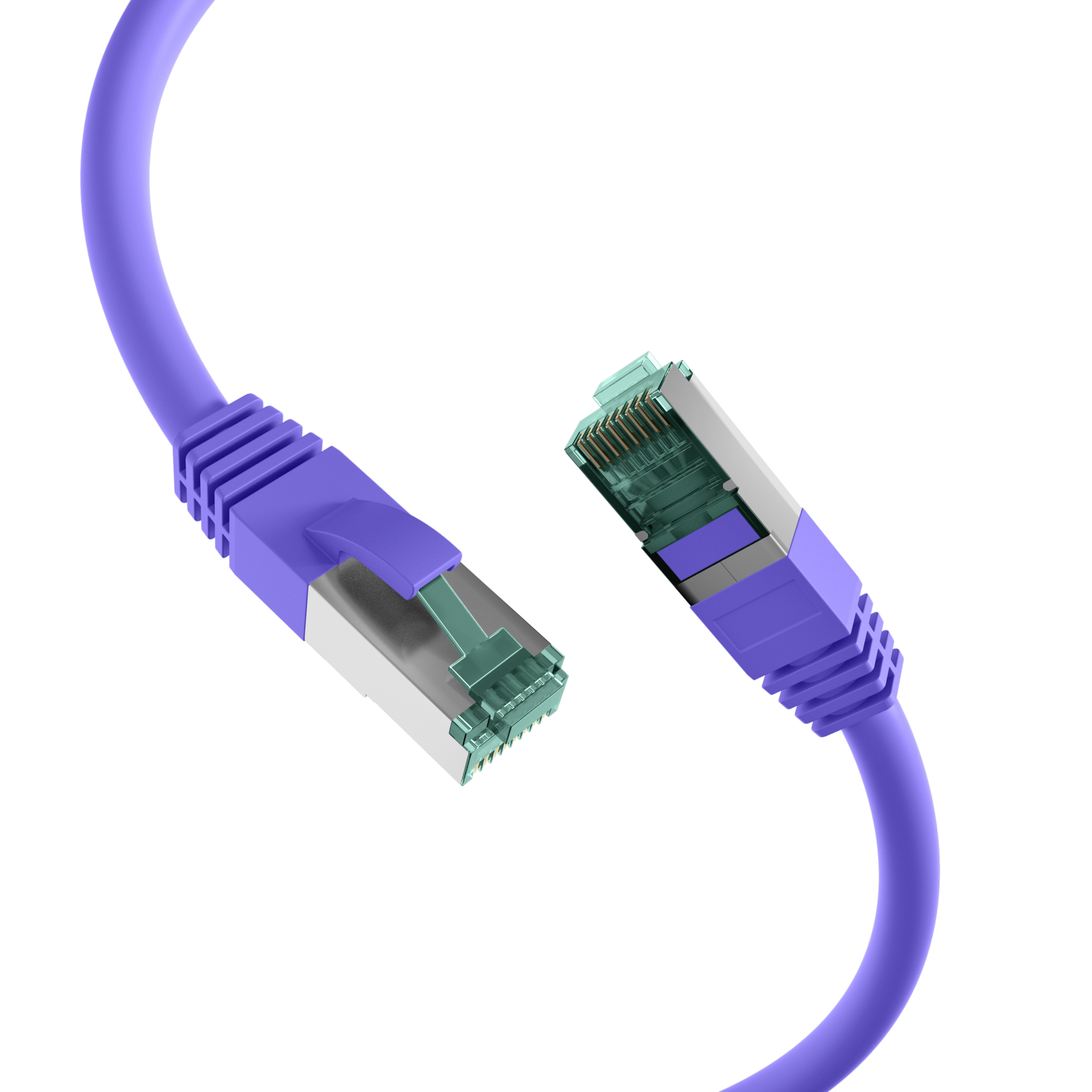

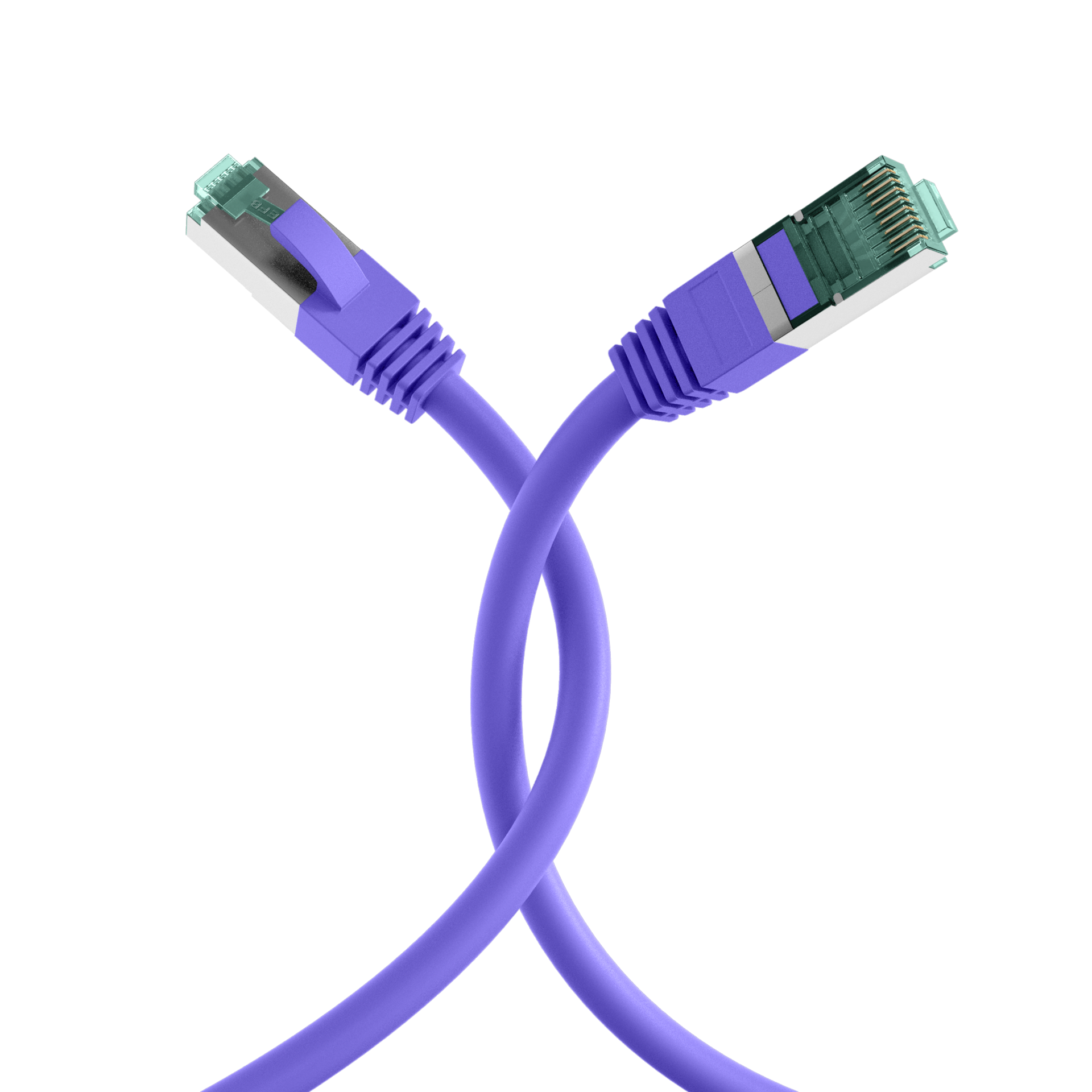

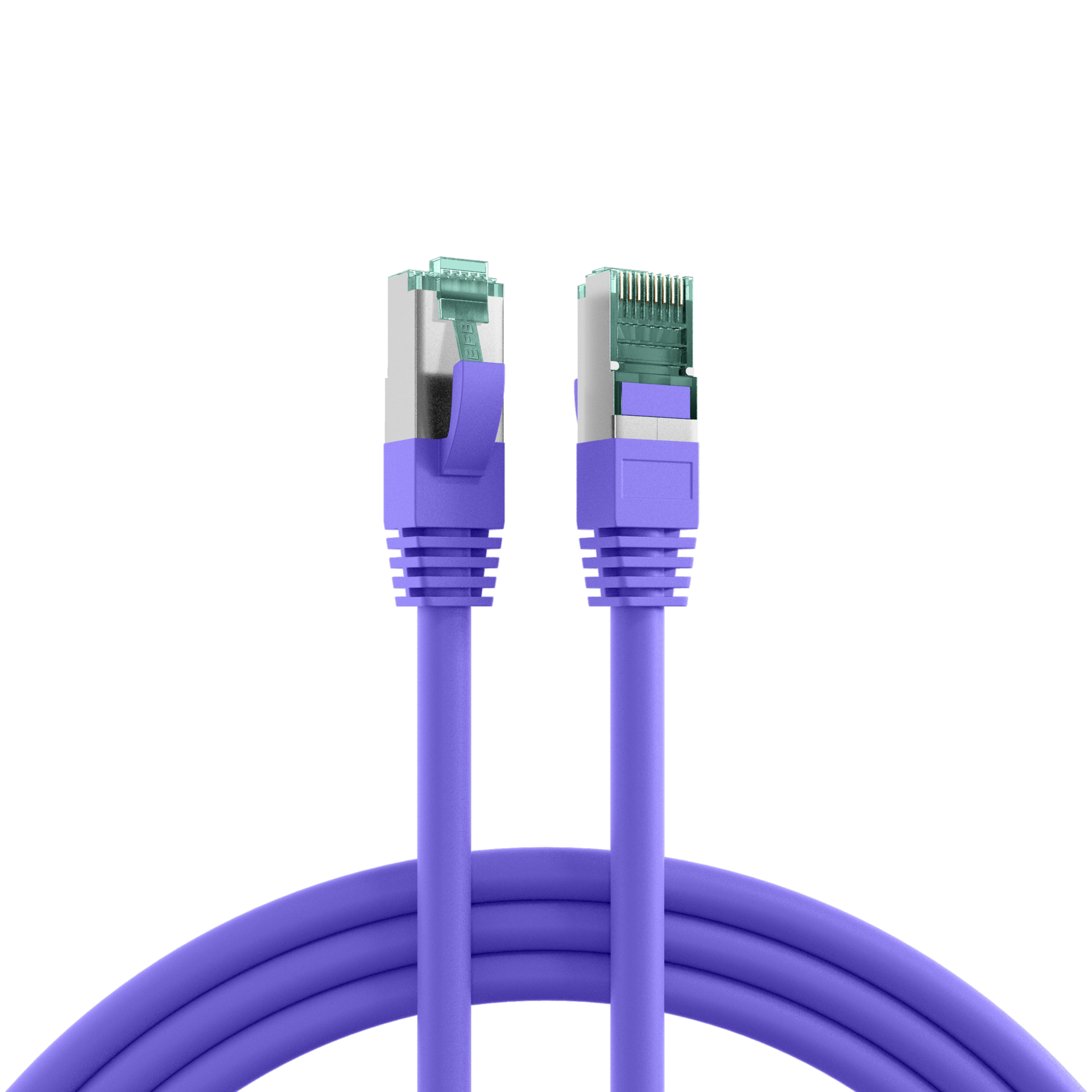

RJ45 Patchkabel S/FTP, Cat. 6A, violett




RJ45 Patchkabel Cat.6A S/FTP LSZH violett 0,15m
Varenummer:
MK6001.0,15VI
EAN Nr.:
4049759271435
Produktinformation til RJ45 Patchkabel Cat.6A S/FTP LSZH violett 0,15m
RJ45 Patchkabel Cat.6A S/FTP LSZH
Das Cat.6A (TIA) Patchkabel hat vergoldete Kontakte und erfüllt die Anforderungen für 10Gbit Ethernet.
Technische Produkteigenschaften
• Cat.6A (TIA)
• S/FTP Kabel mit AWG27/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus halogenfreiem LSZH Material und besitzt einen Längenaufdruck auf der Tülle. Darüber hinaus bietet das Kabel die Option zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der grünen RJ45-Stecker erfolgt nach TIA/EIA 568B und ist 1:1. Geeignet für den Temperaturbereich -20 – 60 °C.
Das Datenkabel verfügt über ein Leitermaterial aus Kupfer und eignet sich bestens für Anwendungen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Die Bandbreite beträgt 500 MHz.
Das Cat.6A (TIA) Patchkabel hat vergoldete Kontakte und erfüllt die Anforderungen für 10Gbit Ethernet.
Technische Produkteigenschaften
• Cat.6A (TIA)
• S/FTP Kabel mit AWG27/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus halogenfreiem LSZH Material und besitzt einen Längenaufdruck auf der Tülle. Darüber hinaus bietet das Kabel die Option zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der grünen RJ45-Stecker erfolgt nach TIA/EIA 568B und ist 1:1. Geeignet für den Temperaturbereich -20 – 60 °C.
Das Datenkabel verfügt über ein Leitermaterial aus Kupfer und eignet sich bestens für Anwendungen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Die Bandbreite beträgt 500 MHz.
Tekniske egenskaber
(Halogenfree): | True |
---|---|
AWG-size: | 27/7 |
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | plugged in |
Area of Application: |
Data center Industrial Ethernet Structured cabling |
Bandwidth: | 500MHz |
Bending radius: | >30 mm |
Cable construction: | 4x2 |
Cable type: | S/FTP |
Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
Category: | 6A (TIA) |
Colour anti-kink sleeve: | violet |
Colour outer sheath: | violet |
Conductive shield: | Selected shield contact |
Conductor Material: | Copper |
Conductor resistance DC: | 185 Ω/km |
Connector: | IEC 60603-7-51 |
Connector type: | RJ45 Standard green |
Contact Resistance: | 30 mΩ |
Contacts: | Gold plated |
Current Rating: | max. 1 A |
Fire retardant version: | True |
Flame-retardant: | True |
Halogen-free: | True |
Impedance: | 100 ±15 Ω |
Insulation Resistance: | 10 MΩ |
Jacket Material: | LSZH |
Length imprint: | True |
Locking lever: | True |
Loop resistance: | 370 Ω/km |
Low smoke: | True |
Mating cycles: | 2000 |
Model: | Shielded |
NVP value: | 74 % |
Oil resistant (acc. EN 60811-2-1): | False |
Oil resistant (according to EN 60811-404): | False |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 6.0 mm |
POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: | Cat.6A PATCH S/FTP 4x2xAWG27/7 LSZH ISO/IEC11801 ANSI/TIA-568-C.2 ***10Gigabit Ethernet*** www.efb-elektronik.de |
Raw cable: | Cat.6A |
Resistance unbalance: | 3 % |
Silicone-free: | True |
Suitable for degree of protection (IP): | IP20 |
Temperature range: | -20 – 60 °C |
Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
Total screening: | 80 % |
Transmission: | 10Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
UL approbated: | False |
Varianten
Art. Nr. | Bezeichnung | Length | Length tolerance | |
---|---|---|---|---|
MK6001.0,15VI | RJ45 Patchkabel Cat.6A S/FTP LSZH violett 0,15m | 0.15 m | ±5 % | |
MK6001.0,25VI | RJ45 Patchkabel Cat.6A S/FTP LSZH violett 0,25m | 0.25 m | ±5 % | |
MK6001.20VI | RJ45 Patchkabel Cat.6A S/FTP LSZH violett 20m | 20.0 m | ±5 % | |
MK6001.25VI | RJ45 Patchkabel Cat.6A S/FTP LSZH violett 25m | 25.0 m | ±5 % | |
MK6001.30VI | RJ45 Patchkabel Cat.6A S/FTP LSZH violett 30m | 30.0 m | ±5 % | |
MK6001.50VI | RJ45 Patchkabel Cat.6A S/FTP LSZH violett 50m | 50.0 m | ±5 % |
