Roof Fan 2-/4-Way for PRO, incl. Thermostat
Roof Fan 2-Way for PRO & ESV, Opening A, incl. Thermostat, RAL7035
Varenummer:
PRO-LFD02AT.GR
EAN Nr.:
4049759219000
Produktinformation til Roof Fan 2-Way for PRO & ESV, Opening A, incl. Thermostat, RAL7035

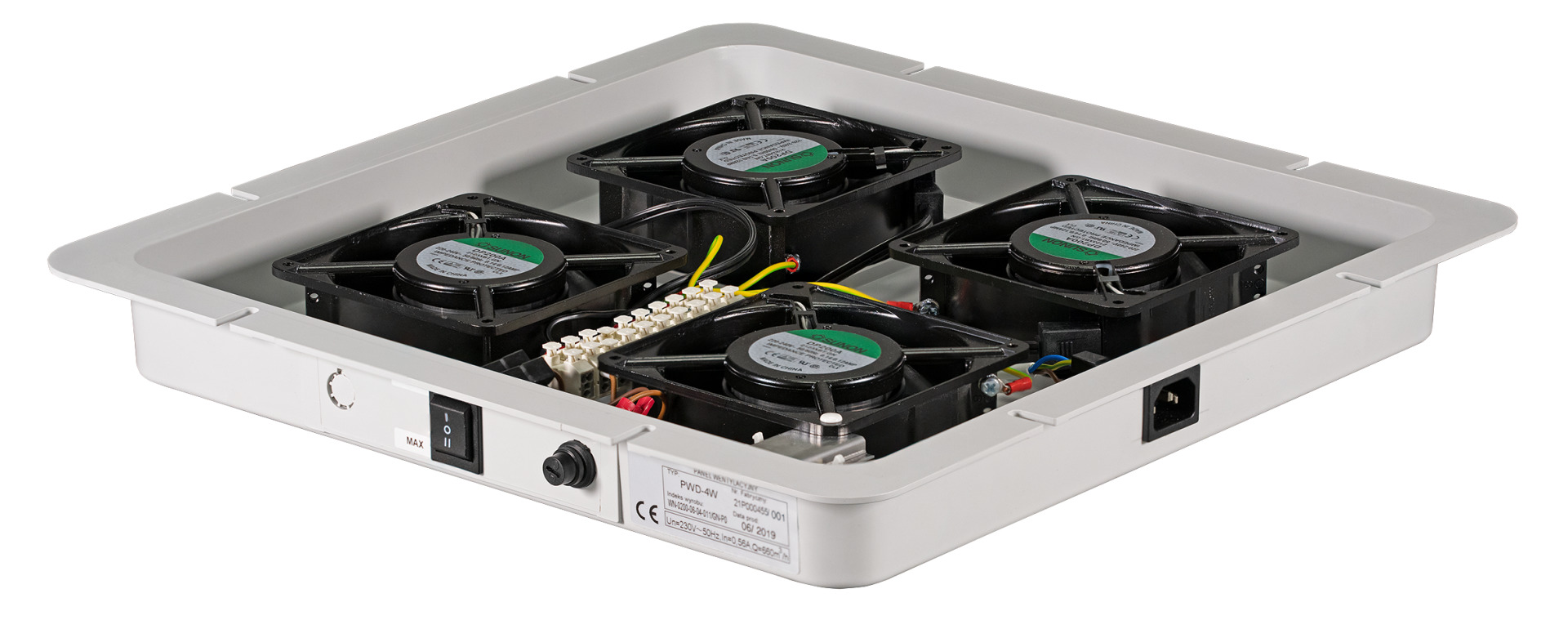

Fan unit with integrated thermostat for use in roof of cabinets PRO

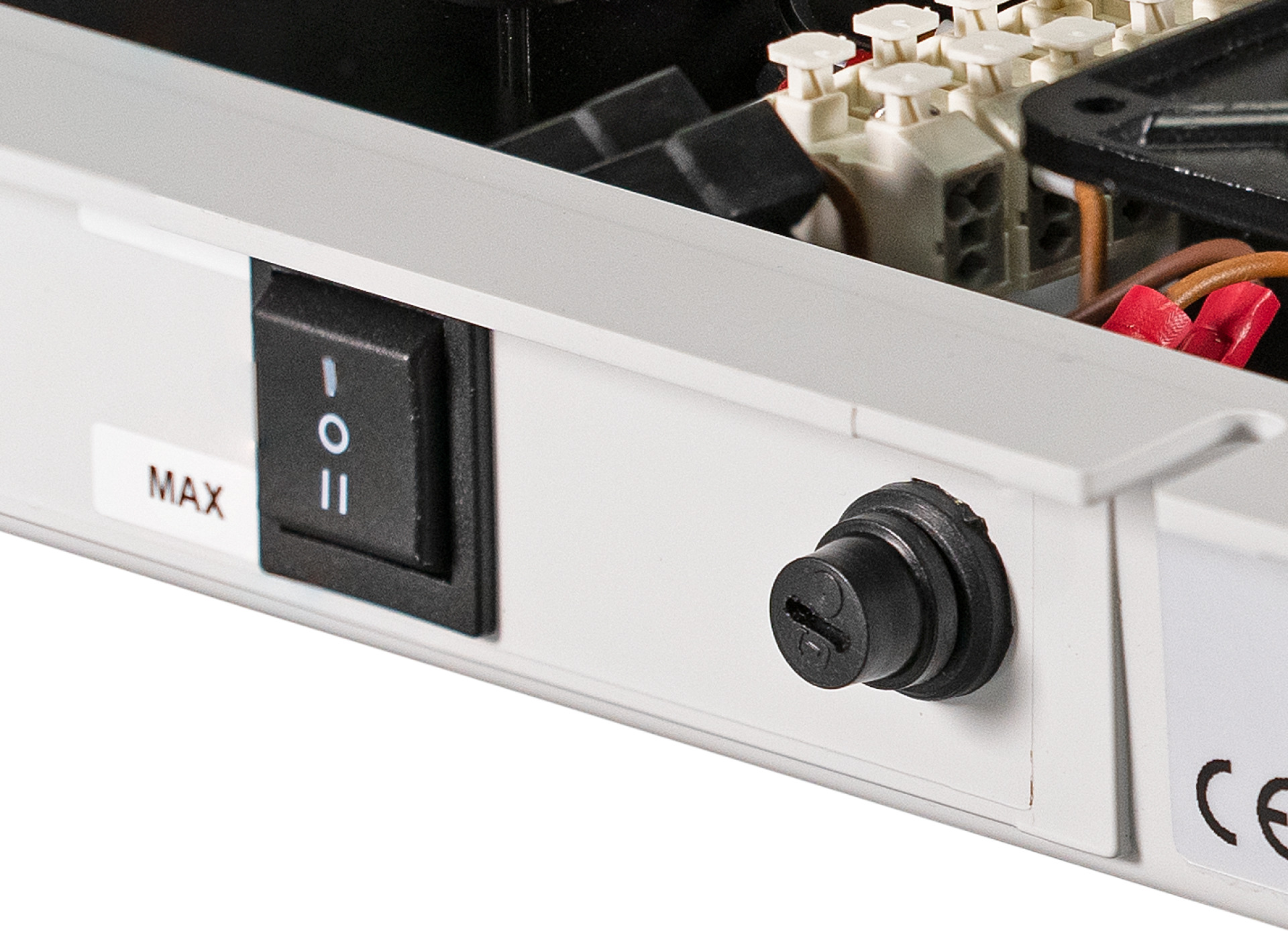

For 4-fan variant: 3-stage switch (0/I/II) for speed reduction ("Silent-Mode") for especially quietly operation
For 2-fan variant: ON/OFF switch
Easy mounting at prepared opening (380 x 380 mm) hanging at cabinet roof

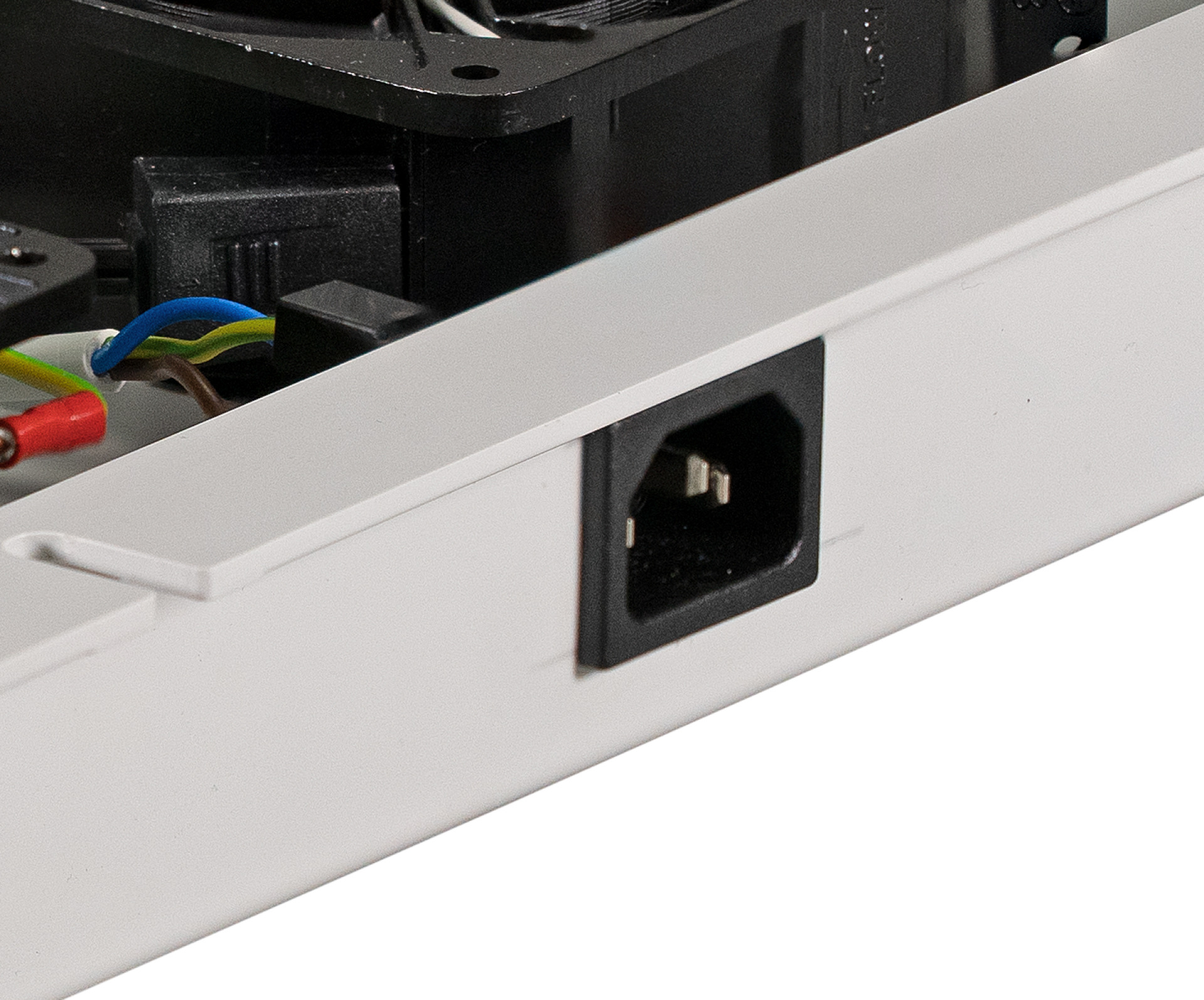

Power connector IEC C14, power cable please order separately, e.g. EK504.x
Housing material plastic
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: fan unit incl. thermostat, mounting accessories
For 4-fan variant: 3-stage switch (0/I/II) for speed reduction ("Silent-Mode") for especially quietly operation
For 2-fan variant: ON/OFF switch
Easy mounting at prepared opening (380 x 380 mm) hanging at cabinet roof
Power connector IEC C14, power cable please order separately, e.g. EK504.x
Housing material plastic
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: fan unit incl. thermostat, mounting accessories
Tekniske egenskaber
| Air circulator: | False |
|---|---|
| Built as slide-in ventilator: | False |
| Degree of protection: | IP20 |
| Mounting method: | Screw mounting |
| Operating voltage at AC 50 Hz: | 230 – 230 V |
| Roof ventilator: | True |
| Suitable for 19 inch rack mounting: | False |
| Suitable for wall built-in: | False |
| Voltage type: | AC |
| With filter: | False |
Varianten
| Art. Nr. | Bezeichnung | Noise Level | Color | Number of fans | Width | Height | Depth | RAL-number | Rated power | Volume flow, freeblowing | Noise emission | Remark | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO-LFD04AT.GR | Roof Fan 4-Way for PRO & ESV, Opening A, incl. Thermostat, RAL7035 | 54 (Silent Mode: 44) dB | grey | 4 | 380 mm | 48 mm | 380 mm | 7035 | 88 W | 660 (Silent Mode: 330) m³/h | 54 (Silent Mode: 44) dB(A) | Switchable Silent Mode | |
| PRO-LFD04AT.TS | Roof Fan 4-Way for PRO & ESV, Opening A, incl. Thermostat, RAL9005 | 54 (Silent Mode: 44) dB | black | 4 | 380 mm | 48 mm | 380 mm | 9005 | 88 W | 660 (Silent Mode: 330) m³/h | 54 (Silent Mode: 44) dB(A) | Switchable Silent Mode | |
| PRO-LFD02AT.GR | Roof Fan 2-Way for PRO & ESV, Opening A, incl. Thermostat, RAL7035 | 48 dB | grey | 2 | 380 mm | 48 mm | 380 mm | 7035 | 44 W | 330 m³/h | 48 dB(A) | - | |
| PRO-LFD02AT.TS | Roof Fan 2-Way for PRO & ESV, Opening A, incl. Thermostat, RAL9005 | 48 dB | black | 2 | 380 mm | 48 mm | 380 mm | 9005 | 44 W | 330 m³/h | 48 dB(A) | - |
Sikkerhedsanvisninger
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
