Roof Fan 2-Way for Co Location PRO and EFB-Server

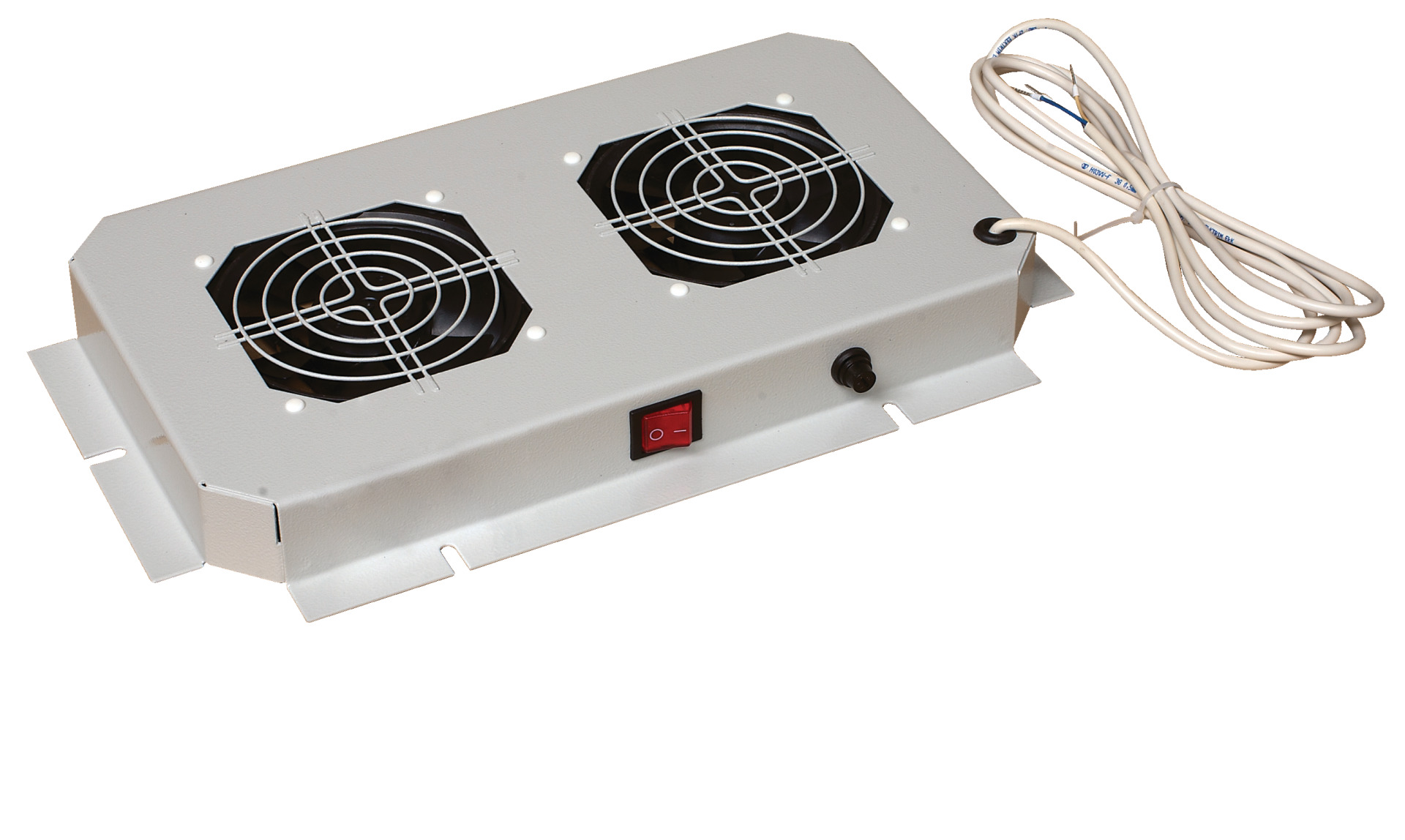

Roof Fan 2-Way, with Thermostat, for Co Location PRO and ESV, RAL7035
Varenummer:
PRO-LFD02BT.GR
Produktinformationen für Roof Fan 2-Way, with Thermostat, for Co Location PRO and ESV, RAL7035
Fan unit with integrated thermostat for use in roof of cabinets Co Location PRO
Easy mounting at prepared opening B (210 x 380 mm) hanging at cabinet roof
Power connector IEC C14, power cable please order separately, e.g. EK504.x
Housing material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: fan unit incl. thermostat, mounting accessories
Easy mounting at prepared opening B (210 x 380 mm) hanging at cabinet roof
Power connector IEC C14, power cable please order separately, e.g. EK504.x
Housing material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: fan unit incl. thermostat, mounting accessories
Technische Eigenschaften
| Air circulator: | False |
|---|---|
| Built as slide-in ventilator: | False |
| Degree of protection: | IP20 |
| Mounting method: | Screw mounting |
| Operating voltage at AC 50 Hz: | 230 – 230 |
| Roof ventilator: | True |
| Suitable for 19 inch rack mounting: | False |
| Suitable for wall built-in: | False |
| Voltage type: | AC |
| With filter: | False |
Varianten
| Art. Nr. | Bezeichnung | Noise Level | Colour | Number of fans | Width | Depth | RAL-number | Rated power | Volume flow, freeblowing | Noise emission | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO-LFD02BT.GR | Roof Fan 2-Way, with Thermostat, for Co Location PRO and ESV, RAL7035 | 48 dB | grey | 2 | 380 mm | 210 mm | 7035 | 44 W | 330 m³/h | 48 dB(A) | |
| PRO-LFD02BT.TS | Roof Fan 2-Way, with Thermostat, for Co Location PRO and ESV, RAL9005 | 48 dB | black | 2 | 380 mm | 210 mm | 9005 | 44 W | 330 m³/h | 48 dB(A) |
