LED Magnetic Lighting Unit, 230 V AC with IR-Sensor and Switch

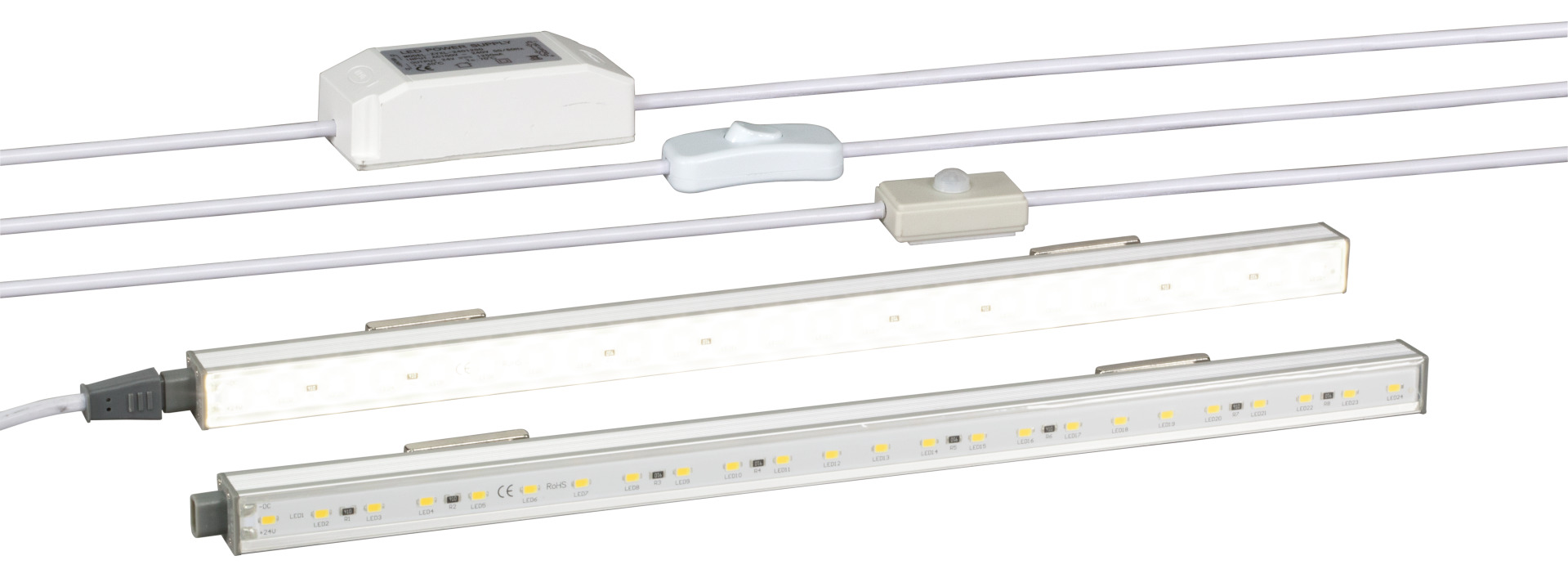

Set of LED Lighting Unit + Connection Kit 230 V AC, IR-Sensor, Switch
Varenummer:
698026.1
EAN Nr.:
4049759133122
Produktinformation til Set of LED Lighting Unit + Connection Kit 230 V AC, IR-Sensor, Switch

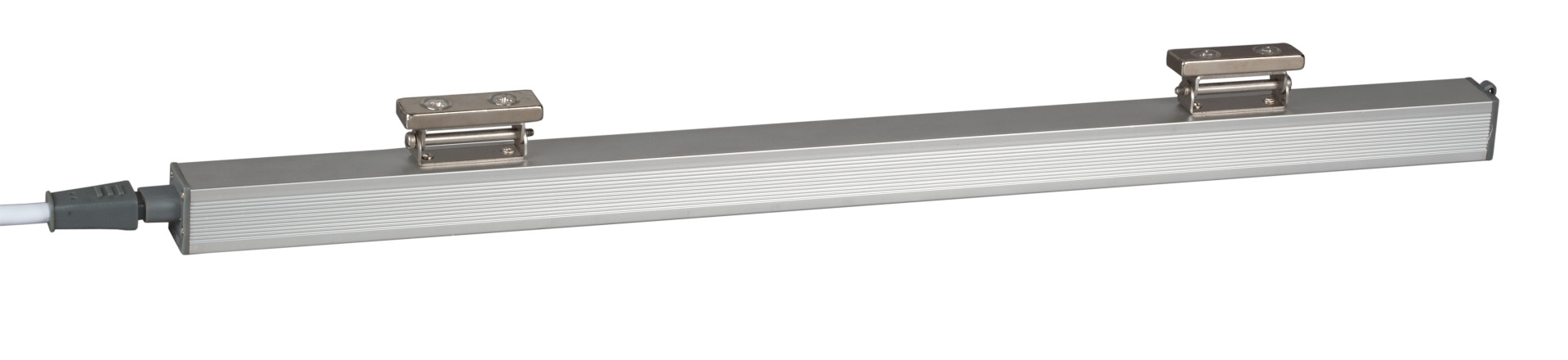

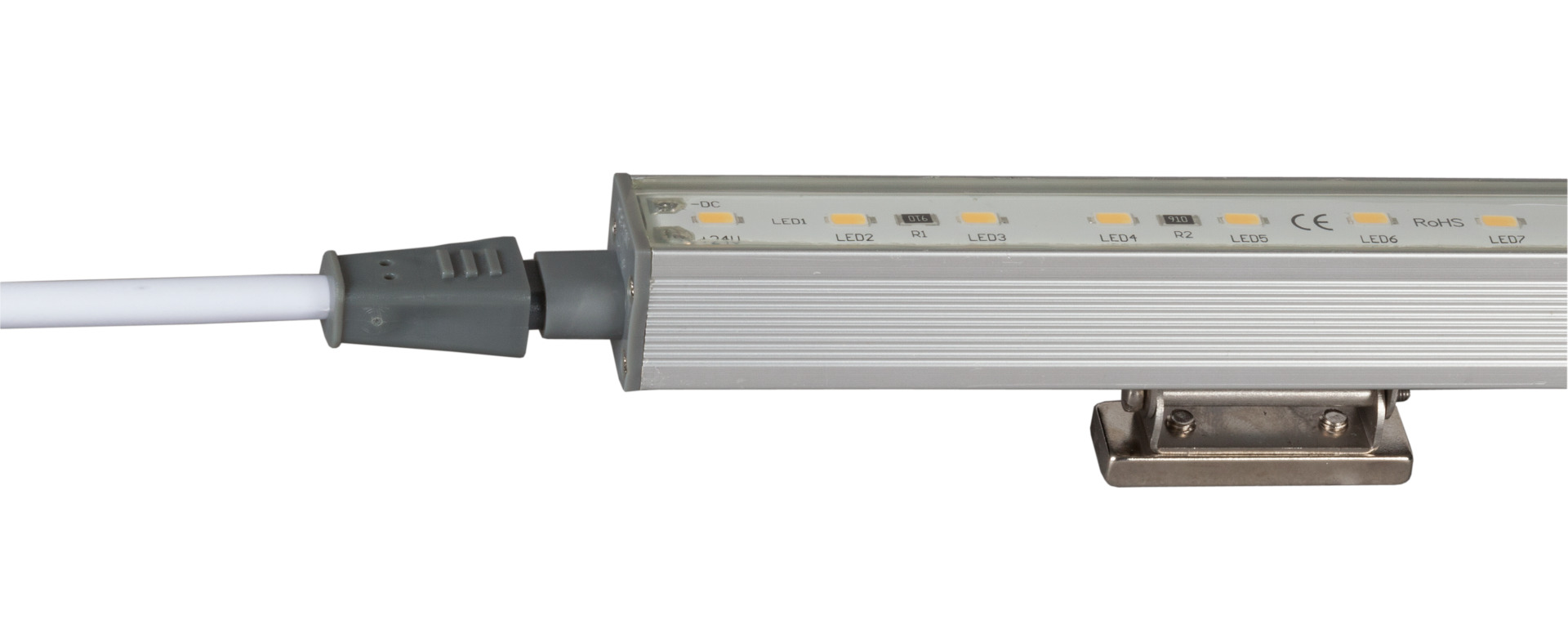

LED lighting unit in high-quality aluminium profile for magnetic mounting at any position in cabinet
Selective lighting due to turnable magnetic holder (turning angle ca. 180°)
IR sensor replaces door contact switch: lighting unit is turned on for 45 sec. at motion detection
Self-adhesive sensor and power supply for easy mounting in cabinet
At glass and non-perforated steel doors the sensor can be easiely glued directly onto the 19“ profile for turning light on when door is opened, for perforated doors mounting sidely in the cabinet, e.g. at a depth-rail, is recommended
Technical Data LED:

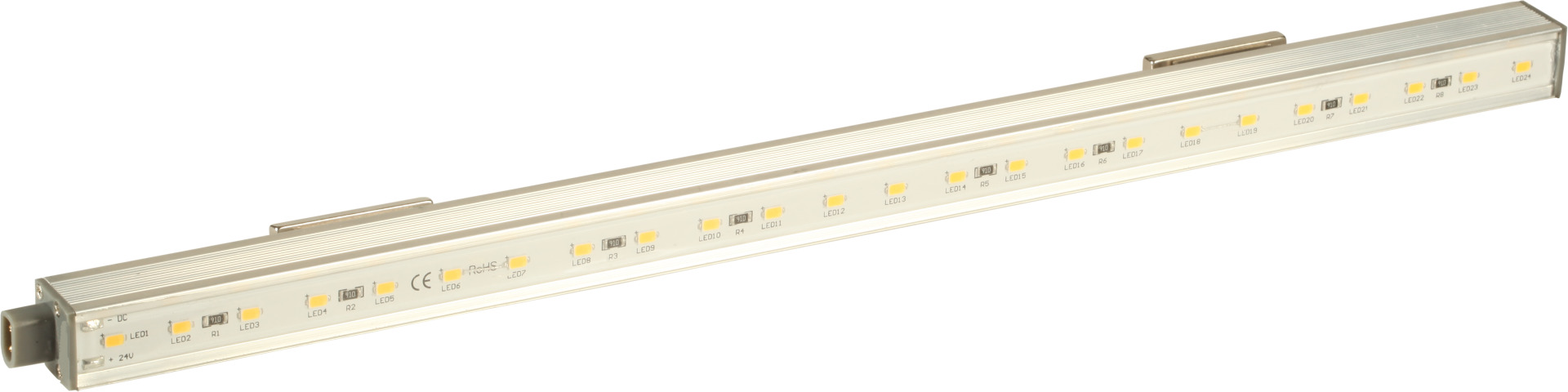

24 x LED type 5730
This lighting unit contains a light source in energy effiziency class F
LED light colour warm white, colout temperature 3500 K, Luminosity 420 Lm, Colour rendering index Ra > 80
Technical Data LED Driver:
Input 100 .. 240 V AC, 50/60 Hz, 0.6 A
Outout 24 V DC, 1250 mA, 30 W max.
Dimensions (LxWxH) 115 x 45 x 28 mm, Material plastic, white
Technical Data Sensor:
Detection radius 1.2 m
Switch-on time 45 s
Dimensions (LxWxH) 40 x 20 x 10 mm, Material plastic, white
Selective lighting due to turnable magnetic holder (turning angle ca. 180°)
IR sensor replaces door contact switch: lighting unit is turned on for 45 sec. at motion detection
Self-adhesive sensor and power supply for easy mounting in cabinet
At glass and non-perforated steel doors the sensor can be easiely glued directly onto the 19“ profile for turning light on when door is opened, for perforated doors mounting sidely in the cabinet, e.g. at a depth-rail, is recommended
Technical Data LED:
24 x LED type 5730
This lighting unit contains a light source in energy effiziency class F
LED light colour warm white, colout temperature 3500 K, Luminosity 420 Lm, Colour rendering index Ra > 80
Technical Data LED Driver:
Input 100 .. 240 V AC, 50/60 Hz, 0.6 A
Outout 24 V DC, 1250 mA, 30 W max.
Dimensions (LxWxH) 115 x 45 x 28 mm, Material plastic, white
Technical Data Sensor:
Detection radius 1.2 m
Switch-on time 45 s
Dimensions (LxWxH) 40 x 20 x 10 mm, Material plastic, white
Tekniske egenskaber
| Cabinet Series: | Universal |
|---|---|
| Degree of protection: | IP20 |
| Lamp power: | 4 W |
| Magnetic mounting: | True |
| Material: | Aluminium |
| Rated voltage: | 230 V |
| Type of electrical connection: | Plug/connector |
| Type of lamp: | LED |
| With light sensor: | True |

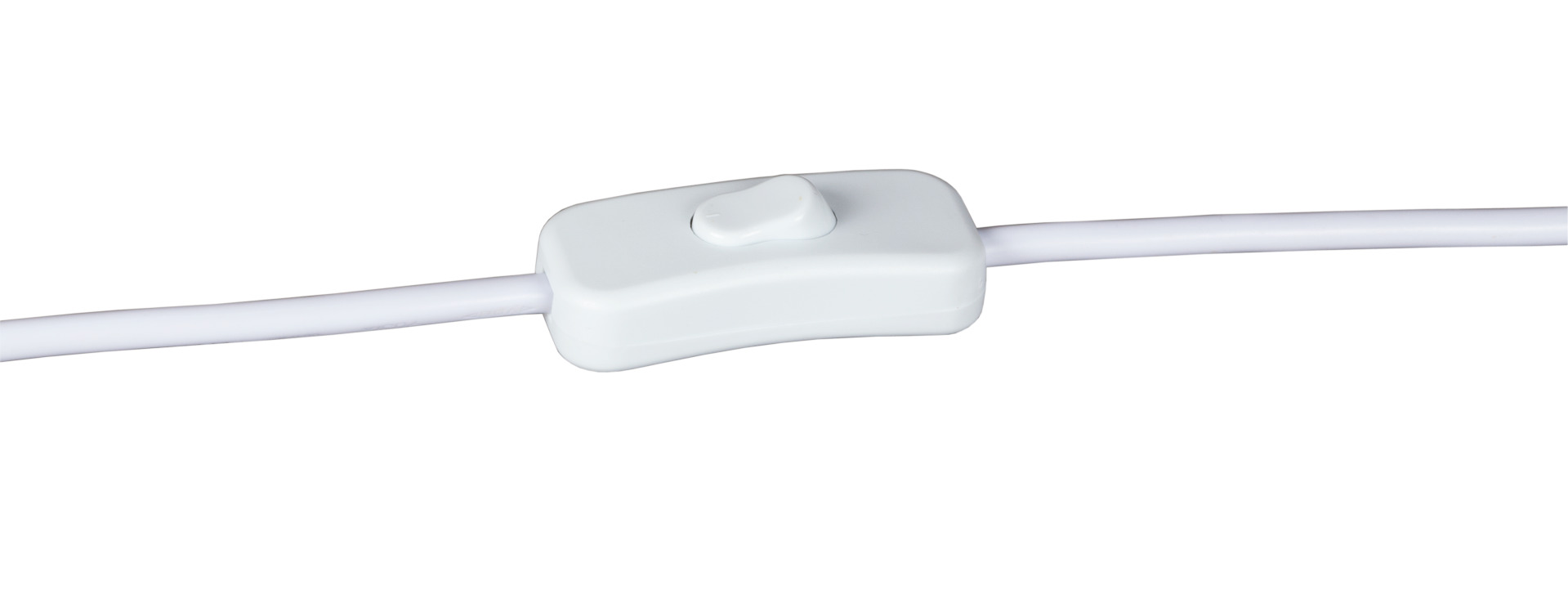

| With on/off switch: | True |
| With socket outlet: | False |
