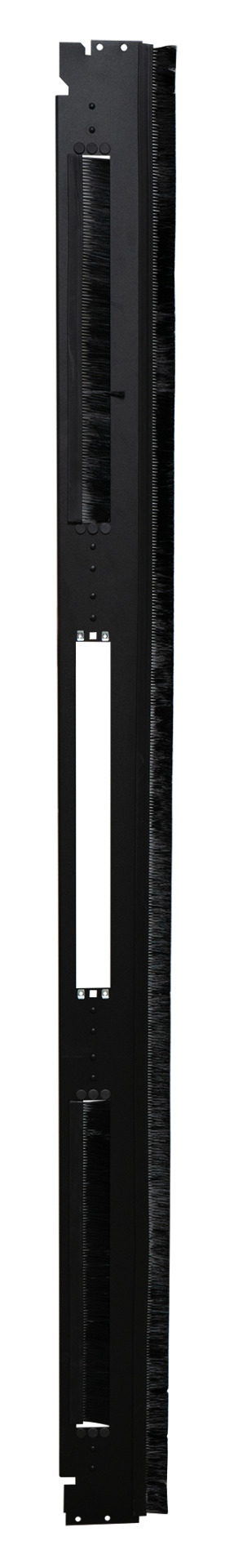

Sice Cover/Air Routing for EFB-Server W=800
Side Cover/Air Routing for ESV 42U W=800, Set 2 Pieces, RAL7035
Varenummer:
ESV-SA3428.GR
EAN Nr.:
4049759244354
Produktinformation til Side Cover/Air Routing for ESV 42U W=800, Set 2 Pieces, RAL7035

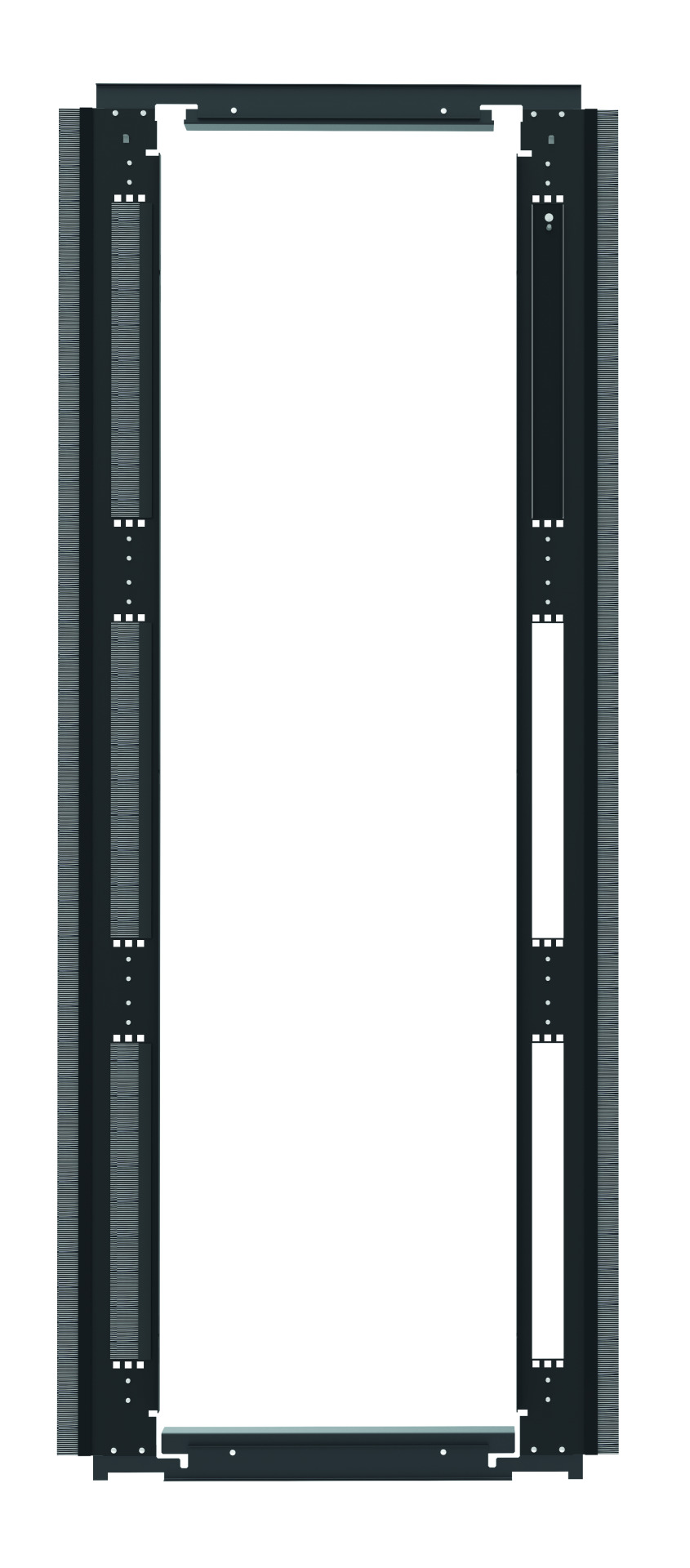

For covering the area beside the 19“ level in cabinets EFB-Server in width 800 mm
Serves to control the air flow and prevents the mixing of warm and cold air
Sealing to side walls with brush strip
With cutouts 3 x 19" 1U per side for cable routing or accessory mounting
Mounting openings for cable routing brackets
Toolless mounting left- and right-sided of the 19" profiles
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 2 x panel incl. mounting accessories (toolless), brush strips
Serves to control the air flow and prevents the mixing of warm and cold air
Sealing to side walls with brush strip
With cutouts 3 x 19" 1U per side for cable routing or accessory mounting
Mounting openings for cable routing brackets
Toolless mounting left- and right-sided of the 19" profiles
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 2 x panel incl. mounting accessories (toolless), brush strips
Tekniske egenskaber
| Cabinet Series: | EFB-Server |
|---|---|
| Material: | Metal |
| Model: | Cover |
| Mounting position: | Cable space |
Varianten
| Art. Nr. | Bezeichnung | Number of height units | For Cabinet Width | Colour | Width | Height | RAL-number | |
|---|---|---|---|---|---|---|---|---|
| ESV-SA3428.GR | Side Cover/Air Routing for ESV 42U W=800, Set 2 Pieces, RAL7035 | 42 U | 800 mm | grey | 146 mm | 1923 mm | 7035 | |
| ESV-SA3478.GR | Side Cover/Air Routing for ESV 47U W=800, Set 2 Pieces, RAL7035 | 47 U | 800 mm | grey | 146 mm | - | 7035 | |
| ESV-SA3428.TS | Side Cover/Air Routing for ESV 42U W=800, Set 2 Pieces, RAL9005 | 42 U | 800 mm | black | 146 mm | 1923 mm | 9005 | |
| ESV-SA3478.TS | Side Cover/Air Routing for ESV 47U W=800, Set 2 Pieces, RAL9005 | 47 U | 800 mm | black | 146 mm | - | 9005 |
