Side Walls for ESV 42U, D=1000 mm, Type A/B/C/D/E, RAL9005

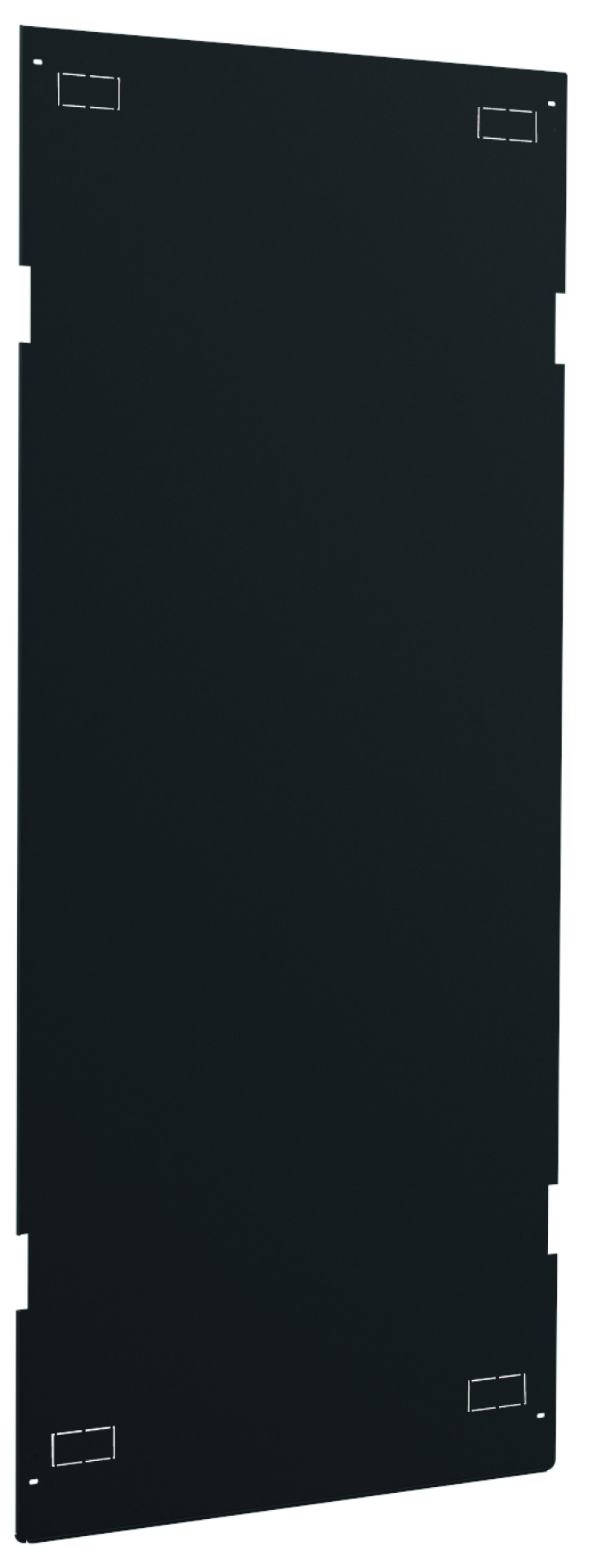

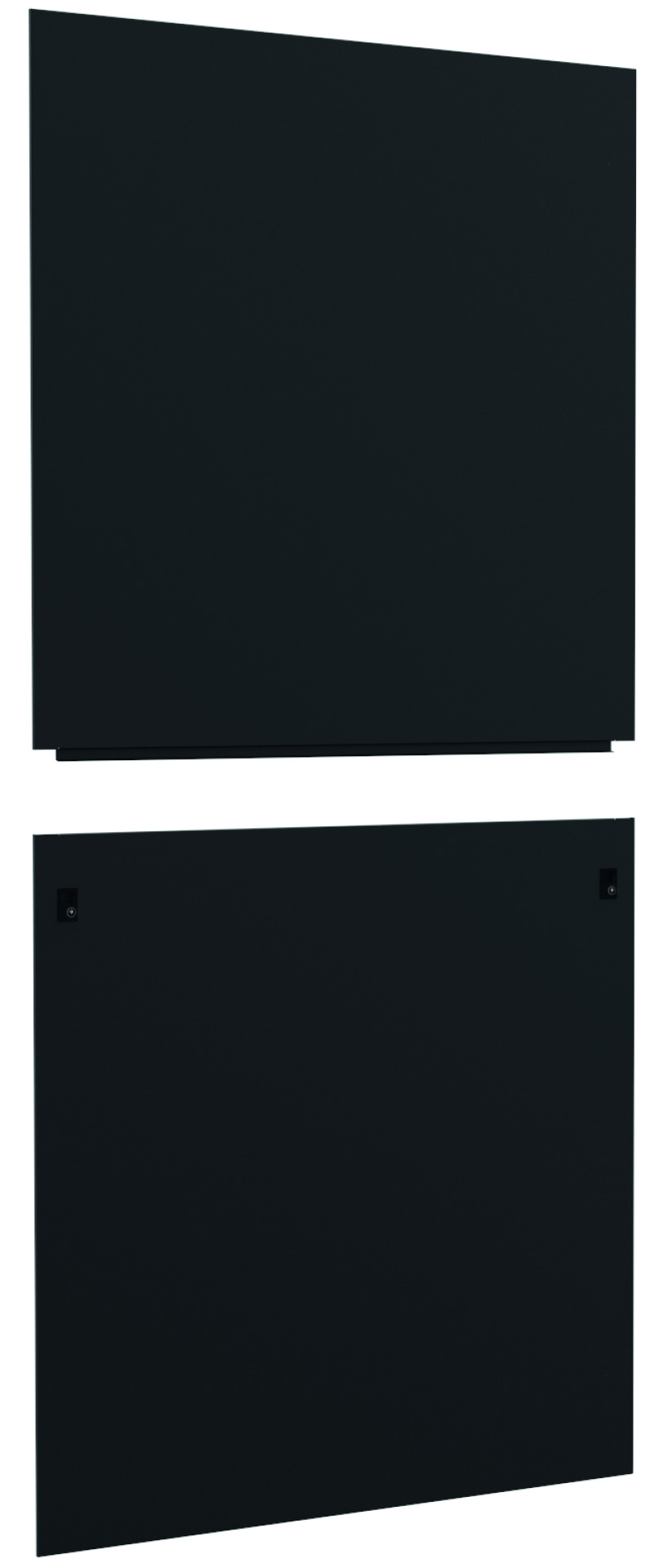

Side Wall for ESV 42U, D=1000 mm, Type A, RAL9005
Varenummer:
ESV-W420A.TS
EAN Nr.:
4049759244910
Produktinformation til Side Wall for ESV 42U, D=1000 mm, Type A, RAL9005
Side walls resp. partitions for server cabinets EFB-Server are available in 4 variants:
Side wall type A:
- Enables door opening angle of 270°
- Cabinet width increases by 3 mm per side
Side wall type B:
- Enables the mounting of PDUs lateral of the 19" profiles for cabinet width 600 mm
- Cabinet width increases by 3 mm per side
Partition typ C/D:
- Partition for mounting between lined-up cabinets
With 4 pre-punched cable openings 150 x 45 mm and 4 cutouts for line-up connectors
Front and bottom bends for easy installation
Necessary cabinet distance only 2 mm
Partition type C: for use at cabinets with levelling feet
Partition type D: for use at cabinets without levelling feet
Partition type E: for mounting inside of the cabinet frame
Material steel sheet
Scope of delivery: 1 x side wall/partition
Side wall type A:
- Enables door opening angle of 270°
- Cabinet width increases by 3 mm per side
Side wall type B:
- Enables the mounting of PDUs lateral of the 19" profiles for cabinet width 600 mm
- Cabinet width increases by 3 mm per side
Partition typ C/D:
- Partition for mounting between lined-up cabinets
With 4 pre-punched cable openings 150 x 45 mm and 4 cutouts for line-up connectors
Front and bottom bends for easy installation
Necessary cabinet distance only 2 mm
Partition type C: for use at cabinets with levelling feet
Partition type D: for use at cabinets without levelling feet
Partition type E: for mounting inside of the cabinet frame
Material steel sheet
Scope of delivery: 1 x side wall/partition
Tekniske egenskaber
| Cabinet Series: | EFB-Server |
|---|---|
| Material: | Steel |
| Suitable as rear panel: | False |
| Suitable as side panel: | True |
| Surface finishing: | Powder coating |
Varianten
| Art. Nr. | Bezeichnung | Number of height units | Color | Type | Suitable for enclosure building depth | RAL-number | With cable entry | With lock | |
|---|---|---|---|---|---|---|---|---|---|
| ESV-W420A.TS | Side Wall for ESV 42U, D=1000 mm, Type A, RAL9005 | 42 U | black | Door opening 270° | 1000 mm | 9005 | False | True | |
| ESV-W420B.TS | Side Wall for ESV 42U, D=1000 mm, Type B, RAL9005 | 42 U | black | PDU in W=600 mm | 1000 mm | 9005 | False | True | |
| ESV-W420C.TS | Side Wall for ESV 42U, D=1000 mm, Type C, RAL9005 | 42 U | black | Partition w/o feet | 1000 mm | 9005 | True | False | |
| ESV-W420D.TS | Side Wall for ESV 42U, D=1000 mm, Type D, RAL9005 | 42 U | black | Partition with feet | 1000 mm | 9005 | True | False |
