Side Walls for ESV 42U, D=1200 mm, Type A/B/C/D/E, RAL9005

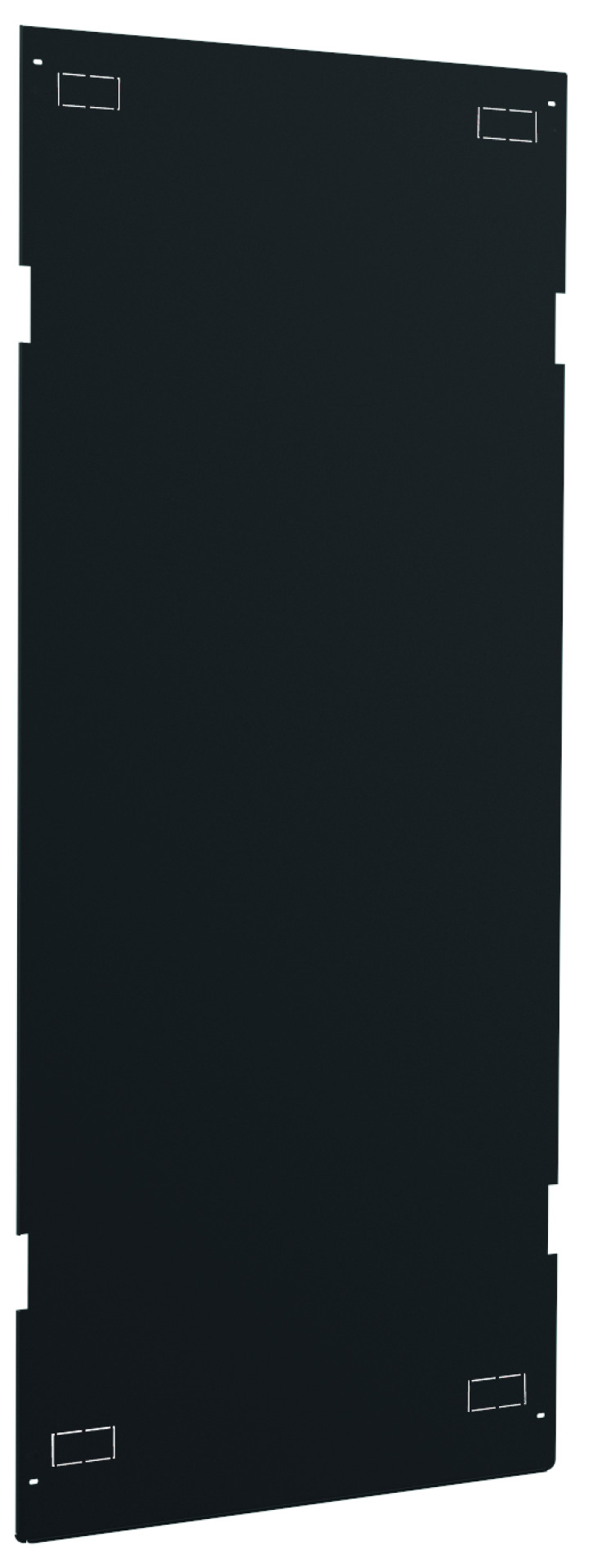

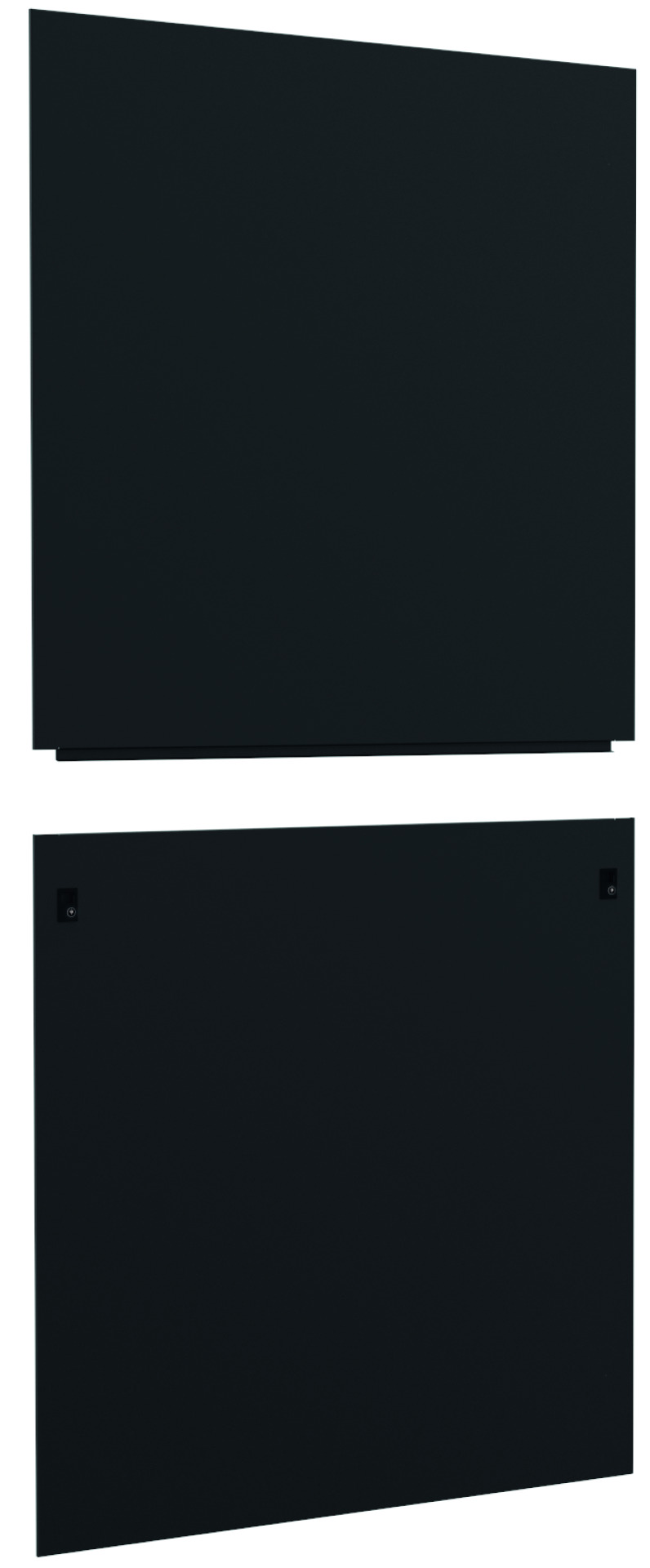

Side Wall for ESV 42U, D=1200 mm, Type A, RAL9005
Varenummer: ESV-W422A.TS
EAN Nr.: 4049759244996

Produktinformation til Side Wall for ESV 42U, D=1200 mm, Type A, RAL9005

Side walls resp. partitions for server cabinets EFB-Server are available in 4 variants:
Side wall type A:
- Enables door opening angle of 270°
- Cabinet width increases by 3 mm per side
Side wall type B:
- Enables the mounting of PDUs lateral of the 19" profiles for cabinet width 600 mm
- Cabinet width increases by 3 mm per side
Partition typ C/D:
- Partition for mounting between lined-up cabinets
With 4 pre-punched cable openings 150 x 45 mm and 4 cutouts for line-up connectors
Front and bottom bends for easy installation
Necessary cabinet distance only 2 mm
Partition type C: for use at cabinets with levelling feet
Partition type D: for use at cabinets without levelling feet
Partition type E: for mounting inside of the cabinet frame
Material steel sheet
Scope of delivery: 1 x side wall/partition

Tekniske egenskaber

Cabinet Series: EFB-Server
Material: Steel
Suitable as rear panel: False
Suitable as side panel: True
Surface finishing: Powder coating

Varianten

Art. Nr. Bezeichnung Colour Number of height units Suitable for enclosure building depth Type RAL-number With cable entry With lock
ESV-W422A.TS Side Wall for ESV 42U, D=1200 mm, Type A, RAL9005 black 42 U 1200 mm Door opening 270° 9005 False True
ESV-W422B.TS Side Wall for ESV 42U, D=1200 mm, Type B, RAL9005 black 42 U 1200 mm PDU in W=600 mm 9005 False True
ESV-W422C.TS Side Wall for ESV 42U, D=1200 mm, Type C, RAL9005 black 42 U 1200 mm Partition w/o feet 9005 True False
ESV-W422D.TS Side Wall for ESV 42U, D=1200 mm, Type D, RAL9005 black 42 U 1200 mm Partition with feet 9005 True False
