Side Walls for ESV 47U, D=1200 mm, Type A/B/C/D/E, RAL7035

Priser kun synlige for indloggede brugere

Side Wall for ESV 47U, D=1200 mm, Type B, RAL7035
Varenummer: ESV-W472B.GR
EAN nr.: 4049759245245
Piece

Produktinformation für Side Wall for ESV 47U, D=1200 mm, Type B, RAL7035

Side walls resp. partitions for server cabinets EFB-Server are available in 4 variants:
Side wall type A:
- Enables door opening angle of 270°
- Cabinet width increases by 3 mm per side

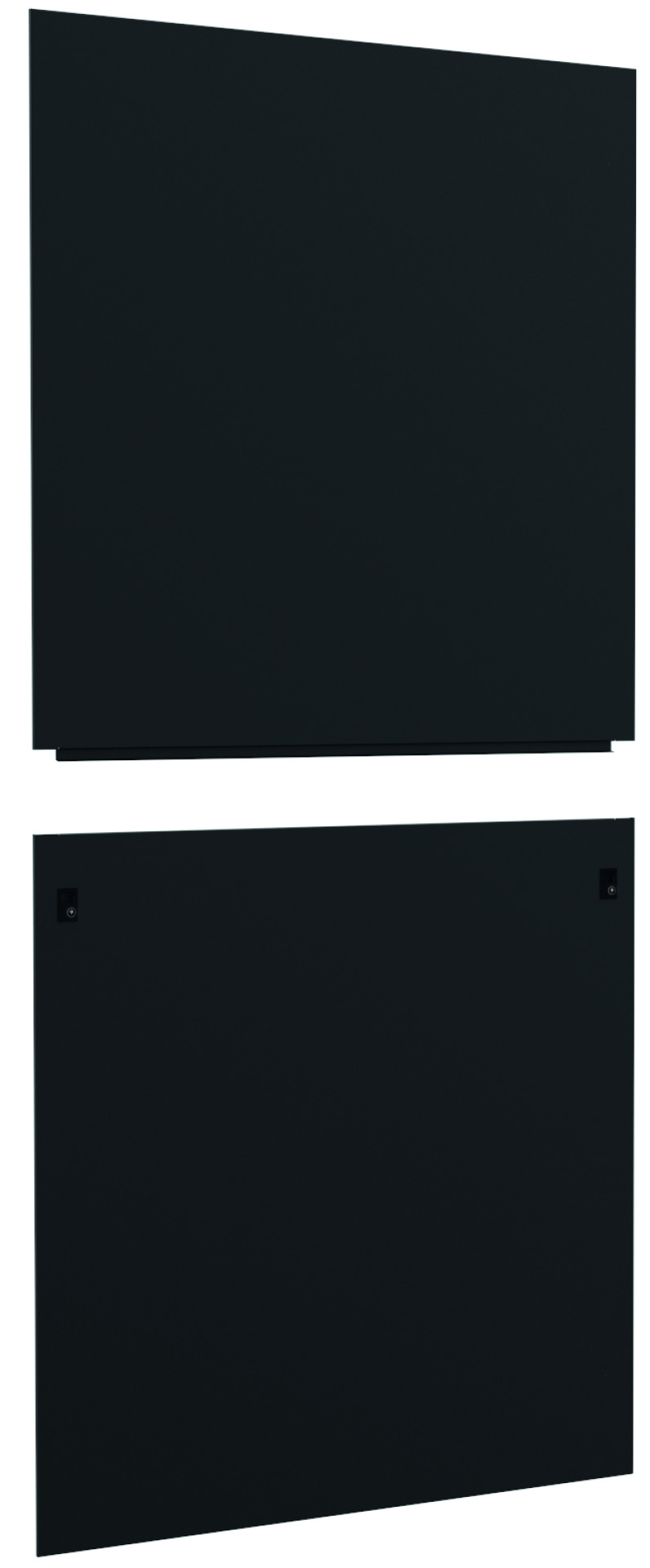

Side wall type B:
- Enables the mounting of PDUs lateral of the 19" profiles for cabinet width 600 mm
- Cabinet width increases by 3 mm per side

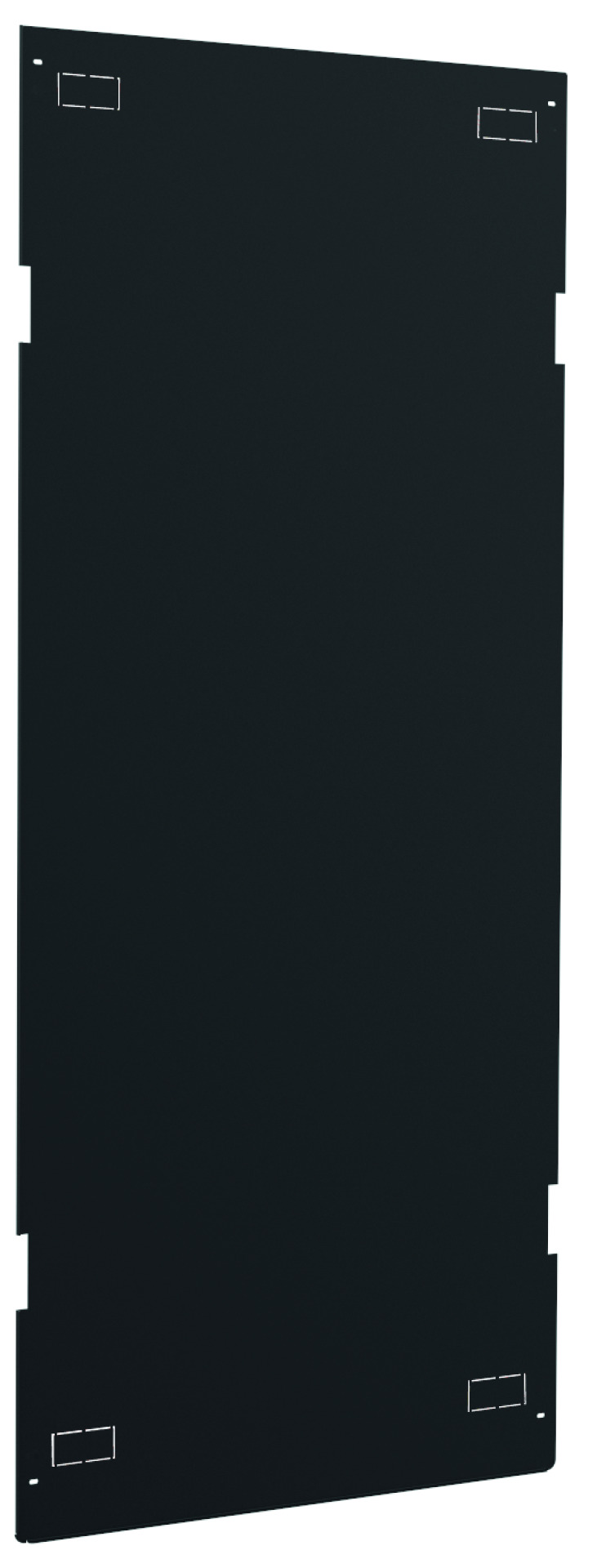

Partition typ C/D:
- Partition for mounting between lined-up cabinets
With 4 pre-punched cable openings 150 x 45 mm and 4 cutouts for line-up connectors
Front and bottom bends for easy installation
Necessary cabinet distance only 2 mm
Partition type C: for use at cabinets with levelling feet
Partition type D: for use at cabinets without levelling feet
Partition type E: for mounting inside of the cabinet frame
Material steel sheet
Scope of delivery: 1 x side wall/partition

Tekniske egenskaber

Cabinet Series: EFB-Server
Material: Steel
Suitable as rear panel: False
Suitable as side panel: True
Surface finishing: Powder coating

Varianter

Art. Nej. Betegnelse Suitable for enclosure building depth Colour Number of height units Type RAL-number With cable entry With lock
ESV-W472A.GR Side Wall for ESV 47U, D=1200 mm, Type A, RAL7035 1200 mm grey 47 U Door opening 270° 7035 False True
ESV-W472B.GR Side Wall for ESV 47U, D=1200 mm, Type B, RAL7035 1200 mm grey 47 U PDU in W=600 mm 7035 False True
ESV-W472C.GR Side Wall for ESV 47U, D=1200 mm, Type C, RAL7035 1200 mm grey 47 U Partition w/o feet 7035 True False
ESV-W472D.GR Side Wall for ESV 47U, D=1200 mm, Type D, RAL7035 1200 mm grey 47 U Partition with feet 7035 True False
