Sliding Doors for ESV 42U, Cabinet Depth 1000 mm, Aisle 1200 mm
Sliding Door for ESV 42U, A=1200, D=1000, Manual, w/o Ft/Pl, RAL7035
Varenummer:
ESV-STR4200M.GR
EAN Nr.:
4049759244439
Produktinformationen für Sliding Door for ESV 42U, A=1200, D=1000, Manual, w/o Ft/Pl, RAL7035

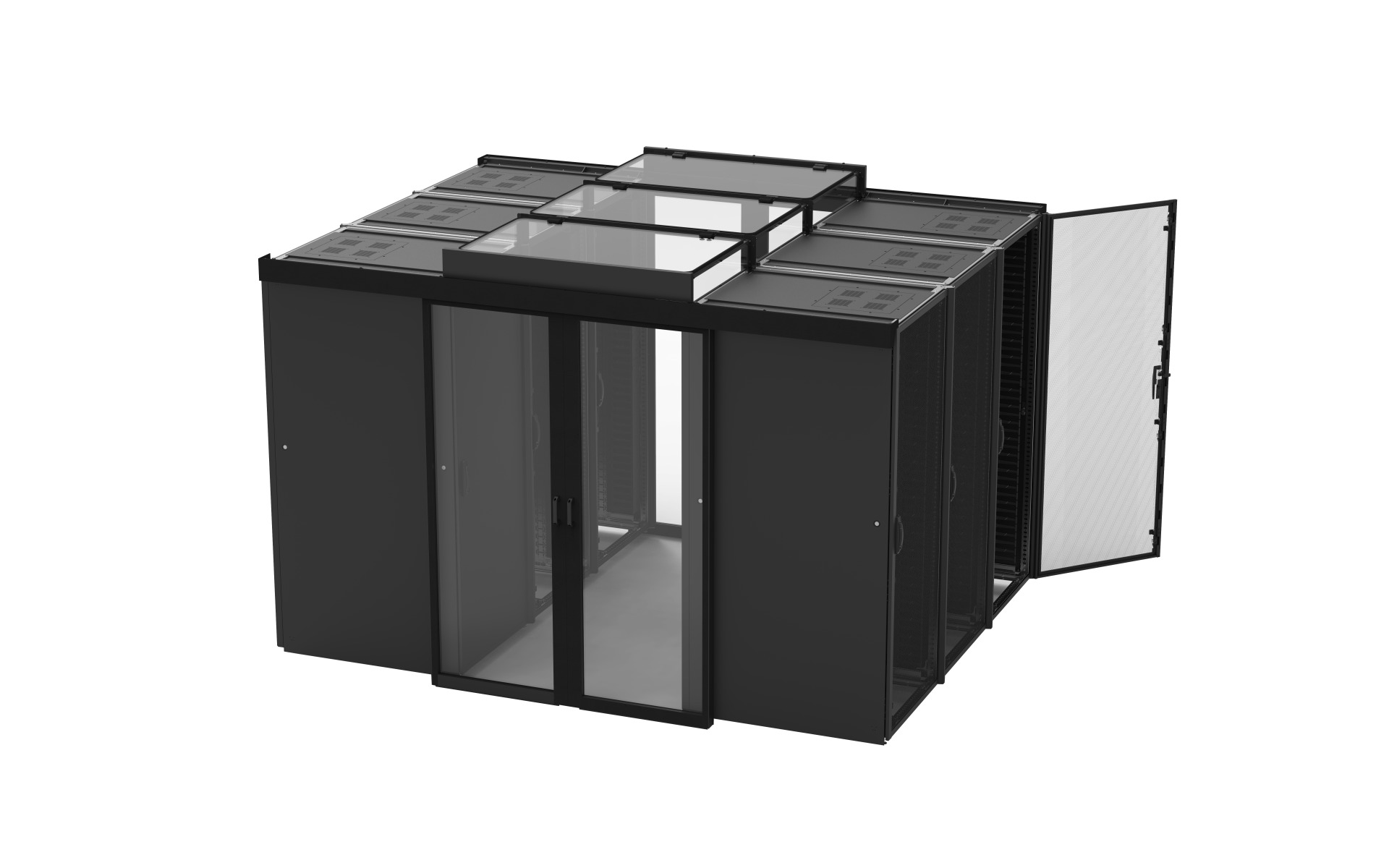

Sliding door for Cold/Warm Aisle Containment basing on cabinet series 'EFB-Server'
Glass sliding door with operating handles, without lock (locking optional on demand)
Manual operation, self-closing or automatic operation available (optional)
Variants for use with/without levelling feet or plinth available
Materials steel, aluminium, certified safety glass
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery as complete set incl. 2 x door element, upper cover, 2 side walls and mounting material
We advise & deliver individual solutions for your project - please contact us.
Glass sliding door with operating handles, without lock (locking optional on demand)
Manual operation, self-closing or automatic operation available (optional)
Variants for use with/without levelling feet or plinth available
Materials steel, aluminium, certified safety glass
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery as complete set incl. 2 x door element, upper cover, 2 side walls and mounting material
We advise & deliver individual solutions for your project - please contact us.
Technische Eigenschaften
| Cabinet Series: | EFB-Server |
|---|---|
| Material: | Steel |
| Surface finishing: | Powder coating |
| With cable entry: | False |
| With lock: | False |
Varianten
| Art. Nr. | Bezeichnung | Installation | Aisle width | Number of height units | Width | Suitable for enclosure building depth | Operation | RAL-number | Colour | |
|---|---|---|---|---|---|---|---|---|---|---|
| ESV-STR4200M.GR | Sliding Door for ESV 42U, A=1200, D=1000, Manual, w/o Ft/Pl, RAL7035 | Without feet | 1200 mm | 42 U | 3200 mm | 1000 mm | Manual | 7035 | grey | |
| ESV-STR420FM.GR | Sliding Door for ESV 42U, A=1200, D=1000, Manual, with Feet, RAL7035 | With feet | 1200 mm | 42 U | 3200 mm | 1000 mm | Manual | 7035 | grey | |
| ESV-STR4200S.GR | Sliding Door for ESV 42U, A=1200, D=1000, Self-Closing, w/o Ft/Pl, RAL7035 | Without feet | 1200 mm | 42 U | 3200 mm | 1000 mm | Self-closing | 7035 | grey | |
| ESV-STR4200M.TS | Sliding Door for ESV 42U, A=1200, D=1000, Manual, w/o Ft/Pl, RAL9005 | Without feet | 1200 mm | 42 U | 3200 mm | 1000 mm | Manual | 9005 | black | |
| ESV-STR420FM.TS | Sliding Door for ESV 42U, A=1200, D=1000, Manual, with Feet, RAL9005 | With feet | 1200 mm | 42 U | 3200 mm | 1000 mm | Manual | 9005 | black | |
| ESV-STR4200S.TS | Sliding Door for ESV 42U, A=1200, D=1000, Self-Closing, w/o Ft/Pl, RAL9005 | Without feet | 1200 mm | 42 U | 3200 mm | 1000 mm | Self-closing | 9005 | black |
