LC / SPC Singlemode
SM Attenuators LC/SPC 1 dB Return Loss 45 dB, SM, blue
Varenummer:
533680.1
EAN Nr.:
4049759165567
Produktinformationen für SM Attenuators LC/SPC 1 dB Return Loss 45 dB, SM, blue

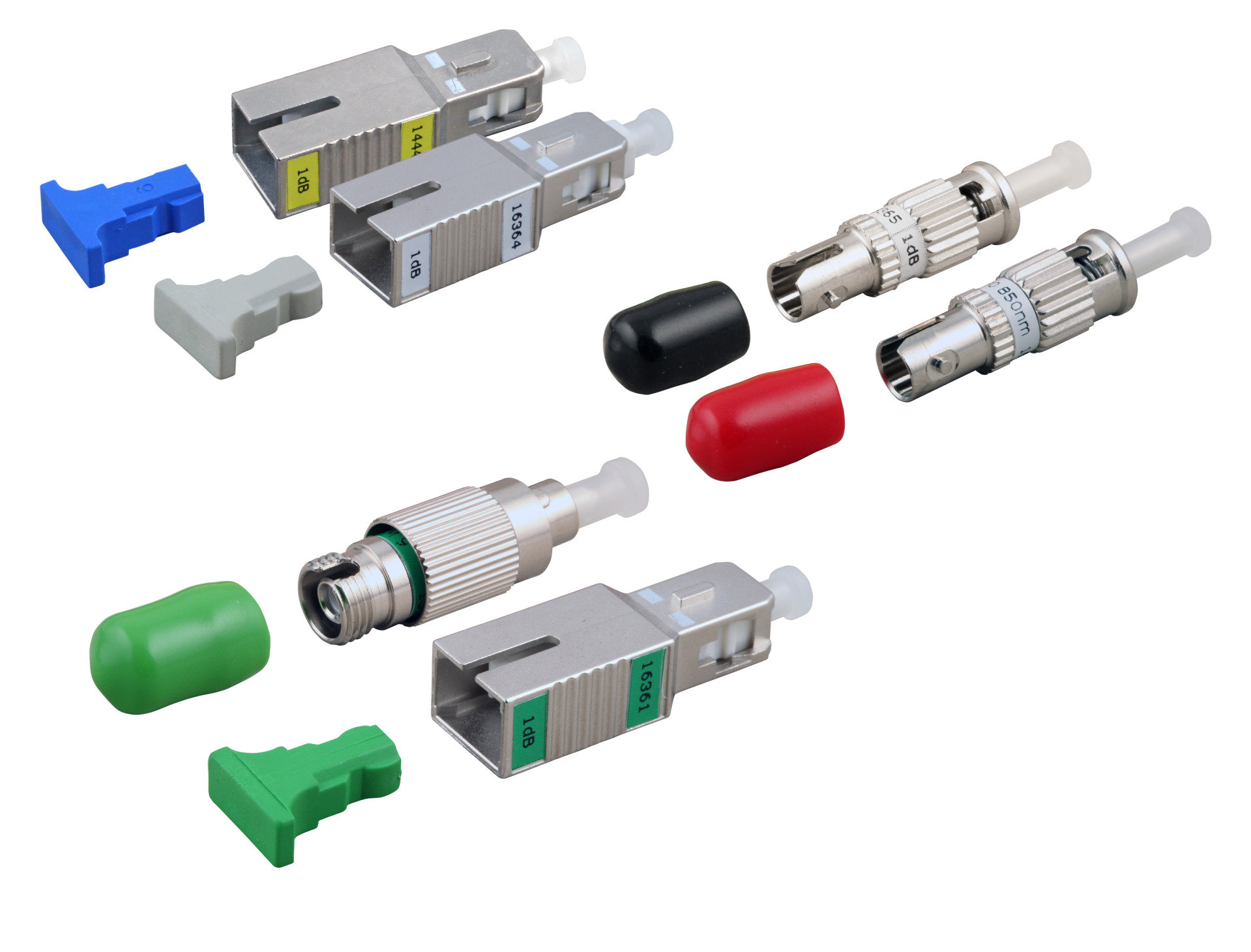

Attenuators are used to increase the attenuation of fiber optic lines. This can be necessary at short distances to prevent overmodulation of the receiver. SPC = Return Loss max. 45 dB
APC = Return Loss max. 60 dB
Suitable for CWDM !
Attenuation in dB:
1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 10 - 15 - 20
APC = Return Loss max. 60 dB
Suitable for CWDM !
Attenuation in dB:
1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 10 - 15 - 20
Technische Eigenschaften
| Conform to Standard: | IEC61754-20 |
|---|---|
| Dust cover: | True |
| Height: | 10.5 mm |
| Internal Shutter: | False |
| Length: | 28.65 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating Temperature: | -20 – 75 °C |
| Storage Temperature: | -40 – 75 °C |
| Type of connector connection 1: | LC |
| Type of connector connection 2: | LC |
| Type of housing: | flangeless |
| Width: | 6.3 mm |
Varianten
| Art. Nr. | Bezeichnung | Model | Colour | Suitable for type of fibre | |
|---|---|---|---|---|---|
| 533680.10 | SM Attenuators LC/SPC 10 dB Return Loss 45 dB, SM, blue | LC/PC | blue | Single mode | |
| 533680.2 | SM Attenuators LC/SPC 2 dB Return Loss 45 dB, SM, blue | LC/PC | blue | Single mode | |
| 533680.3 | SM Attenuators LC/SPC 3 dB Return Loss 45 dB, SM, blue | LC/PC | blue | Single mode | |
| 533680.5 | SM Attenuators LC/SPC 5 dB Return Loss 45 dB, SM, blue | LC/PC | blue | Single mode | |
| 533680.7 | SM Attenuators LC/SPC 7 dB Return Loss 45 dB, SM, blue | LC/PC | blue | Single mode | |
| 533680.1 | SM Attenuators LC/SPC 1 dB Return Loss 45 dB, SM, blue | LC/PC | blue | Single mode |
