Splice box gy sliding LC OM3 12x pigtail and 6x duplex adapter
Indhold:
1 Stück
Splice box gy sliding LC OM3 12x pigtail and 6x duplex adapter
Varenummer:
B71901L12OM3
EAN nr.:
4049759284374
Produktinformation til Splice box gy sliding LC OM3 12x pigtail and 6x duplex adapter

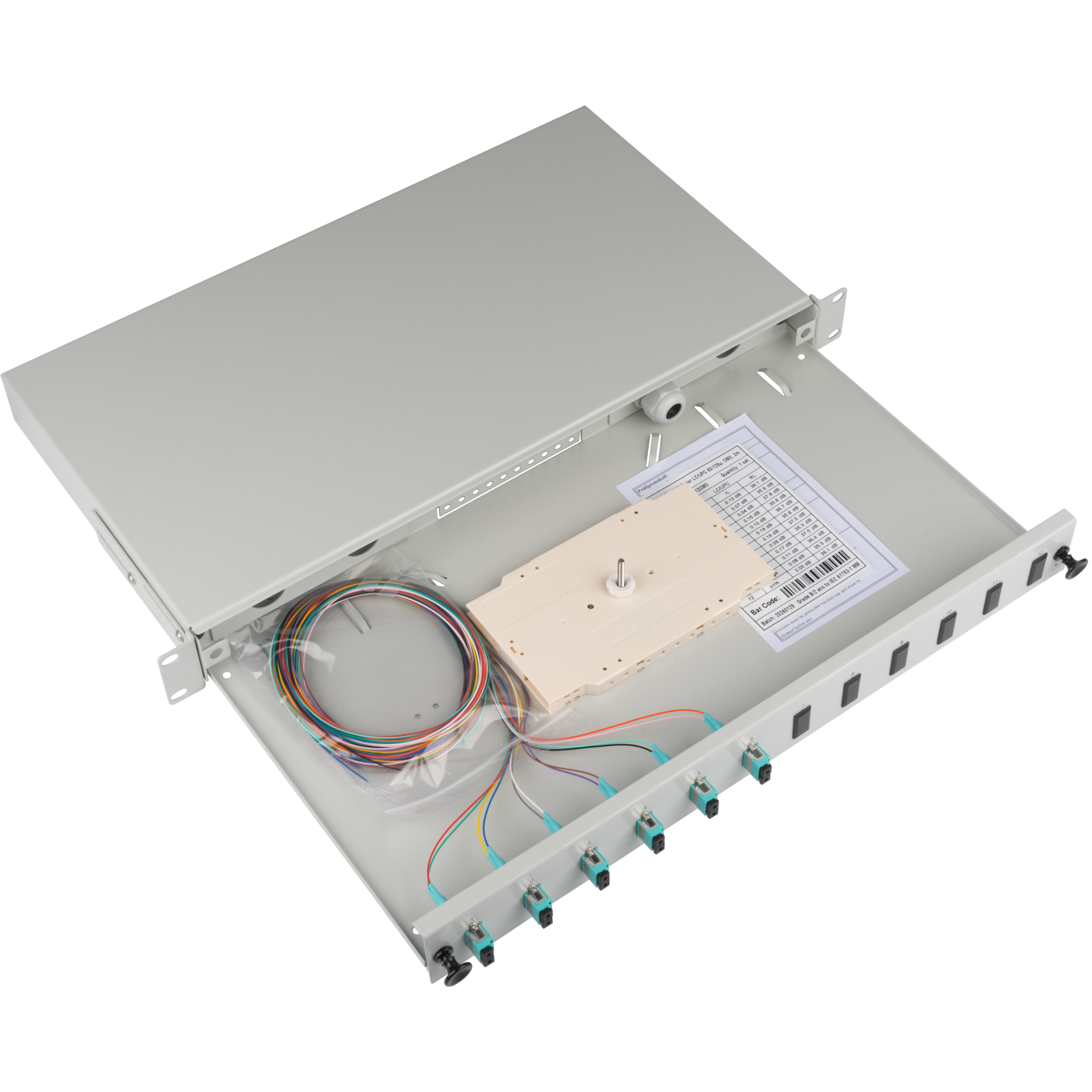

The pull-out splice box from EFB-Elektronik is designed for the structured pick-up of splices and the clear management of multimode fibre optic connections in a 19-inch rack. The 1U design combines compact integration with service-friendly access to the splice level.

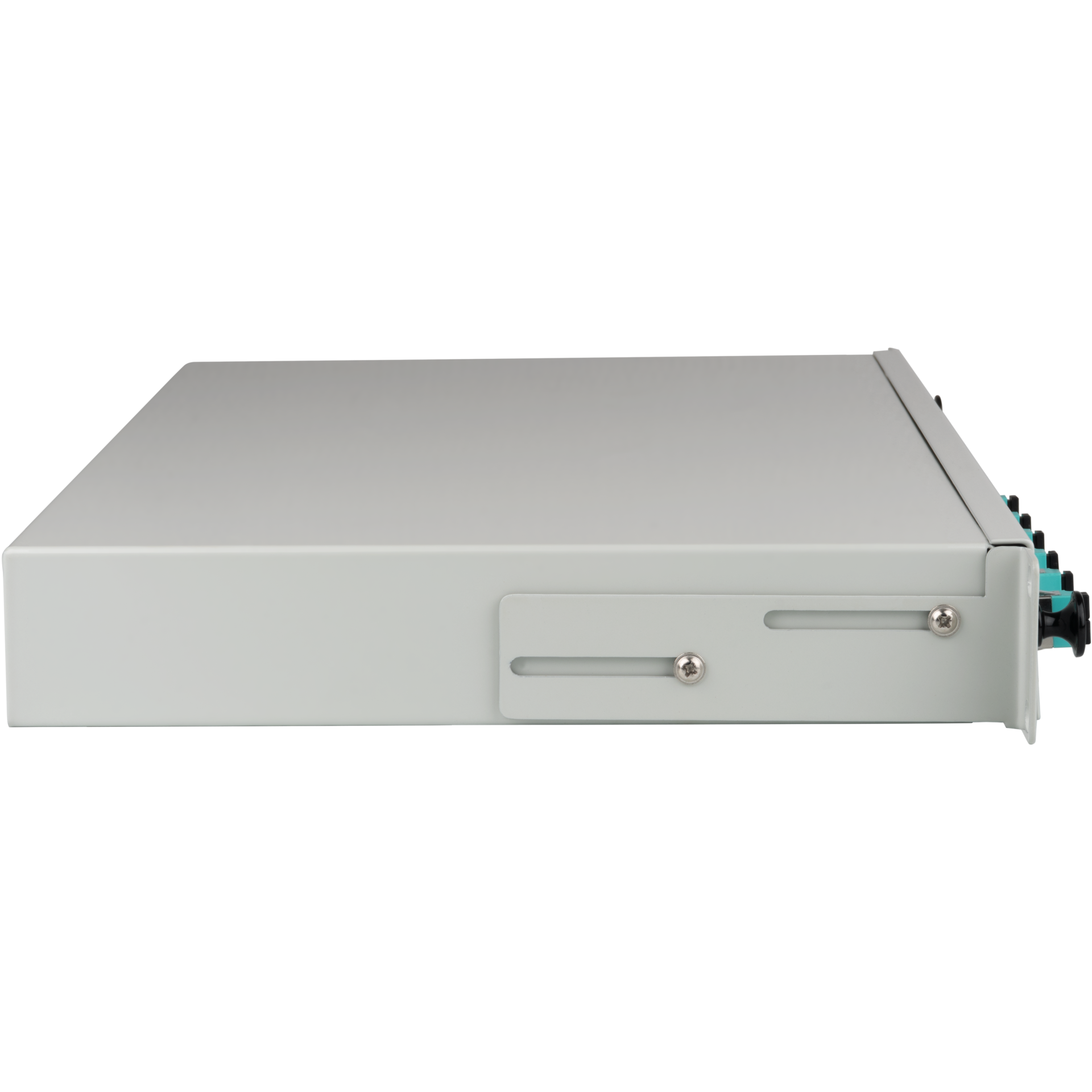

• 1U, 19-inch extendable design – Allows for compact rack integration and simplifies maintenance and splice level access.

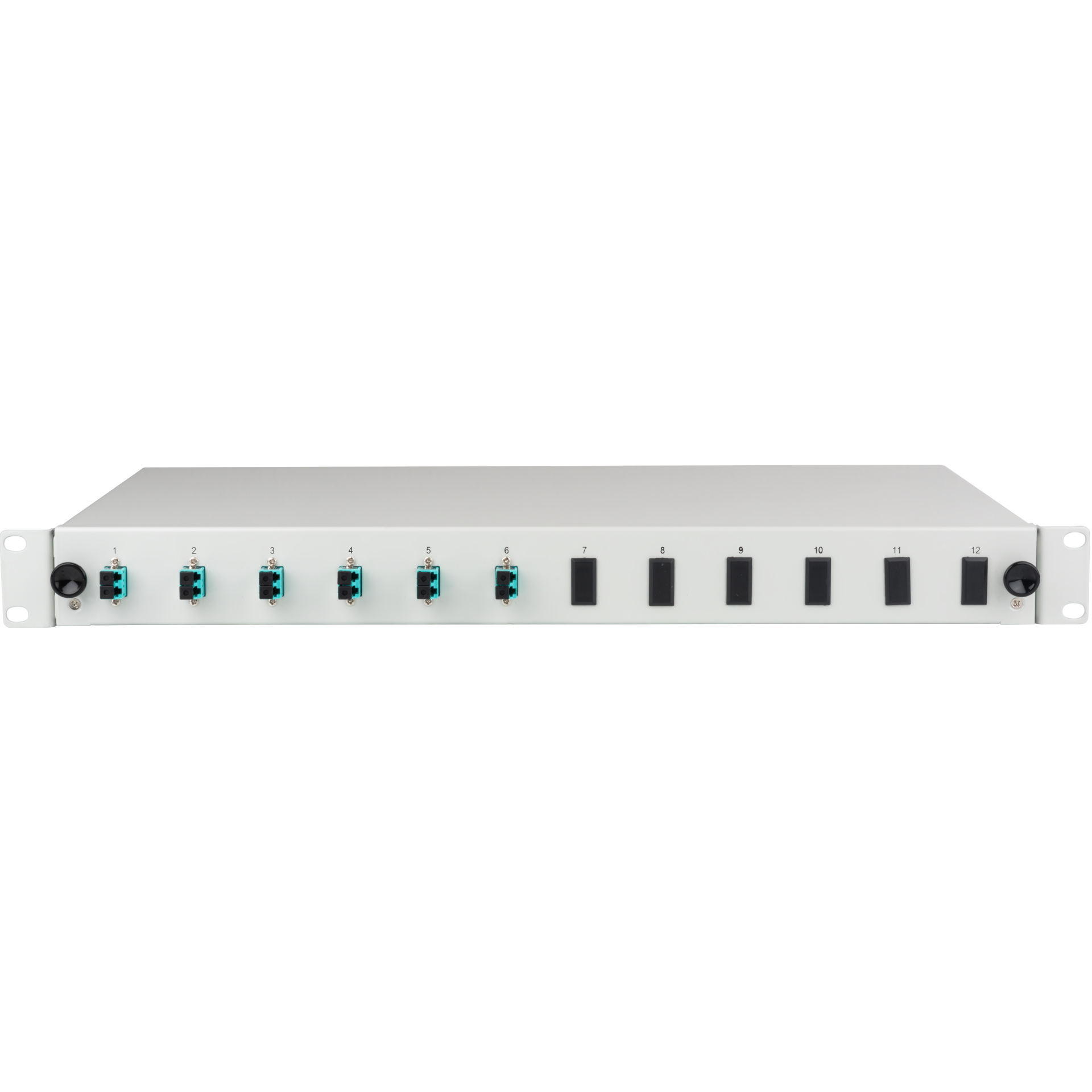

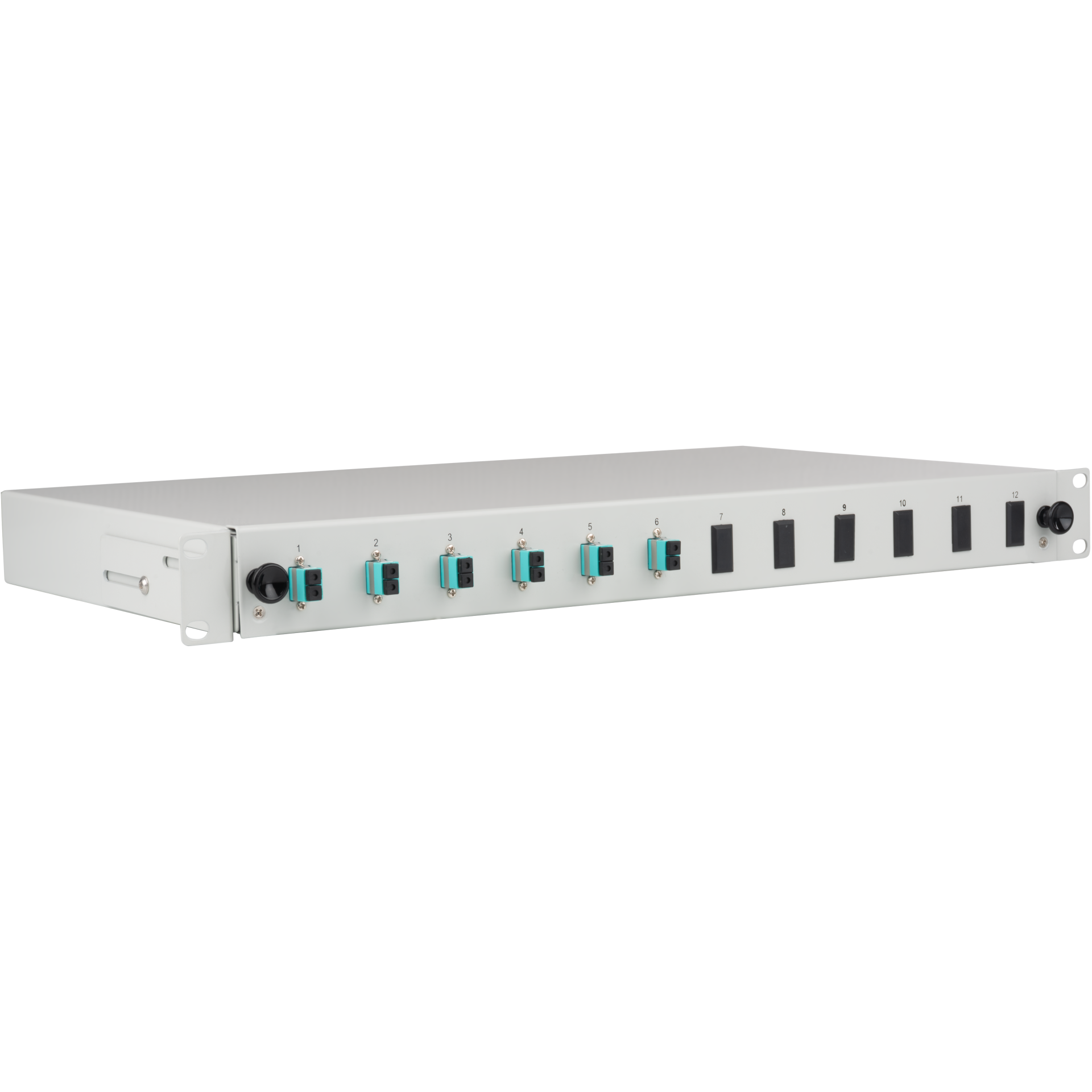

• Front panel with 6 LC duplex couplings and 6 blanking plugs – Ensures pre-assembled, tidy assembly and keeps unused positions neatly sealed.

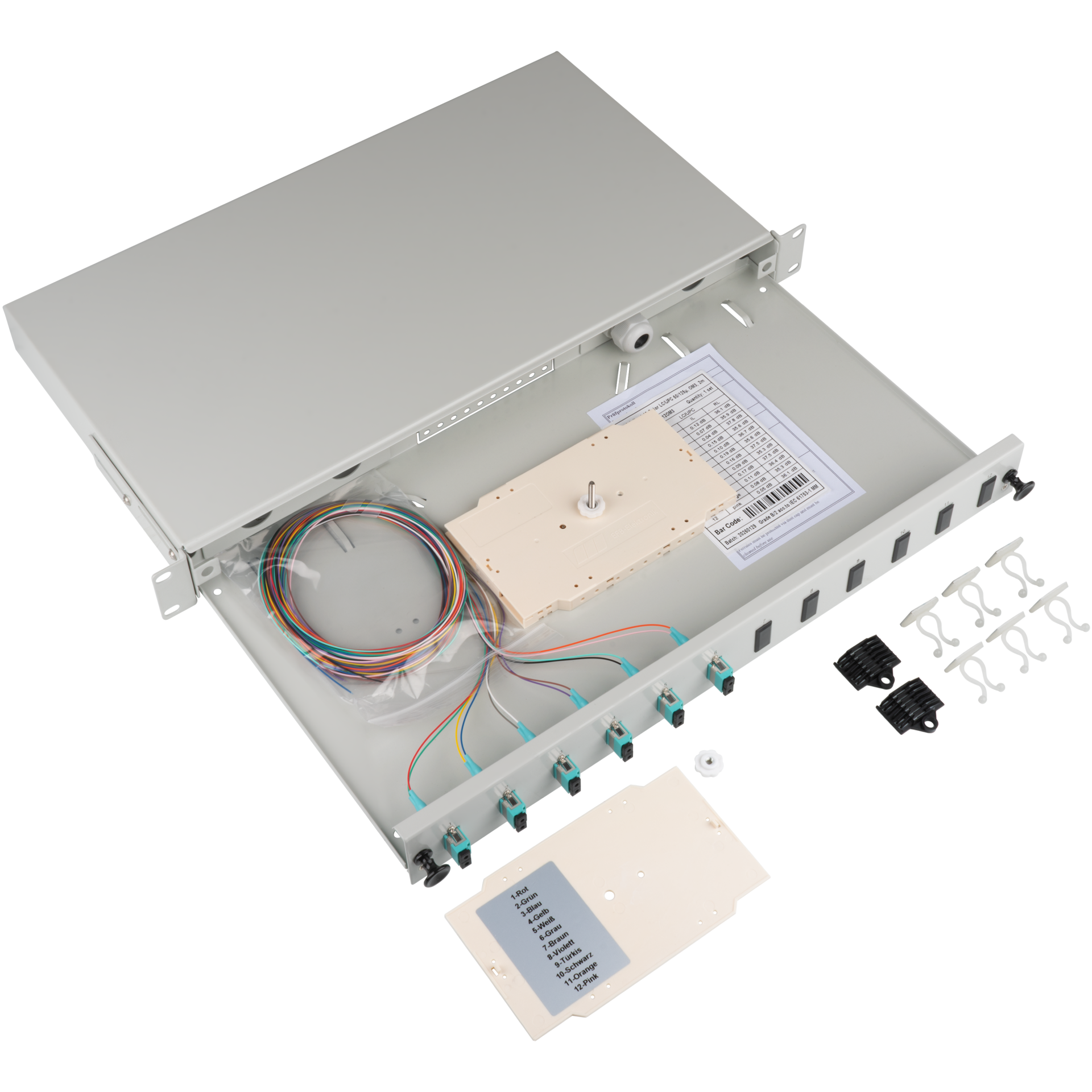

• 12 prepared LC pigtails with LSZH jacket and 2 m length – Support efficient splicing organisation and reduce installation effort.

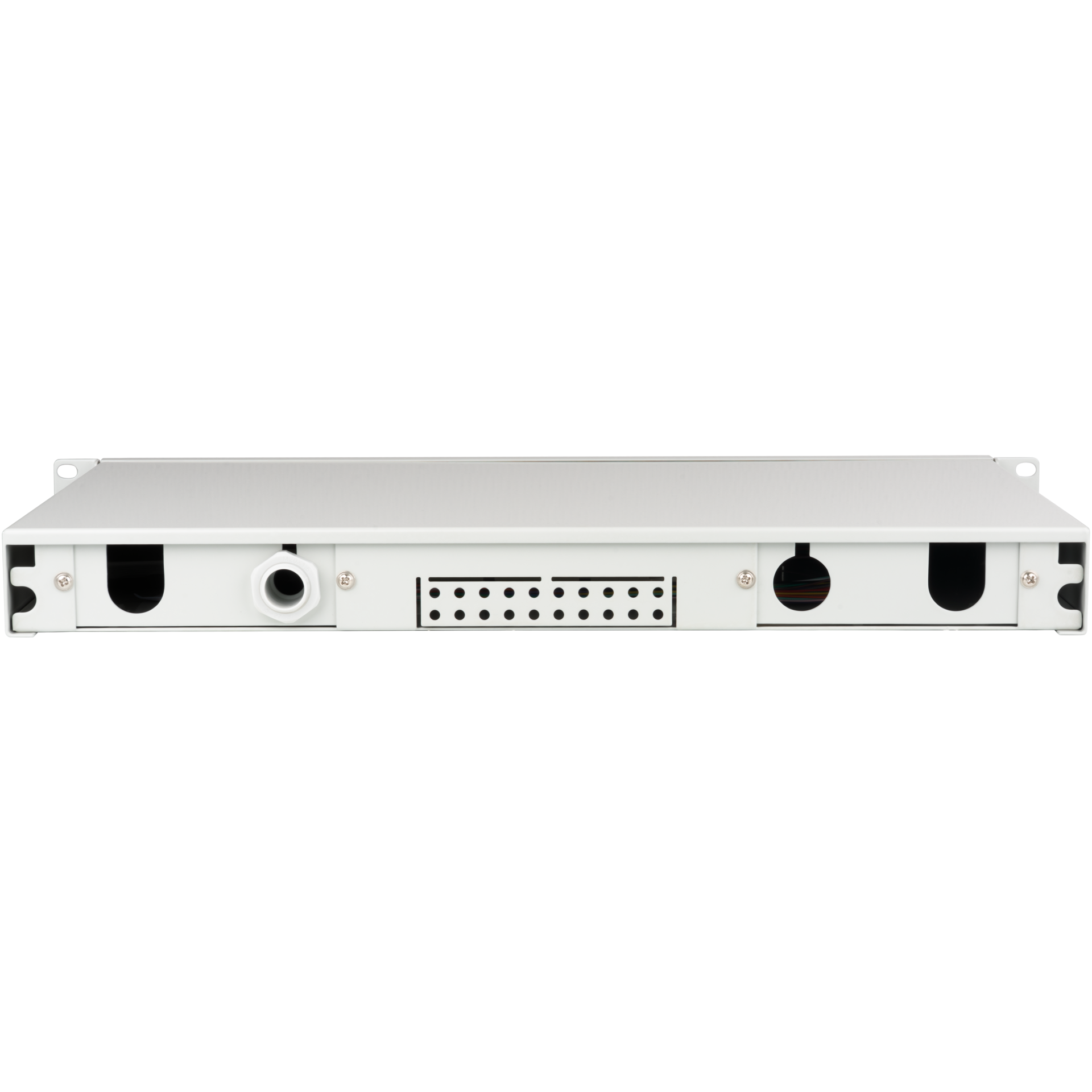

The splice box is designed for multimode 50/125 in fibre class OM3 and uses LC duplex couplings with ceramic ferrule guides. The sheet steel housing in grey according to RAL 7035 supports robust and clean rack integration. Pre-assembled crimp/ANT splice holders and enclosed shrink splice holders facilitate structured routing of the fibres. The concept is complemented by a splice cassette with 4 capacity as well as LC connectors inside and outside.
Technical details
• Extendable: Yes
• Fibre class: OM3
• Fibre type: Multimode 50/125
• Couplings: LC-Duplex
• With number of couplings/adapters: 6
• Coupling material: plastic
• Couplings (ferrule guide): Ceramic
• Coupling colour: aqua
• Pigtail: 12 x LC
• Pigtail: 2 m
• Pigtail Coating Material: LSZH
• Pigtail prepared: not settled
• Number of height units (U): 1U
• Alignment of the couplings/adapters: vertical
• Colour: grey
• RAL number: 7035
• Material: sheet steel
• Mounting type: 482.6 mm (19 in) Installation
• With front panel: Yes
• With housing: Yes
• With pigtails: Yes
• 1U, 19-inch extendable design – Allows for compact rack integration and simplifies maintenance and splice level access.
• Front panel with 6 LC duplex couplings and 6 blanking plugs – Ensures pre-assembled, tidy assembly and keeps unused positions neatly sealed.
• 12 prepared LC pigtails with LSZH jacket and 2 m length – Support efficient splicing organisation and reduce installation effort.
The splice box is designed for multimode 50/125 in fibre class OM3 and uses LC duplex couplings with ceramic ferrule guides. The sheet steel housing in grey according to RAL 7035 supports robust and clean rack integration. Pre-assembled crimp/ANT splice holders and enclosed shrink splice holders facilitate structured routing of the fibres. The concept is complemented by a splice cassette with 4 capacity as well as LC connectors inside and outside.
Technical details
• Extendable: Yes
• Fibre class: OM3
• Fibre type: Multimode 50/125
• Couplings: LC-Duplex
• With number of couplings/adapters: 6
• Coupling material: plastic
• Couplings (ferrule guide): Ceramic
• Coupling colour: aqua
• Pigtail: 12 x LC
• Pigtail: 2 m
• Pigtail Coating Material: LSZH
• Pigtail prepared: not settled
• Number of height units (U): 1U
• Alignment of the couplings/adapters: vertical
• Colour: grey
• RAL number: 7035
• Material: sheet steel
• Mounting type: 482.6 mm (19 in) Installation
• With front panel: Yes
• With housing: Yes
• With pigtails: Yes
| Adapter material: | plastic |
|---|---|
| Adapters: | LC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Fibre class: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | not stripped |
| Remark: | vertical |
| Sliding: | sliding |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Tekniske egenskaber
| Adapter material: | plastic |
|---|---|
| Adapters: | LC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Fibre class: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | not stripped |
| Remark: | vertical |
| Sliding: | sliding |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Varianter
| Art. Nej. | Betegnelse | Type of connector external | Colour | Suitable for number of couplings/adapters | Pigtail | With number of couplings/adapters | RAL-number | Type of connector interior | Pigtail Coating material | Minimal bendung radius static | Pigtail colour | Pigtail Buffertype | Return loss 850nm | Adapter colour | Insertion loss 850nm | Pigtail diameter | Minimal bendung radius dynamic | Scope of delivery | Pigtail length | Pigtail plug colour | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B71901L12OM3 | Splice box gy sliding LC OM3 12x pigtail and 6x duplex adapter | LC-Duplex | grey | 12 | 12 x LC | 6 | 7035 | LC-Duplex | LSZH | 10xD | DIN | Loose-Buffered | ≥35 dB | aqua | ≤0.25 dB | 0.9 mm | 20xD | 19'' splice box extendable with frontpanel and<br>6xadapter, 6xadapter dummy, <br>12xpigtail+Test protocol, 1xsplice cassette+cover+screw, 1xcrimp splice protector holder, 2xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | 2 m | aqua | |
| B71901L24OM3 | Splice box gy sliding LC OM3 24x pigtail and 12x duplex adapter | LC-Duplex | grey | 12 | 24 x LC | 24 | 7035 | LC-Duplex | LSZH | 10xD | DIN | Loose-Buffered | ≥35 dB | aqua | ≤0.25 dB | 0.9 mm | 20xD | 19'' splice box extendable with frontpanel and<br>12xadapter, 24xpigtail+Test protocol, 2xsplice cassette+cover+screw, 2xcrimp splice protector holder, 4xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | 2 m | aqua |
