Splice box gy sliding SC OM4 12x pigtail and 6x duplex adapter
Indhold:
1 Stück
Splice box gy sliding SC OM4 12x pigtail and 6x duplex adapter
Varenummer:
B71203L12OM4
EAN nr.:
4049759284336
Produktinformation til Splice box gy sliding SC OM4 12x pigtail and 6x duplex adapter

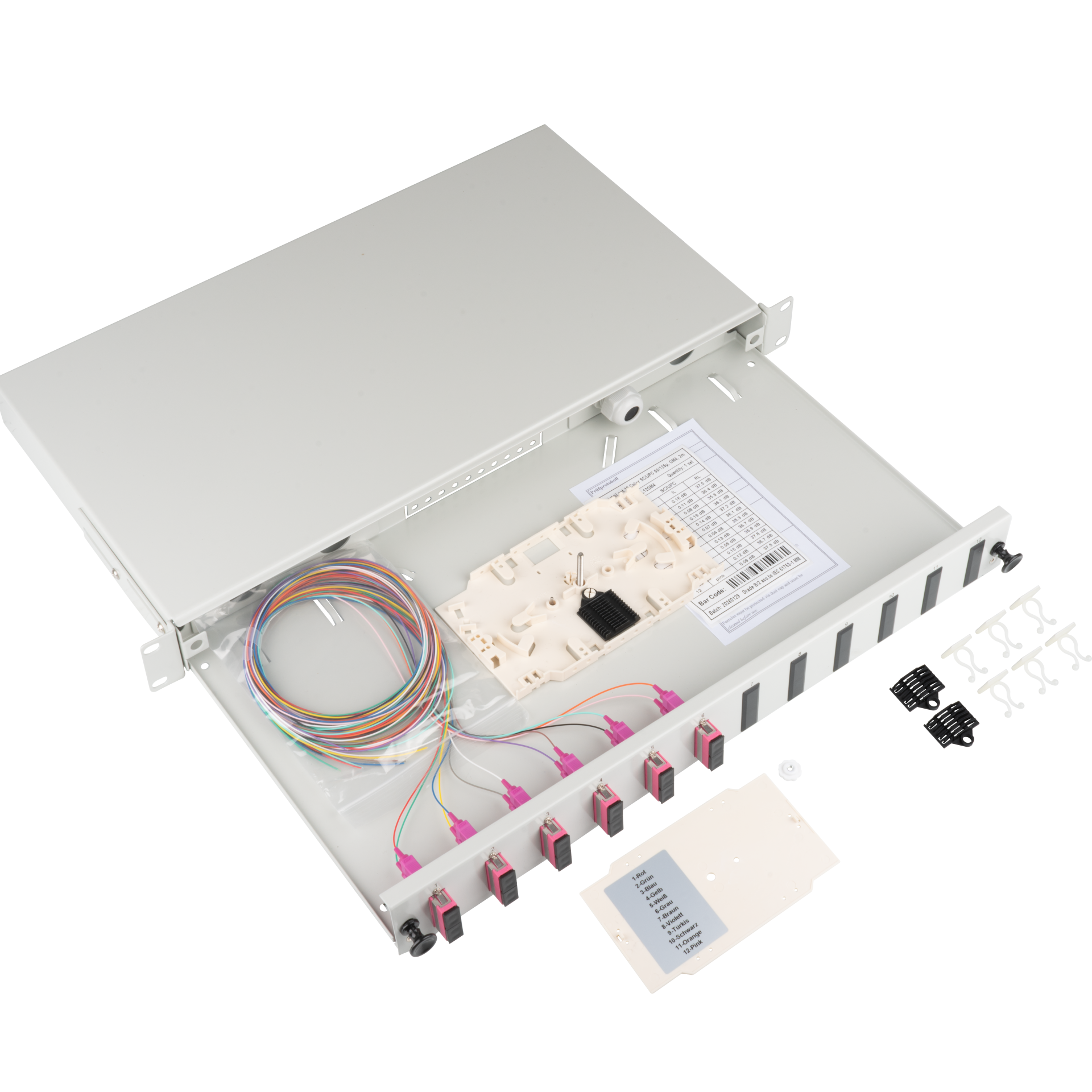

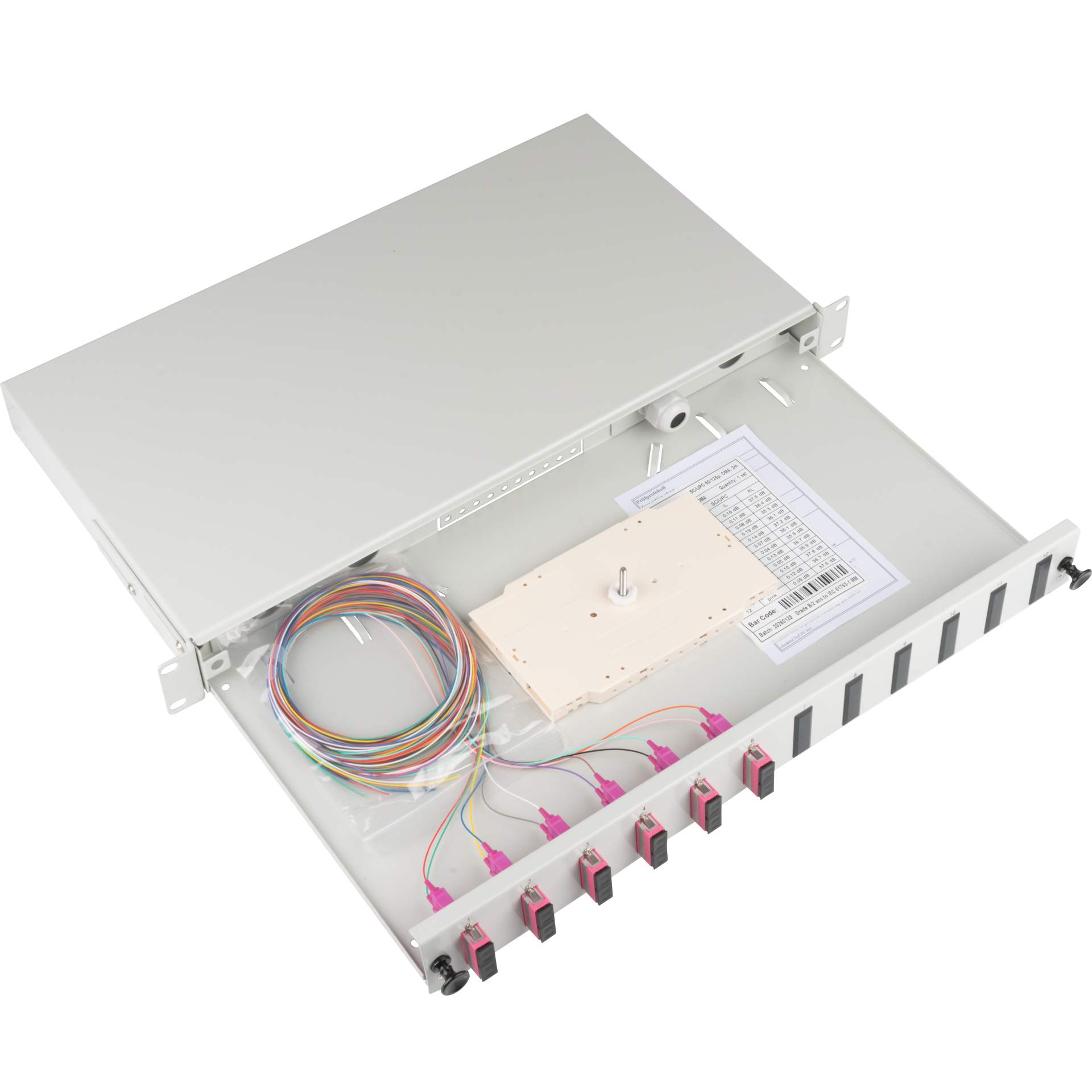

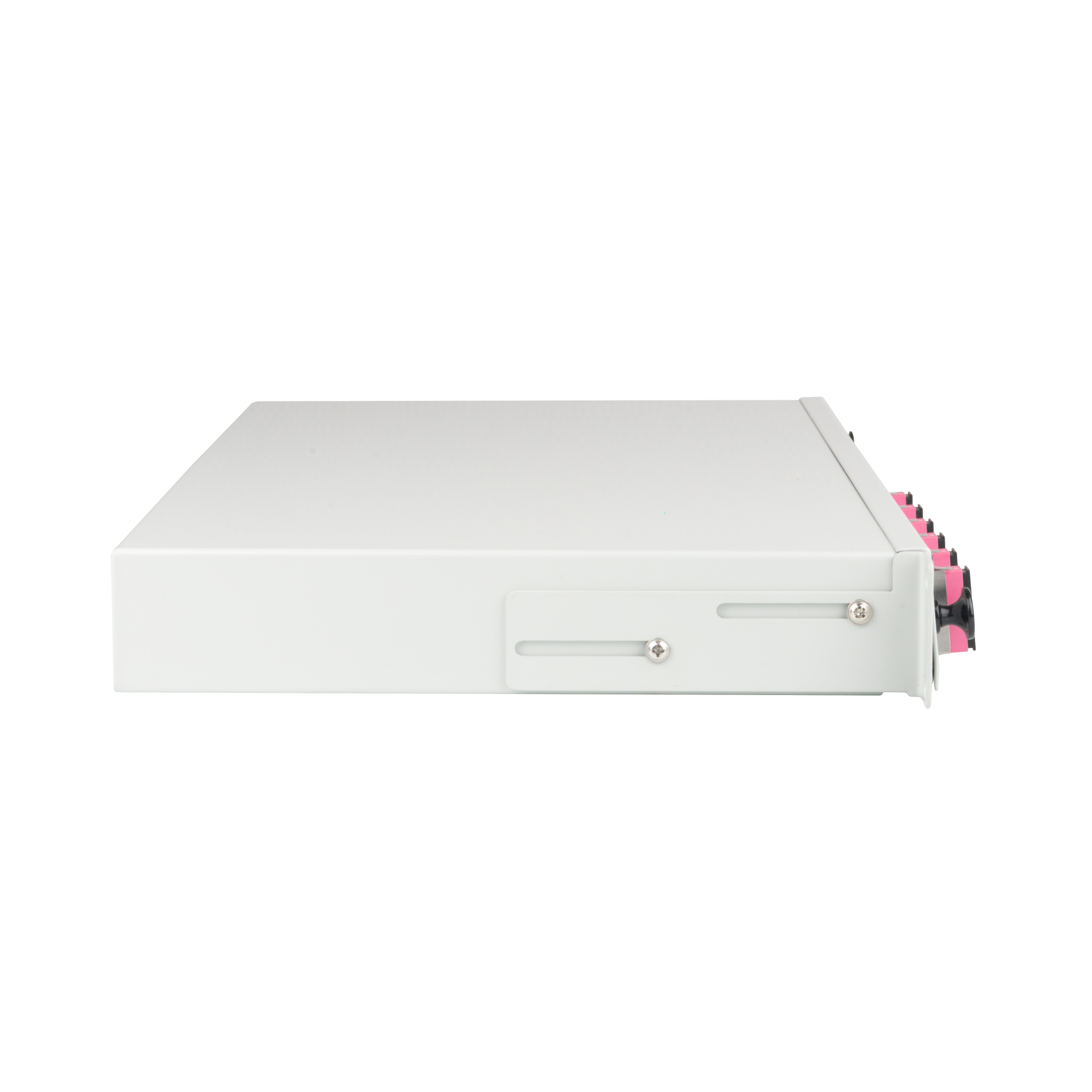

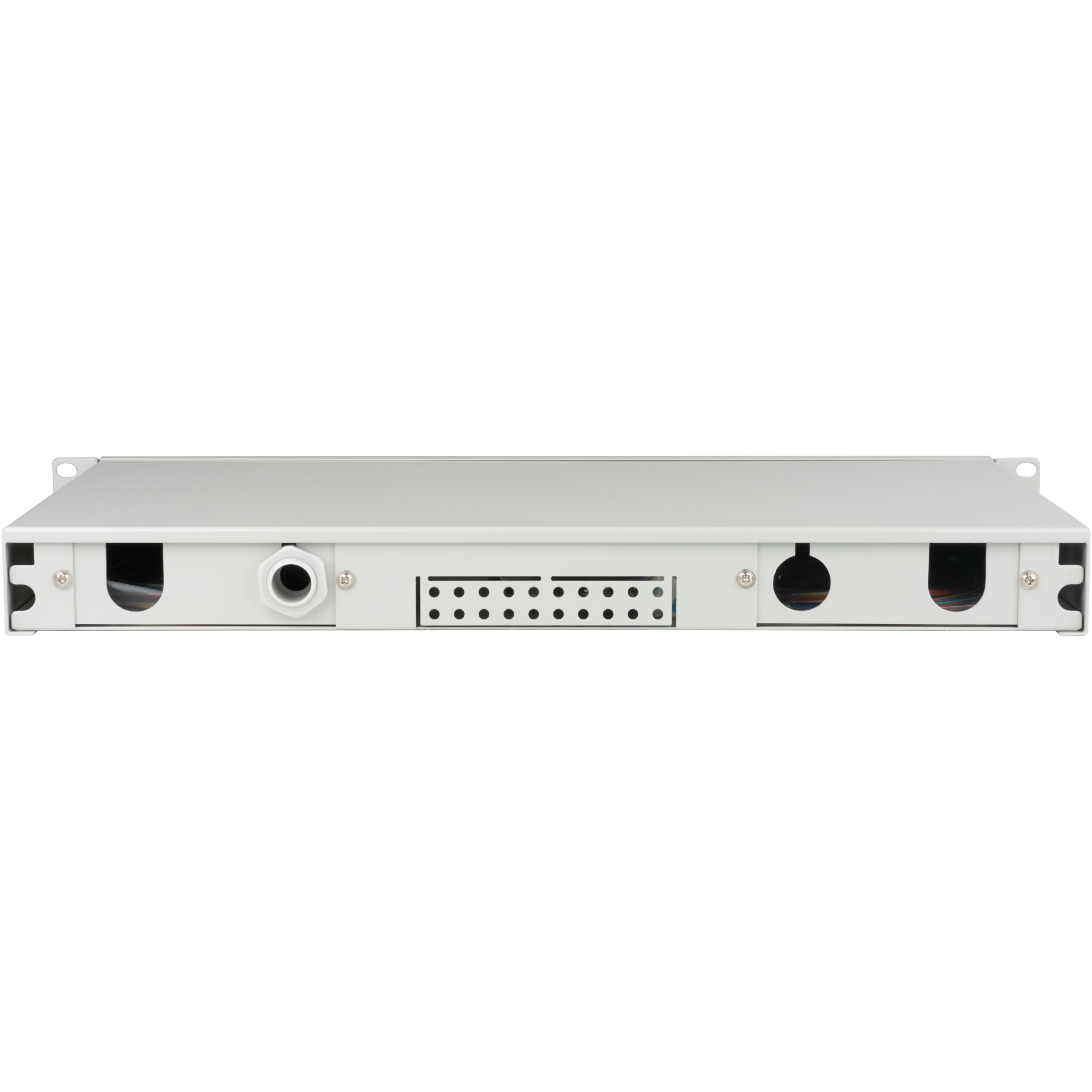

The pull-out splice box from EFB-Elektronik is designed for the structured pick-up of splices and the clear management of multimode fibre optic connections in a 19-inch rack. It combines a compact design with service-friendly access and is designed for OM4 multimode 50/125.
• 1U in 19-inch pull-out format – Allows for space-saving integration in the rack and simplifies maintenance and access to the splice level.

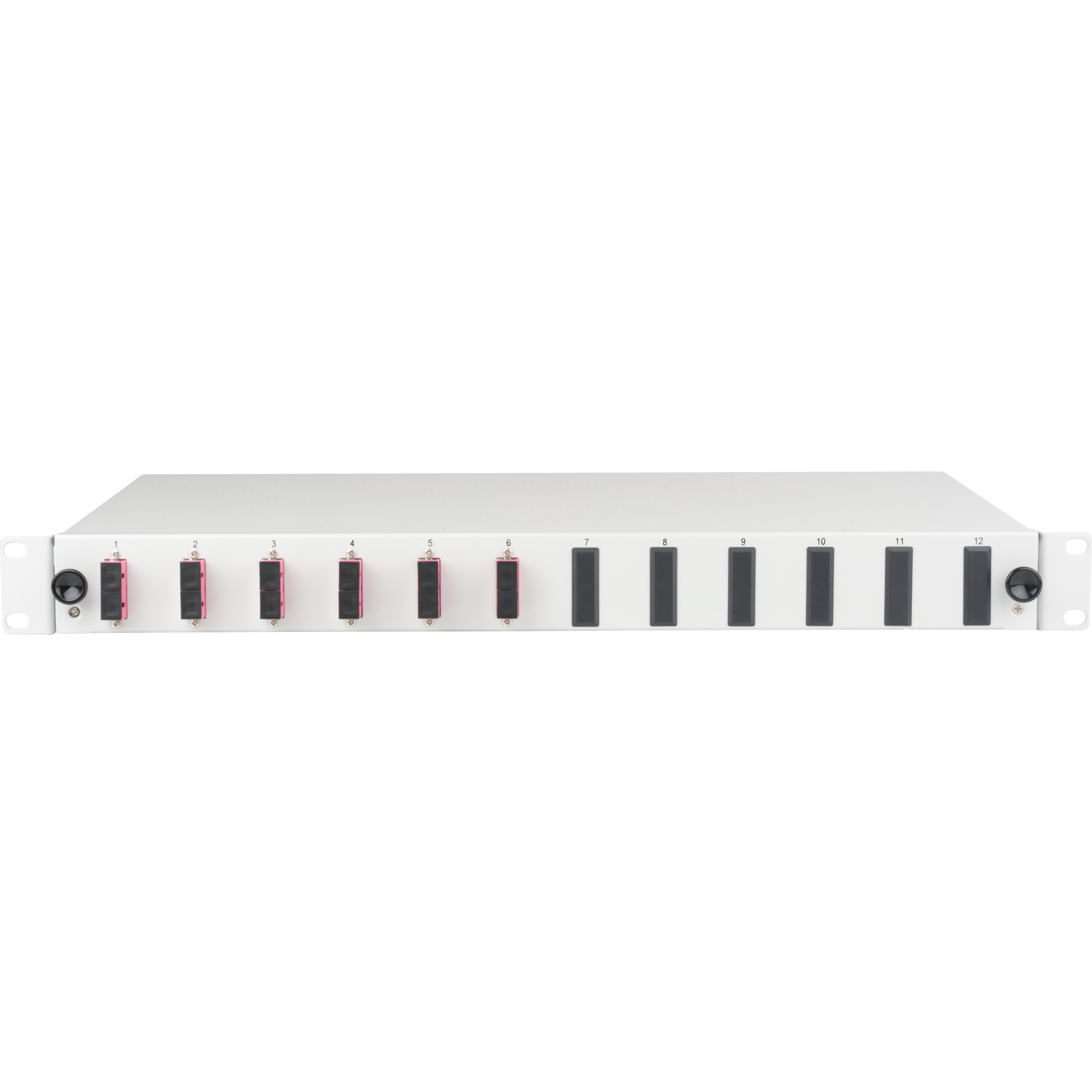

• Front panel with 6 SC duplex couplings and 6 blanking plugs – Ensures neatly pre-assembled assembly and keeps unused positions neatly sealed.
• 12 SC pigtails with LSZH jacket and 2 m length – Support structured splicing organisation and reduce installation effort.
The sheet steel housing in grey according to RAL 7035 is designed for the clean routing of the fibre optic lines. The OM4 fibre class for multimode 50/125, the ceramic ferrule guide and the LSZH-coated pigtails support the use in professional multimode installations. Pre-assembled crimp/ANT splice holders and enclosed shrink splice holders create additional flexibility in splice organisation.
Technical details
• Extendable: extendable
• Fibre class: OM4
• Couplings: SC-Duplex
• With number of couplings/adapters: 6
• Coupling material: plastic
• Pigtail: 12 x SC
• Pigtail prepared: not settled
• 1U in 19-inch pull-out format – Allows for space-saving integration in the rack and simplifies maintenance and access to the splice level.
• Front panel with 6 SC duplex couplings and 6 blanking plugs – Ensures neatly pre-assembled assembly and keeps unused positions neatly sealed.
• 12 SC pigtails with LSZH jacket and 2 m length – Support structured splicing organisation and reduce installation effort.
The sheet steel housing in grey according to RAL 7035 is designed for the clean routing of the fibre optic lines. The OM4 fibre class for multimode 50/125, the ceramic ferrule guide and the LSZH-coated pigtails support the use in professional multimode installations. Pre-assembled crimp/ANT splice holders and enclosed shrink splice holders create additional flexibility in splice organisation.
Technical details
• Extendable: extendable
• Fibre class: OM4
• Couplings: SC-Duplex
• With number of couplings/adapters: 6
• Coupling material: plastic
• Pigtail: 12 x SC
• Pigtail prepared: not settled
| Adapter material: | plastic |
|---|---|
| Adapters: | SC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | not stripped |
| Remark: | vertical |
| Sliding: | sliding |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Tekniske egenskaber
| Adapter material: | plastic |
|---|---|
| Adapters: | SC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | not stripped |
| Remark: | vertical |
| Sliding: | sliding |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Varianter
| Art. Nej. | Betegnelse | Pigtail | Colour | Suitable for number of couplings/adapters | With number of couplings/adapters | Type of connector external | RAL-number | Type of connector interior | Pigtail Coating material | Minimal bendung radius static | Pigtail colour | Pigtail Buffertype | Return loss 850nm | Adapter colour | Insertion loss 850nm | Pigtail diameter | Minimal bendung radius dynamic | Scope of delivery | Pigtail length | Pigtail plug colour | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B71203L12OM4 | Splice box gy sliding SC OM4 12x pigtail and 6x duplex adapter | 12 x SC | grey | 12 | 6 | SC-Duplex | 7035 | SC-Duplex | LSZH | 10xD | DIN | Loose-Buffered | ≥35 dB | erica violet | ≤0.25 dB | 0.9 mm | 20xD | 19'' splice box extendable with frontpanel and<br>6xadapter, 6xadapter dummy, <br>12xpigtail+Test protocol, 1xsplice cassette+cover+screw, 1xcrimp splice protector holder, 2xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | 2 m | erica violet | |
| B71203L24OM4 | Splice box gy sliding SC OM4 24x pigtail and 12x duplex adapter | 24 x SC | grey | 12 | 12 | SC-Duplex | 7035 | SC-Duplex | LSZH | 10xD | DIN | Loose-Buffered | ≥35 dB | erica violet | ≤0.25 dB | 0.9 mm | 20xD | 19'' splice box extendable with frontpanel and<br>12xadapter, 24xpigtail+Test protocol, 2xsplice cassette+cover+screw, 2xcrimp splice protector holder, 4xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | 2 m | erica violet |
