Splice box SC 50/125µ OM4 extendable

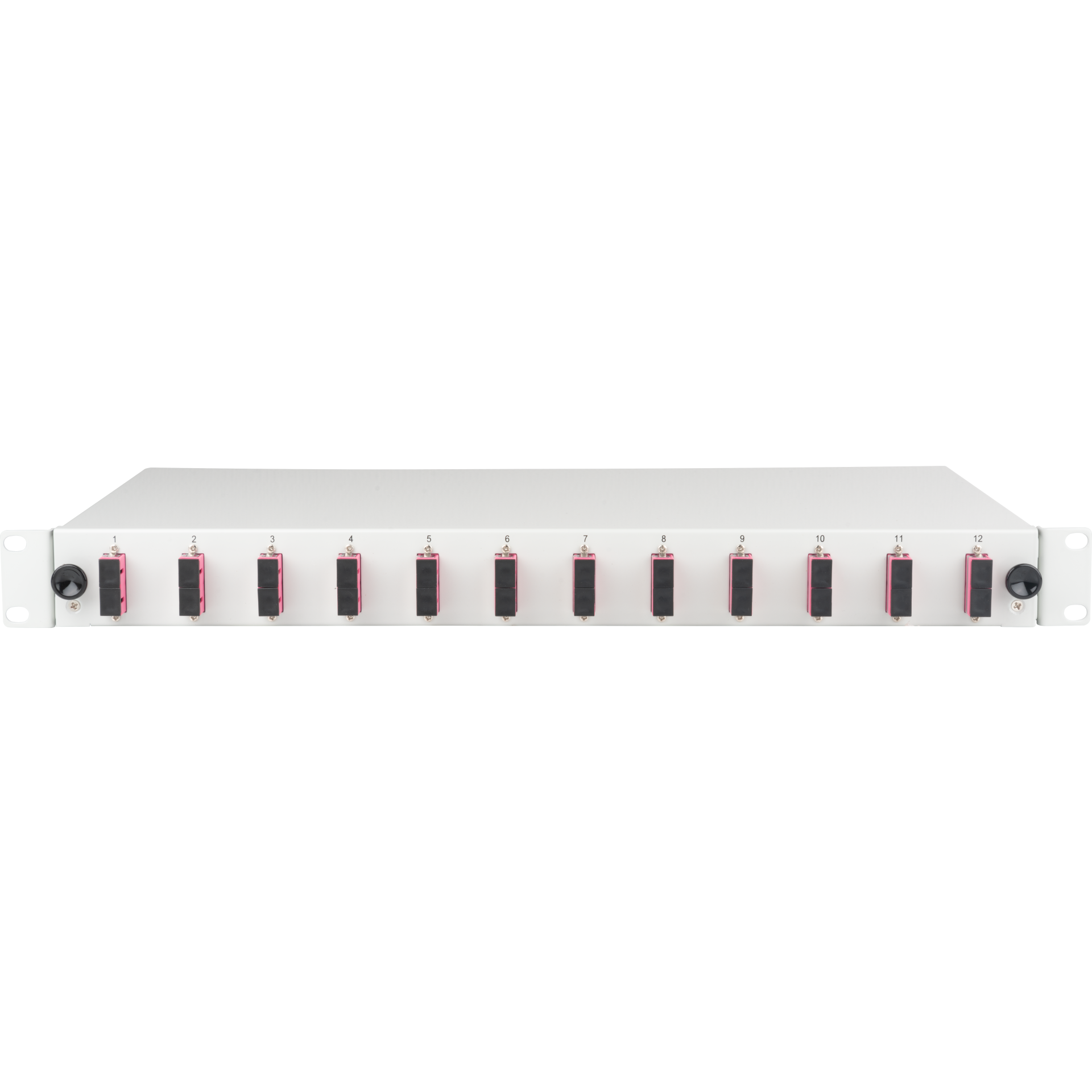

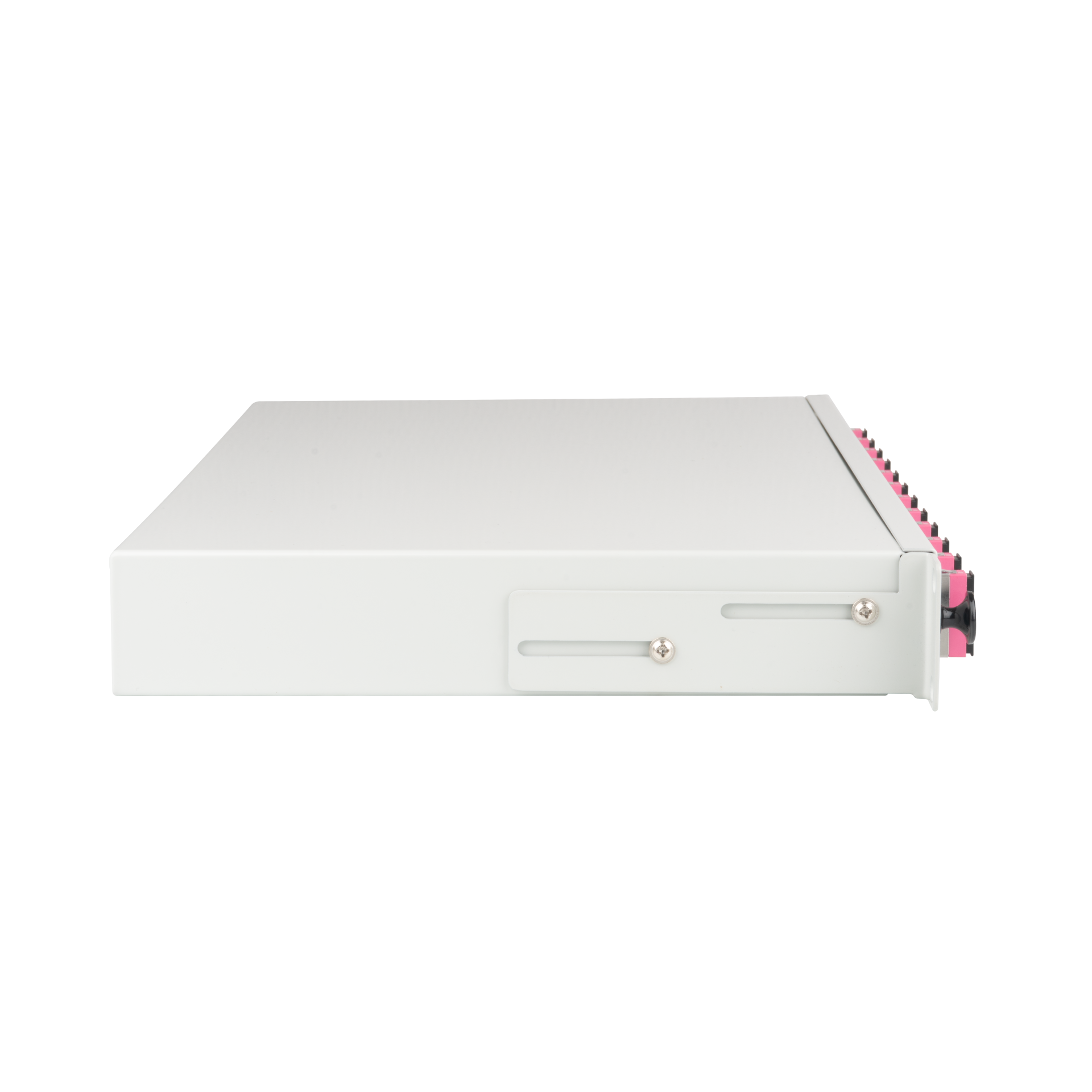

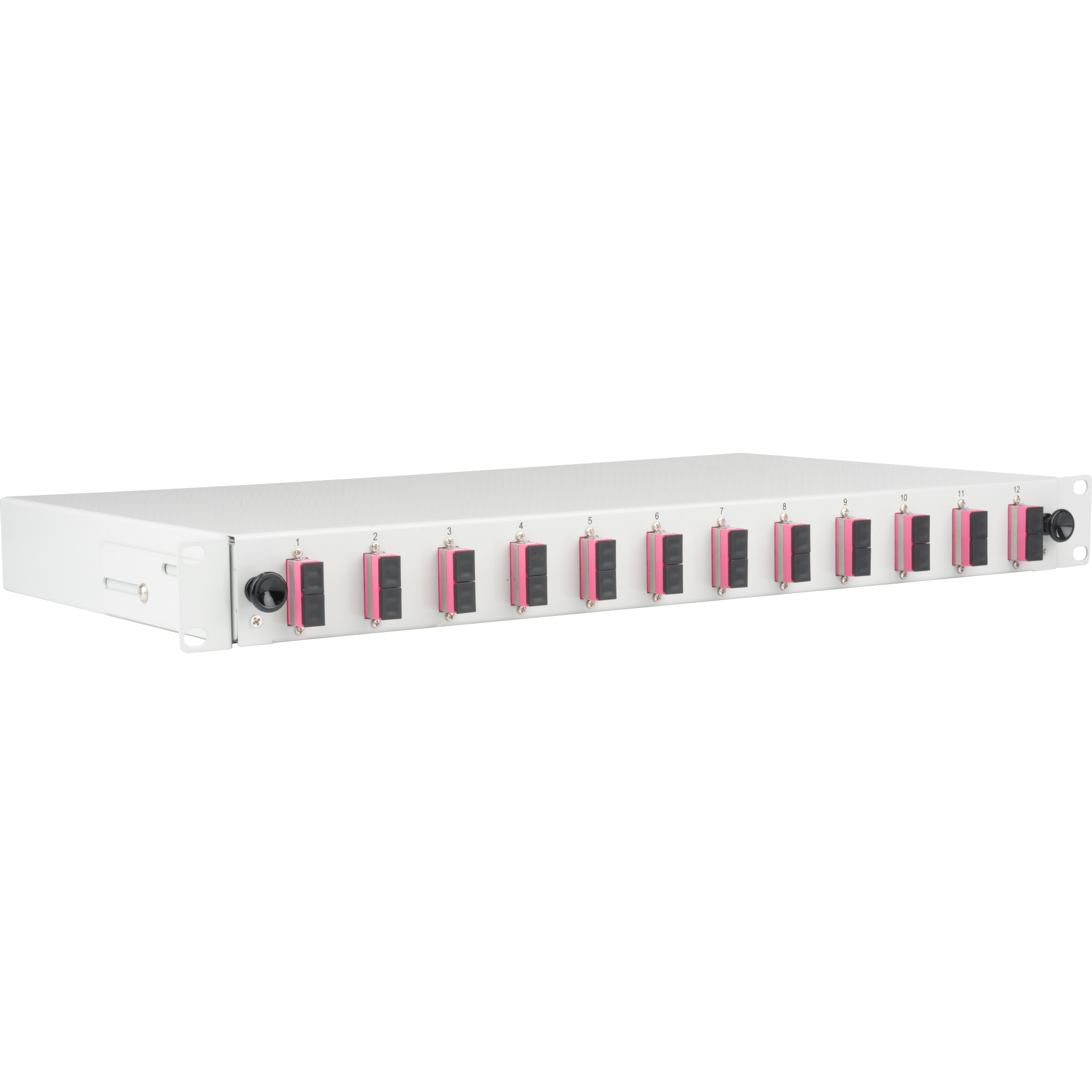

Splice box gy sliding SC OM4 24x fanout pigtails and 12x duplex adapter
Varenummer:
BA71203L24OM4
EAN nr.:
4049759284466
Produktinformation til Splice box gy sliding SC OM4 24x fanout pigtails and 12x duplex adapter

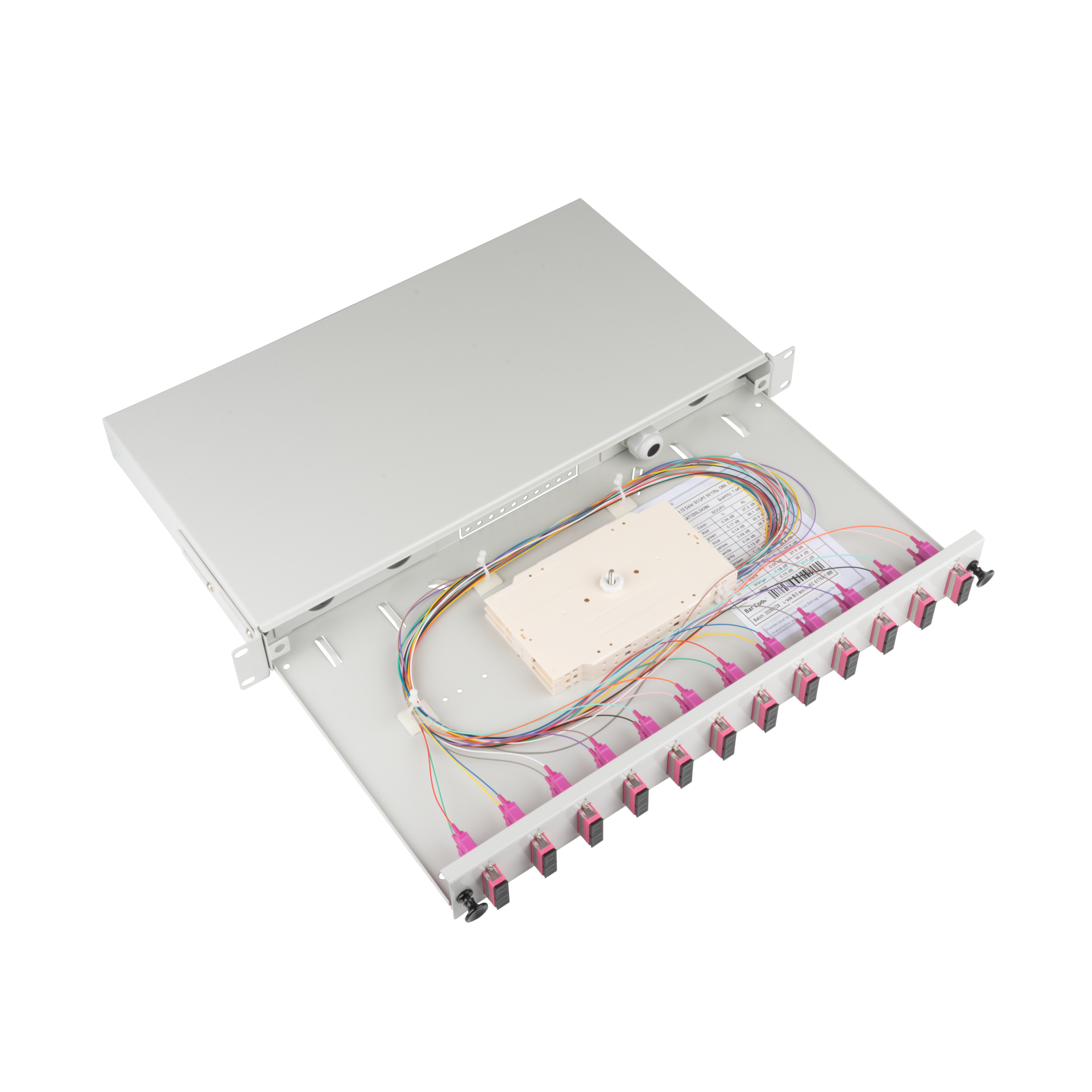

completely assembled splice box with adapters and coloured pigtails.
metal housing depth adjustable

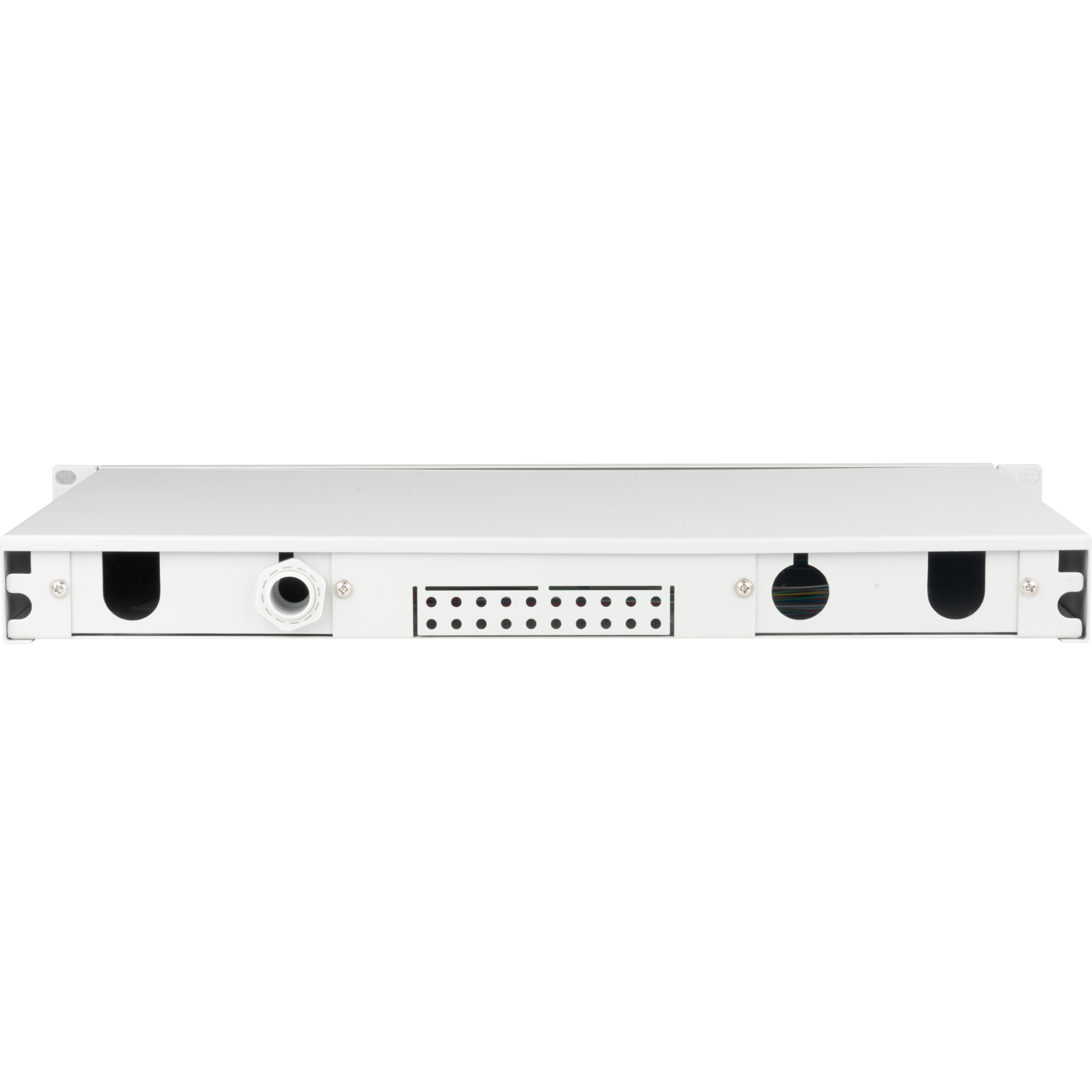

cable entries at the rear

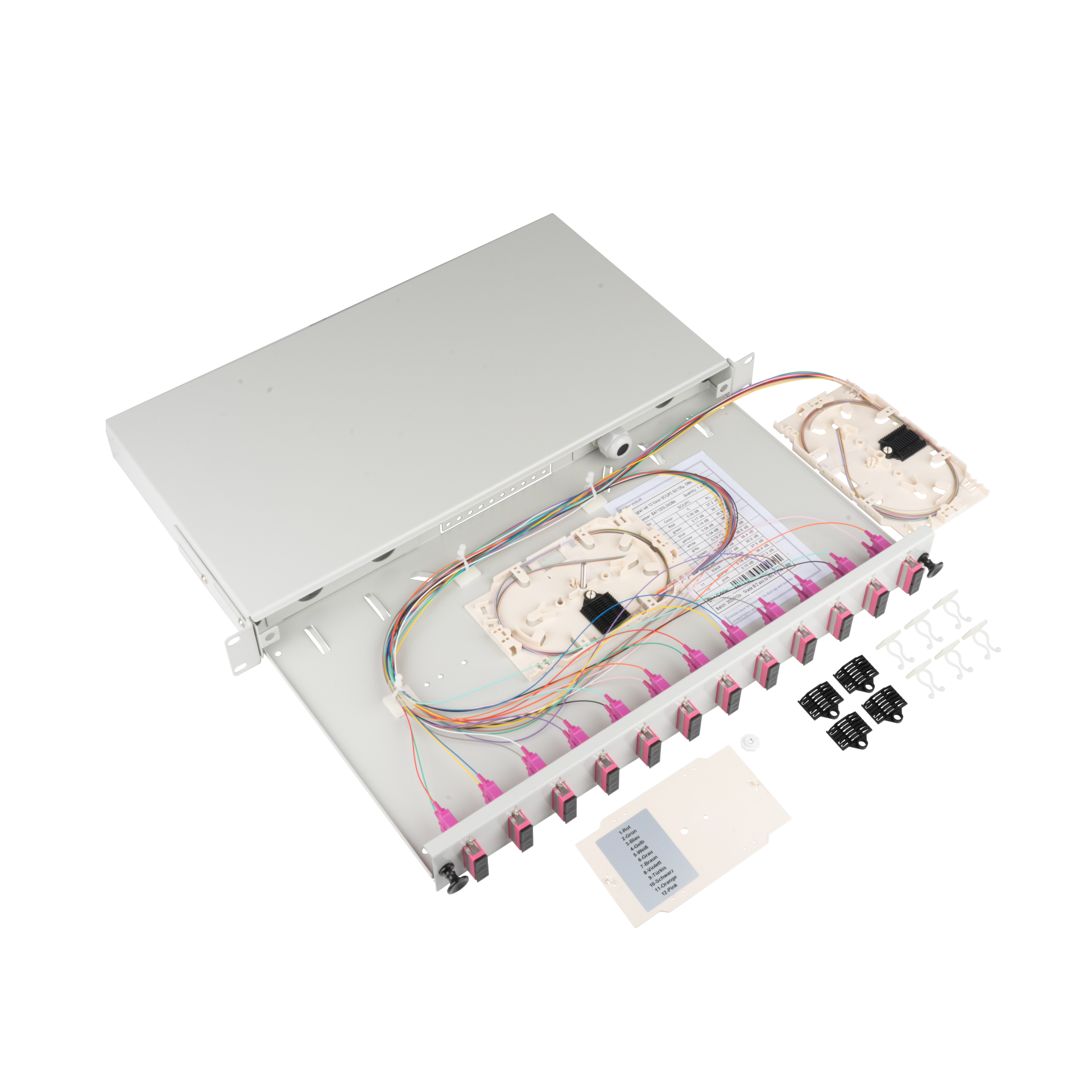

Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
metal housing depth adjustable
cable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
| Adapter material: | plastic |
|---|---|
| Adapters: | SC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Extendable: | sliding version |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Note: | vertical |
| Number of height units: | 1 U |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | stripped |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Tekniske egenskaber
| Adapter material: | plastic |
|---|---|
| Adapters: | SC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Extendable: | sliding version |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Note: | vertical |
| Number of height units: | 1 U |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | stripped |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianter
| Art. Nej. | Betegnelse | Pigtail | Color | Suitable for number of couplings/adapters | With number of couplings/adapters | Type of connector external | RAL-number | Type of connector interior | Pigtail Coating material | Minimal bendung radius static | Pigtail colour | Pigtail Buffertype | Return loss 850nm | Adapter colour | Insertion loss 850nm | Pigtail diameter | Minimal bendung radius dynamic | Scope of delivery | Pigtail length | Pigtail plug colour | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BA71203L12OM4 | Splice box gy sliding SC OM4 12x fanout pigtails and 6x duplex adapter | 12 x SC | grey | 12 | 6 | SC-Duplex | 7035 | SC-Duplex | LSZH | 10xD | DIN | Loose-Buffered | ≥35 dB | erica violet | ≤0.25 dB | 0.9 mm | 20xD | 19'' splice box extendable with frontpanel and<br>6xadapter, 6xadapter dummy, <br>12xpigtail+Test protocol, 1xsplice cassette+cover+screw, 1xcrimp splice protector holder, 2xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | 2 m | erica violet | |
| BA71203L24OM4 | Splice box gy sliding SC OM4 24x fanout pigtails and 12x duplex adapter | 24 x SC | grey | 12 | 12 | SC-Duplex | 7035 | SC-Duplex | LSZH | 10xD | DIN | Loose-Buffered | ≥35 dB | erica violet | ≤0.25 dB | 0.9 mm | 20xD | 19'' splice box extendable with frontpanel and<br>12xadapter, 24xpigtail+Test protocol, 2xsplice cassette+cover+screw, 2xcrimp splice protector holder, 4xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | 2 m | erica violet |
Produktinformation til Splice box gy sliding SC OM4 24x fanout pigtails and 12x duplex adapter
completely assembled splice box with adapters and coloured pigtails.
metal housing depth adjustable
cable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
metal housing depth adjustable
cable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
| Adapter material: | plastic |
|---|---|
| Adapters: | SC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Extendable: | sliding version |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Note: | vertical |
| Number of height units: | 1 U |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | stripped |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
| Adapter material: | plastic |
|---|---|
| Adapters: | SC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Extendable: | sliding version |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Note: | vertical |
| Number of height units: | 1 U |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | stripped |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianter
| Art. Nej. | Betegnelse | Pigtail | Color | Suitable for number of couplings/adapters | With number of couplings/adapters | Type of connector external | RAL-number | Type of connector interior | Pigtail Coating material | Minimal bendung radius static | Pigtail colour | Pigtail Buffertype | Return loss 850nm | Adapter colour | Insertion loss 850nm | Pigtail diameter | Minimal bendung radius dynamic | Scope of delivery | Pigtail length | Pigtail plug colour | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BA71203L12OM4 | Splice box gy sliding SC OM4 12x fanout pigtails and 6x duplex adapter | 12 x SC | grey | 12 | 6 | SC-Duplex | 7035 | SC-Duplex | LSZH | 10xD | DIN | Loose-Buffered | ≥35 dB | erica violet | ≤0.25 dB | 0.9 mm | 20xD | 19'' splice box extendable with frontpanel and<br>6xadapter, 6xadapter dummy, <br>12xpigtail+Test protocol, 1xsplice cassette+cover+screw, 1xcrimp splice protector holder, 2xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | 2 m | erica violet | |
| BA71203L24OM4 | Splice box gy sliding SC OM4 24x fanout pigtails and 12x duplex adapter | 24 x SC | grey | 12 | 12 | SC-Duplex | 7035 | SC-Duplex | LSZH | 10xD | DIN | Loose-Buffered | ≥35 dB | erica violet | ≤0.25 dB | 0.9 mm | 20xD | 19'' splice box extendable with frontpanel and<br>12xadapter, 24xpigtail+Test protocol, 2xsplice cassette+cover+screw, 2xcrimp splice protector holder, 4xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | 2 m | erica violet |
