Splice box gy sliding SC OS2 24x pigtail and 12x duplex adapter
Indhold:
1 Stück
Splice box gy sliding SC OS2 24x pigtail and 12x duplex adapter
Varenummer:
B71223L24
EAN nr.:
4049759284367
Produktinformation til Splice box gy sliding SC OS2 24x pigtail and 12x duplex adapter

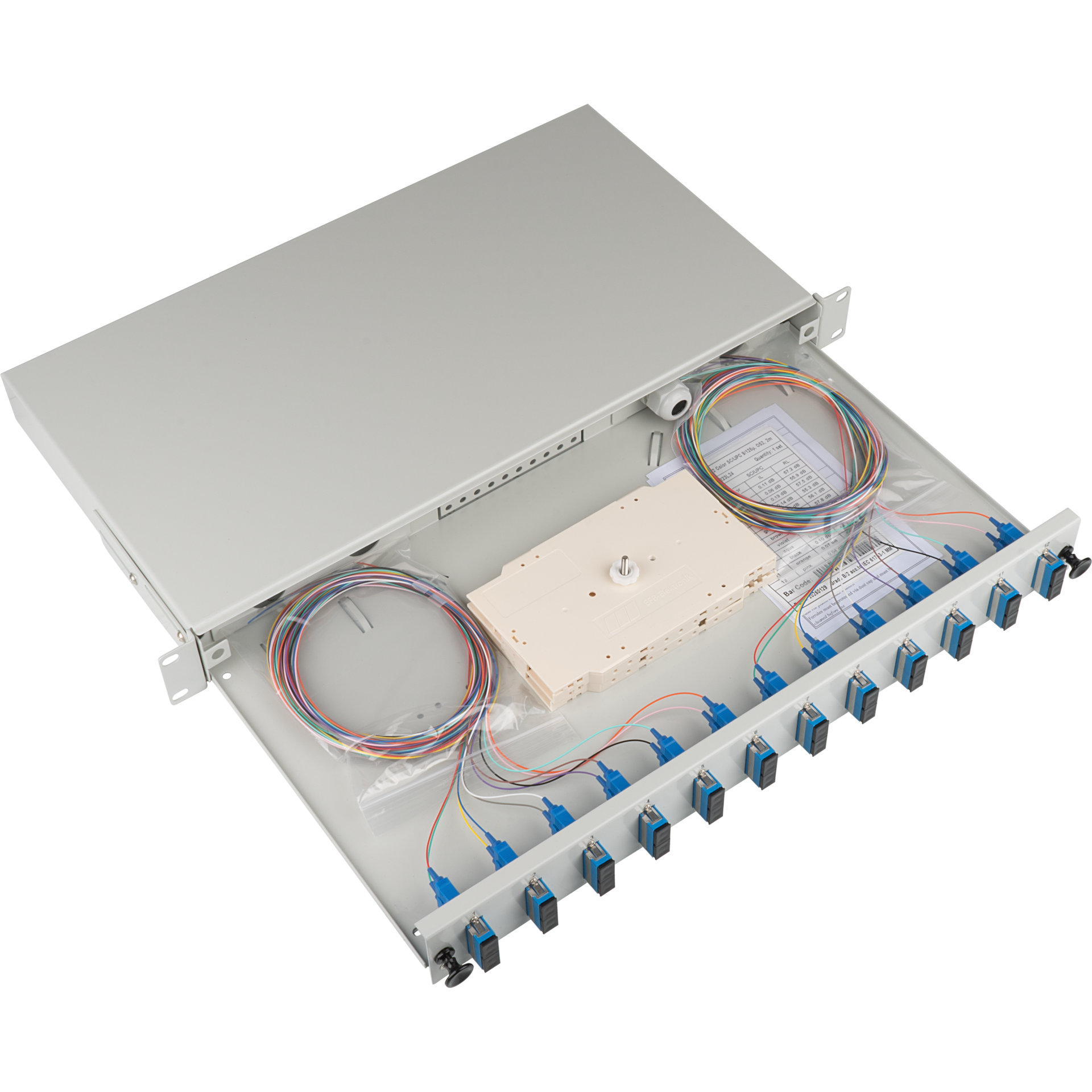

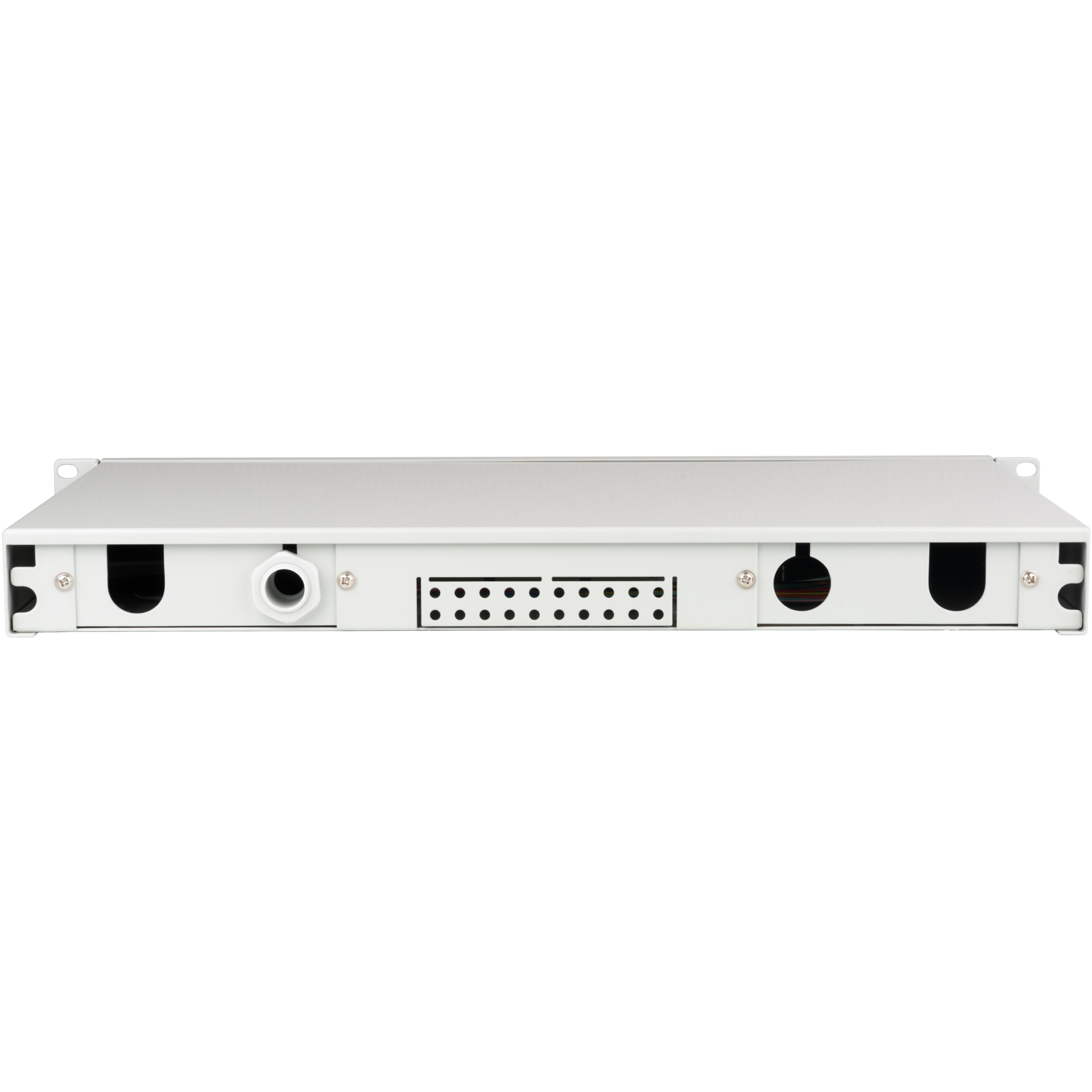

The pull-out splice box from EFB-Elektronik is designed for the structured pick-up of splices and the clear management of single-mode fibre optic connections in a 19-inch rack. The 1U version combines compact integration with service-friendly access to the splice level. The sheet steel housing in grey according to RAL 7035 supports professional and robust installation.

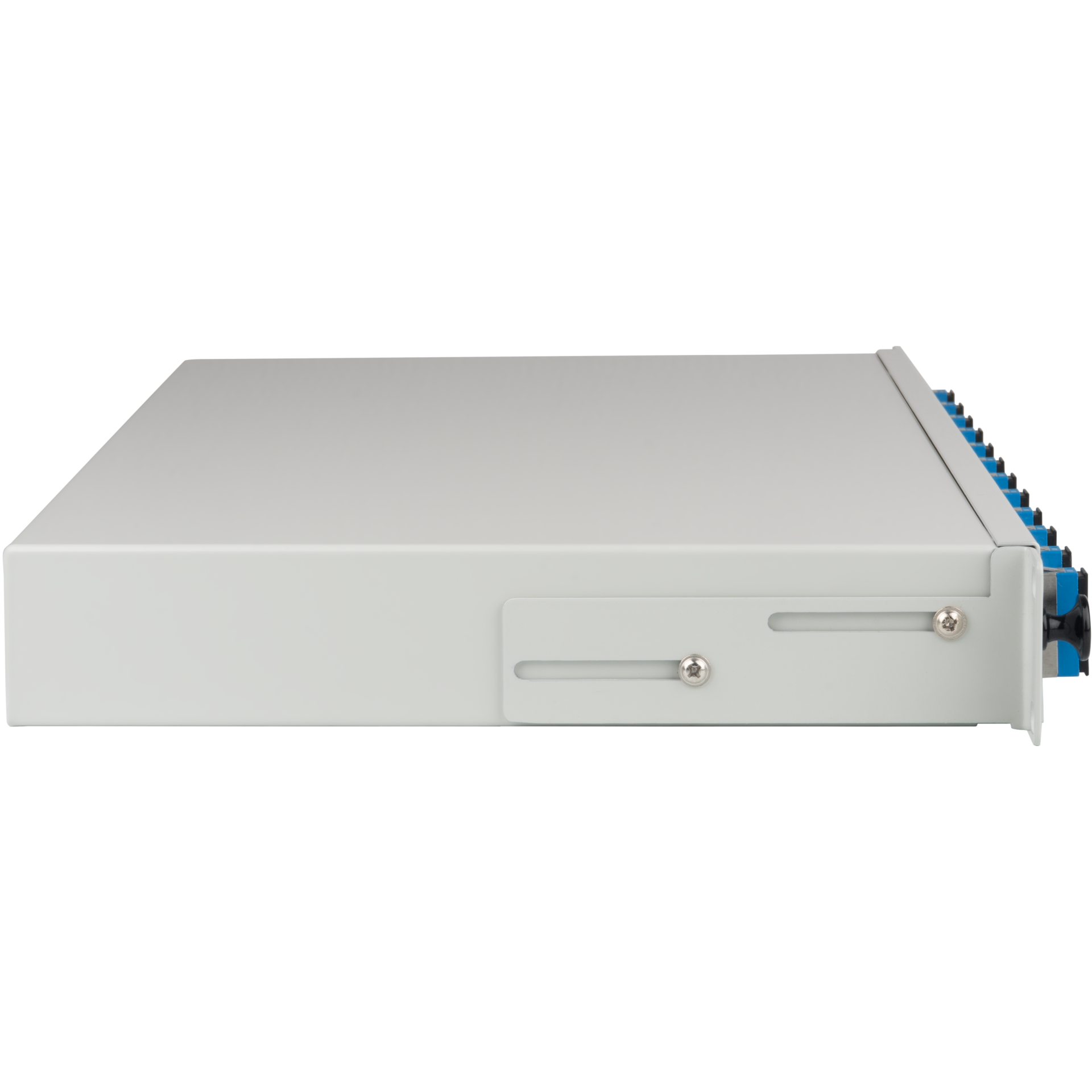

• 1U, 19-inch extendable design – Allows for compact integration into the rack and simplifies access to the splice level for maintenance and expansion.

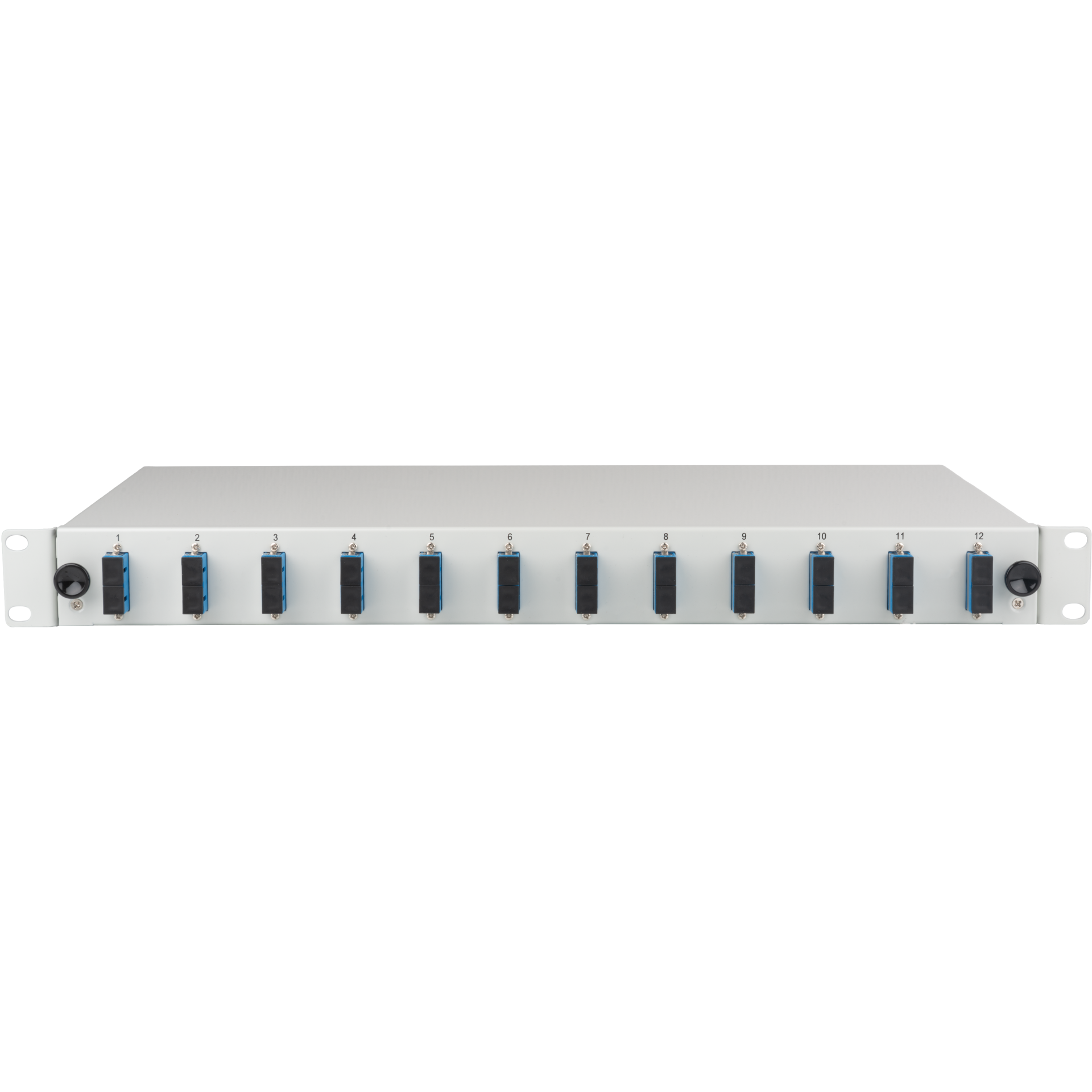

• Front panel with 12 SC duplex vertical couplings in blue – Provides pre-terminated assembly and clear port mapping in the rack.

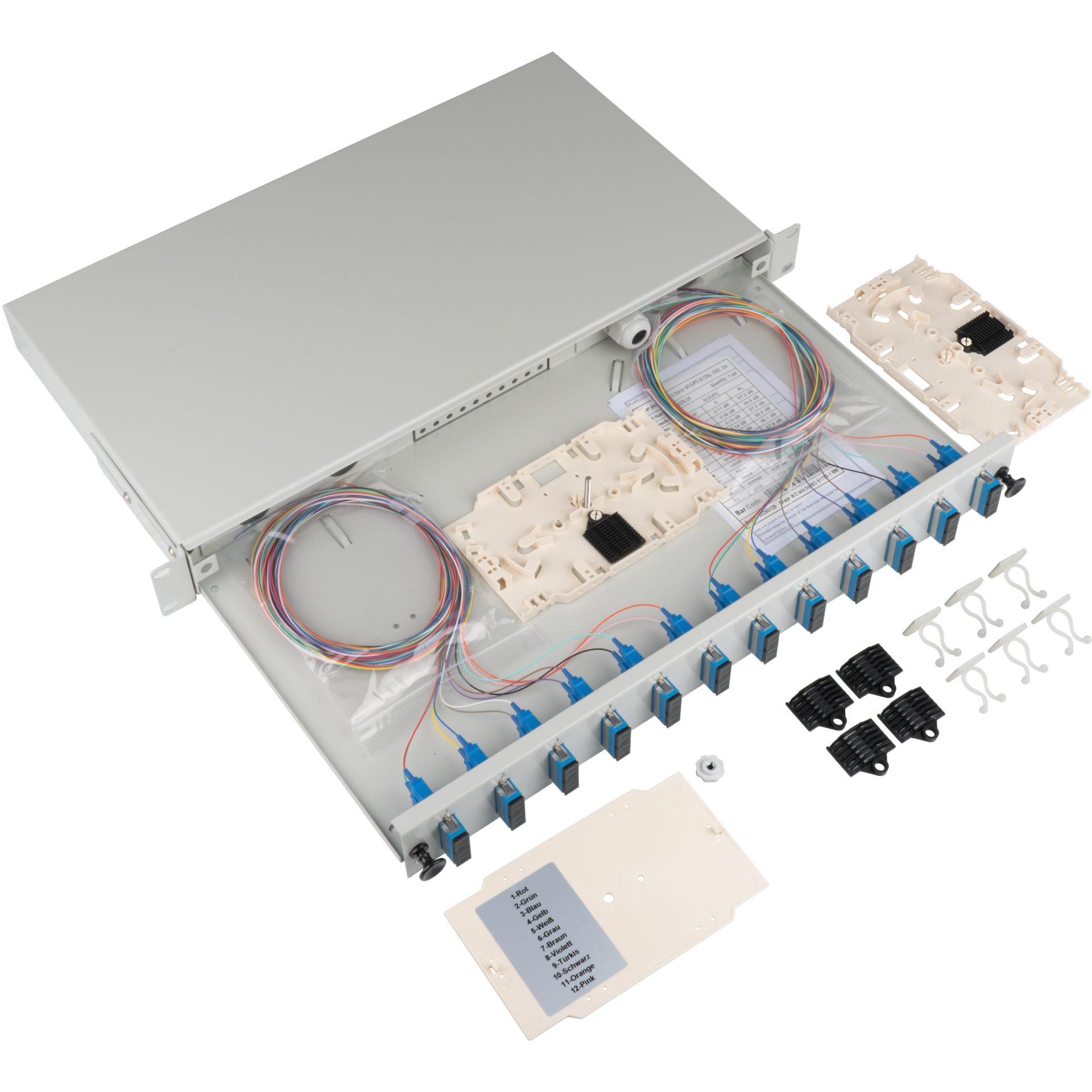

• 24 x LSZH Sheathed SC Pigtails 2m Length – Support clean splice organisation and reduce installation effort.
The housing is designed for 482.6 mm 19-inch installation and addresses OS2 in accordance with ITU-T G.652.D in the single-mode environment 9/125. The ceramic ferrule guide as well as pre-assembled crimp/ANT splice holders and enclosed shrink splice holders support flexible and clear splice organisation.
Technical details
• Extendable: Yes
• Fibre class: OS2 according to ITU-T G.652.D
• Couplings: SC-Duplex
• With number of couplings/adapters: 12
• Coupling material: plastic
• Pigtail: 24 x SC
• Pigtail prepared: not settled
• 1U, 19-inch extendable design – Allows for compact integration into the rack and simplifies access to the splice level for maintenance and expansion.
• Front panel with 12 SC duplex vertical couplings in blue – Provides pre-terminated assembly and clear port mapping in the rack.
• 24 x LSZH Sheathed SC Pigtails 2m Length – Support clean splice organisation and reduce installation effort.
The housing is designed for 482.6 mm 19-inch installation and addresses OS2 in accordance with ITU-T G.652.D in the single-mode environment 9/125. The ceramic ferrule guide as well as pre-assembled crimp/ANT splice holders and enclosed shrink splice holders support flexible and clear splice organisation.
Technical details
• Extendable: Yes
• Fibre class: OS2 according to ITU-T G.652.D
• Couplings: SC-Duplex
• With number of couplings/adapters: 12
• Coupling material: plastic
• Pigtail: 24 x SC
• Pigtail prepared: not settled
| Adapter material: | plastic |
|---|---|
| Adapters: | SC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | not stripped |
| Remark: | vertical |
| Sliding: | sliding |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Tekniske egenskaber
| Adapter material: | plastic |
|---|---|
| Adapters: | SC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | not stripped |
| Remark: | vertical |
| Sliding: | sliding |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Varianter
| Art. Nej. | Betegnelse | Colour | Suitable for number of couplings/adapters | Type of connector external | Pigtail | With number of couplings/adapters | RAL-number | Type of connector interior | Pigtail Coating material | Insertion loss 1625nm | Minimal bendung radius static | Pigtail colour | Pigtail Buffertype | Insertion loss 1550nm | Adapter colour | Pigtail diameter | Minimal bendung radius dynamic | Insertion loss 1310nm | Return loss1625nm | Scope of delivery | Return loss 1310nm | Pigtail length | Pigtail plug colour | Return loss 1550nm | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B71223L12 | Splice box gy sliding SC OS2 12x pigtail and 6x duplex adapter | grey | 12 | SC-Duplex | 12 x SC | 6 | 7035 | SC-Duplex | LSZH | ≤0.25 dB | 10xD | DIN | Loose-Buffered | ≤0.25 dB | blue | 0.9 mm | 20xD | ≤0.25 dB | ≥50 dB | 19'' splice box extendable with frontpanel and<br>6xadapter, 6xadapter dummy, <br>12xpigtail+Test protocol, 1xsplice cassette+cover+screw, 1xcrimp splice protector holder, 2xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | ≥50 dB | 2 m | blue | ≥50 dB | |
| B71223L24 | Splice box gy sliding SC OS2 24x pigtail and 12x duplex adapter | grey | 12 | SC-Duplex | 24 x SC | 12 | 7035 | SC-Duplex | LSZH | ≤0.25 dB | 10xD | DIN | Loose-Buffered | ≤0.25 dB | blue | 0.9 mm | 20xD | ≤0.25 dB | ≥50 dB | 19'' splice box extendable with frontpanel and<br>12xadapter, 24xpigtail+Test protocol, 2xsplice cassette+cover+screw, 2xcrimp splice protector holder, 4xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | ≥50 dB | 2 m | blue | ≥50 dB |
Produktinformation til Splice box gy sliding SC OS2 24x pigtail and 12x duplex adapter
The pull-out splice box from EFB-Elektronik is designed for the structured pick-up of splices and the clear management of single-mode fibre optic connections in a 19-inch rack. The 1U version combines compact integration with service-friendly access to the splice level. The sheet steel housing in grey according to RAL 7035 supports professional and robust installation.
• 1U, 19-inch extendable design – Allows for compact integration into the rack and simplifies access to the splice level for maintenance and expansion.
• Front panel with 12 SC duplex vertical couplings in blue – Provides pre-terminated assembly and clear port mapping in the rack.
• 24 x LSZH Sheathed SC Pigtails 2m Length – Support clean splice organisation and reduce installation effort.
The housing is designed for 482.6 mm 19-inch installation and addresses OS2 in accordance with ITU-T G.652.D in the single-mode environment 9/125. The ceramic ferrule guide as well as pre-assembled crimp/ANT splice holders and enclosed shrink splice holders support flexible and clear splice organisation.
Technical details
• Extendable: Yes
• Fibre class: OS2 according to ITU-T G.652.D
• Couplings: SC-Duplex
• With number of couplings/adapters: 12
• Coupling material: plastic
• Pigtail: 24 x SC
• Pigtail prepared: not settled
• 1U, 19-inch extendable design – Allows for compact integration into the rack and simplifies access to the splice level for maintenance and expansion.
• Front panel with 12 SC duplex vertical couplings in blue – Provides pre-terminated assembly and clear port mapping in the rack.
• 24 x LSZH Sheathed SC Pigtails 2m Length – Support clean splice organisation and reduce installation effort.
The housing is designed for 482.6 mm 19-inch installation and addresses OS2 in accordance with ITU-T G.652.D in the single-mode environment 9/125. The ceramic ferrule guide as well as pre-assembled crimp/ANT splice holders and enclosed shrink splice holders support flexible and clear splice organisation.
Technical details
• Extendable: Yes
• Fibre class: OS2 according to ITU-T G.652.D
• Couplings: SC-Duplex
• With number of couplings/adapters: 12
• Coupling material: plastic
• Pigtail: 24 x SC
• Pigtail prepared: not settled
| Adapter material: | plastic |
|---|---|
| Adapters: | SC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | not stripped |
| Remark: | vertical |
| Sliding: | sliding |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
| Adapter material: | plastic |
|---|---|
| Adapters: | SC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | not stripped |
| Remark: | vertical |
| Sliding: | sliding |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Varianter
| Art. Nej. | Betegnelse | Colour | Suitable for number of couplings/adapters | Type of connector external | Pigtail | With number of couplings/adapters | RAL-number | Type of connector interior | Pigtail Coating material | Insertion loss 1625nm | Minimal bendung radius static | Pigtail colour | Pigtail Buffertype | Insertion loss 1550nm | Adapter colour | Pigtail diameter | Minimal bendung radius dynamic | Insertion loss 1310nm | Return loss1625nm | Scope of delivery | Return loss 1310nm | Pigtail length | Pigtail plug colour | Return loss 1550nm | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B71223L12 | Splice box gy sliding SC OS2 12x pigtail and 6x duplex adapter | grey | 12 | SC-Duplex | 12 x SC | 6 | 7035 | SC-Duplex | LSZH | ≤0.25 dB | 10xD | DIN | Loose-Buffered | ≤0.25 dB | blue | 0.9 mm | 20xD | ≤0.25 dB | ≥50 dB | 19'' splice box extendable with frontpanel and<br>6xadapter, 6xadapter dummy, <br>12xpigtail+Test protocol, 1xsplice cassette+cover+screw, 1xcrimp splice protector holder, 2xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | ≥50 dB | 2 m | blue | ≥50 dB | |
| B71223L24 | Splice box gy sliding SC OS2 24x pigtail and 12x duplex adapter | grey | 12 | SC-Duplex | 24 x SC | 12 | 7035 | SC-Duplex | LSZH | ≤0.25 dB | 10xD | DIN | Loose-Buffered | ≤0.25 dB | blue | 0.9 mm | 20xD | ≤0.25 dB | ≥50 dB | 19'' splice box extendable with frontpanel and<br>12xadapter, 24xpigtail+Test protocol, 2xsplice cassette+cover+screw, 2xcrimp splice protector holder, 4xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | ≥50 dB | 2 m | blue | ≥50 dB |
