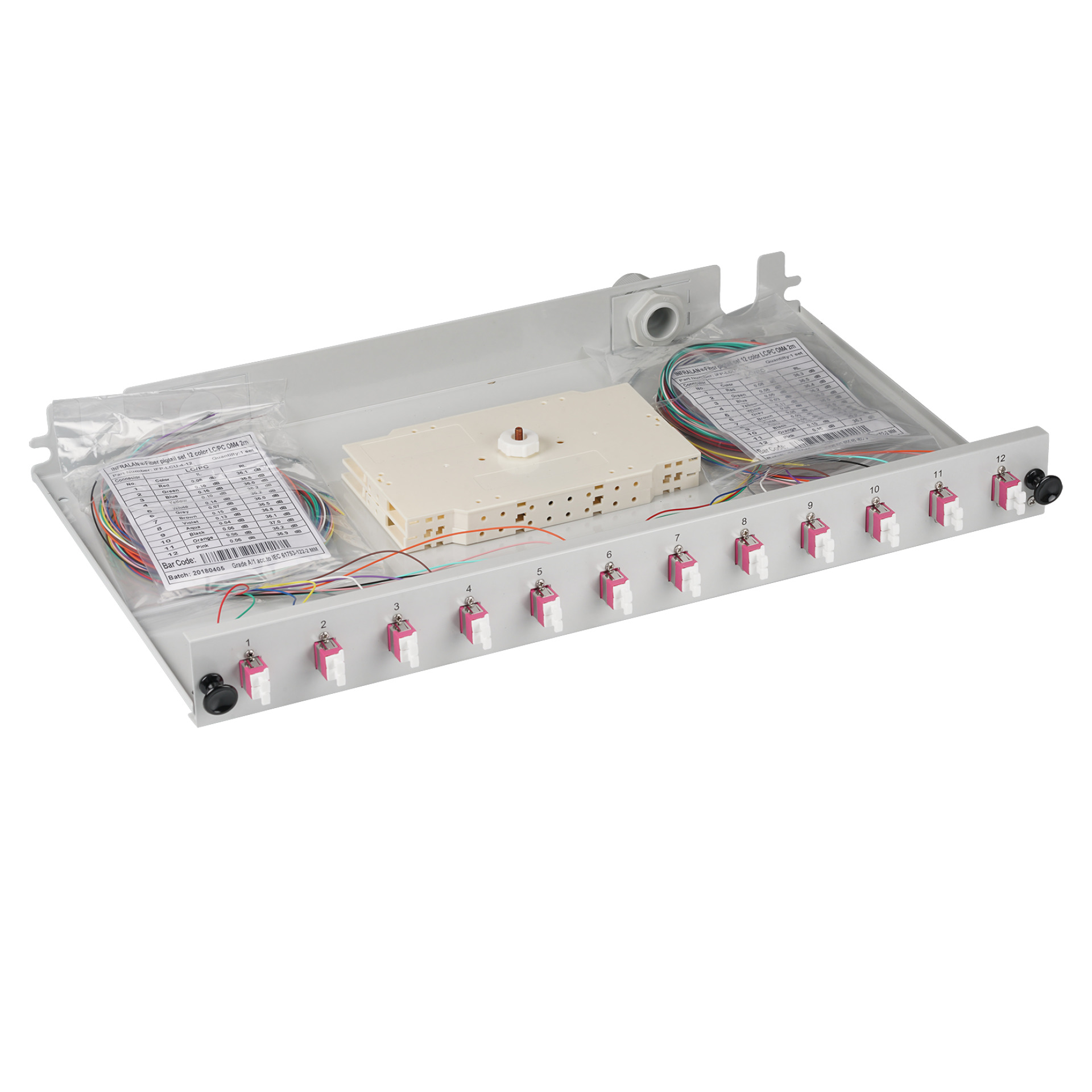

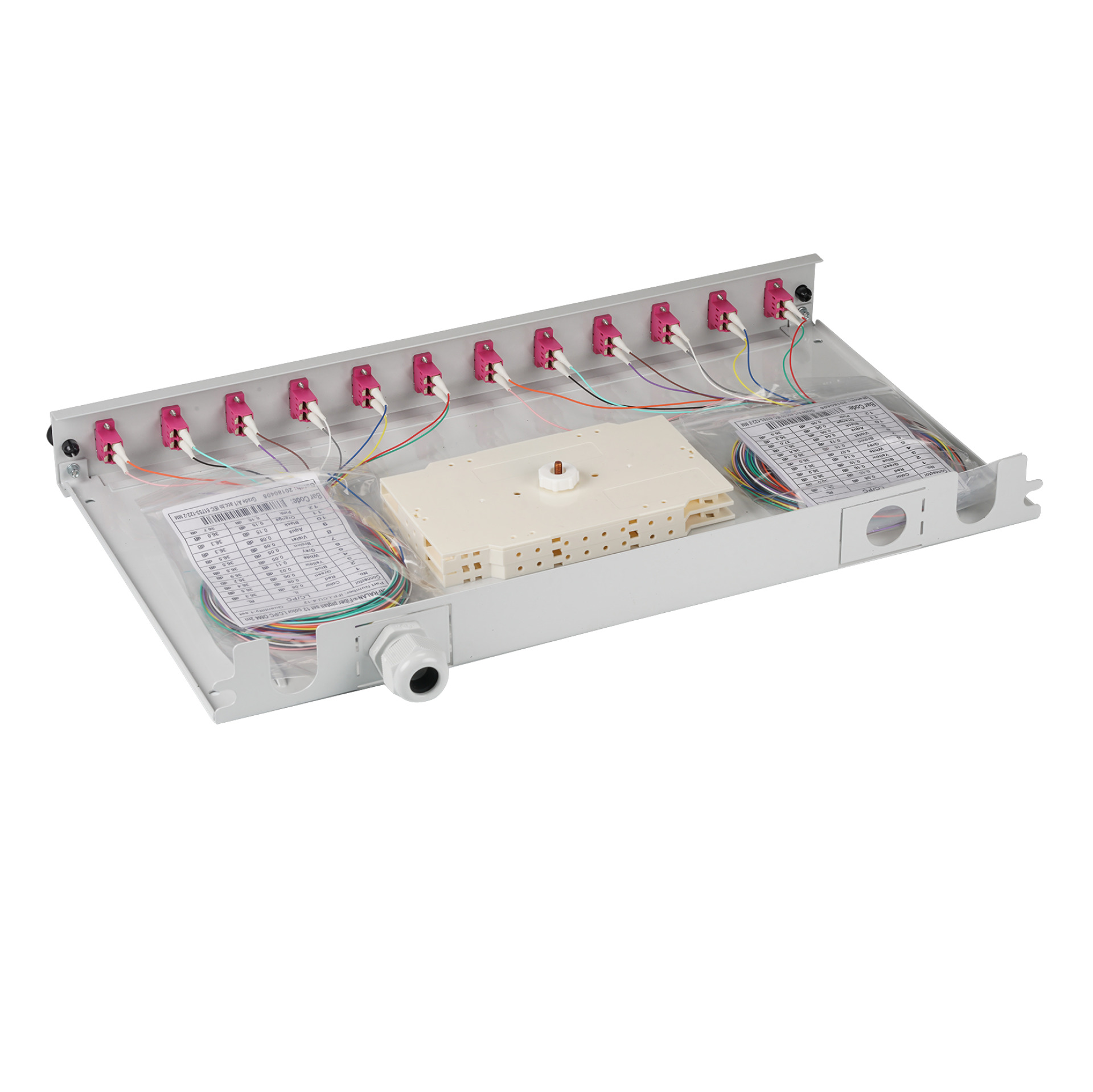

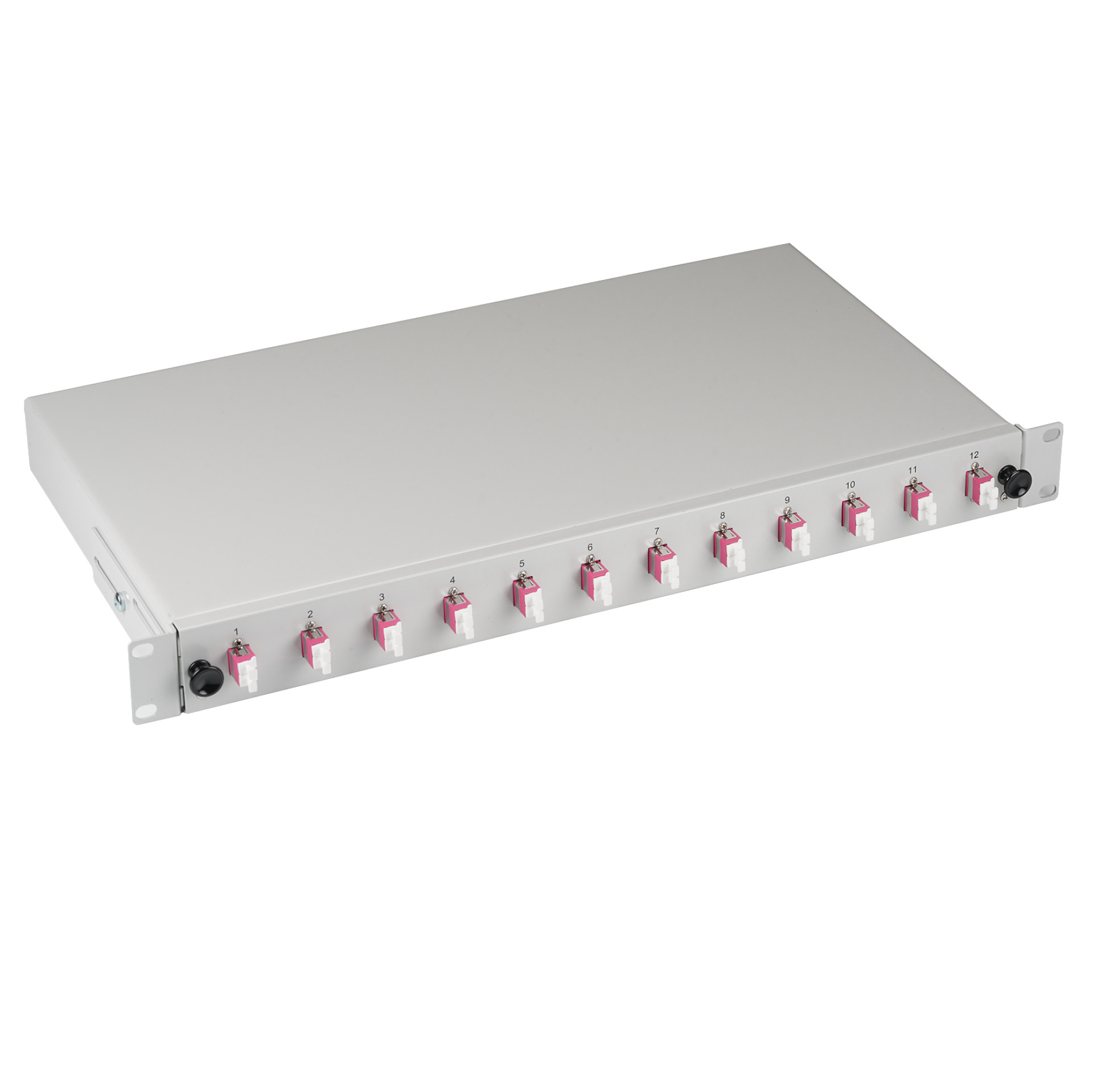

Splice box LC 50/125µ OM4 extendable
Splice box LC 50/125µ OM4 extendable, 48 pigtails / 24 adapters
Varenummer:
B71901L48OM4
EAN Nr.:
4049759284411
Produktinformation til Splice box LC 50/125µ OM4 extendable, 48 pigtails / 24 adapters
completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustablecable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
and coloured pigtails
metal housing depth adjustablecable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
Tekniske egenskaber
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | LC |
| Depth: | 244.0 mm |
| Extendable: | sliding version |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Note: | vertical |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianten
| Art. Nr. | Bezeichnung | Color | Suitable for number of couplings/adapters | Type of connector external | Pigtail | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71901L12OM4 | Splice box LC 50/125µ OM4 extendable, 12 pigtails / 6 adapters | grey | 12 | LC-Duplex | 12 x LC | 6 | 7035 | LC-Duplex | violet | |
| B71901L24OM4 | Splice box LC 50/125µ OM4 extendable, 24 pigtails / 12 adapters | grey | 12 | - | 24 x LC | 12 | 7035 | - | violet | |
| B71901L48OM4 | Splice box LC 50/125µ OM4 extendable, 48 pigtails / 24 adapters | grey | 24 | LC-Duplex | 48 x LC | 24 | 7035 | LC-Duplex | violet |
