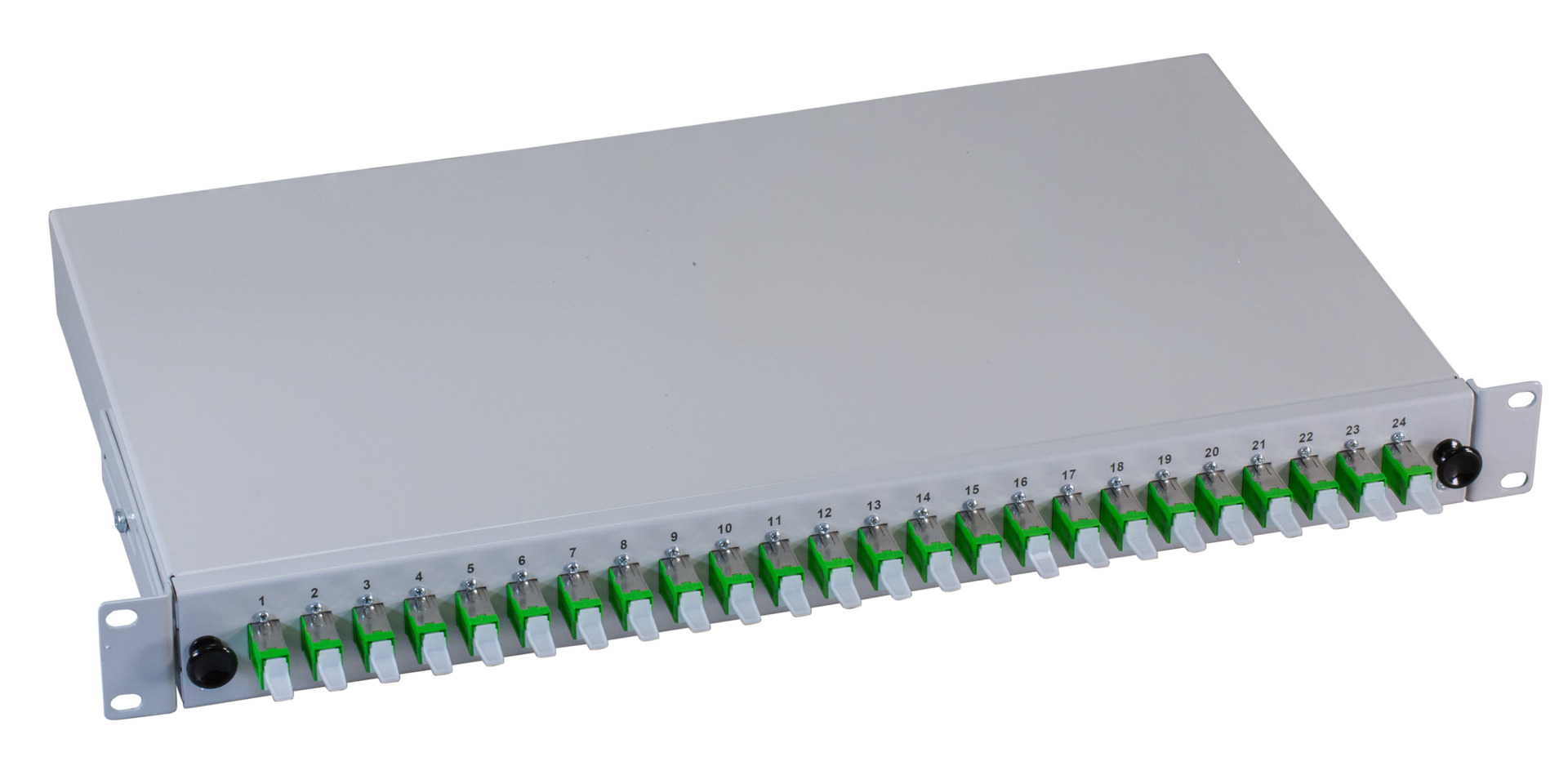

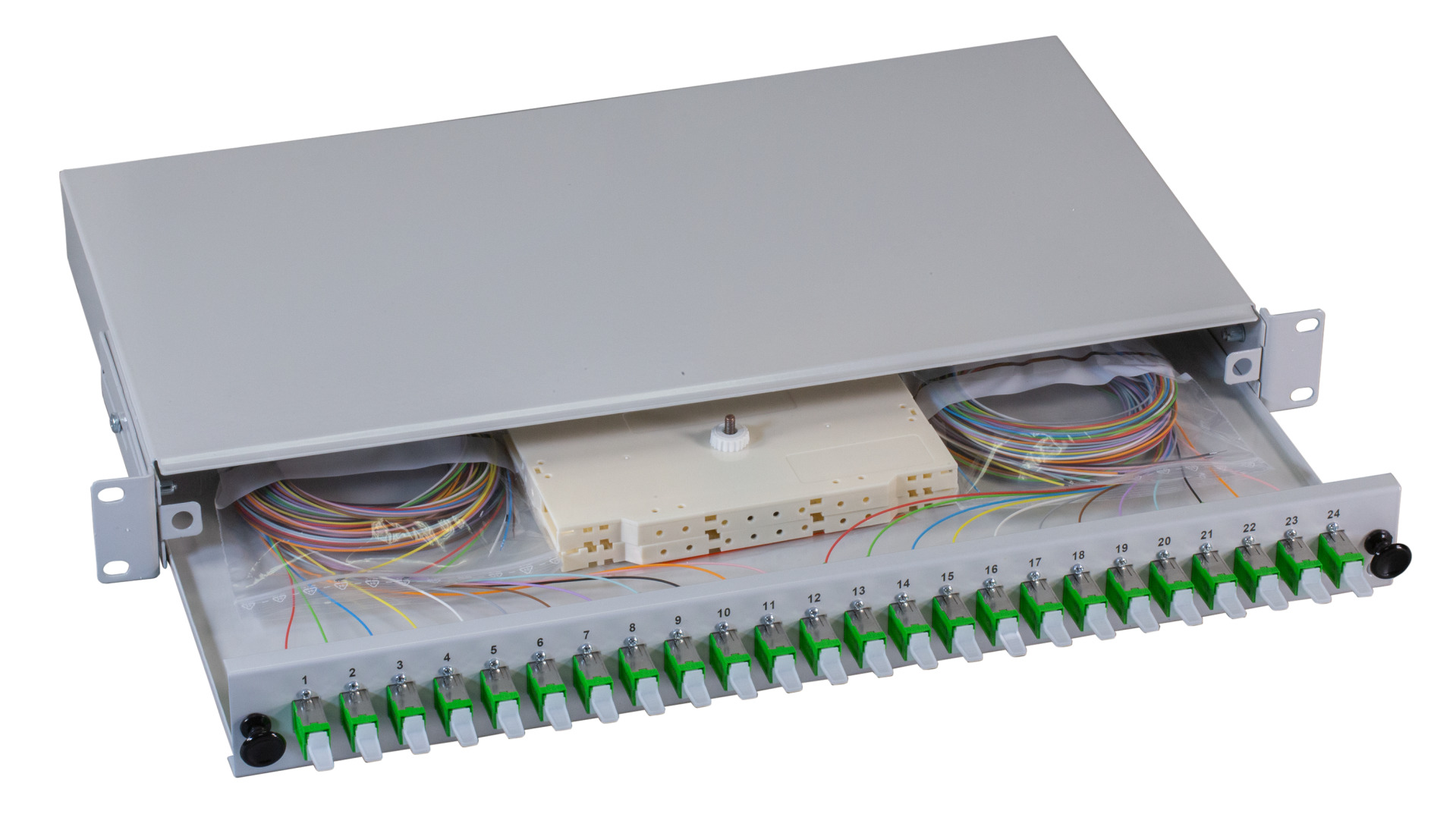

Splicebox sliding unit, with E2000® plastic adapter and pigtails, OS2
Splicebox E2000®-APC 9/125µ OS2 extendable 24 Pigtails stripped/24 Adapter
Varenummer:
B71533.24
EAN Nr.:
4049759075095
Produktinformation til Splicebox E2000®-APC 9/125µ OS2 extendable 24 Pigtails stripped/24 Adapter

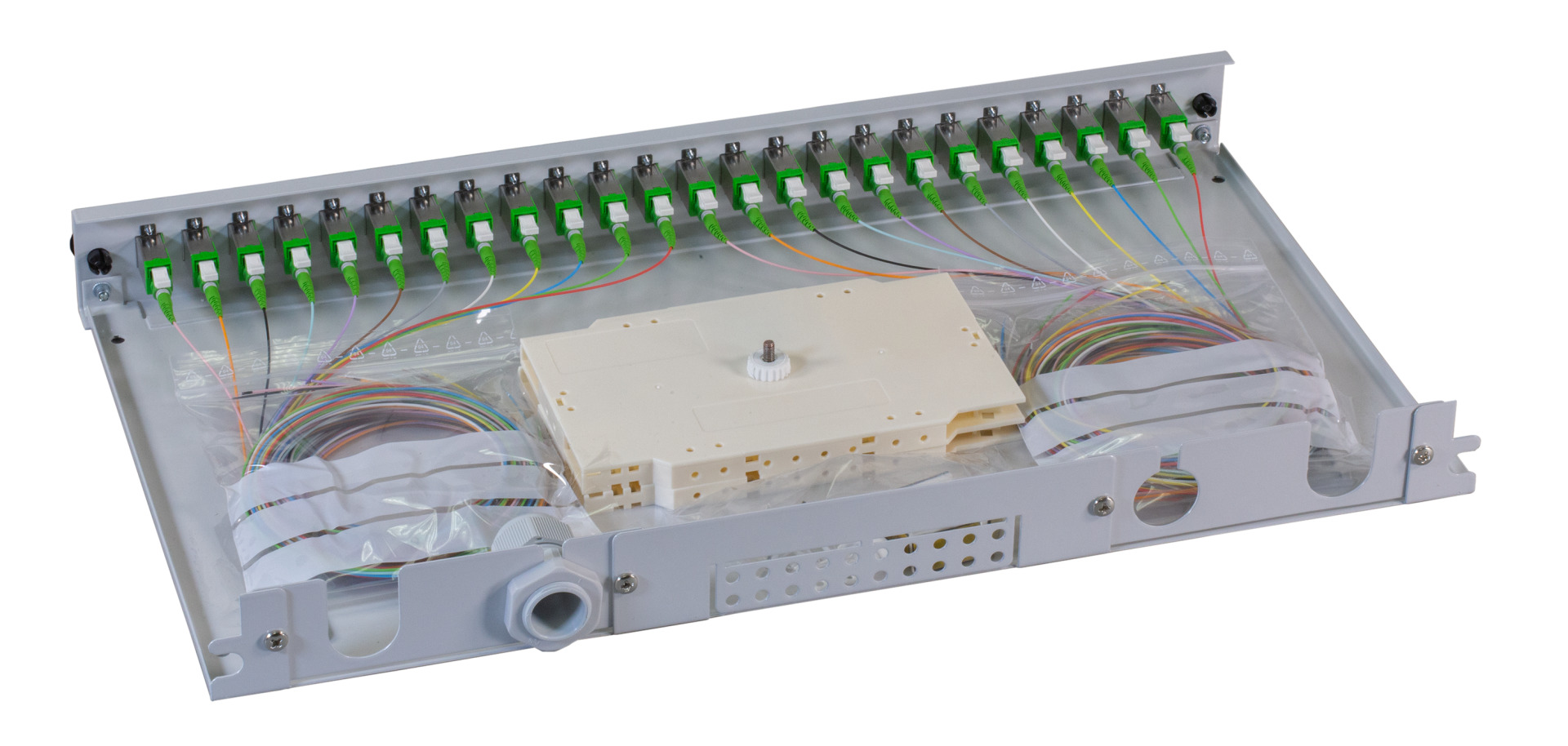

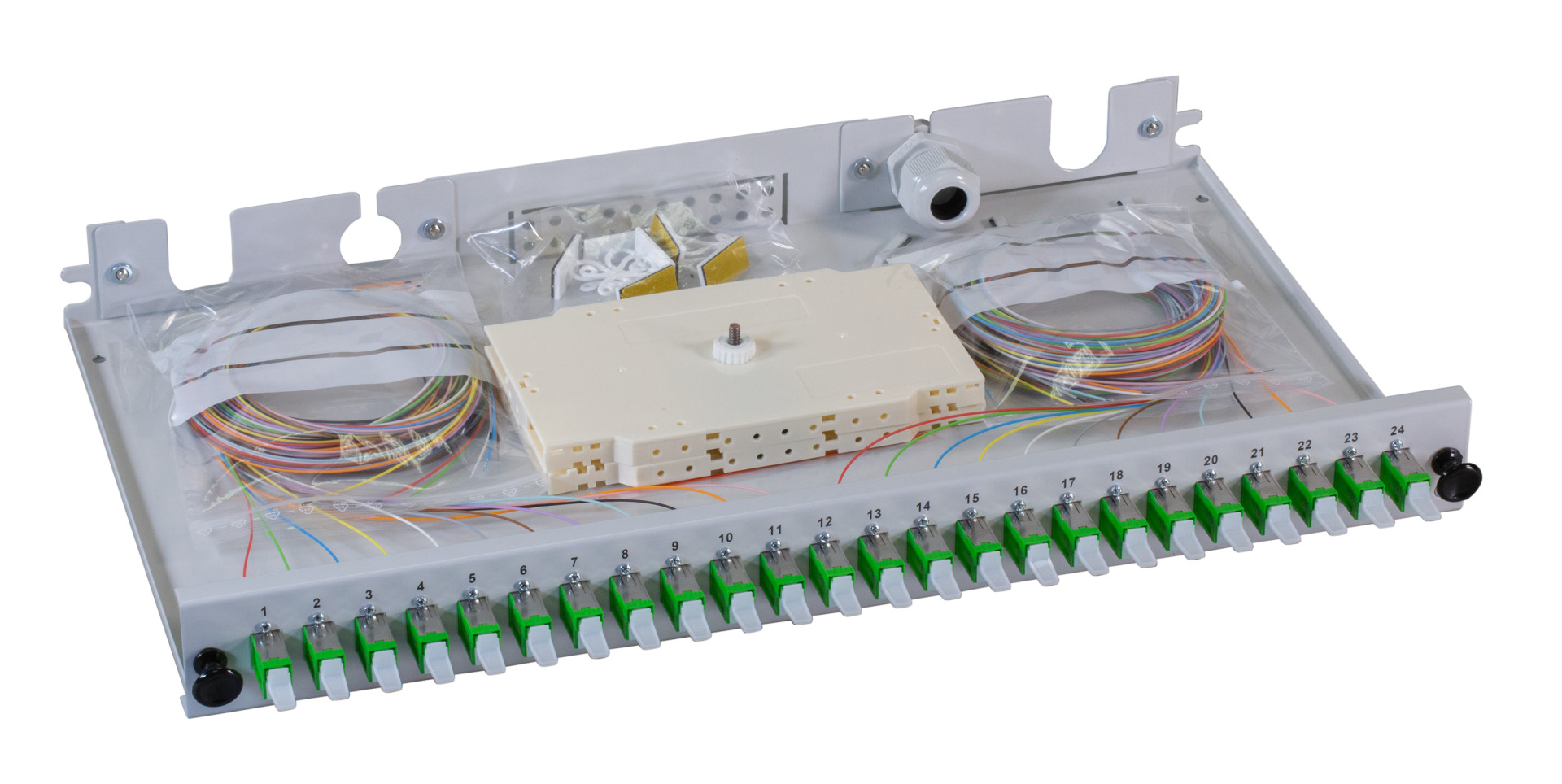

completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Tekniske egenskaber
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | E2000® |
| Depth: | 244.0 mm |
| Extendable: | sliding version |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianten
| Art. Nr. | Bezeichnung | Color | Type of connector external | Suitable for number of couplings/adapters | Pigtail | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71533.6 | Splicebox E2000®-APC 9/125µ OS2 extendable 6 Pigtails stripped/6 Adapter | grey | E2000® | 12 | 6 x E2000®/APC | 6 | 7035 | E2000® | green | |
| B71533.12 | Splicebox E2000®-APC 9/125µ OS2 extendable 12 Pigtails stripped/12 Adapter | grey | E2000® | 12 | 12 x E2000®/APC | 12 | 7035 | E2000® | green | |
| B71533.24 | Splicebox E2000®-APC 9/125µ OS2 extendable 24 Pigtails stripped/24 Adapter | grey | E2000® | 24 | 24 x E2000®/APC | 24 | 7035 | E2000® | green | |
| B71533TS.24 | Splicebox bk E2000®-APC 9/125µ OS2 extendable 24 Pigtails stripped/24 Adapter | black | E2000® | 24 | 24 x E2000®/APC | 24 | 9005 | E2000® | green |
