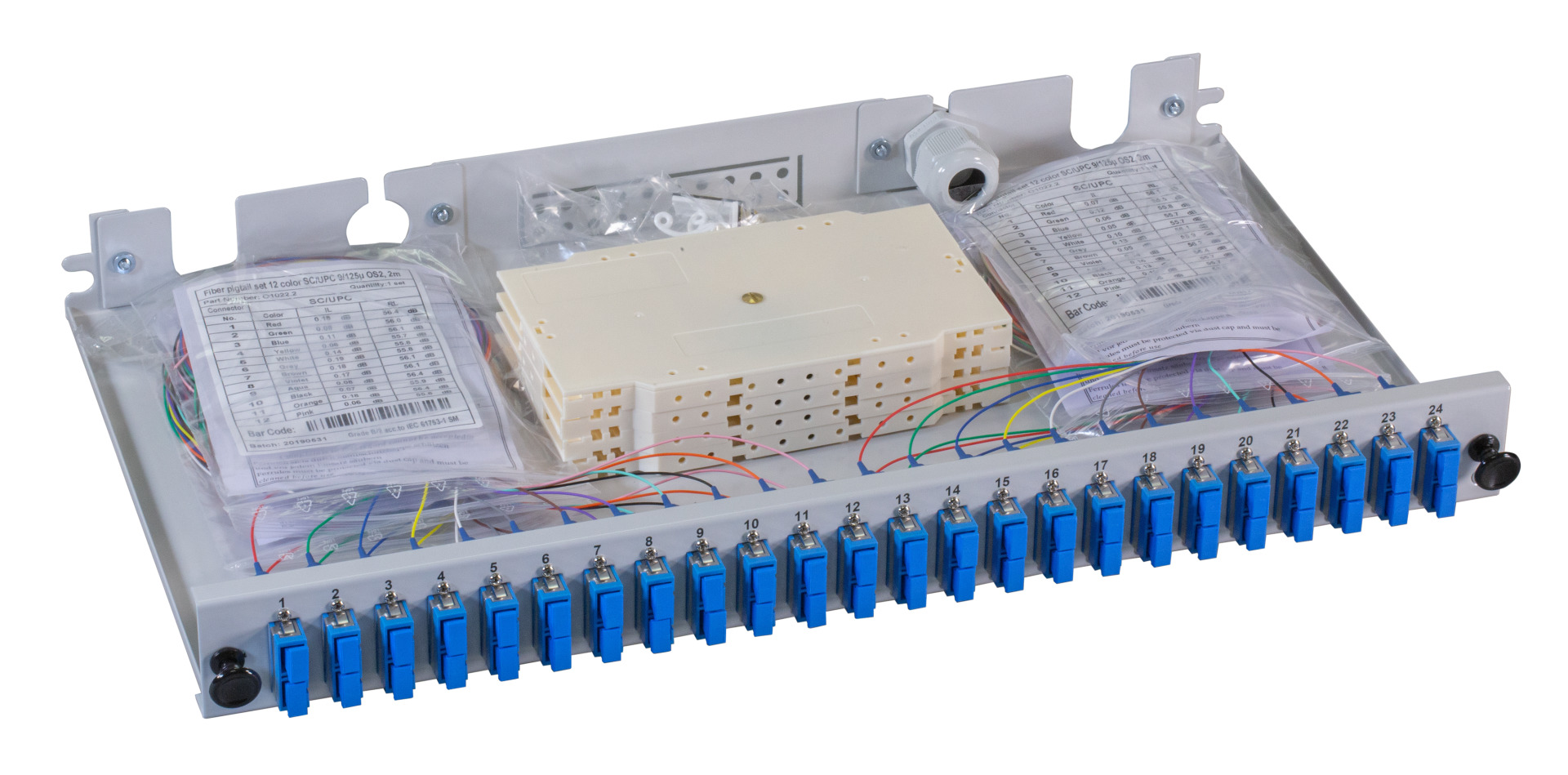

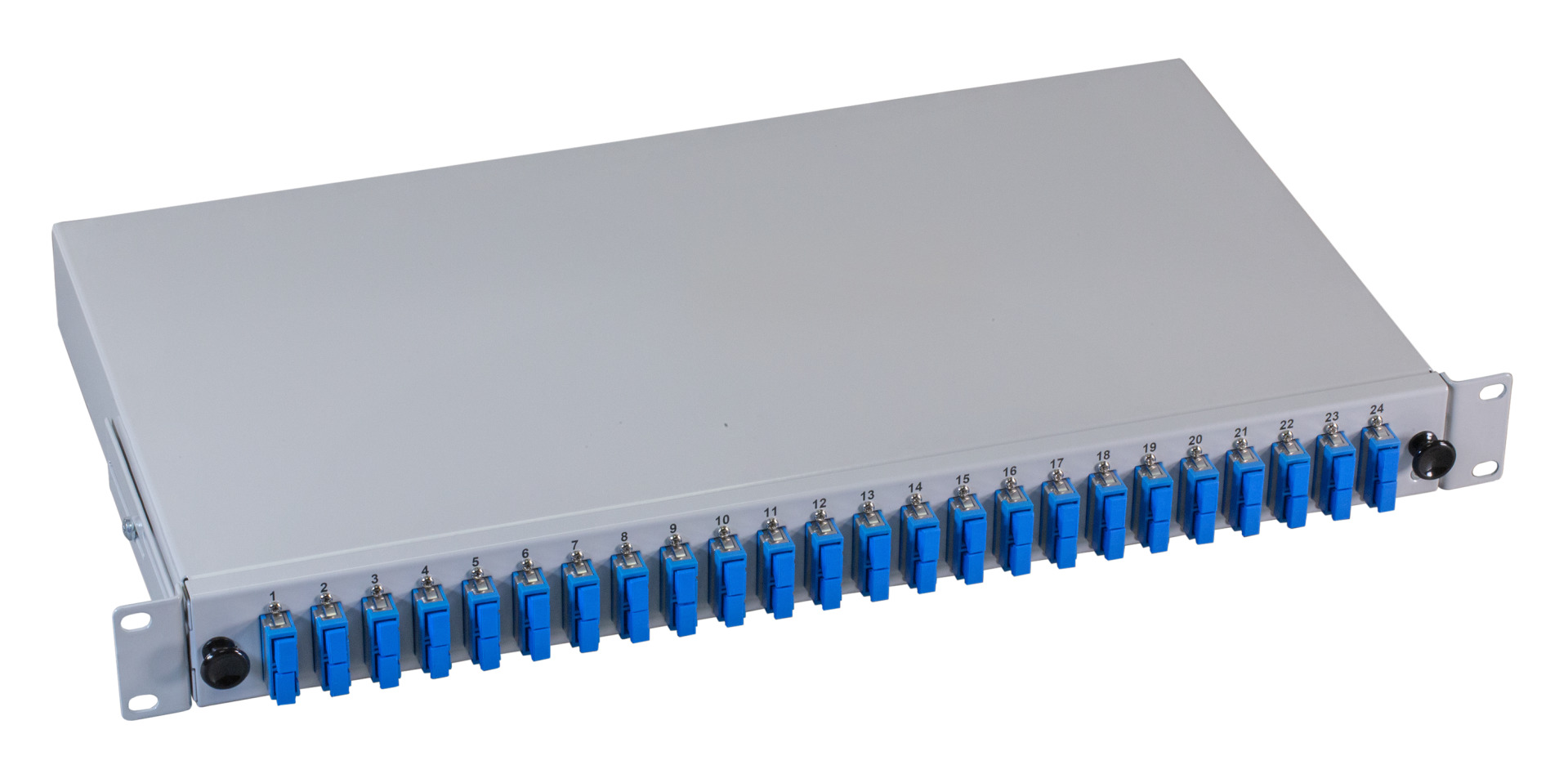

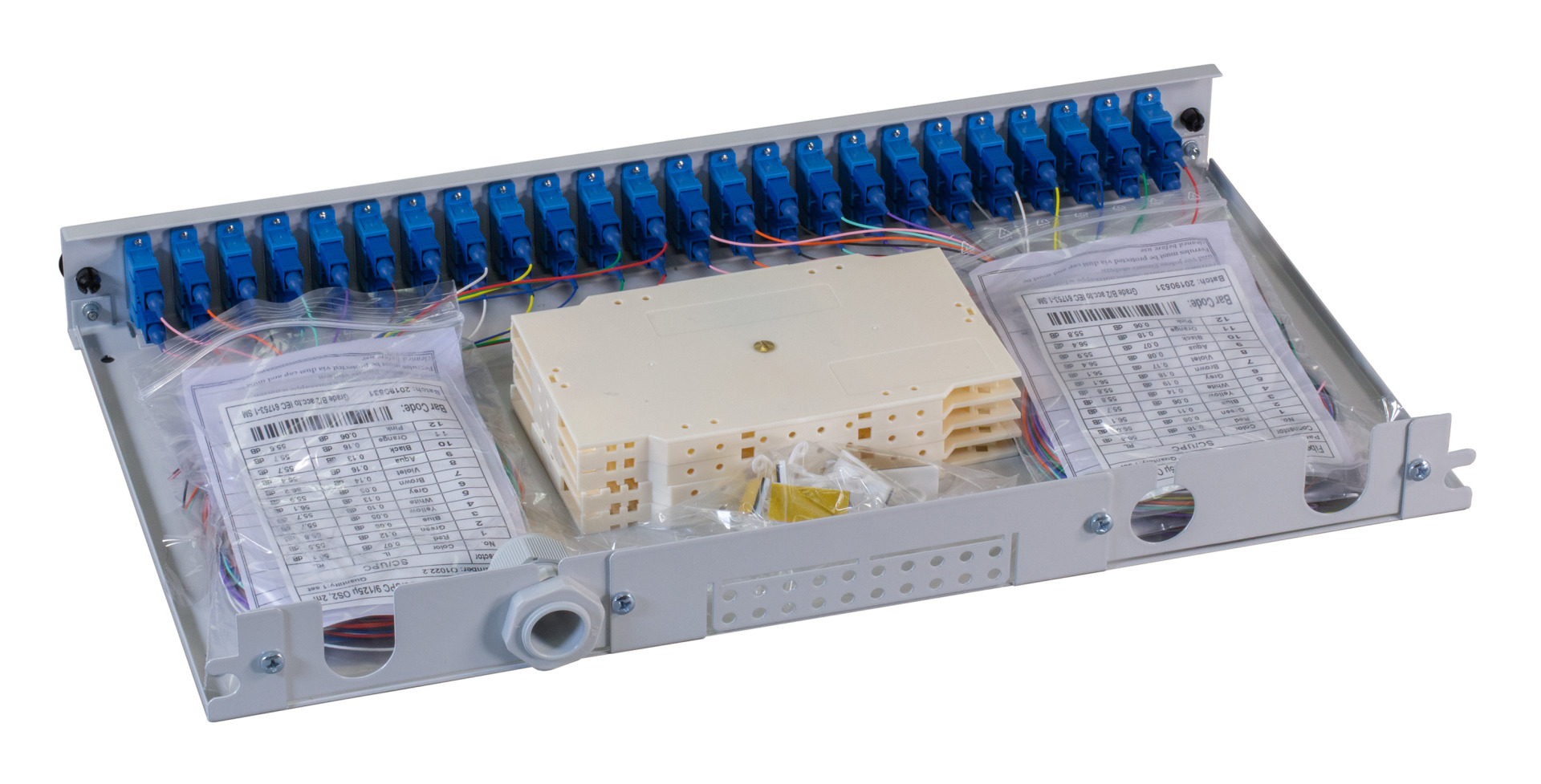

Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OS2
Splicebox SC 9/125µ OS2 extendable 24 Pigtails/12 Adapter
Varenummer:
B71223.24
EAN Nr.:
4049759042332
Produktinformation til Splicebox SC 9/125µ OS2 extendable 24 Pigtails/12 Adapter
completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Tekniske egenskaber
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC |
| Depth: | 244.0 mm |
| Extendable: | sliding version |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianten
| Art. Nr. | Bezeichnung | Color | Suitable for number of couplings/adapters | Type of connector external | Pigtail | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71223.12 | Splicebox SC 9/125µ OS2 extendable 12 Pigtails/6 Adapter | grey | 12 | SC-Duplex | 12 x SC | 6 | 7035 | SC-duplex | blue | |
| B71223.24 | Splicebox SC 9/125µ OS2 extendable 24 Pigtails/12 Adapter | grey | 12 | SC-Duplex | 24 x SC | 12 | 7035 | SC-duplex | blue | |
| B71223.48 | Splicebox SC 9/125µ OS2 extendable 48 Pigtails/24 Adapter | grey | 24 | SC-Duplex | 48 x SC | 24 | 7035 | SC-duplex | blue | |
| B71223TS.12 | Splicebox bk SC 9/125µ OS2 extendable 12 Pigtails/6 Adapter | black | 12 | SC-Duplex | 12 x SC | 6 | 9005 | SC-duplex | blue | |
| B71223TS.48 | Splicebox bk SC 9/125µ OS2 extendable 48 Pigtails/24 Adapter | black | 24 | SC-Duplex | 48 x SC | 24 | 9005 | SC-duplex | blue | |
| B71228.12 | Splicebox SC-APC 9/125µ OS2 extendable 12 Pigtails/6 Adapter | grey | 12 | SC-Duplex | 12 x SC/APC | 12 | 7035 | SC-duplex | green | |
| B71228.24 | Splicebox SC-APC 9/125µ OS2 extendable 24 Pigtails/12 Adapter | grey | 12 | SC-Duplex | 24 x SC/APC | 24 | 7035 | SC-duplex | green | |
| B71228.48 | Splicebox SC-APC 9/125µ OS2 extendable 48 Pigtails/24 Adapter | grey | 24 | SC-Duplex | 48 x SC/APC | 48 | 7035 | SC-duplex | green |
