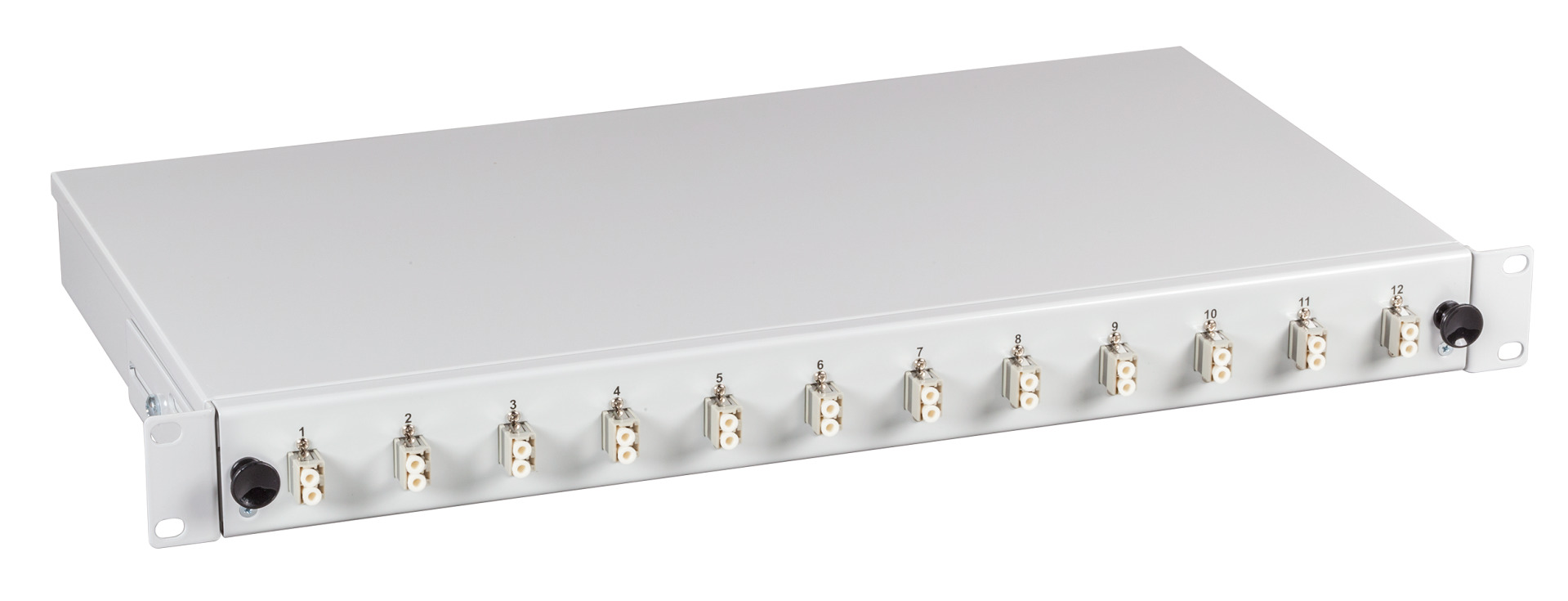

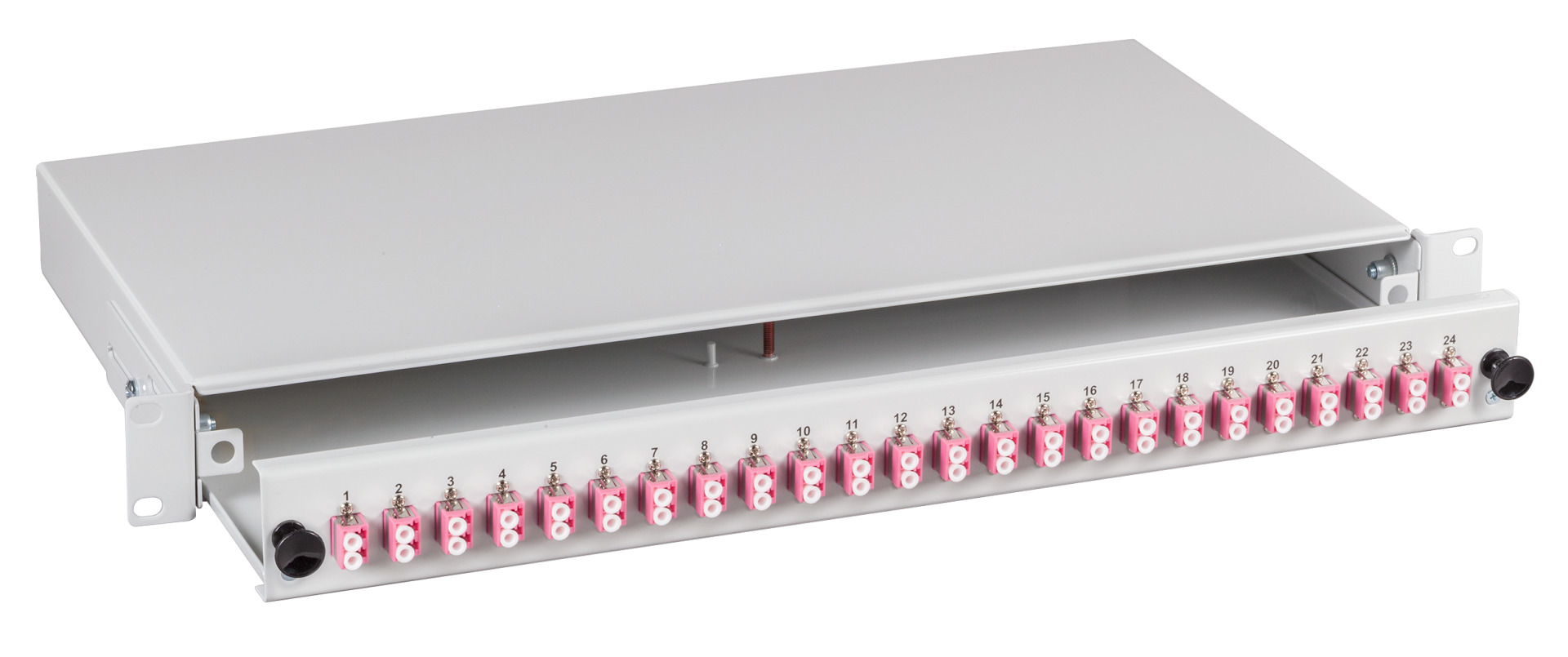

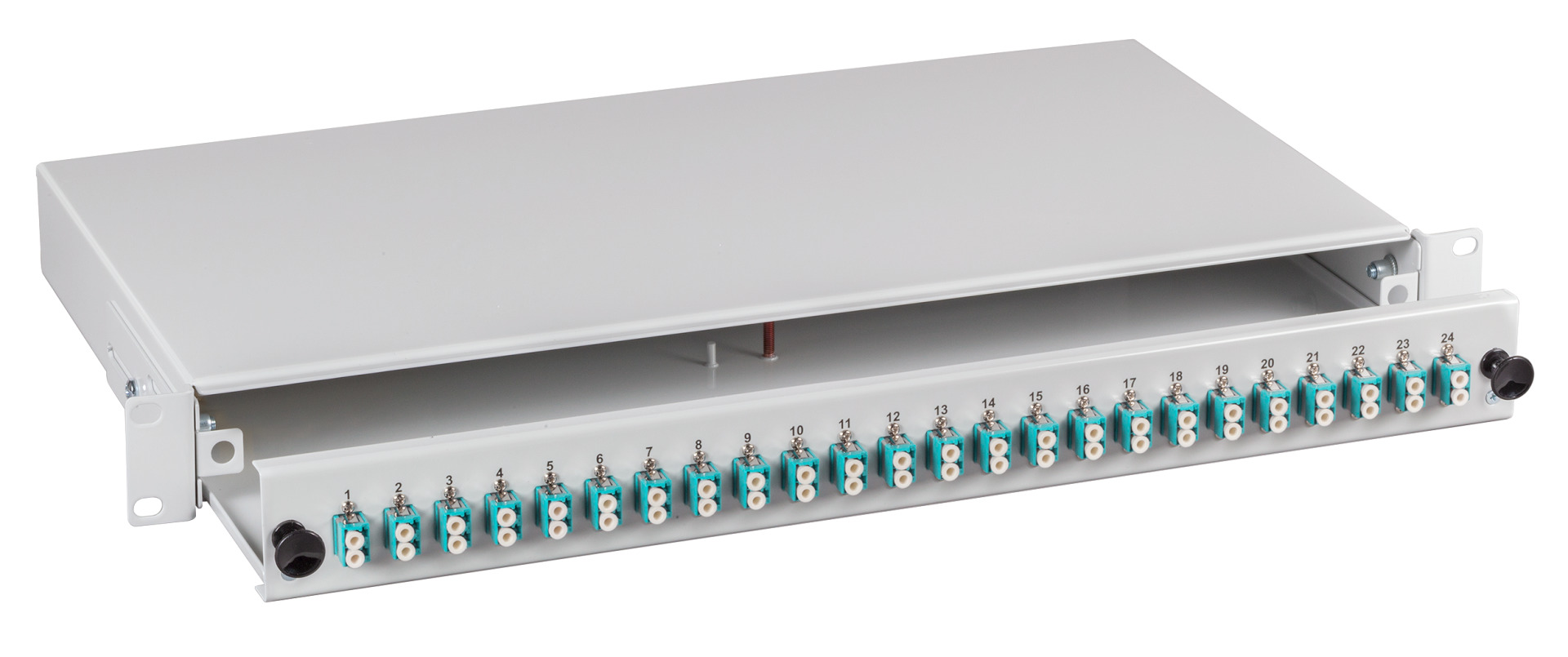

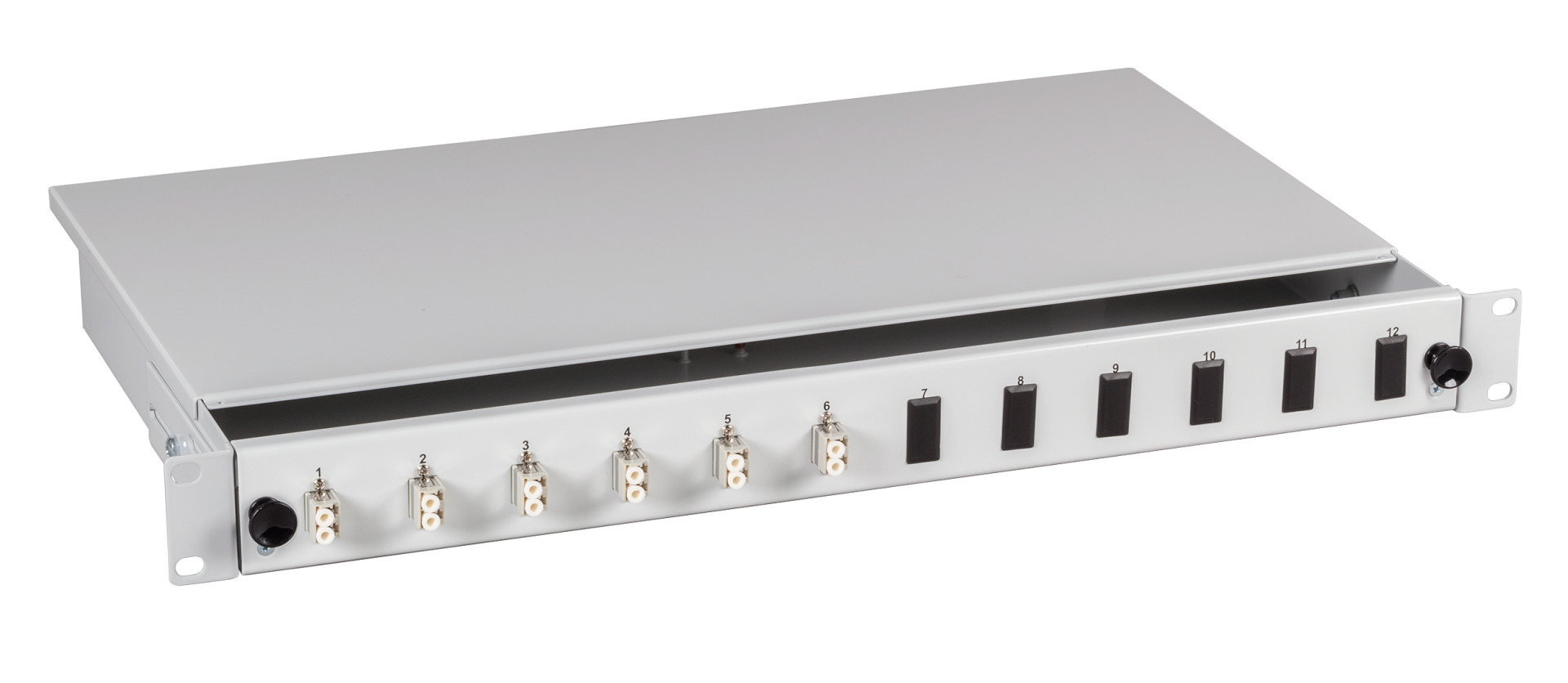

Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OS2
Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OS2
Varenummer:
B71920.48
EAN Nr.:
4049759173944
Produktinformation til Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OS2
completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Tekniske egenskaber
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | LC |
| Depth: | 244.0 mm |
| Extendable: | sliding version |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianten
| Art. Nr. | Bezeichnung | Type of connector external | Color | Suitable for number of couplings/adapters | Pigtail | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71921.12 | Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OS2 | LC-Duplex | grey | 12 | 12 x LC | 6 | 7035 | LC-Duplex | blue | |
| B71921.24 | Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OS2 | LC-Duplex | grey | 12 | 24 x LC | 12 | 7035 | LC-Duplex | blue | |
| B71921.48 | Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OS2 | LC-Duplex | grey | 24 | 48 x LC | 24 | 7035 | LC-Duplex | blue | |
| B71921TS.48 | Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OS2 | LC-Duplex | black | 24 | 48 x LC | 24 | 9005 | LC-Duplex | blue | |
| B71920.12 | Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OS2 | LC-Duplex | grey | 12 | 12 x LC/APC | 6 | 7035 | LC-Duplex | green | |
| B71920.24 | Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OS2 | LC-Duplex | grey | 12 | 24 x LC-APC | 12 | 7035 | LC-Duplex | green | |
| B71920.48 | Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OS2 | LC-Duplex | grey | 24 | 48 x LC-APC | 24 | 7035 | LC-Duplex | green | |
| B71921TS.12 | Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OS2 | LC-Duplex | black | 12 | 12 x LC | 6 | 9005 | LC-Duplex | blue | |
| B71921TS.24 | Splicebox sliding unit with LC-Duplex plastic adapter and pigtails, OS2 | LC-Duplex | black | 12 | 24 x LC | 12 | 9005 | LC-Duplex | blue |
