Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3

Priser kun synlige for indloggede brugere

Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 10m
Varenummer: O8301L10OM3
Stück

Produktinformation für Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 10m

EFB sets standards in high quality

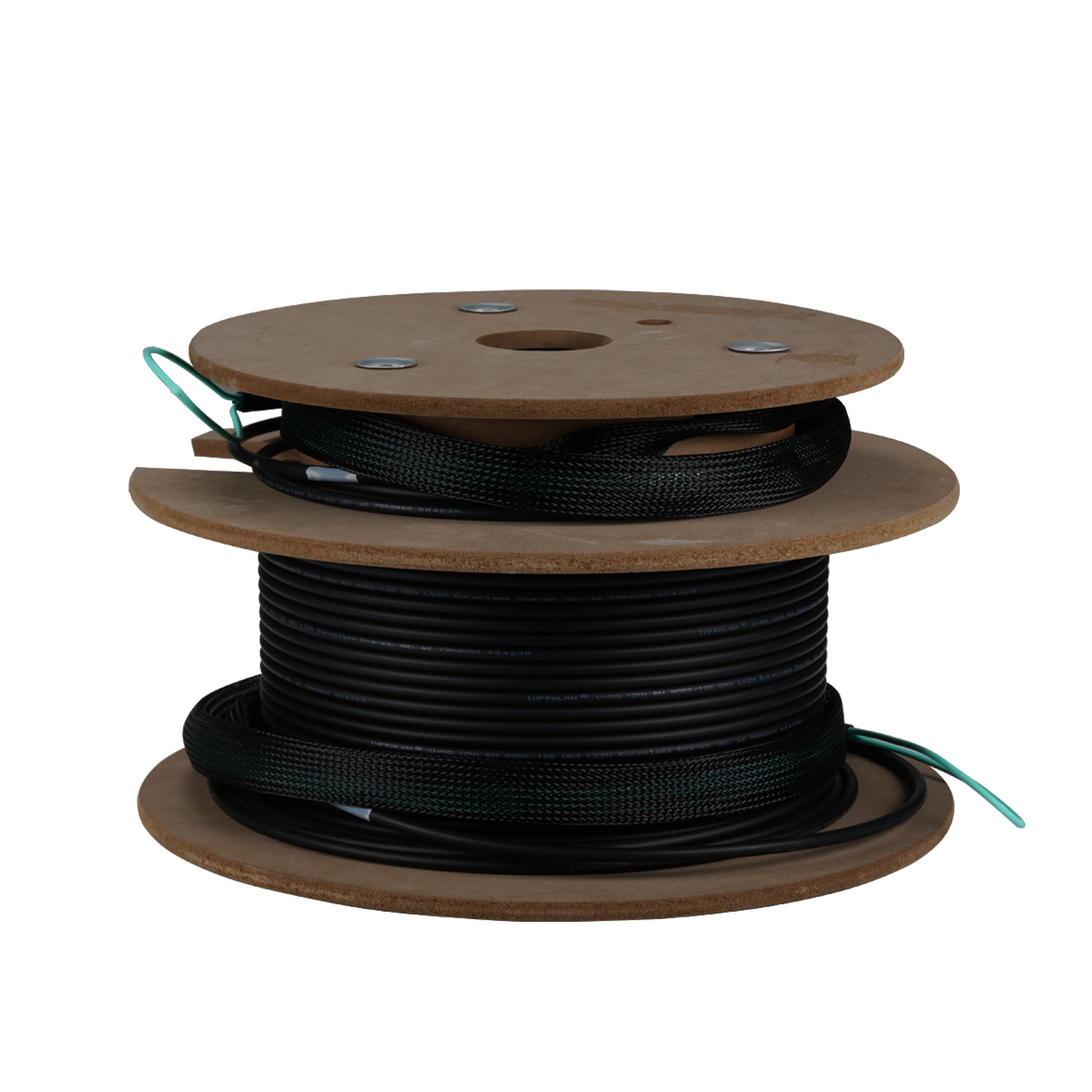

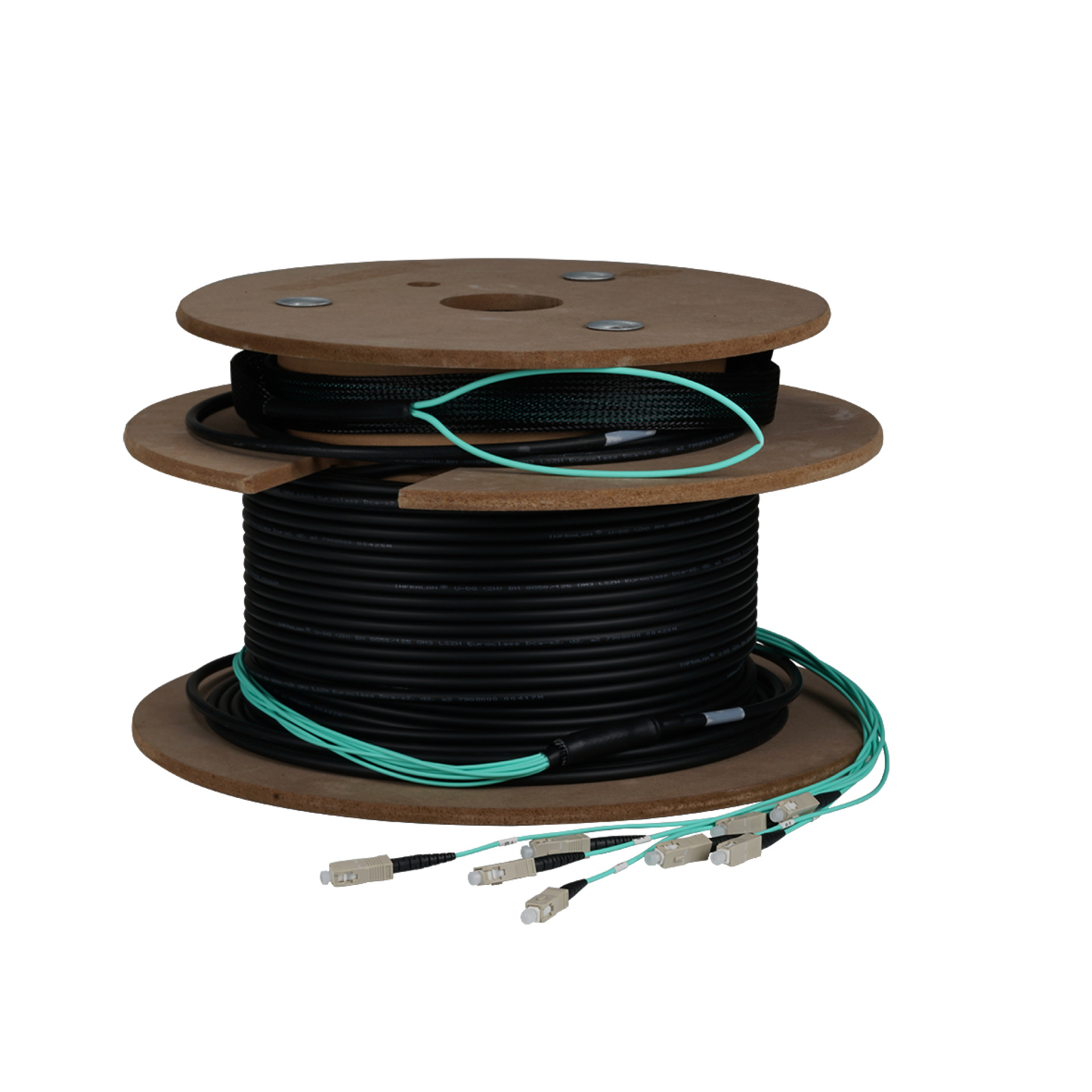

For many years, EFB has been offering individual fiber optic assemblies from its own production for insertion into cable ducts and shafts. Now there is also a standard line, which is kept in stock. These are pre-assembled trunk cables with SC connectors in the OS2, OM3 and OM4 categories. The stocked lengths can be found in the overview below.

Advantages:
Fast delivery: standard lengths up to 200 m in standard quantities available from stock
Reduction of installation costs: No splicing and assembly equipment required
Reduced installation time: cable ready for direct installation
Traceable quality: cable with serial number and measurement protocol

Performance features:
4, 8 or 12 fibers per cable
Fibre class OS2, OM3 or OM4
Factory production, polishing and function test

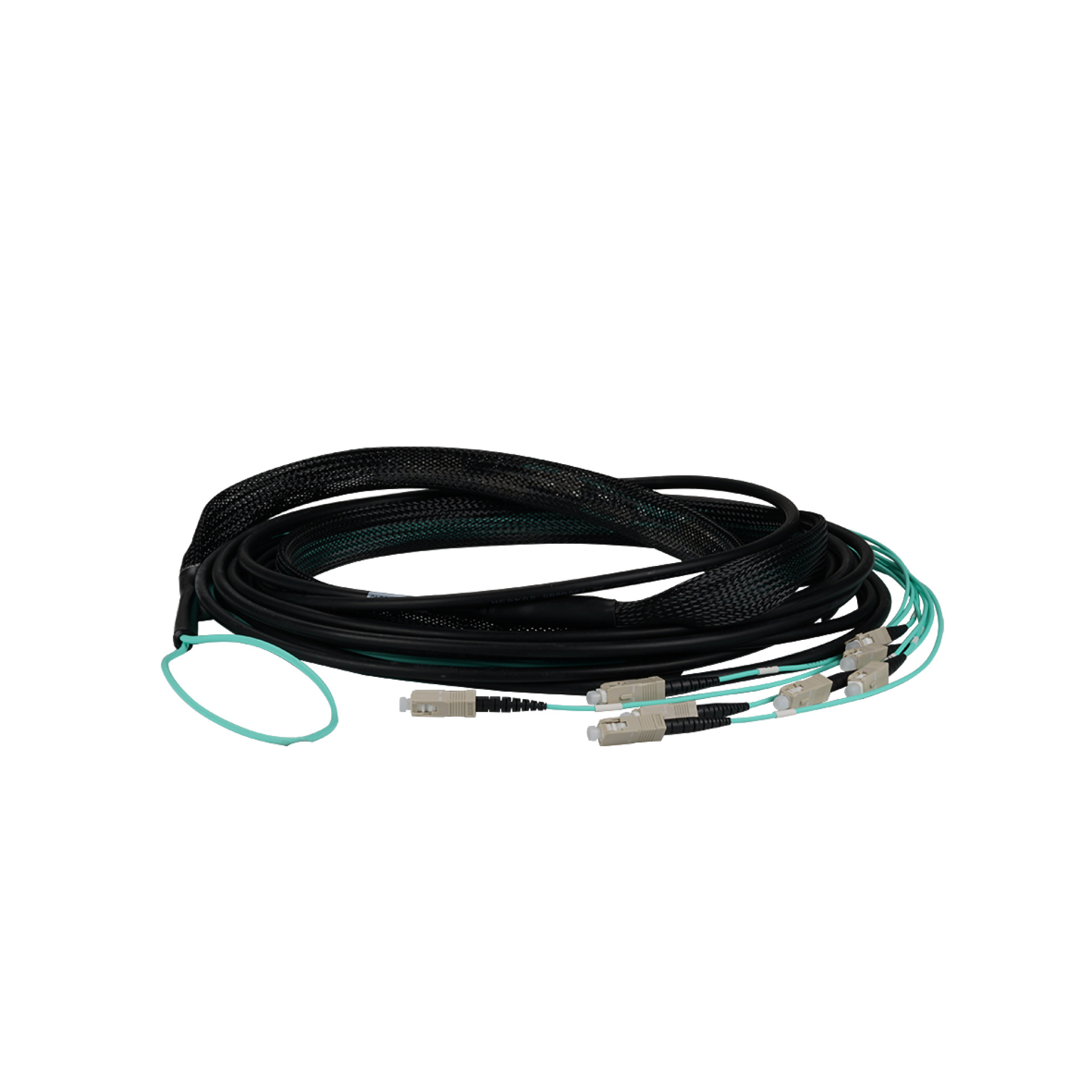

Double-sided assembled stepped cable whips (longest length 1 m)
Identification of the remote individual cables with cable markers (numbers)
Serial number on the cable
Attenuation protocol for each individual fiber is provided

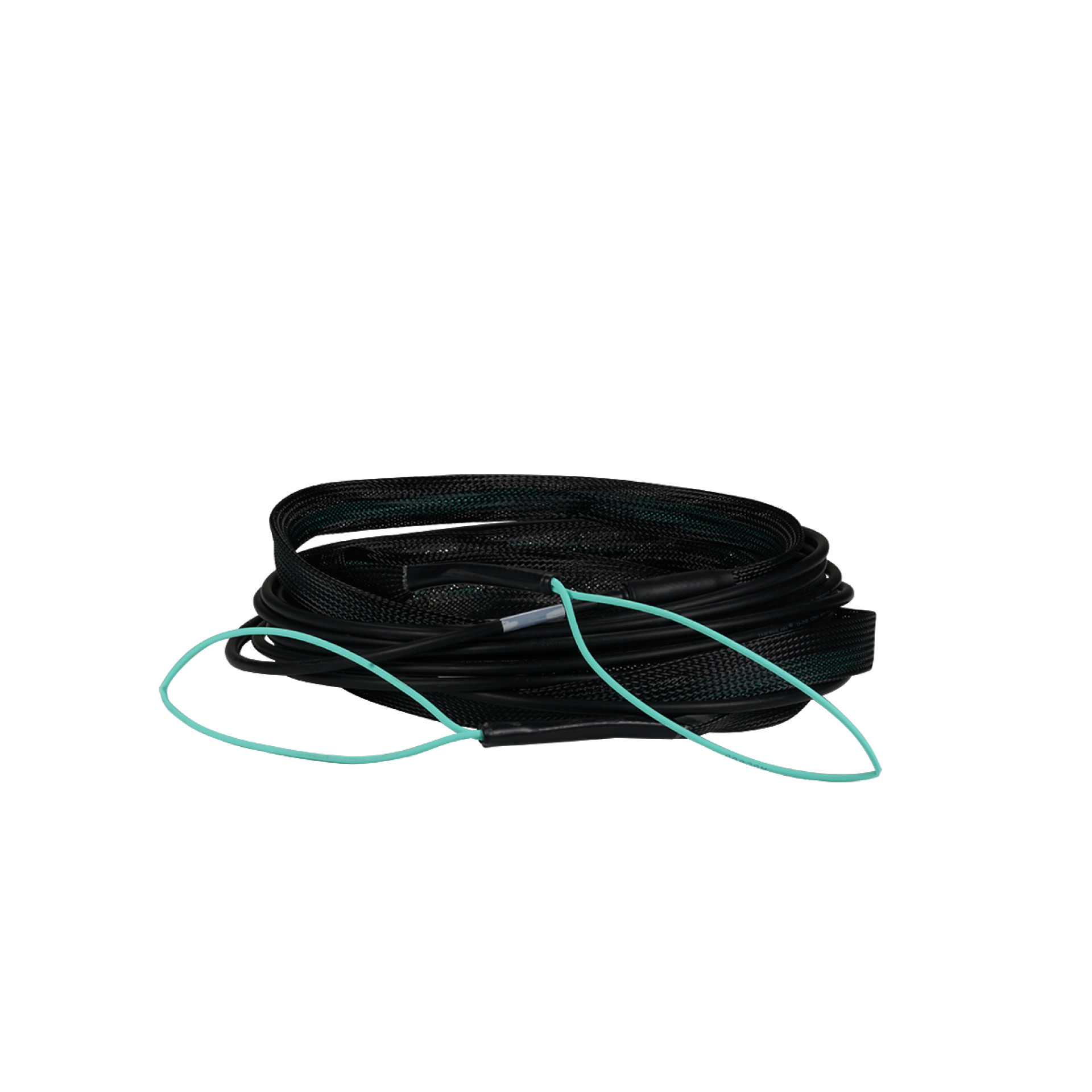

Delivery on both sides with fabric hose as drawing-in tube
Delivery up to 40 m in polybag, from 50 m on disposable drum
Raw cable: CPR-Class Dca

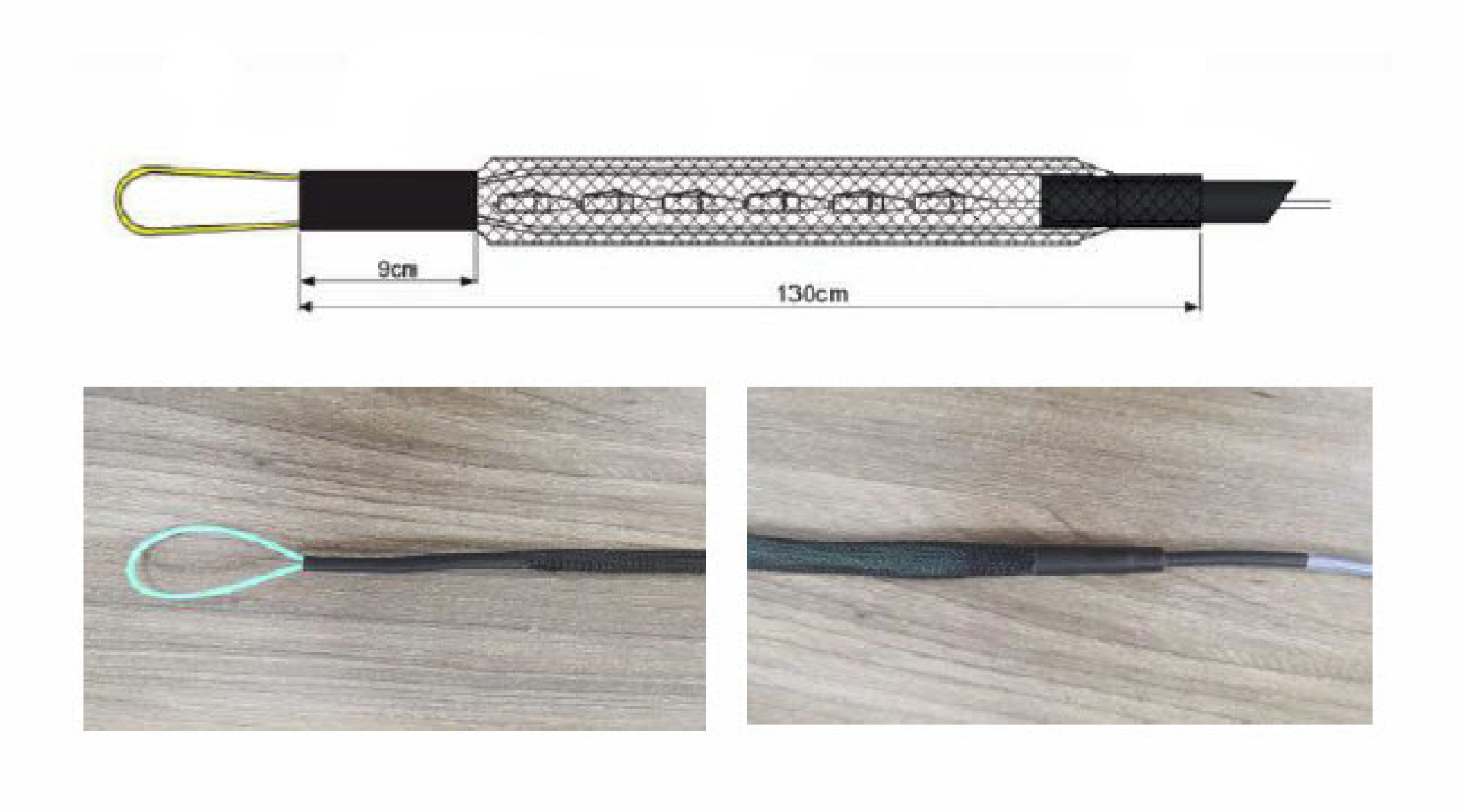

Length of the draw-in tube of 130cm, diameter: 4 fiber approx. 10mm, 8 fiber approx. 15mm, 12 fiber approx. 20mm

Tekniske egenskaber

APC-version: False
Anti-kink sleeve: put-on
Bend optimized fiber: OM3 acc. to IEC60793-2-10 type A1a.2 and A1a.3
Cable Conform to Standard: IEC 60793-2
Cable Construction: Multifiber
Cable type: U-DQ (ZN) BH
Cable Ø: 6.0 mm
Category: OM3
Colour outer sheath: black
Connector Conform to Standard: IEC 61754-4
Connector colour 1: beige
Connector colour 2: beige
Dimension Cable divider: 11.5 x 50 mm
Fiber type: Multi mode 50/125
Insertion loss 850nm: < 0.3 dB
Jacket material: LSZH
Max. Tension: 200 N
Min. Bending radius (Dynamic): 180 mm
Min. Bending radius (Static): 90 mm
Number of fibres: 4
Operating Temperature: 0 – 50 °C
Quality class multimode: A/1 according to IEC-61753-222-2
Storage Temperature: -20 – 70 °C
Type of connector connection 1: 4 x SC
Type of connector connection 2: 4 x SC

Varianter

Art. Nej. Betegnelse Length Length tolerance
O8301L30OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 30m 30.0 m ±5 %
O8301L40OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 40m 40.0 m ±5 %
O8301L60OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 60m 60.0 m ±5 %
O8301L70OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 70m 70.0 m ±5 %
O8301L80OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 80m 80.0 m ±5 %
O8301L90OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 90m 90.0 m ±5 %
O8301L110OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 110m 110.0 m ±5 %
O8301L130OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 130m 130.0 m ±5 %
O8301L160OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 160m 160.0 m ±5 %
O8301L170OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 170m 170.0 m ±5 %
O8301L180OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 180m 180.0 m ±5 %
O8301L190OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 190m 190.0 m ±5 %
O8301L10OM3 Trunk cable U-DQ(ZN)BH 4G 50/125, SC/SC OM3 10m 10.0 m ±5 %

sold with

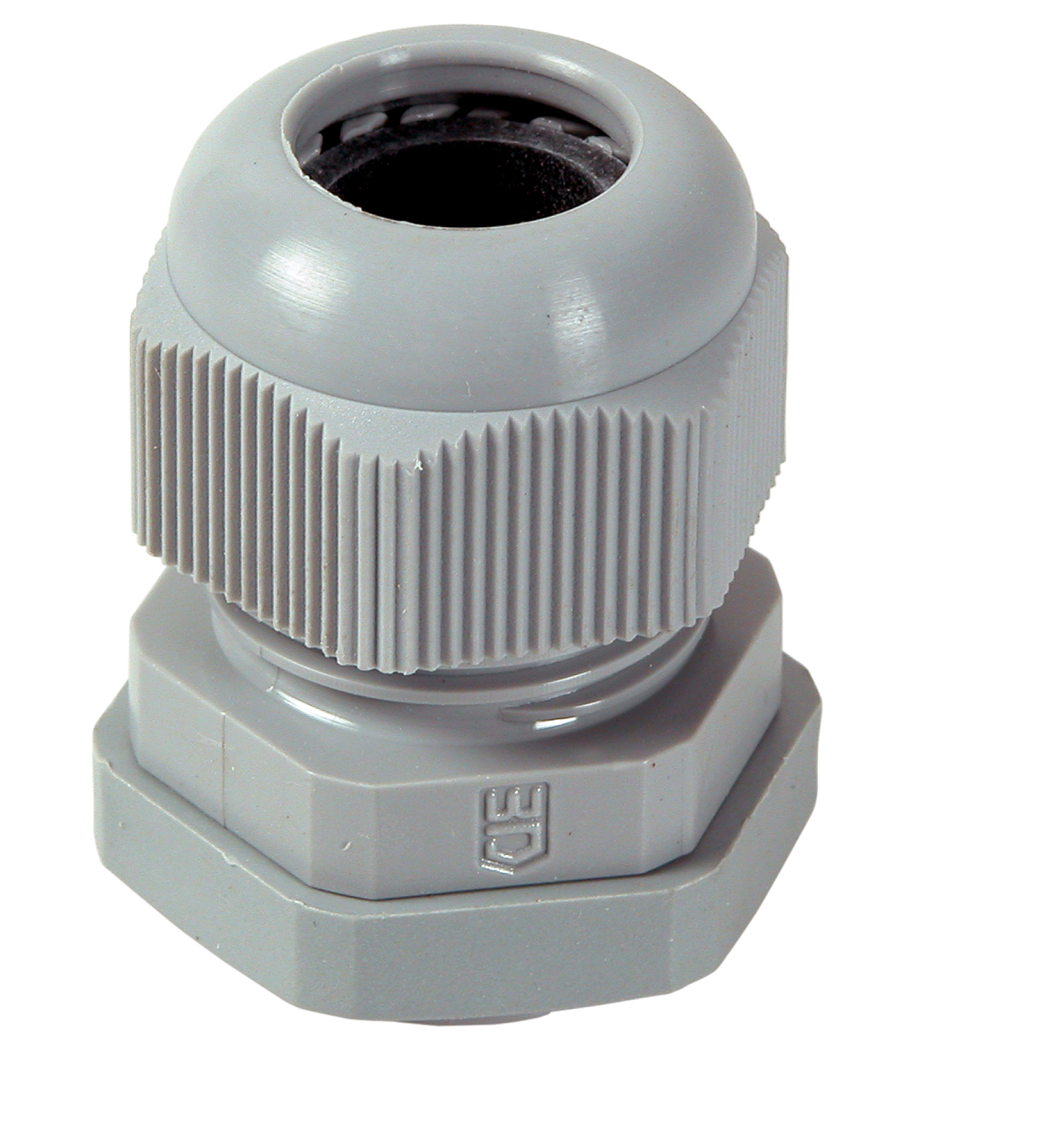

M20 Cable Glands grey, RAL7035

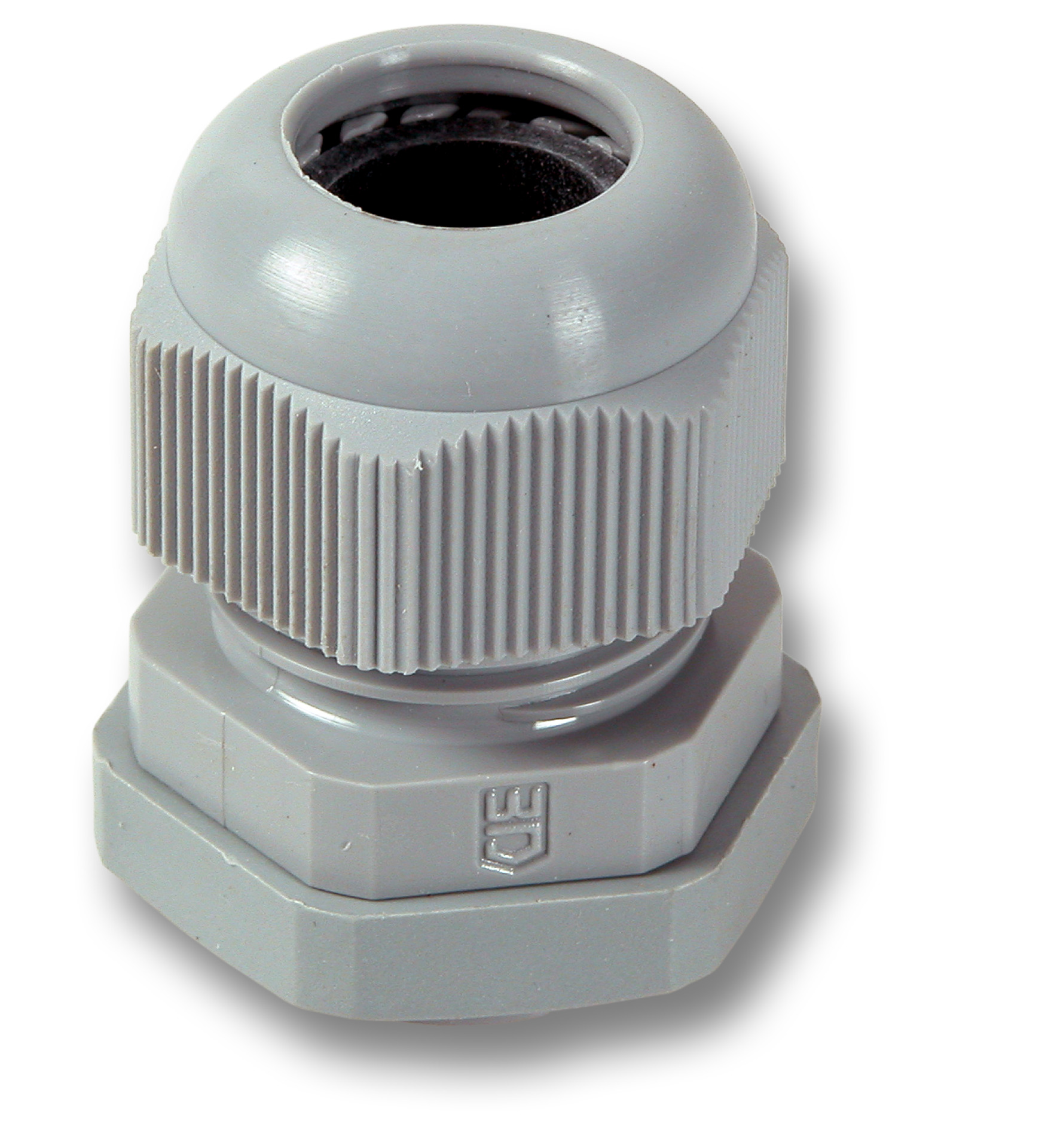

PG16 Cable Glands conical grey, RAL7035
