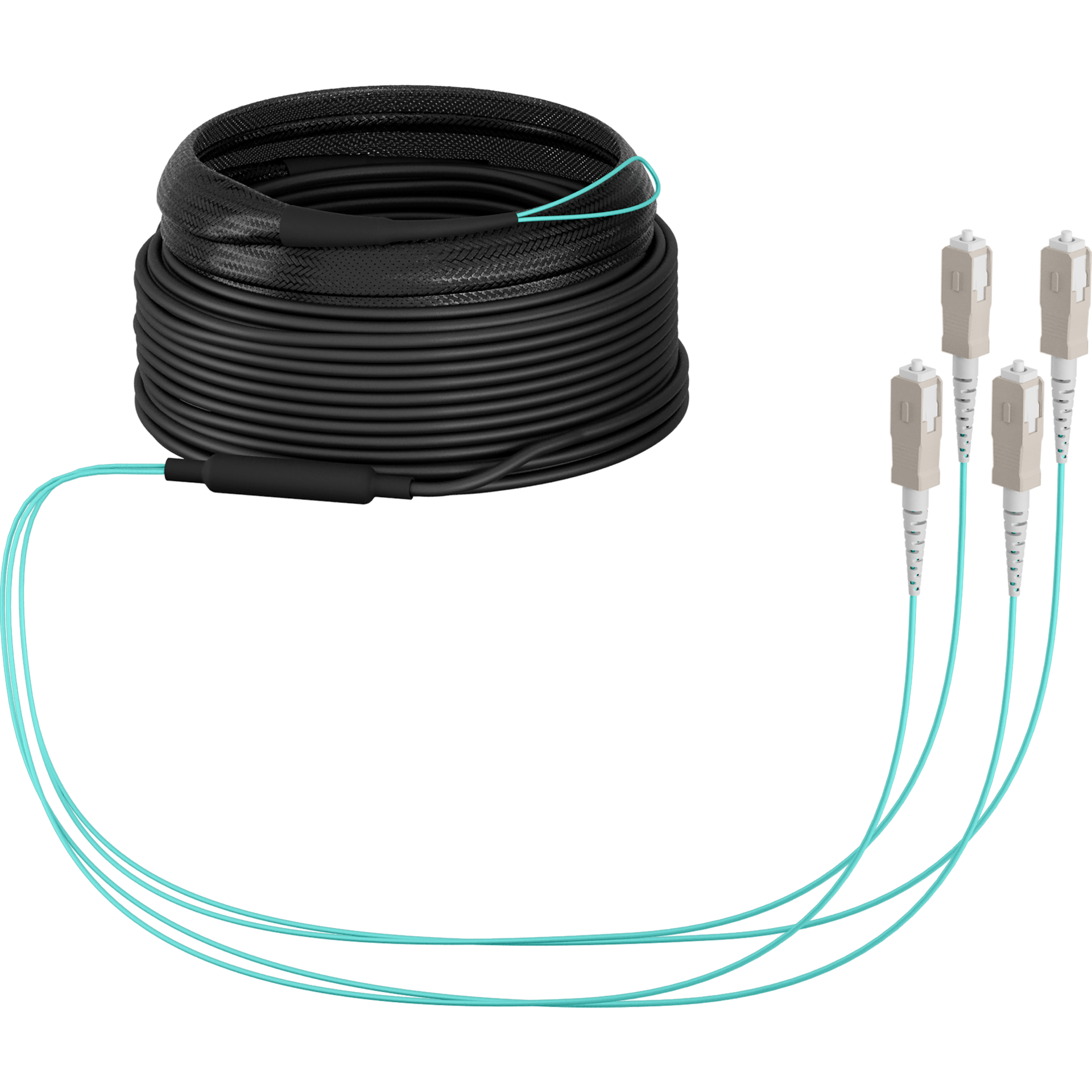

Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC

Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,10m Dca LSZH
Varenummer: O8301S10OM3

Produktinformation für Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,10m Dca LSZH

EFB sets standards in high quality

For many years, EFB has been offering individual fiber optic assemblies from its own production for insertion into cable ducts and shafts. Now there is also a standard line, which is kept in stock. These are pre-assembled trunk cables with SC connectors in the OS2, OM3 and OM4 categories. The stocked lengths can be found in the overview below.

Advantages:
Fast delivery: standard lengths up to 200 m in standard quantities available from stock
Reduction of installation costs: No splicing and assembly equipment required
Reduced installation time: cable ready for direct installation
Traceable quality: cable with serial number and measurement protocol

Performance features:
4, 8 or 12 fibers per cable
Fibre class OS2, OM3 or OM4
Factory production, polishing and function test

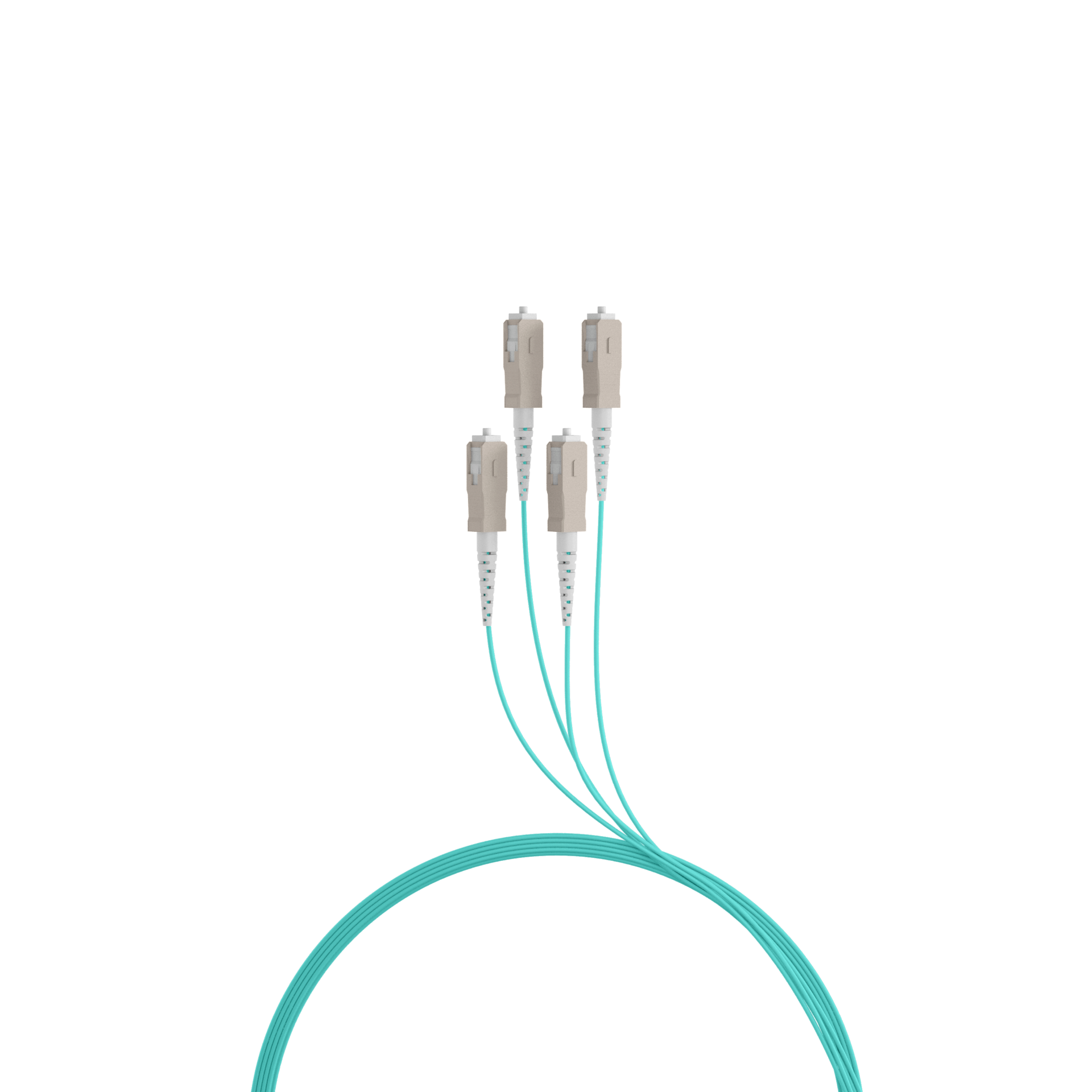

Double-sided assembled stepped cable whips (longest length 1 m)
Identification of the remote individual cables with cable markers (numbers)
Serial number on the cable
Attenuation protocol for each individual fiber is provided

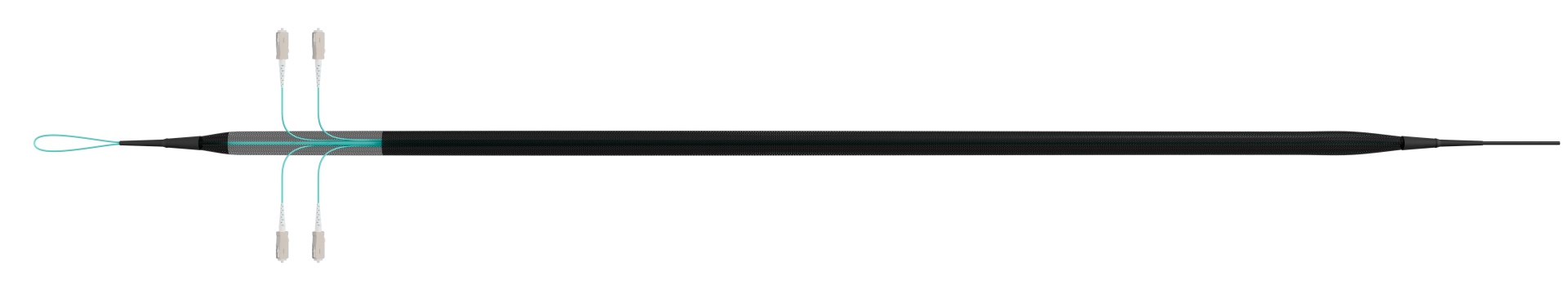

Delivery on both sides with fabric hose as drawing-in tube
Delivery up to 40 m in polybag, from 50 m on disposable drum
Raw cable: CPR-Class Dca
Length of the draw-in tube of 130cm, diameter: 4 fiber approx. 10mm, 8 fiber approx. 15mm, 12 fiber approx. 20mm

Tekniske egenskaber

APC-version: False
Anti-kink sleeve: put-on
Bend optimized fiber: no
Cable Conform to Standard: IEC 60793-2
Cable Construction: Multifiber
Cable type: U-DQ (ZN) BH
Cable Ø: 6.0 mm
Category: OM3
Colour outer sheath: black

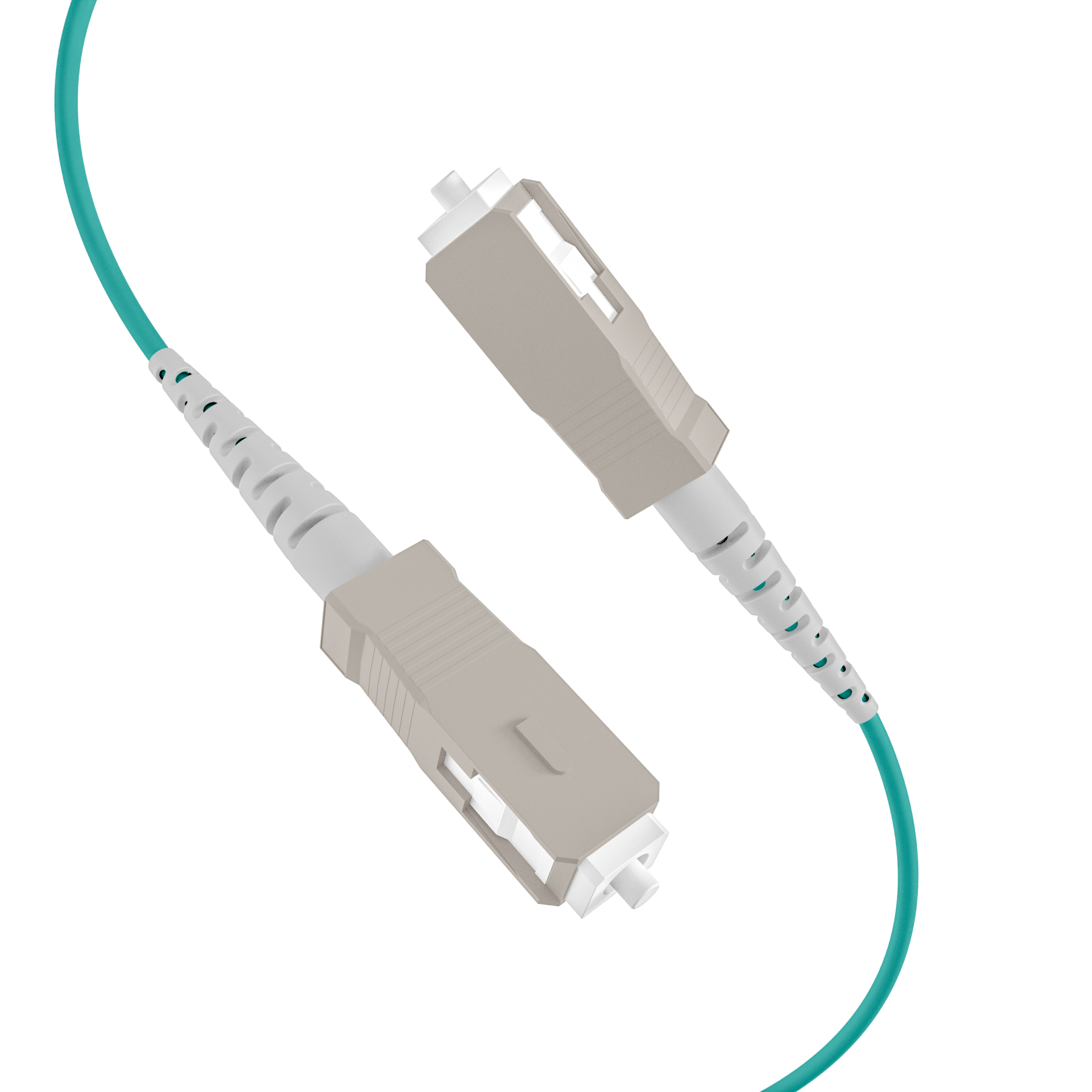

Connector Conform to Standard: IEC 61754-4
Connector colour 1: beige
Connector colour 2: beige
Dimension Cable divider: 11.5 x 50 mm
Fibre type: Multimode 50/125
Insertion loss 850nm: < 0,3
Jacket material: LSZH
Max. Tension: 200 N
Min. Bending radius (Dynamic): 180 mm
Min. Bending radius (Static): 90 mm
Number of fibres: 4
Operating Temperature: 0 – 50 °C
Quality class multimode: A/1 acc. IEC-61753-222-2
Storage Temperature: -20 – 70 °C

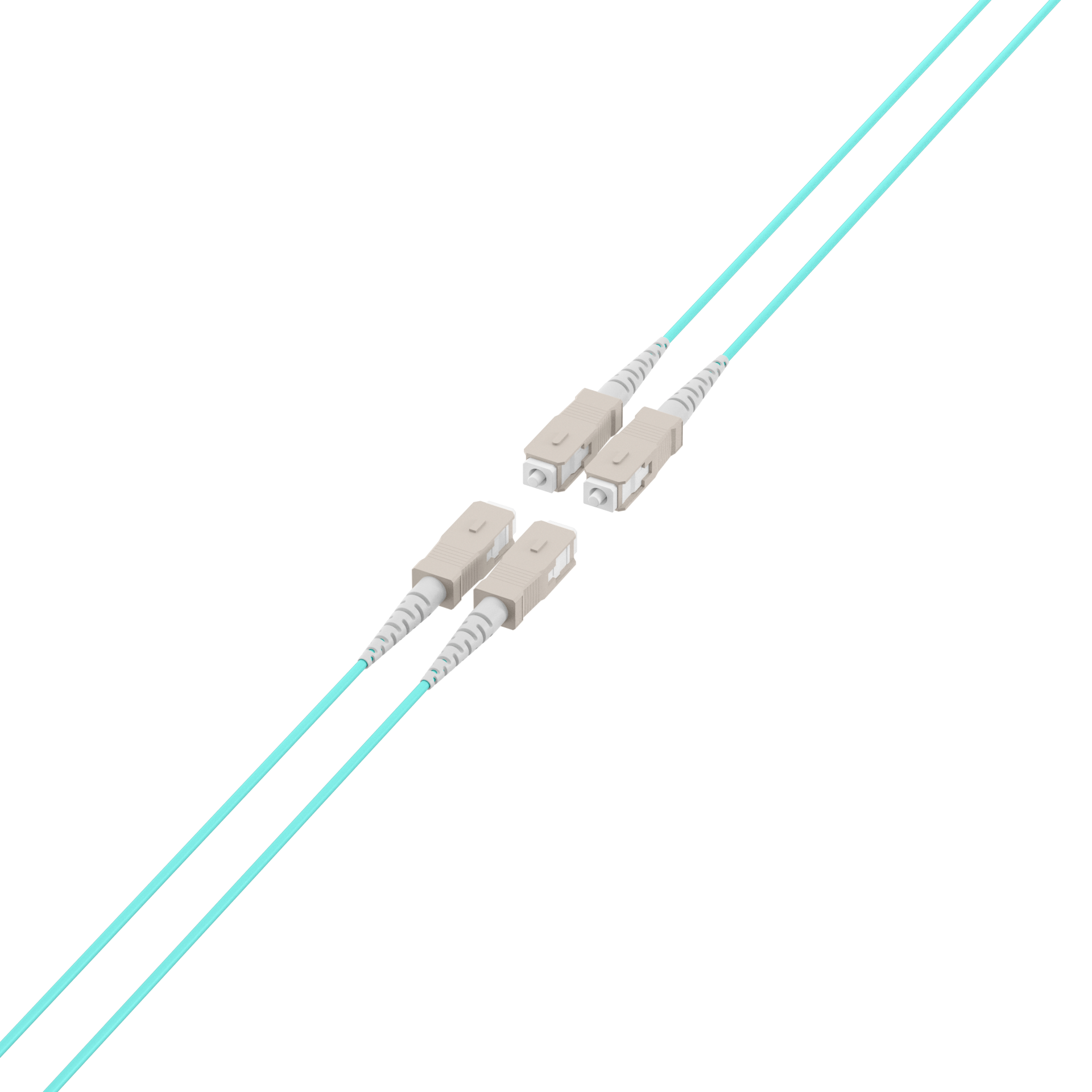

Type of connector connection 1: 4 x SC
Type of connector connection 2: 4 x SC

Varianter

Art. Nej. Betegnelse Length Length tolerance
O8301S10OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,10m Dca LSZH 10.0 m ±5 %
O8301S20OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,20m Dca LSZH 20.0 m ±5 %
O8301S30OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,30m Dca LSZH 30.0 m ±5 %
O8301S40OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,40m Dca LSZH 40 m ±5 %
O8301S50OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,50m Dca LSZH 50 m ±5 %
O8301S60OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,60m Dca LSZH 60 m ±5 %
O8301S70OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,70m Dca LSZH 70 m ±5 %
O8301S80OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,80m Dca LSZH 80 m ±5 %
O8301S90OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,90m Dca LSZH 90 m ±5 %
O8301S100OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,100m Dca LSZH 100 m ±5 %
O8301S110OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,110m Dca LSZH 110 m ±5 %
O8301S120OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,120m Dca LSZH 120 m ±5 %
O8301S130OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,130m Dca LSZH 130 m ±5 %
O8301S140OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,140m Dca LSZH 140 m ±5 %
O8301S150OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,150m Dca LSZH 150 m ±5 %
O8301S160OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,160m Dca LSZH 160 m ±5 %
O8301S170OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,170m Dca LSZH 170 m ±5 %
O8301S180OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,180m Dca LSZH 180 m ±5 %
O8301S190OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,190m Dca LSZH 190 m ±5 %
O8301S200OM3 Trunk cable U-DQ(ZN)BH OM3 4G (1x4) SC-SC,200m Dca LSZH 200 m ±5 %
